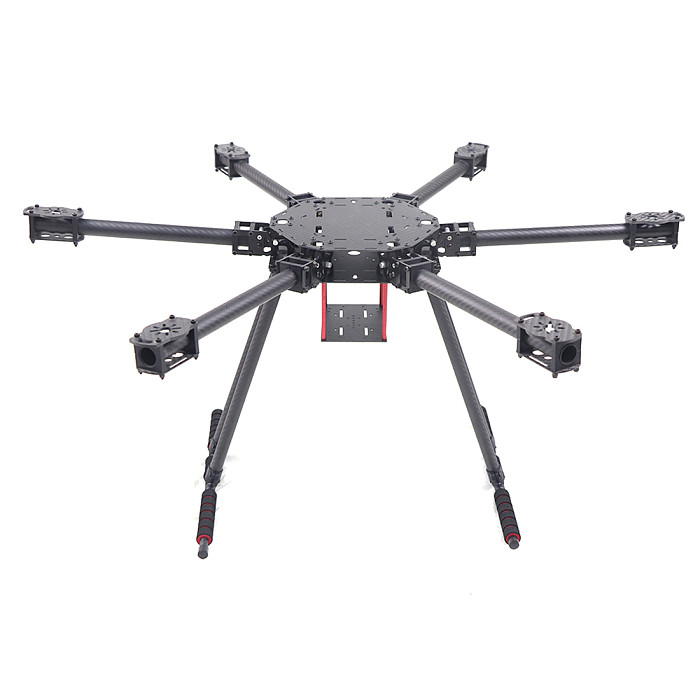

JMT ZD700 700mm Ordinary & Upgrade Pro Six-Axle Carbon Fiber Umbrella Folding Hexacopter Frame Kit with Landing Gear Airplane
-
Detail
- Product Name: JMT ZD700 700mm Ordinary & Upgrade Pro Six-Axle Carbon Fiber Umbrella Folding Hexacopter Frame Kit with Landing Gear Airplane
- Item NO.: F45048-D1 F45048-D2
- Weight: 1.111 kg = 2.4493 lb = 39.1894 oz
- Category: DIY RC Drone Accessories > Frame
- Brand: JMT
- Creation Time: 2021-09-29
JMT ZD700 700mm Ordinary & Upgrade Pro Six-Axle Carbon Fiber Umbrella Folding Hexacopter Frame Kit with Landing Gear Airplane
These are two types model:ZD700 700mm Ordinary & Upgrade ,If you have any questions pls contact us!
The model is made of aluminum alloy folding parts. The assembly is cumbersome and suitable for customers with strong hands-on ability. There are tutorials provided)
(The upgraded folding parts are more durable for hardware, easy to assemble and easy to use)
The arm adopts a 20mm carbon tube with a larger diameter, an 8-hole motor base, compatible with more motors, the center plate specification 200*200 has more space, the inner space of the frame is about 35mm, and the tripod adopts a vertical tube diameter of 16*300mm carbon Tube, tripod crossbar 10*330mm, more and more stable grounding area. Tripod uses double-tube carbon fiber as support, with a stronger bearing capacity of 50kg, tripod connection parts use plastic parts, low maintenance cost.
Specification:
- Item Model: ZD700 Pro/Ordinary
- Material: Carbon fiber
- Diagonal wheelbase: 700mm
- Uppper center board thickness: 1.5mm
- Upper center board size: 200*200mm
- Bottom center board thickness:2.0mm
- Bottom center board size:200x190mm
- Battery board size:110x80x1.5mm
- Red Aluminum Column Length:90MM
- Arm tube size:18x20x260mm
- Height between two center plate: 35mm
- Landing gear horizontal tube length: 8*10*330mm
- Landing gear stand tube length:14*16*300mm
- Weight: 1060g(with fixed landing gear)
- Pipe clamp size:20mm
- Eight hole motor mount:0-18-25mm
Highlights:
1,Arm adopting 20mm carbon tube to gain larger diameter;
2, 8 hole motor mount,compatible with more motors.
3,Landing skid comes with 16x300mm stand tube and 10x330mm horizontal tube,more stability for take-off and landing of drone.
4,Double carbon fiber tube for landing skid,stronger bearing capacity.
5, 6s 8000mah 25c battery, the flight time is about 15 minutes. (Not Include the battery)
Package Including:
1x ZD700 PRO 700MM Or Ordinary Hexacopter Frame Kit
