Using PCIe 4.0 high-quality connectors, the PCB adopts high-frequency and low-resistance high-quality materials, the PCB workmanship is precise, the PCB uses high quality TG sheet, and the thickness of the copper material is thickened to 1oz.
The gold-plated conductive performance of the connector is good, which can reduce the problems such as the slow lag of the broken line and the slow lag caused by the increase of oxidation and rust impedance.
The power supply circuit strengthens the wiring design,miniaturization design of PCB board can reduce the interference of the mechanism, and the hardware is not stuck.
Easy to install,no need driver. SATA power adapter cable is included with the package, and only support 12V power supply.
Note: Incorrect assembly or improper operation will burn your equipment. Limited to the purchase of professional engineers.The external graphics card of the notebook is not supported !!
Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.
Product Description
********** [ Product Parameters ] **********

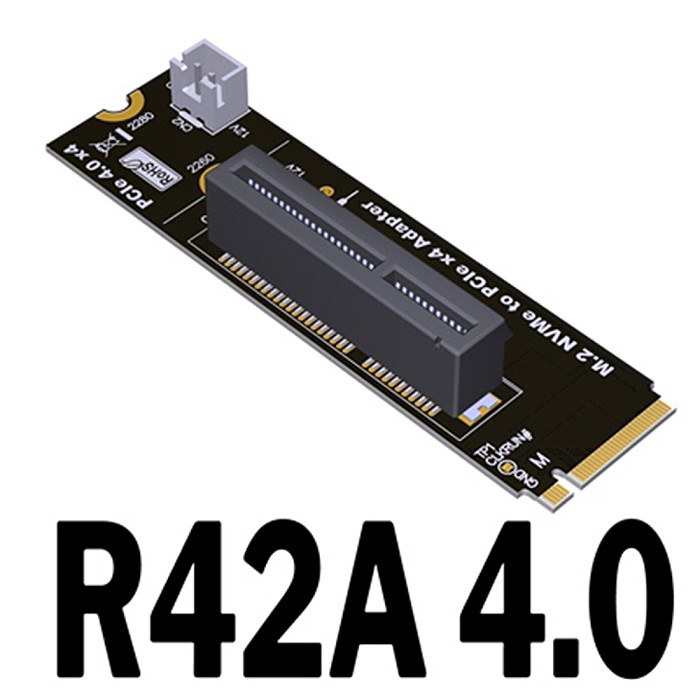

Product model:R42A 4.0

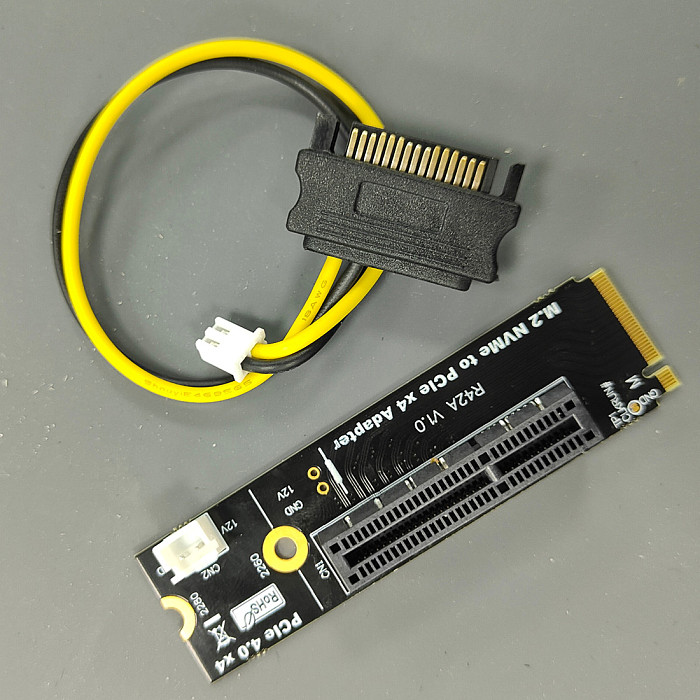

Product Name:M2 NVMe key-M To PCIe x4 switchboard
Product Size: 22x80mm
Bandwidth speed:PCIe 4.0 x4
Applicable card: high-speed network card, acquisition card, NVMe SSD hard disk card, USB adapter, PCI-E x4 and other interfaces.
Tips: Incorrect assembly or improper operation will burn your equipment. Limited to the purchase of professional engineers.The external graphics card of the notebook is not supported!!

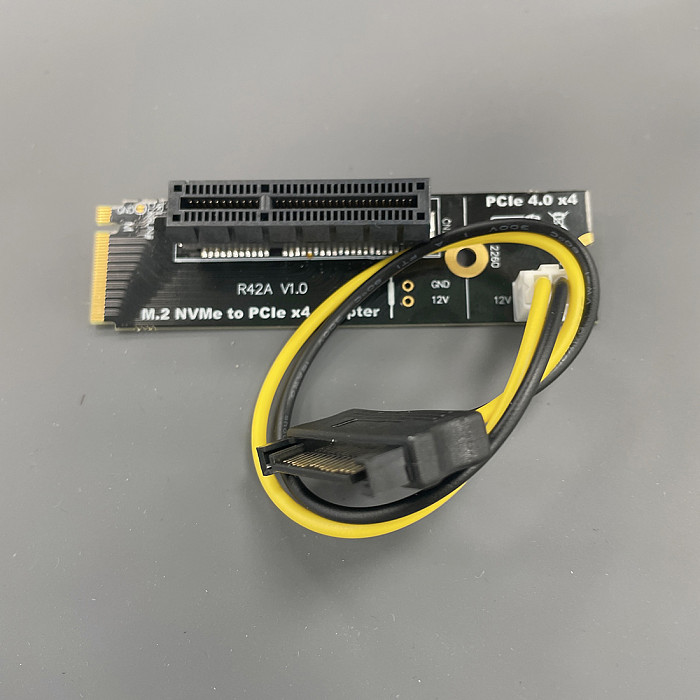

Accessories description: SATA power adapter cable is included with the package, and only support 12V power supply.
********** [ Product advantages ] **********
Material advantages:
1. Using PCIe 4.0 high-quality connectors, the PCB adopts high-frequency and low-resistance high-quality materials, the PCB workmanship is precise, the PCB uses high quality TG sheet, and the thickness of the copper material is thickened to 1oz;

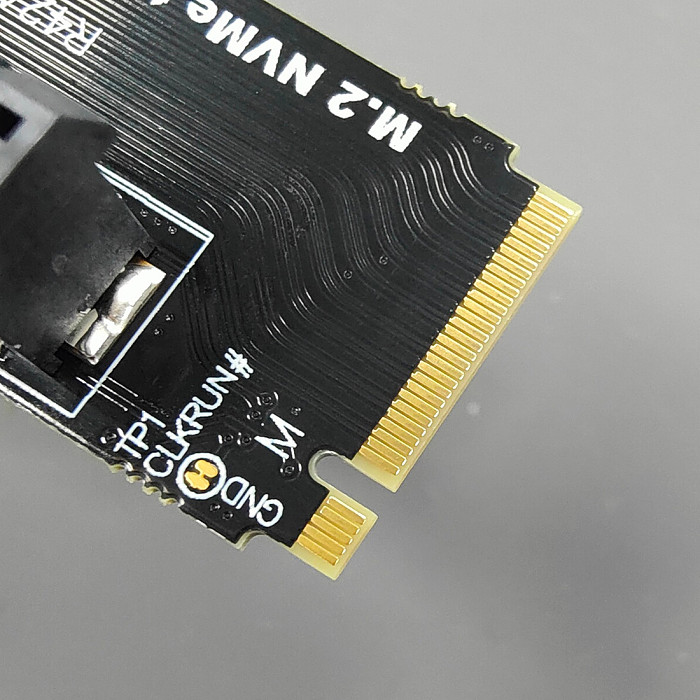

2. The gold-plated conductive performance of the connector is good, which can reduce the problems such as the slow lag of the broken line and the slow lag caused by the increase of oxidation and rust impedance.
Design advantages:
1. Differential signal enhanced layout design, there will be no problems such as CAF micro-short circuit, high-speed signal data transmission, signal attenuation interference of parasitic capacitance and parasitic inductance, etc.
2. The power supply circuit strengthens the wiring design,miniaturization design of PCB board can reduce the interference of the mechanism, and the hardware is not stuck.

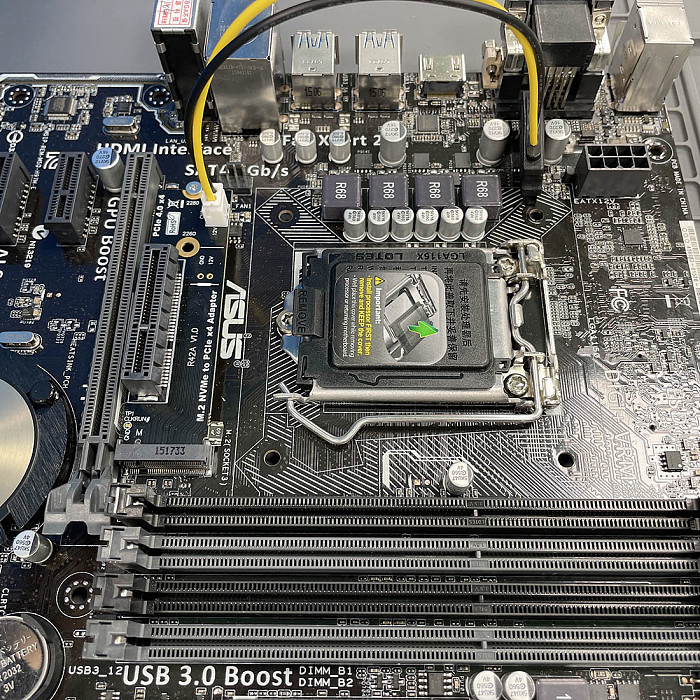

3.The product is easy to install,no need driver.
