JMT FS135 135mm Carbon Fiber Frame Kit with 1306 3100KV CW / CCW Brushless Motor 3052 3-blade Propeller for DIY RC Drone FPV Quadcopter Item NO.: F28235-A

Name: JMT FS135 135mm Carbon Fiber Frame Kit with 1306 3100KV CW / CCW Brushless Motor 3052 3-blade Propeller for DIY RC Drone FPV Quadcopter
Brand: JMT
SKU: F28235-A
Price: 21.82 USD
Availability: InStock

Write a Review Sold (1)

US$ 21.82

US$ 25.67 Save US$ 3.85 (15% Off)

Quantity: Stock ( 9999998 )

Estimate Shipping Cost

Add to Cart

Product Name	JMT FS135 135mm Carbon Fiber Frame Kit with 1306 3100KV CW / CCW Brushless Motor 3052 3-blade Propeller for DIY RC Drone FPV Quadcopter
Item NO.	F28235-A
Weight	0.3 kg = 0.6614 lb = 10.5822 oz
Category	DIY RC Drone Accessories > Propeller
Brand	JMT
Creation Time	2020-05-21

JMT FS135 135mm Carbon Fiber Frame Kit with 1306 3100KV CW / CCW Brushless Motor 3052 3-blade Propeller for DIY RC Drone FPV Quadcopter

Package include:
1x FS135 135mm Wheelbase Carbon Fiber Frame Kit
2x 1306 3100KV Brushless Motor CW
2x 1306 3100KV Brushless Motor CCW
2x 3052 3-blade Propeller

Product features:
- Frame Kit
X structure, suitable for racing, free fancy flight competition;
Support micro Swift, micro sparrow, mini camera or other lens;

Wheelbase: 135mm;
Arm thickness: 3mm;
Upper plate thickness: 2mm;
Lower plate thickness: 2mm;
Other board thickness: 1.5mm;
Weight: 33g;
Material: 3K carbon fiber;

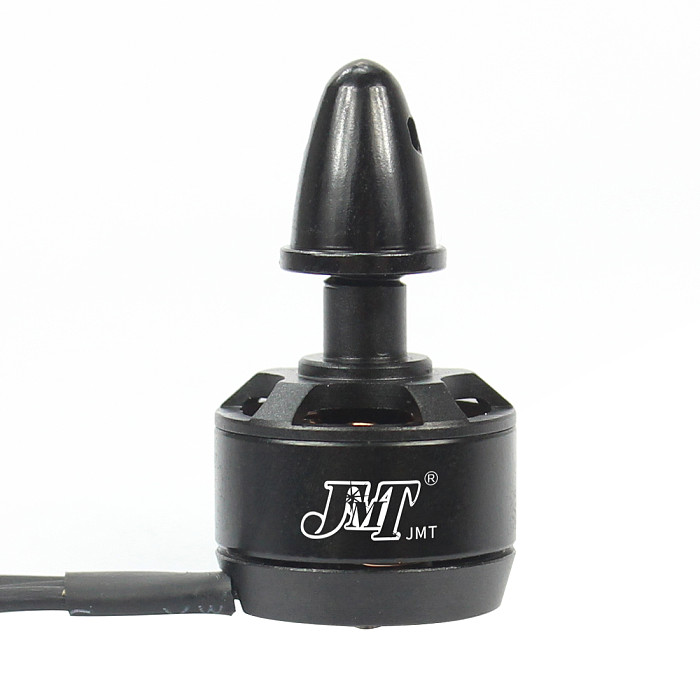

- Motors
KV: 3100
Stator Dia.:18mm
Stator Length: 14.1mm
Shaft Dia.: M4
Size:(Dia.*Len): Φ18×15.1mm
Motor Weigh(g): 13g
Power(Lipo): 2-3S
Recommanded ESC: OPTO mini 12A/16A/20A
Max Current(A): 7.6A
Max Power(W): 61W

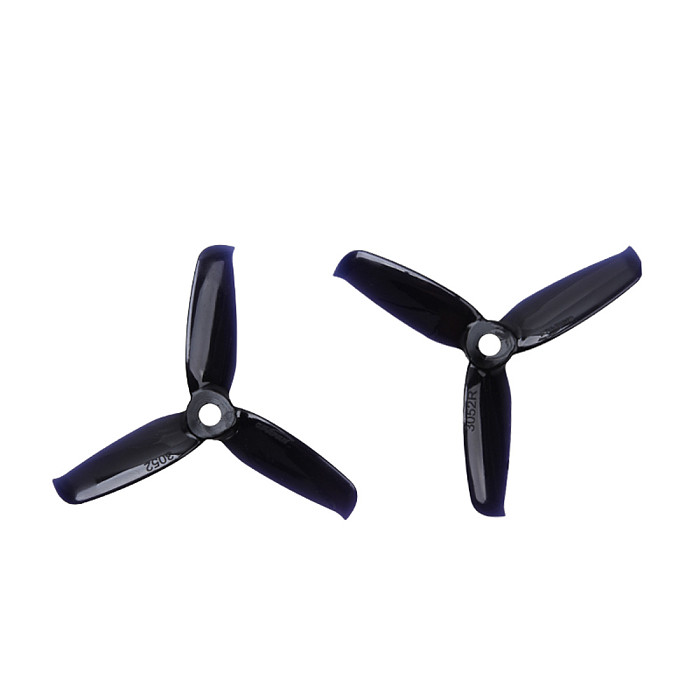

- Propeller
Item name: 3052 3 blade propeller
Size: 3052, 3.0x5.2
Weight: 1.65g
Material: PC
Color: black
Inner diameter (prop mount): 5mm
Hub thickness: 6mm
Blade width: 11.1mm
Paddle size: 11mm

Suitable for 1306-1806 motor
