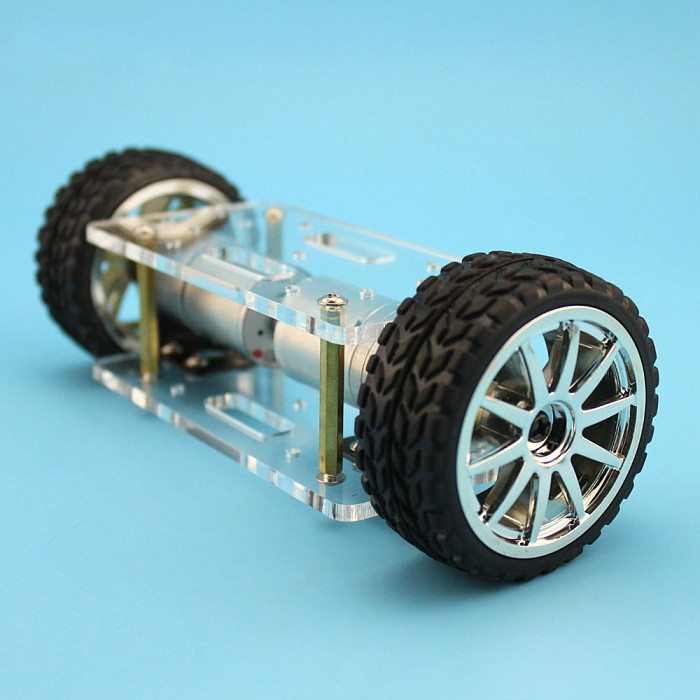

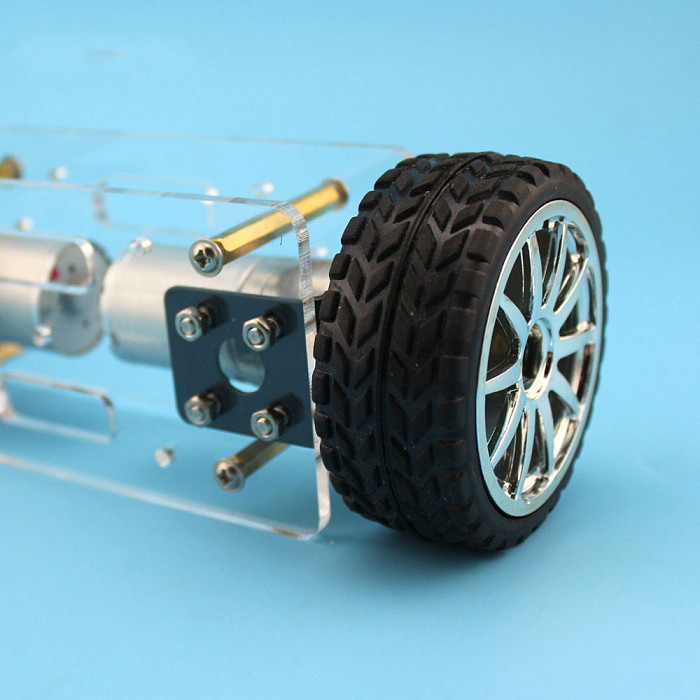

JMT Acrylic Plate Car Chassis Frame Self-balancing Mini Two-drive 2 Wheels 2WD DIY Robot Kit 176*65mm Technology Invention Toys

JMT Acrylic Plate Car Chassis Frame Self-balancing Mini Two-drive 2 Wheels 2WD DIY Robot Kit 176*65mm Technology Invention Toys Item NO.: F23639

Write a Review
US$ 11.33
US$ 12.32 Save US$ 0.99 (8% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name JMT Acrylic Plate Car Chassis Frame Self-balancing Mini Two-drive 2 Wheels 2WD DIY Robot Kit 176*65mm Technology Invention Toys
Item NO. F23639
Weight 0.4884 kg = 1.0767 lb = 17.2278 oz
Category Toy and Hobbies > Chassis Robot
Tag
Brand JMT
Creation Time 2018-01-07

JMT Acrylic Plate Car Chassis Frame Self-balancing Mini Two-drive 2 Wheels 2WD DIY Robot Kit 176*65mm Technology Invention Toys


Total Size: about  176 * 65mm

Acrylic plate size : 120 * 60 * 4mm

Height: about 65mm

Motor type: 25 Model Geared Motor

Number of motors: 2

Motor Parameters: Rated voltage: 6v,  no-load speed : 133RPM, reduction ratio: 1:45, load current: about 75mA, Stall current:  approximately  1.3A, total length: about 52MM, diameter: 25mm, shaft length : 12mm, shaft diameter : 4mm (D word pin side shaft), weight: about 90.24g

Tire Parameters: Diameter  65mm,   width of  26mm, the tread rubber material, plated plastic wheels

Body material: 4mm  transparent acrylic  plate

Weight: about  396 grams
