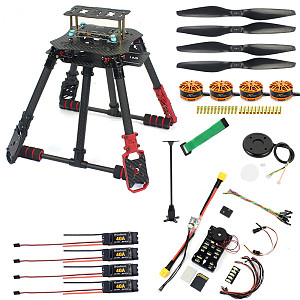

JMT 4-Axis DIY Drone PIX PX4 Flight Controller 560mm Carbon Fiber Foldable Frame 700KV Brushless Motor 40A ESC 1455 Props AT9S Radio

3 Options , pls check carefully before place the order  .

Set H

Carbon fiber folding frame kit x1(Unassembled）

HYD3508 700kv brushless motor x4(banana plug Soldered )

1455 carbon fiber propeller x2

Reverse buckle tie x1

Non-folding Landing gear x1

Antenna Holder x1

Servo cable x1

GPS X1

PIX PX4 Flight Controller Set x1

Set I

Carbon fiber folding frame kit x1(Unassembled）

HYD3508 700kv brushless motor x4(banana plug Soldered)

1455 carbon fiber propeller x2

Reverse buckle tie x1

Non-folding Landing gear x1

Antenna Holder x1

Servo cable x1

GPS X1

PIX PX4 Flight Controller Set x1

T8FB Transmiter with R8EF Receiver

Set J

Carbon fiber folding frame kit x1(Unassembled）

HYD3508 700kv brushless motor x4(banana plug Soldered )

1455 carbon fiber propeller x2

Reverse buckle tie x1

Non-folding Landing gear x1

Antenna Holder x1

Servo cable x1

GPS X1

PIX PX4 Flight Controller Set x1

T8FB Transmiter with R8EF Receiver  x1

11.1V 4400MAH 30C 3S1P xt60 x1

Charger x1

More Details:

Frame kit:

• Wheelbase: 560mm

• Fit for Motor:2212-3508(920kv - 700kv)

• Fit for ESC: 20A-40A

• Height of the Landing Skid: 190mm

• Fit for Propeller: 10-12 inch

Propeller:

High quality 100% 3K all carbon fiber board which imported from Japan improve material.

Each pair of propellers has perfect dynamic poise and static balancing which balance by manpower.

Especially improves the air-powered efficiency and aerofoil stability.

High quality ultra-light carbon fiber propellers especially designed for multicopters.

Carbon fiber forward propeller*1

Carbon fiber reverse propeller*1

Length:14inch,Pitch 5.5,Main Hole Dia 4mm,Side Holes Dia 3mm,Center distance 12mm

Motor:

Motor KV: 700KV

Shaft: 4.0mm

No-load Currency (A): 0.4A

Maximum Currency (A): 18.0A

Power: 198W

Weight: about 90g

Input Voltage: 2-4S LOPO

Suitable Propeller: 12"-15" Props

ESC:

Types: long, short
Current:  40A
Output capacity: continuous current 40A, short-time current 55A (not less than 10 seconds)
Power input: 2-4 lithium batteries(Not Included)
BEC output: 5V@3A (linear regulator mode - linear mode)
Maximum speed: 210,000 rpm for 2-pole motor, 7000 rpm for 6-pole motor, 35,000 rpm for 12-pole motor
Size: (Approx) 68x25x8mm

B3 pro Charger :

Input Voltage : 100 - 240V AC50 / 60Hz

Battery Full : Green

T8FB Technical Parameters

1. Size: T8FB - 173*102*206mm, R8EH - 48.5*21*11mm.
2.Weight: 0.47kg(including R8EH)
3.Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
4.Modulation mode: GFSK
5.Channel bandwidth: 400KHz
6.Band width:1200KHz
7.Spread spectrum: FHSS
8.Adjacent channel rejection: >36dBM
9.Transmitter power: <100mW (20dBM)
10.Sensitivity: -104dBM
11.Speed rate:38kbps
12.PWM output: 1.0ms~2.0ms
13.Section precision: 2000, 0.5us per section
14.Cycle:15 ms/per frame
15.Radio T8FB operating voltage: 4.8V~18V
16.Radio T8FB operating current: <110mA
17.Receiver R8EF operating voltage: 4.6~10V
18.Receiver R8EF operating current: <30mA
19.Control distance: more than 1000 meters air, the actual control distance depends on the flying environment.



R8EH Receiver:
Channel: 8CH
Operating voltage: max 10V.
Operating current: 19-25mA(input voltage 5V)
Size: 48.5*21*11mm
Weight: 7g
Section precision: 4096
Signal output: S-BUS, PPM and PWM PWM
signal mode: Green LED, output 8 channel PWM signal.
SBUS/PPM signal mode: Both red and green LED on, CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time.
