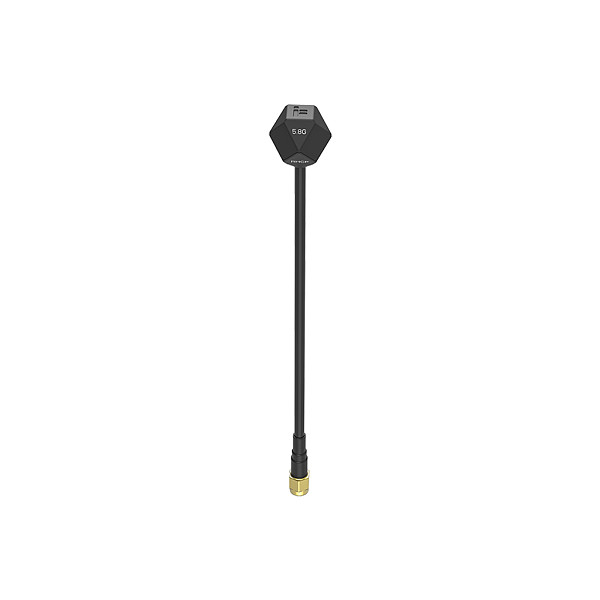

IFlight Albatross V2 SMA 5.8GHz 2.4dBi Antenna LHCP RP SMA / RHCP SMA 60MM / 100MM / 150MM for FPV Racing Drone part
-
Detail
- Product Name: IFlight Albatross V2 SMA 5.8GHz 2.4dBi Antenna LHCP RP SMA / RHCP SMA 60MM / 100MM / 150MM for FPV Racing Drone part
- Item NO.: F36558-D2 F36558-D3
- Weight: 0.03 kg = 0.0661 lb = 1.0582 oz
- Category: Consumer Electronics
- Creation Time: 2024-09-24
DescriptionIntroducing the new and improved Albatross V2 antenna! With upgraded welding technology and a unique rugged design, this antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2 antenna.
Use RP-SMA LHCP (Left Hand Polarization) for DJI Digital FPV! Default antennas are LHCP and Goggle Antennas are LHCP, both sides need to match!
Feature
A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
Achieves higher consistency in antenna gain, thereby improving device performance and stability.

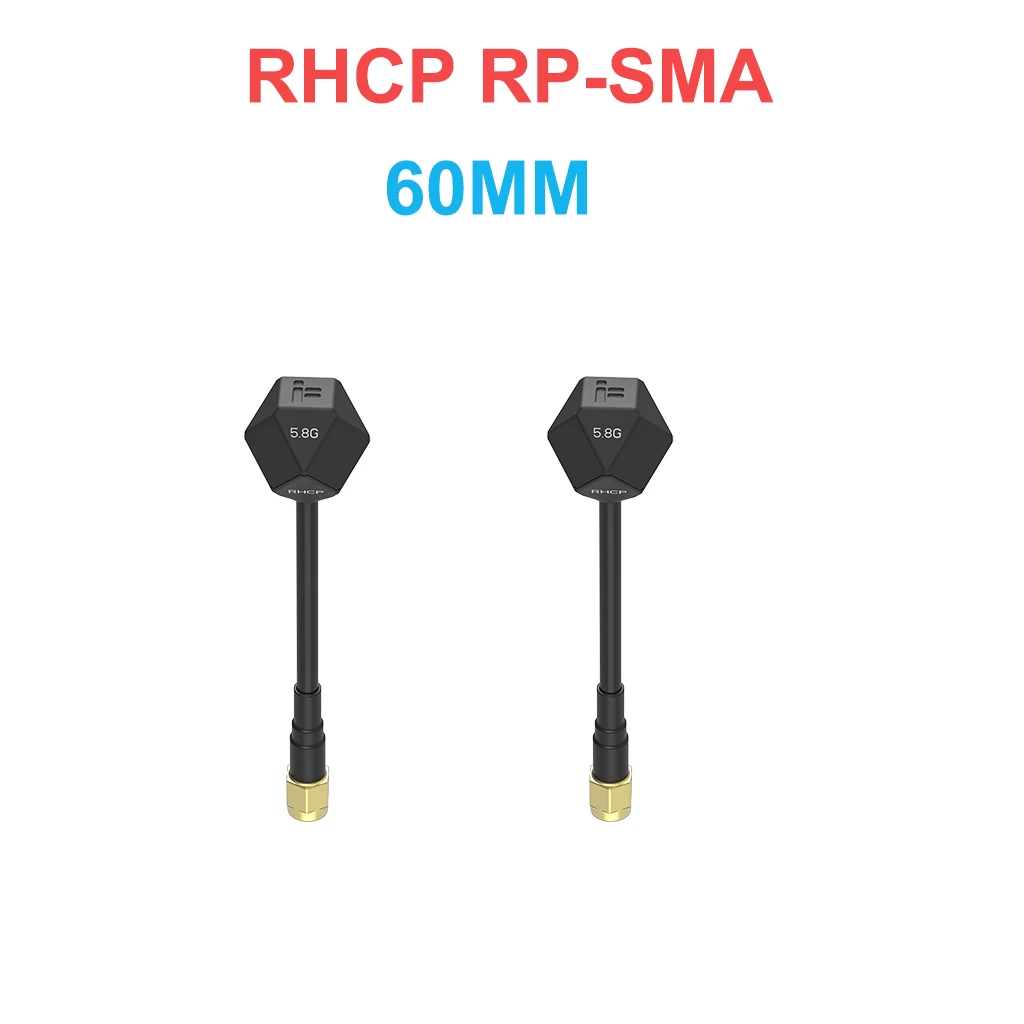

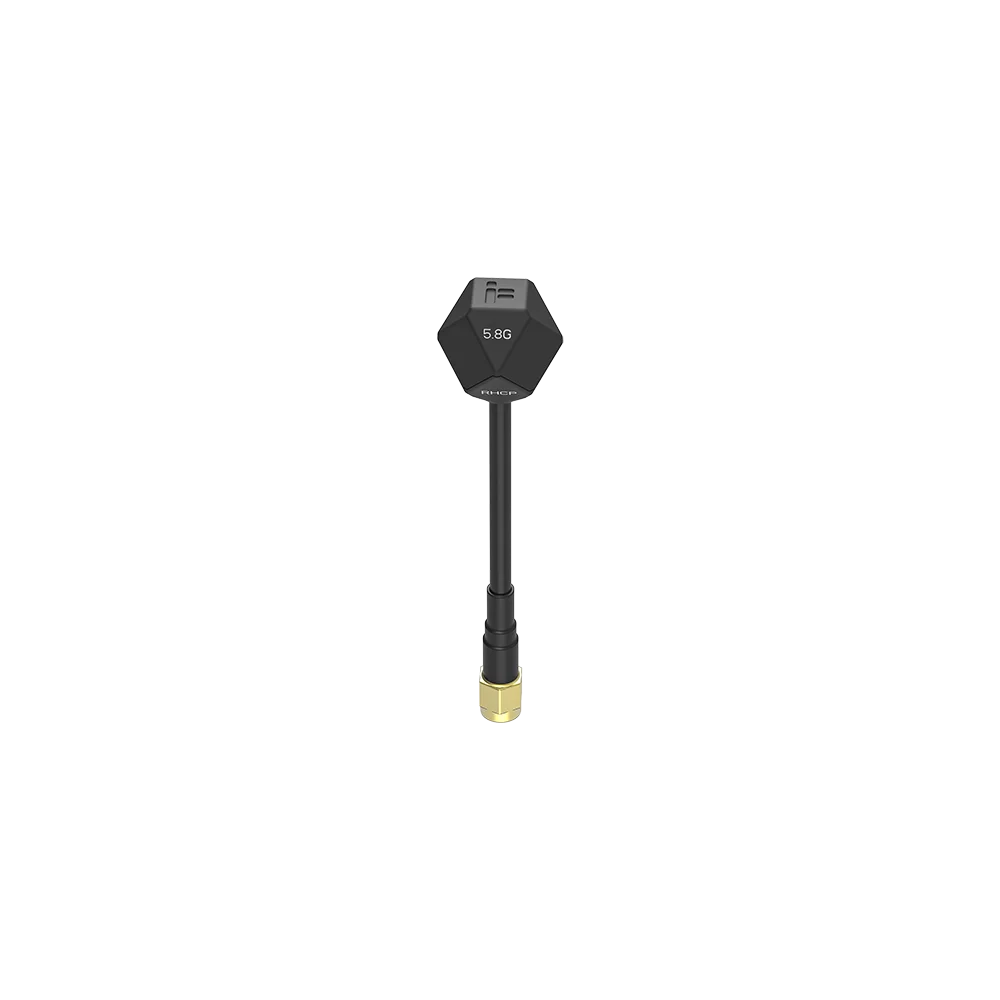

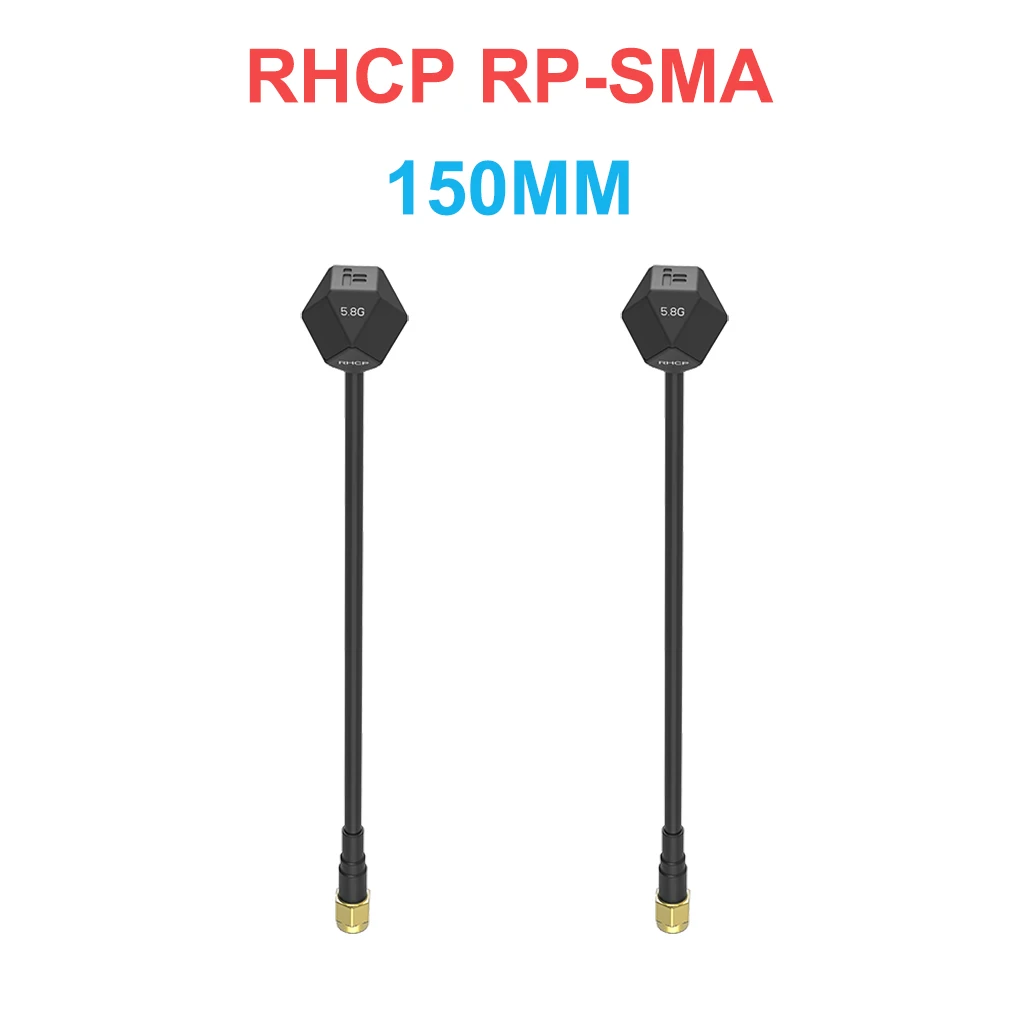

RHCP Specifications

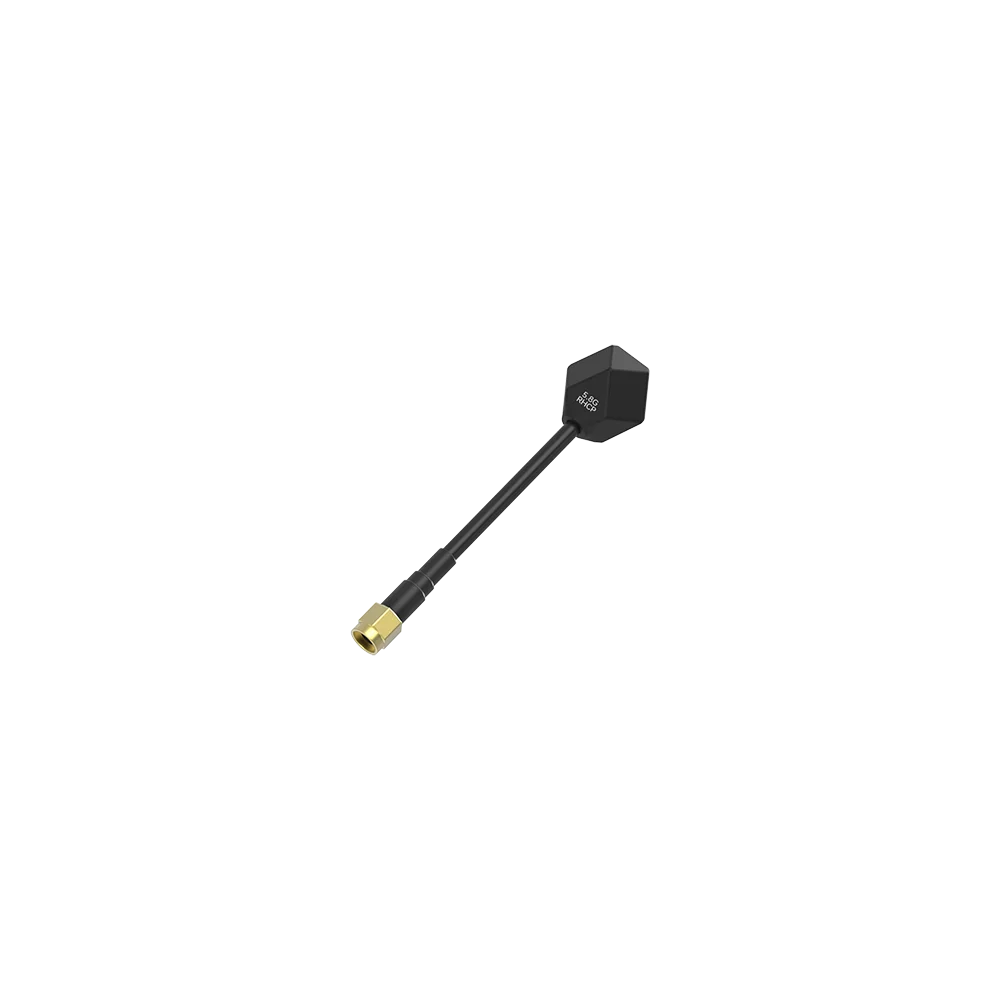

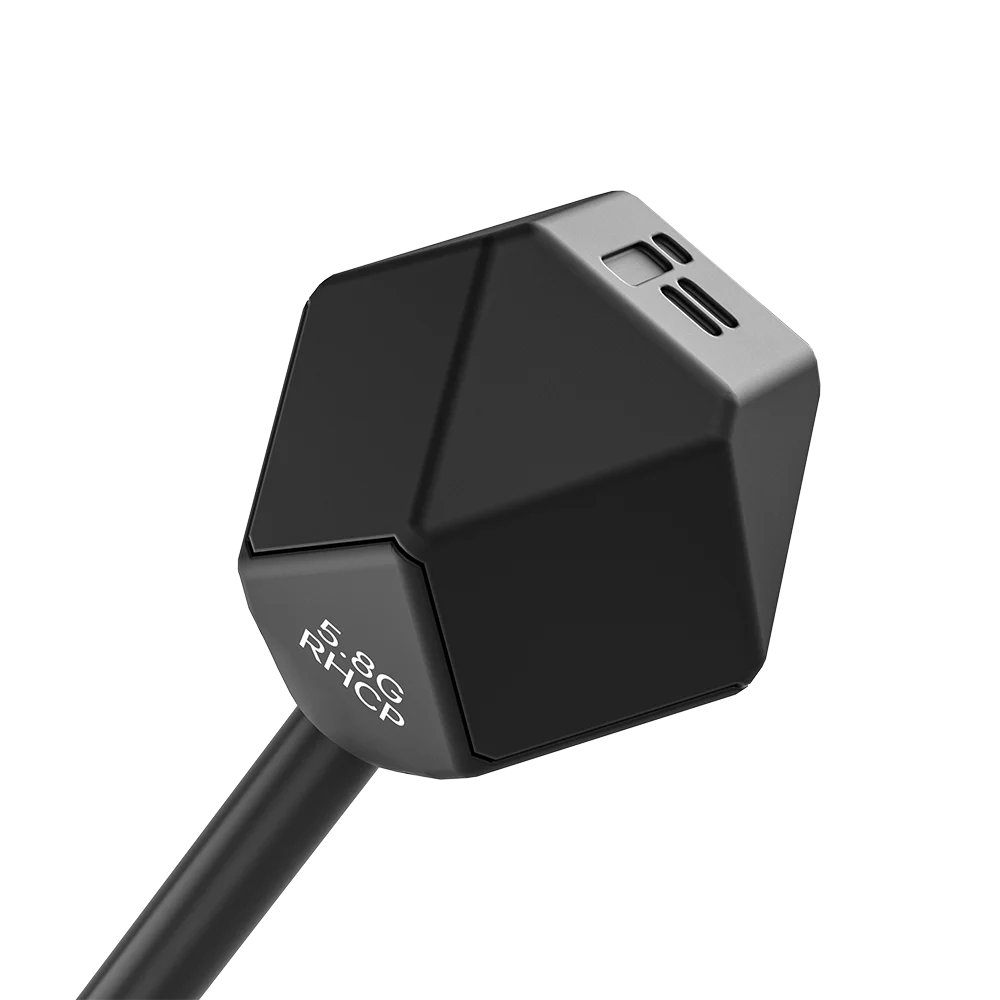

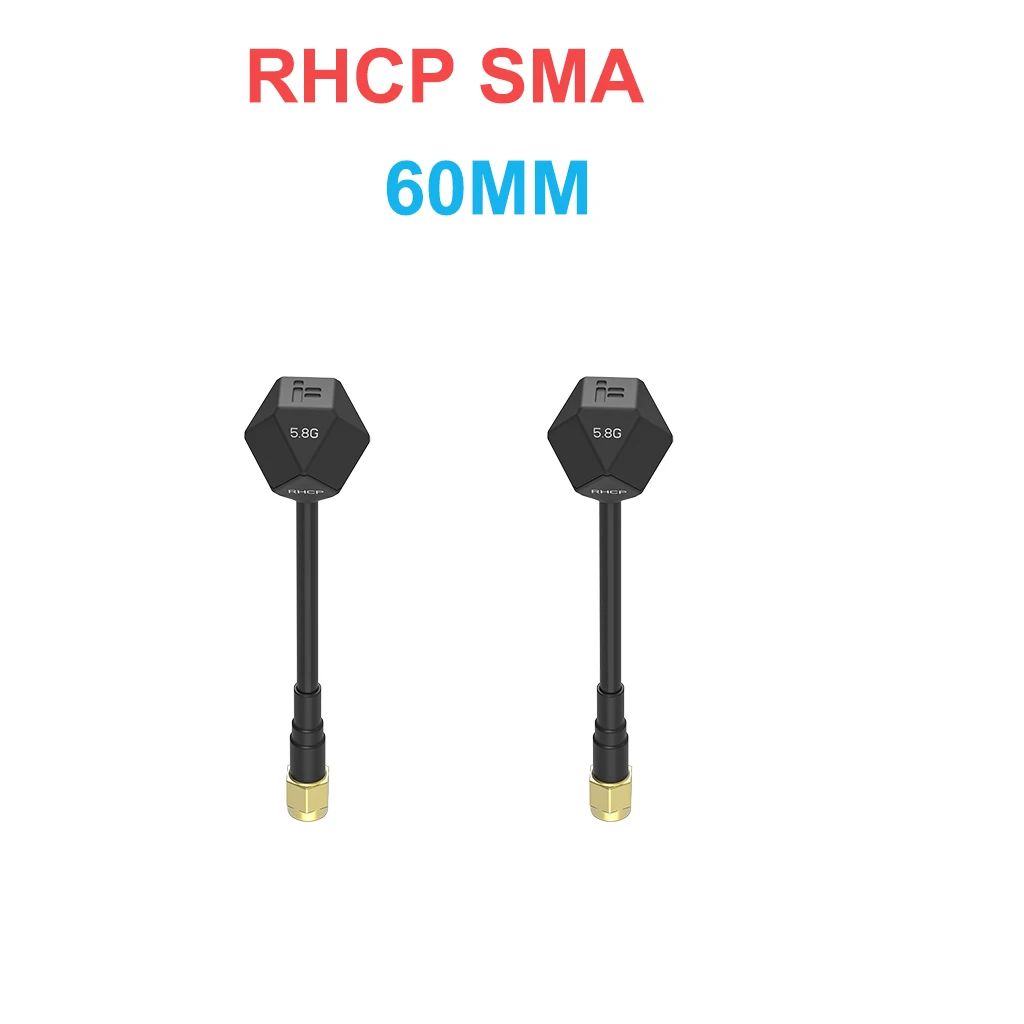

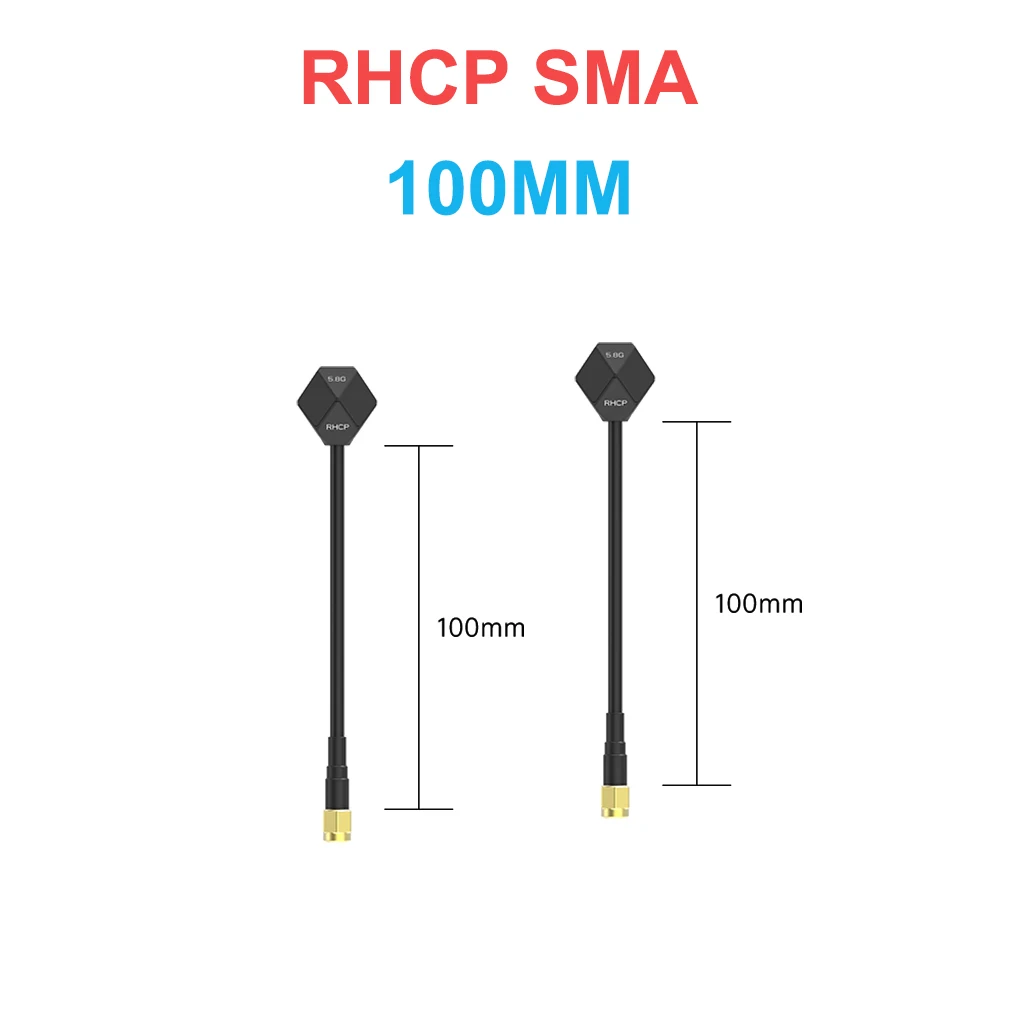

Model: Albatross 5.8GHz RHCP SMA/RP-SMA FPV Antenna

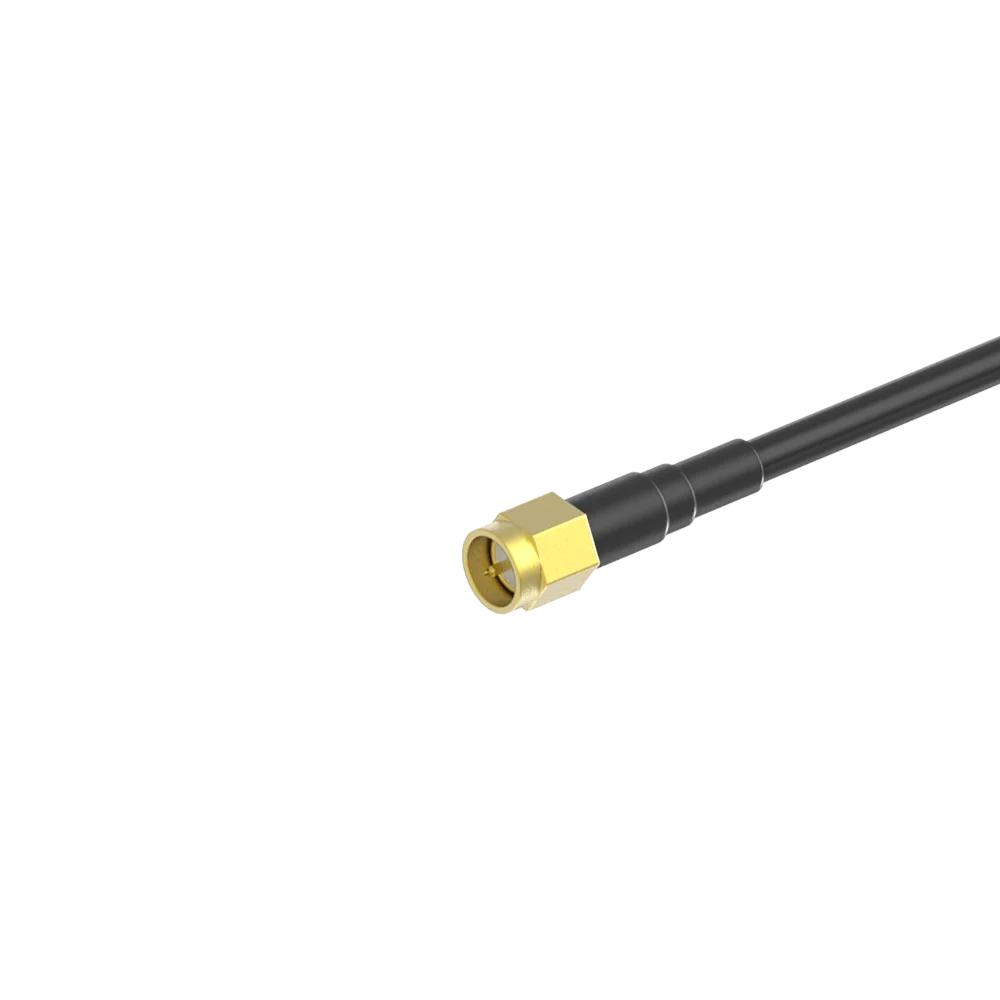

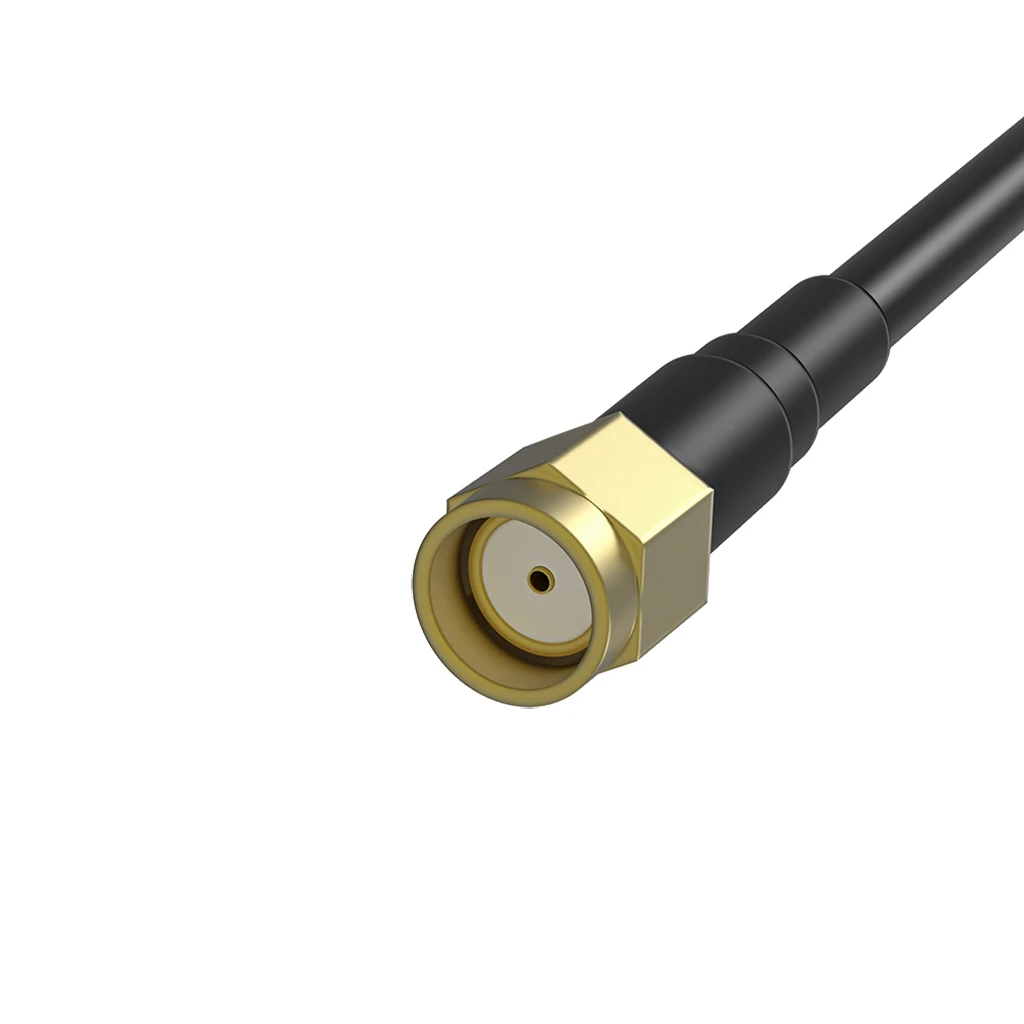

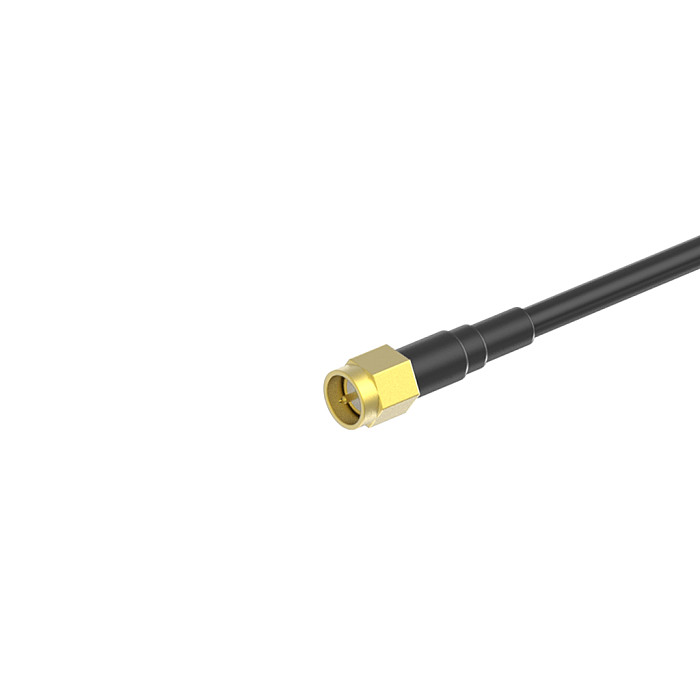

Interface: RHCP SMA, RHCP RP-SMA
Frequency range: 5.3GHz-6GHz
Max Gain: 2.65dBi (5695MHz)
MIN Gain: 2.06dBi (5362MHz)
AVG Gain: 2.4dBi
MAX VSWR: 1.76（5917MHz）
MIN VSWR: 1.46（5621MHz）
AVG VSWR: 1.75
MAX radiation efficiency: 86%（5436MHz）
MIN radiation efficiency: 76%（5917MHz）
AVG radiation efficiency: 83%
Polarization: RHCP
Cross polarization suppression: -25dB
Axial Ratio：≤3
Cable: RG141
Weight: 11.5g
Size: Total length: 175mm, cable length:150mm
LHCP Specifications

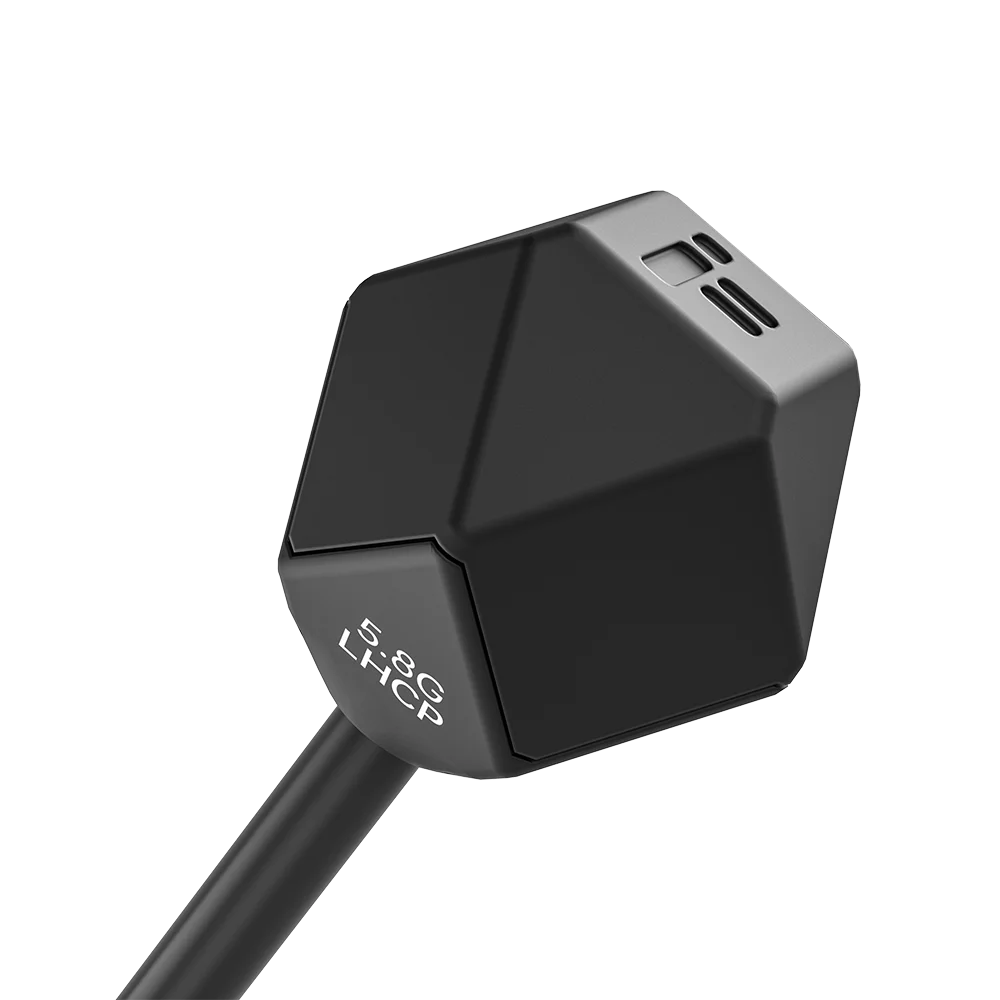

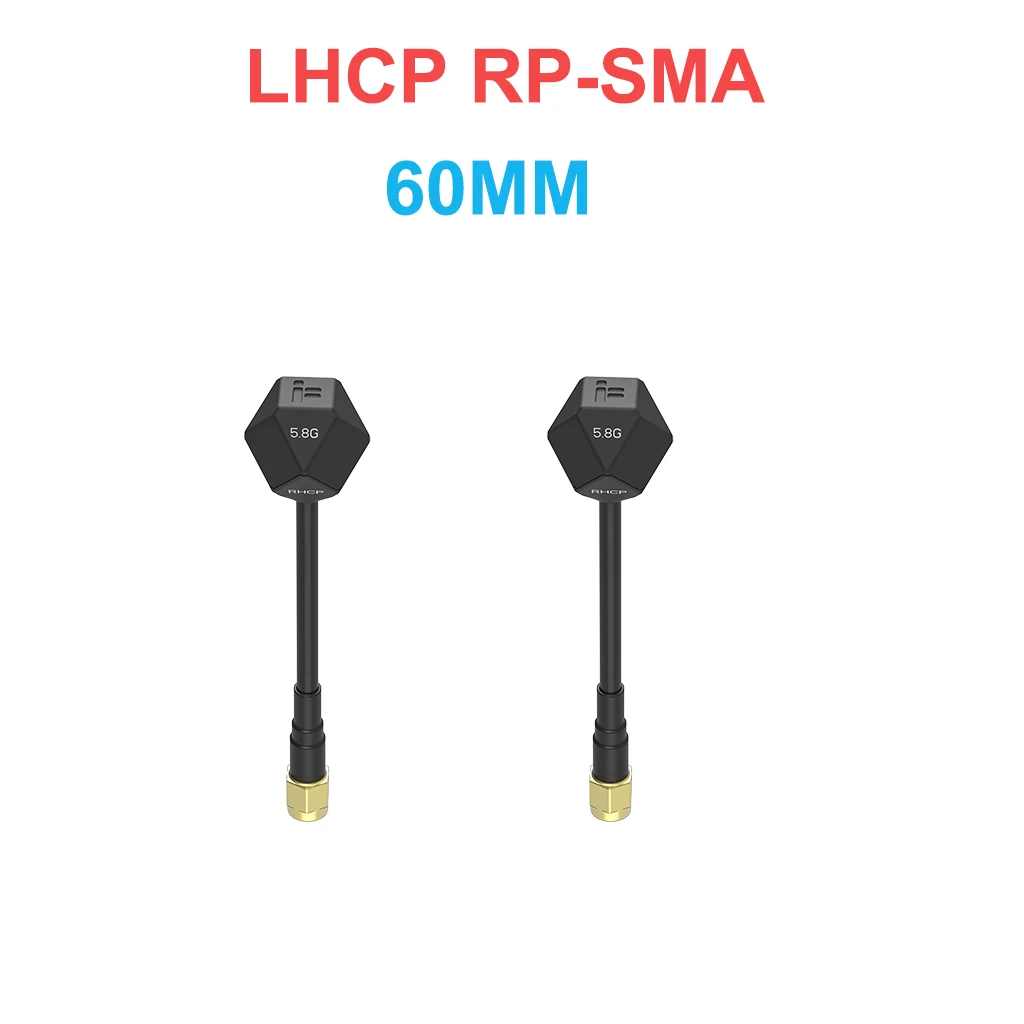

Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna
Interface: LHCP
Frequency range: 5.3GHz-6GHz
Max Gain: 2.72dBi (5621MHz)
MIN Gain: 2.12dBi (5436MHz)
AVG Gain: 2.42dBi
MAX VSWR: 1.72（5326MHz）
MIN VSWR: 1.35（5917MHz）
AVG VSWR: 1.62
MAX radiation efficiency: 84.25%（5917MHz）
MIN radiation efficiency: 73.5%（5326MHz）
AVG radiation efficiency: 80.3%
Polarization: LHCP
Cross polarization suppression: -26.7dB
Axial Ratio：≤3
Cable: RG141
Weight: 11.5g
Size: Total length: 175mm, cable length:150mm
Package List
2 x Albatross V2 5.8GHz 150mm Antenna
