Holybro Tekko32 F4 45A FPV ESC F4 MCU with AM32 firmware Build in Current sensor

Product Name	Holybro Tekko32 F4 45A FPV ESC F4 MCU with AM32 firmware Build in Current sensor
Item NO.	F48767
Weight	0.018 kg = 0.0397 lb = 0.6349 oz
Category	DIY RC Drone Accessories > ESC
Brand	Holybro
Creation Time	2025-04-08

The Tekko32 ESC runs in conjunction with an ARM 32bit compatible F4 MCU. It can run input signals with lower latency, at faster rates, smooths out the RPM band, is capable of both voltage and current monitoring and limiting, as well as offering customization of the brake on stop force.

Features:
F4 MCU with AM32 firmware Dshot1200 up to 32kHz
PWM up to 48k
Small size & low weight
Auto Timing Feature
On-Board RGB LED
Build in Current sensor
Smooth Response

Specification:
2-6s LIPO input
Ext. cap recommended for 6s (330uf 35v for 6s usage.)
45A designed

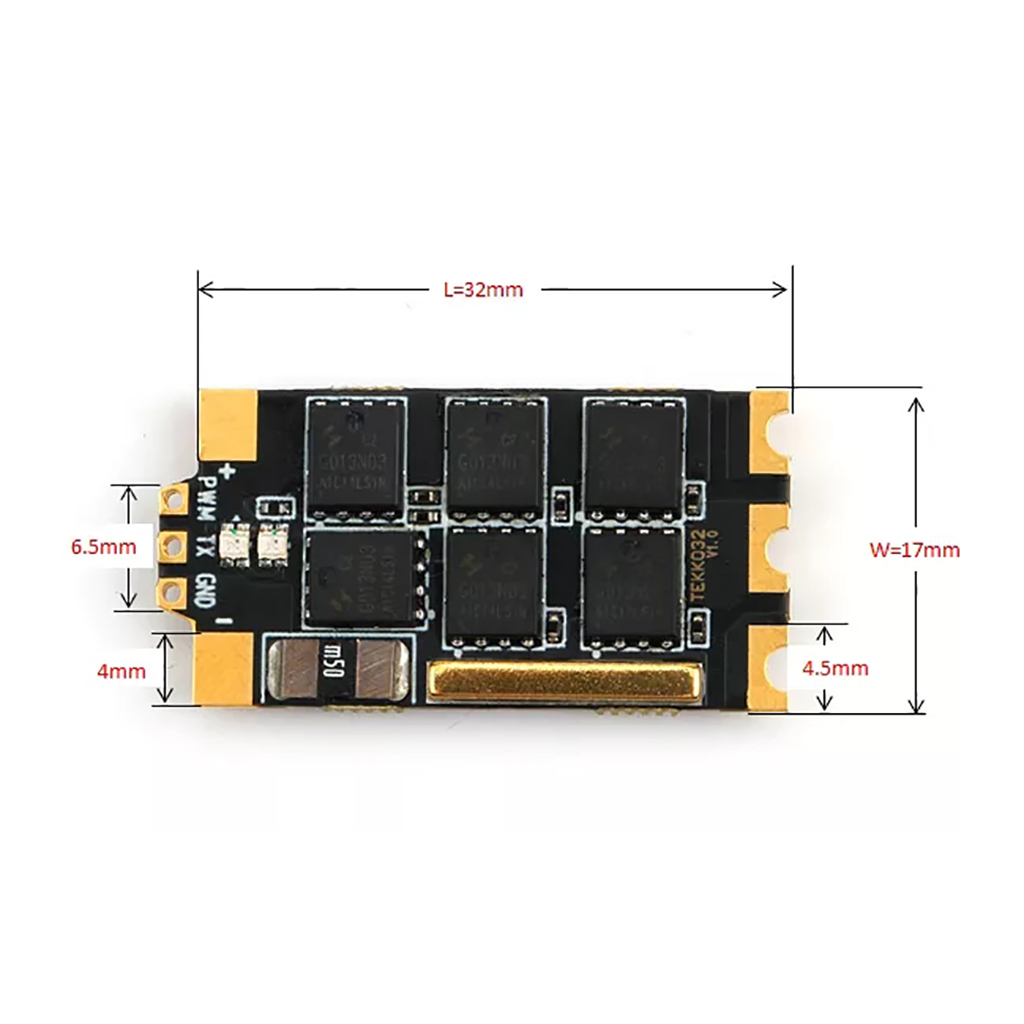

Size: 17.3*34.3*4.5mm

Weight: 5.8g

Package:
Tekko32 F4 45A ESC *1
Electrolytic capacito: 330uF 35v *1
24AWG 100mm Black wire *1
24AWG 100mm White wire *1
24AWG 100mm Blue wire *1
16AWG 100mm Red wire *1
16AWG 100mm Black wire *1
