Hobbywing XRotor Micro No BEC 30A BLHeli Mini ESC Support OneShot125 w/ Wires for FPV Racing Drone Copters Item NO.: F18631

Sold (18)

US$ 11.91

Type: 30A

Quantity: Stock ( 0 )

Estimate Shipping Cost

Out Of Stock

Product Name	Hobbywing XRotor Micro No BEC 30A BLHeli Mini ESC Support OneShot125 w/ Wires for FPV Racing Drone Copters
Item NO.	F18631
Weight	0.04 kg = 0.0882 lb = 1.4110 oz
Category	Rebate Big Discount
Brand	Hobbywing
Creation Time	2020-12-28

Please Note : When you try to calibration throttle ,please take off propeller , in case the accident .

Features

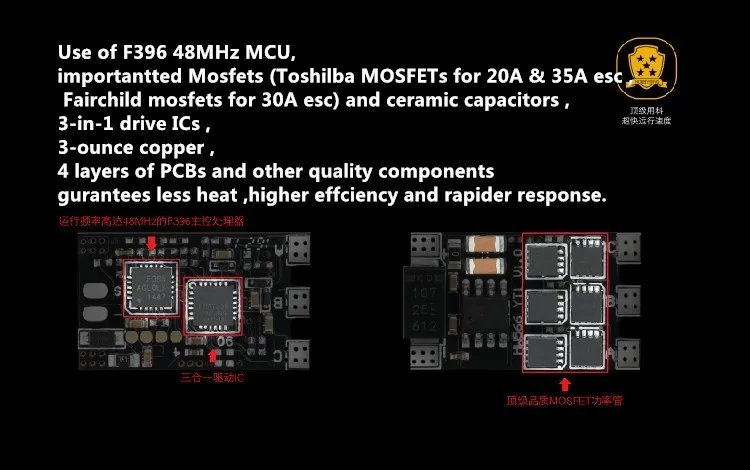

1.The use of F396 48MHz MCU, 3-in-1 drive IC, High quality MOSFETs 48MHz operating frequency .

2. Use BLHeli open source, through the throttle signal line upgrade or change parameters, support BLHeli full functionality.

3. The smaller size, lighter weight, easy installation.

4. ESC supports plain throttle mode (that is, the throttle signal is 1100μs ~ 1940μs) and OneShot125 throttle mode (that is, the throttle signal is 125μs ~ 250μs);

5. The throttle signal line is a twisted pair, effectively reducing crosstalk in signal transmission generated from a copper wire, so that more stable flight;

6. The normal throttle mode supports up to 500Hz refresh rates up to throttle signal, and is compatible with a variety of flight control;

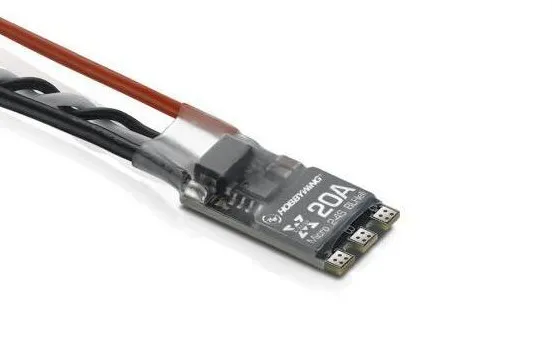

Product Name : Hobbywing XRotor 20A ESC

Spacification

Con./Peak.Current : 20A/30A

BEC : NO

Lipo: 2S-4S

Weight : 6.8g

Size : 24*13.9*5.5 mm

Wires & Connectors

Input Wires: Red-20AWG-100mm*1; Black-20AWG-100mm*1

Output Wires: No wires but solder tabs

Input Connectors: No

Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

Throttle Range Calibration: Supported

Stick Programming: Stick Programming/BLHeliSuite

DEO: Not Supported

OneShot Mode: Supported

Timing: Supported

Light Color: Not Supported

Motor Rotation: Supported

Suitable

FPVs with 130-280mm Diagonal Wheelbase

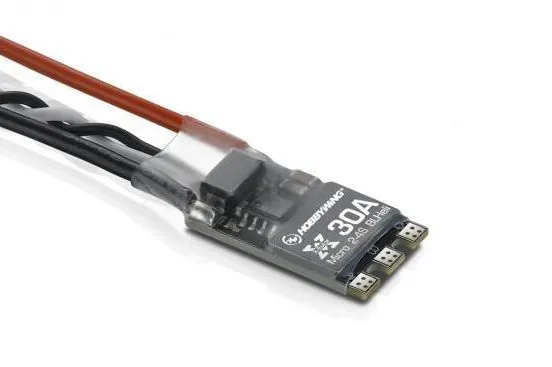

Product Name : Hobbywing XRotor 30A ESC

Spacification

Con./Peak.Current : 30A/40A

BEC : NO

Lipo: 2S-4S

Weight : 6.8g

Size : 24*13.9*5.5 mm

Wires & Connectors

Input Wires: Red-18AWG-100mm*1;Black-18AWG-100mm*2

Output Wires: No wires but solder tabs

Input Connectors: No

Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

Throttle Range Calibration: Supported

Stick Programming: Stick Programming/BLHeliSuite

DEO: Not Supported

OneShot Mode: Supported

Timing: Supported

Light Color: Not Supported

Motor Rotation: Supported

Suitable

FPVs with 130-280mm Diagonal Wheelbase

Product Name : Hobbywing XRotor 35A ESC

Spacification

Con./Peak.Current : 35A/50A

BEC : NO

Lipo: 3S-6S

Weight : 9.5g

Size : 26.5*16.7*5.5 mm

Wires & Connectors

Input Wires: Red-18AWG-100mm*1;Black-18AWG-100mm*3

Output Wires: No wires but solder tabs

Input Connectors: No

Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

Throttle Range Calibration: Supported

Stick Programming: Stick Programming/BLHeliSuite

DEO: Not Supported

OneShot Mode: Supported

Timing: Supported

Light Color: Not Supported

Motor Rotation: Supported

Suitable

FPVs with 150-330mm Diagonal Wheelbase
