Happymodel SE0803 0803 Motor with 10Pairs 40mm Props 1-3S Brushless Motor CW CCW 12000KV 16000KV 19000KV 1mm Shaft For 65-85mm FPV Whoop DIY Parts for Bwhoop75 Brushless Whoop Mobula7 Eachine TRASHCAN TC75

Happymodel SE0803 0803 Motor with 10Pairs 40mm Props 1-3S Brushless Motor CW CCW 12000KV 16000KV 19000KV 1mm Shaft For 65-85mm FPV Whoop DIY Parts for Bwhoop75 Brushless Whoop Mobula7 Eachine TRASHCAN TC75 Item NO.: /F27558-B

5.0
(1)
Write a Review
US$ 35.70
US$ 42.00 Save US$ 6.30 (15% Off)
Sold Out

Copy and share this link on social network or send it to your friends

Copy
  • Happymodel SE0803 0803 Motor with 10Pairs 40mm Props 1-3S Brushless Motor CW CCW 12000KV 16000KV 19000KV 1mm Shaft For 65-85mm FPV Whoop DIY Parts for Bwhoop75 Brushless Whoop Mobula7 Eachine TRASHCAN TC75
Product Name Happymodel SE0803 0803 Motor with 10Pairs 40mm Props 1-3S Brushless Motor CW CCW 12000KV 16000KV 19000KV 1mm Shaft For 65-85mm FPV Whoop DIY Parts for Bwhoop75 Brushless Whoop Mobula7 Eachine TRASHCAN TC75
Item NO. /F27558-B
Weight 0.062 kg = 0.1367 lb = 2.1870 oz
Category DIY RC Drone Accessories > Motor
Brand Happymodel
Creation Time 2019-03-06

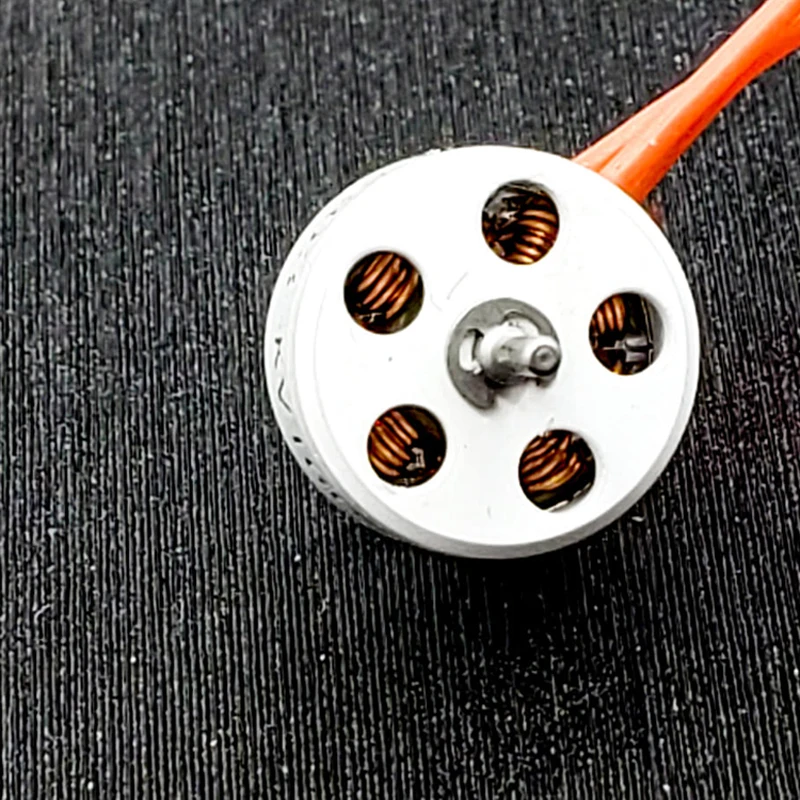

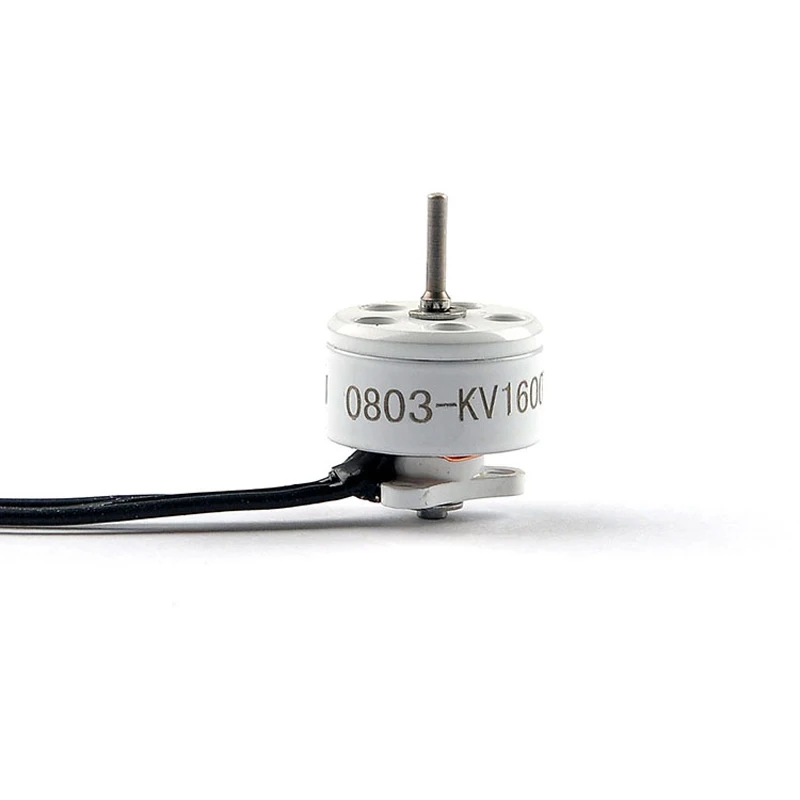

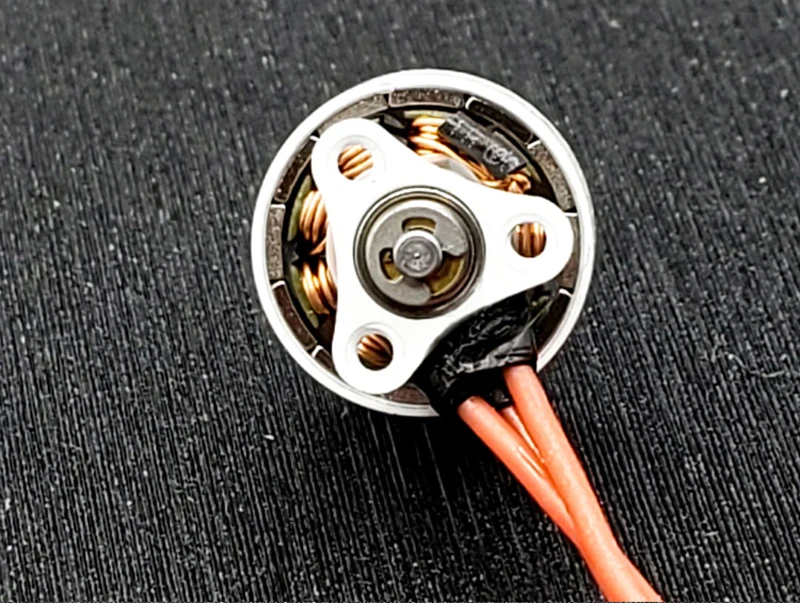

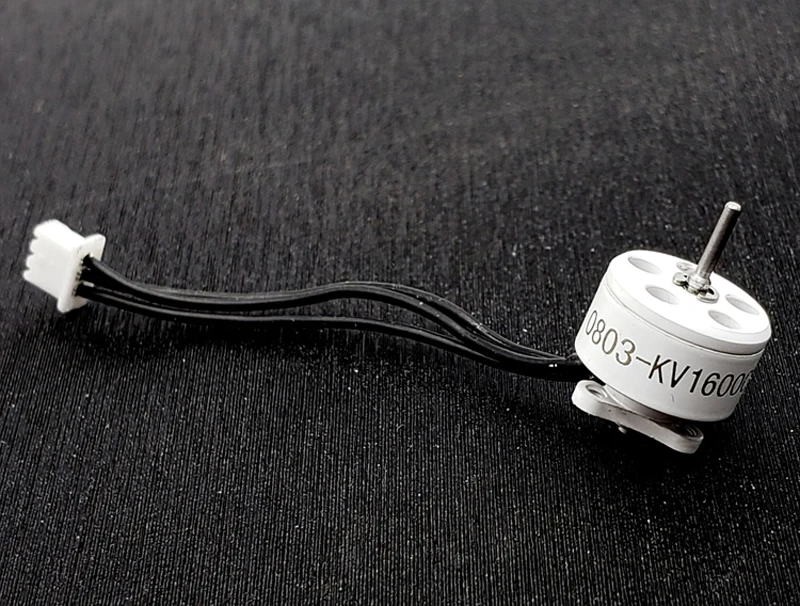

Happymodel SE0803 0803 Motor with 10Pairs 40mm Props 1-3S Brushless Motor CW CCW 12000KV 16000KV 19000KV 1mm Shaft For 65-85mm FPV Whoop DIY Parts for Bwhoop75 Brushless Whoop Mobula7 Eachine TRASHCAN TC75


The motor with red Cable= clockwise CW
The motor with black Cable = counter-clockwise CCW



Item name: SE0803 1-3S brushless motor
KV options: 12000KV(2s-3s) 16000KV(1s-2s), 19000KV (1s)
Shaft Diameter: 1.0mm
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 3mm
Motor Dimension(Dia.*Len): dia 10.5mm*16mm
Terminals: JST1.25mm
No.of Cells(Lipo): 1-3S
Wire length(include connector): 40mm
Weight: 2.5g
Features:
Super tiny only 2.5g
Compatible for 1s-3s brushless whoop
Ball bearing and Bushing
Double E-clip design, prevent Motor bell to flying off
Good Dynamic balance

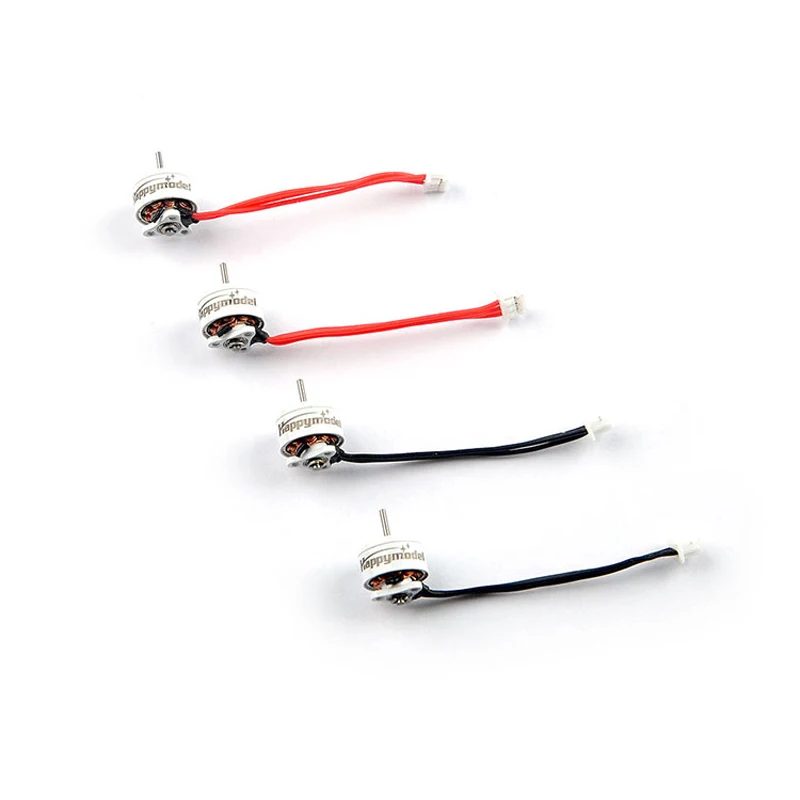

Pacakge included:
2PCS Motors CW (Red Cable)

2PCS Motors CCW(Black Cable)

10Pair props



23580-523580-123580-223580-323580-423580-723580-823580-6

2019-05-17

J****s

I'm really liking these motors, currently my favorites for a 75mm whoop build. I got them in the 16000kv version, and I'm getting 5+ minute flight times with 1s 550mah lihv. The props seem very serviceable. I'm looking forward to trying these with 2s at some point, and I'm tempted to get a set of 19000kv for 1s. Great motors, wish the price was a little lower (I got the first set at a great sale price!)
