(Happymodel) 1.2G image transmission 1.3G 1.6W FPV crossover machine image transmission transmitter
-
Detail
- Product Name: (Happymodel) 1.2G image transmission 1.3G 1.6W FPV crossover machine image transmission transmitter
- Item NO.: F53693
- Weight: 0.06 kg = 0.1323 lb = 2.1164 oz
- Category: DIY RC Drone Accessories
- Brand: Happymodel
- Creation Time: 2024-12-18
(Happymodel) 1.2G image transmission 1.3G 1.6W FPV crossover machine image transmission transmitter
Product parameters
Input voltage：7-30V
Working frequency：1.2G-1.3G
Available channels：9-CH
Maximum output power：1600mw
WMaximum size：37mm*31mm*11mm
Mounting hole：20mm*20mm by M2 screw
Weight：18.8g
Number of channels：8CH
Frequency：1120/1160/1200/1240/1258/1280/1320/1360(
MHz)
Output power：PIT/25MW/200MW/1600MW
S/N(Fo±3MHz)：>70dBc
Antenna Port： 50 Ohms
Input format： NTSC or PAL
Operating Temperature： -10°C~+60°C
Function Description：
1. Power value could controlled by IRC TRAM Protocol "PIT/25/200/1600MW"
2. Press and hold the Band/Channel switch button for 1 second to switch CH 1-8 cycle.
3. Press and hold the Power level switch button for 1 second to switch the power to PIT/25mw/200mw/1600mw cyeS.
4. Once the VTX data wire was connected to betaflight flight controller TX and IRC TRAMP was correctly set， then the Bands/channels/power value can only be controlled by betaflight configurator or OSD menu.
Known issue：
LED indicate on the VTX will not change while switch band
s/channel or power value by IRC TRAMP， however the valu
e of bands/channels/power value will really be changed .

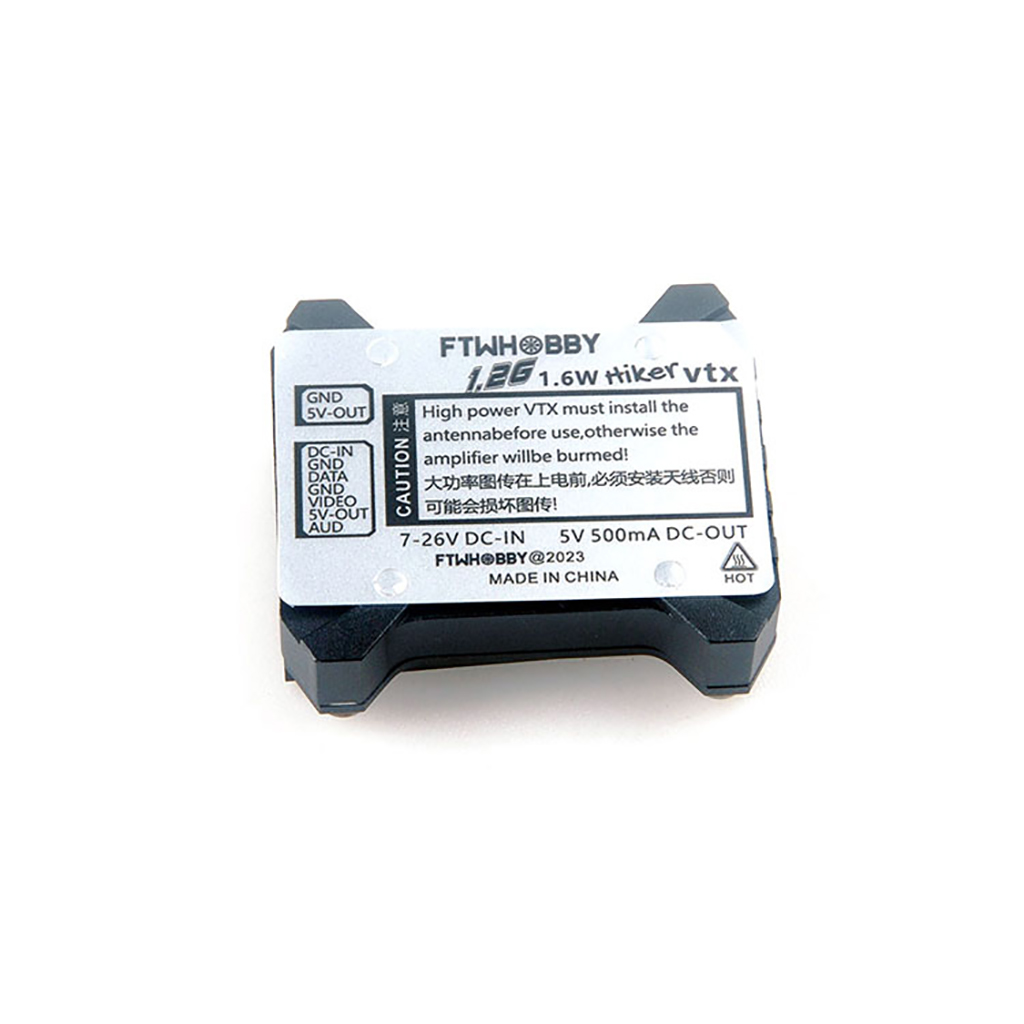

When using this product， please comply with local regulati
ons and install the antenna before use
Packing list：

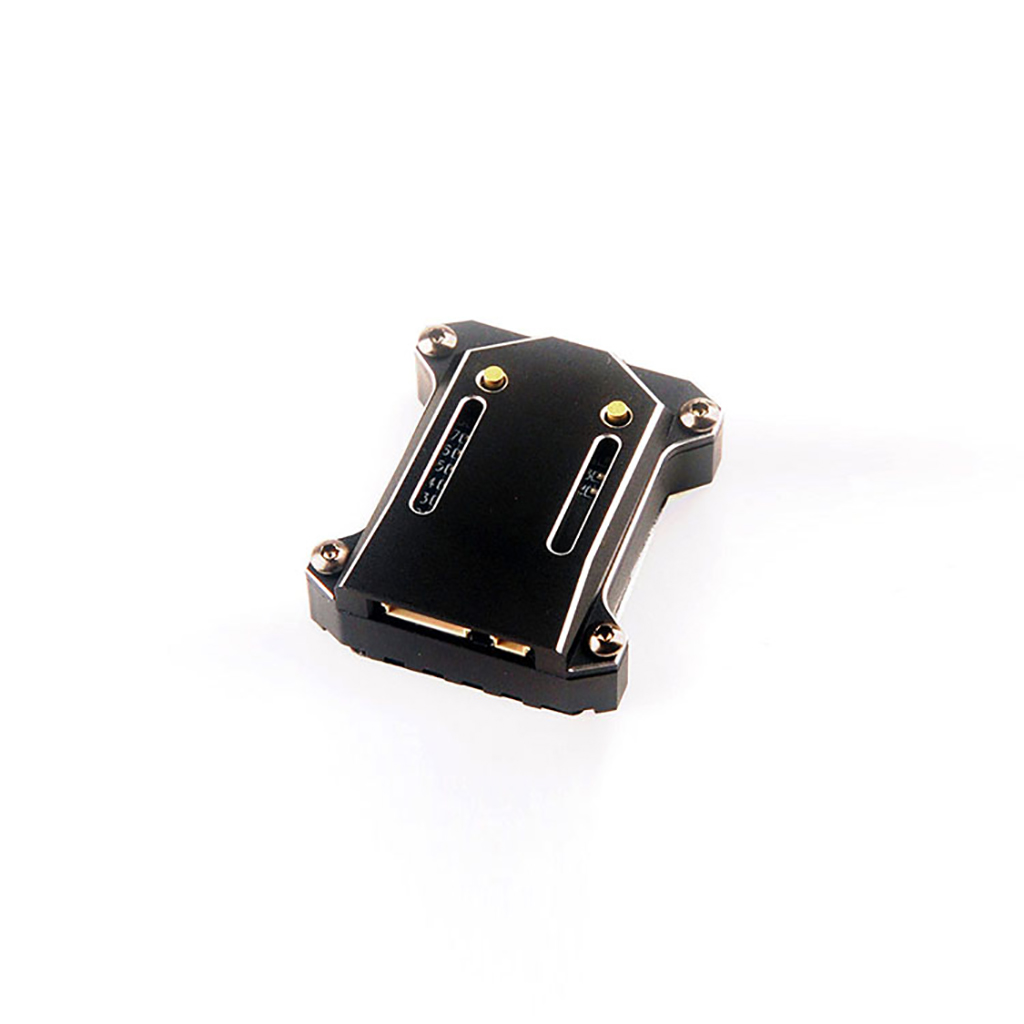

1xFTWHOBBY 1.2G 1.6W Video transmitter module
1x video transmitter module cable

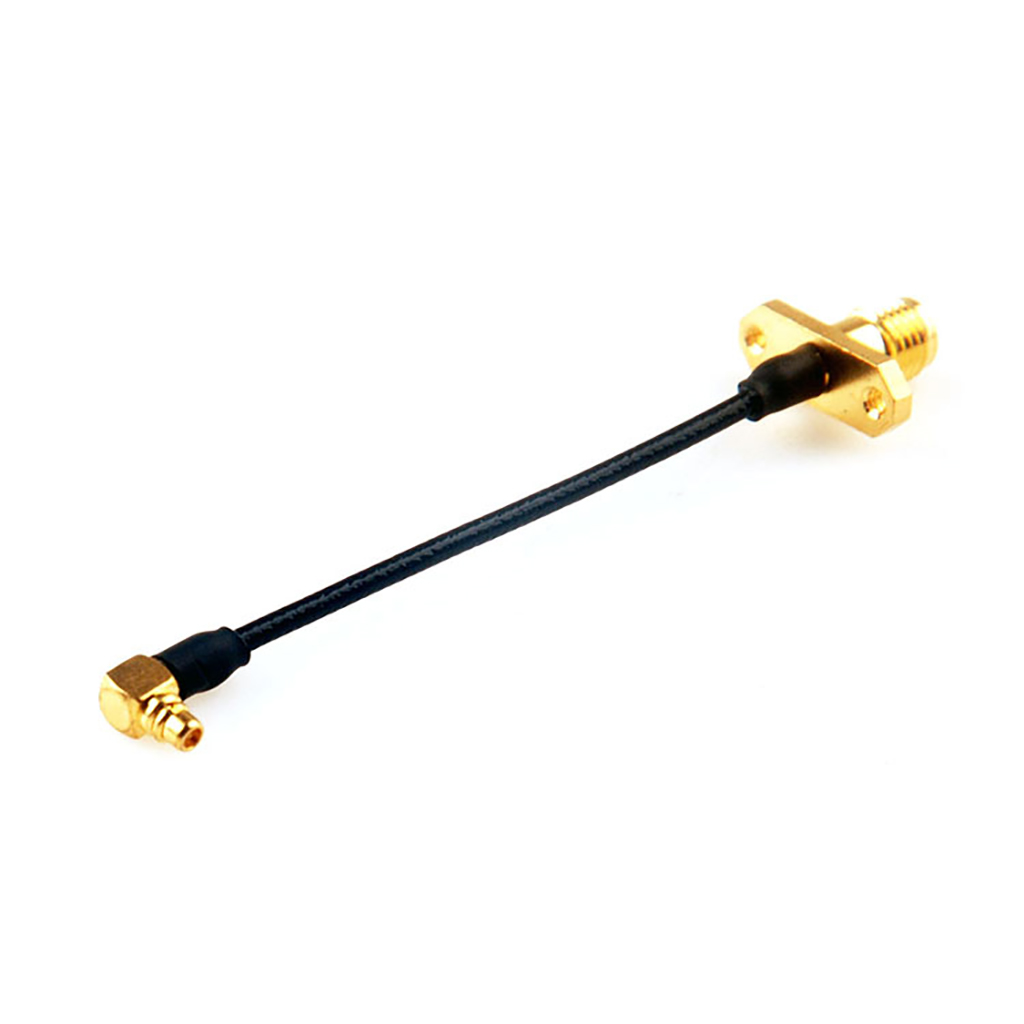

1xMMCX-SMA female adapter cable
1x1.2G Y-shaped antenna
