Copy| Product Name | HappyModel SuperX HD ELRS 1-2S AIO flight controlelr built-in 12A esc and UART elrs receiver for Digital whoop（ ELRS） |
| Item NO. | F49490-D1 F49490-D2 |

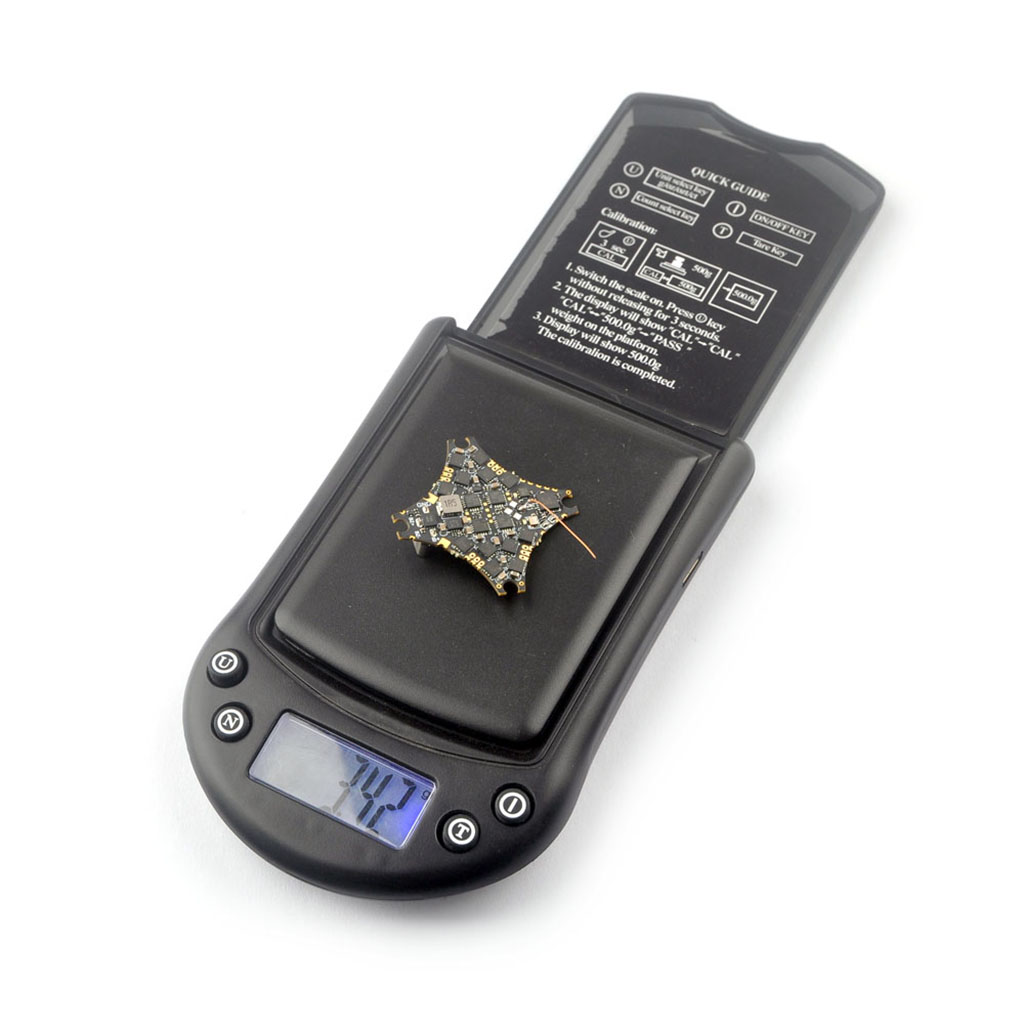

| Weight | 0.05 kg = 0.1102 lb = 1.7637 oz |
| Category | DIY RC Drone Accessories |
| Brand | Happymodel |
| Creation Time | 2023-02-09 |

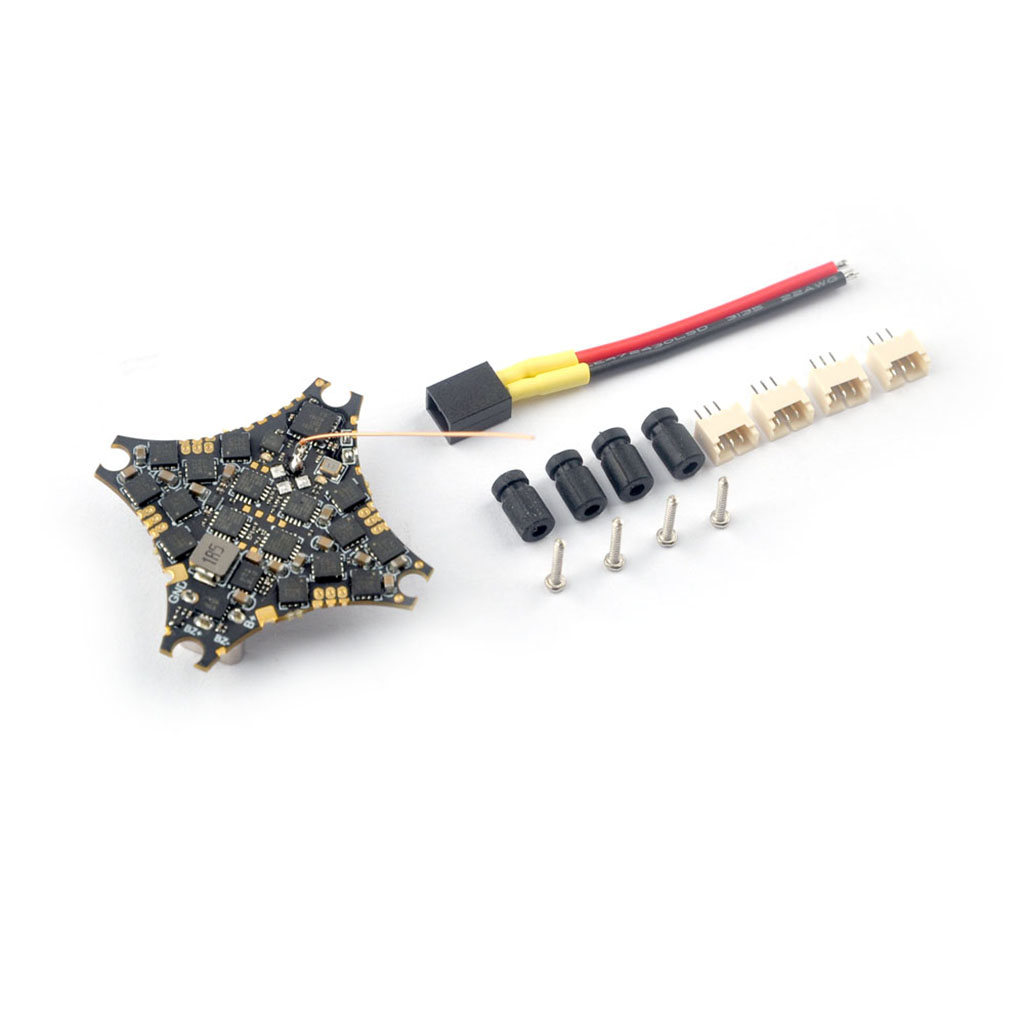

HappyModel SuperX HD ELRS 1-2S AIO flight controlelr built-in 12A esc and UART elrs receiver for Digital whoop（ ELRS）
Notes: Before buying this flight controller, make sure you have good soldering skills and can solder tiny pads. Any flight controller failure caused by welding errors is not covered by the warranty. The motor plugs didn’t pre-solder in our factory.
| Flight controllerSuperX HD ELRS |
Betaflight 4.4.2 firmware ready Firmware target: CRAZYBEEF4DX MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: BMI270 or ICM42688P (SPI connection) Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update Bluejay ESC Firmware ready Built-in 5V 1.5A(Max) BEC Built-in voltage detectionBuilt-in currents meter No betaflight analog osd chip Antenna:enamel copper wire |
| Onboard 4in1 ESC |
Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support ESC-Configurator and BLHELI_S Suite configurator Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz Default protocol: DSHOT300 |
| Onboard UART ExpressLRS 2.4GHz Receiver |

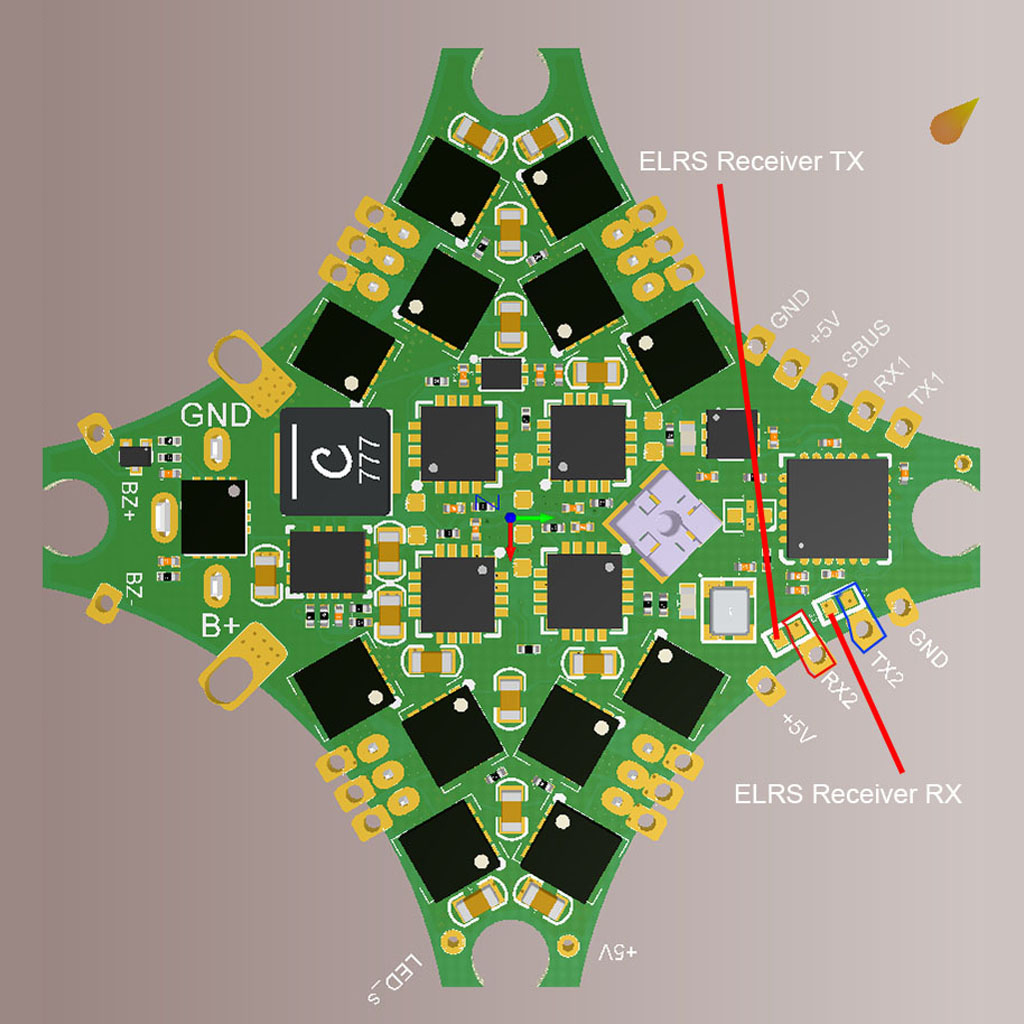

RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Receiver protocol: CRSF Default firmware version: ExpressLRS V3.0.1 The same hardware with Happymodel EP1 receiver Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through |
