HMDVR-S DVR Video Audio Recorder for Micro FPV Quadrocopter Multicopter RC Drone

HMDVR-S DVR Video Audio Recorder for Micro FPV Quadrocopter Multicopter RC Drone Item NO.: F22571

5.0
(1)
Write a Review
US$ 7.71
US$ 8.39 Save US$ 0.67 (8% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name HMDVR-S DVR Video Audio Recorder for Micro FPV Quadrocopter Multicopter RC Drone
Item NO. F22571
Weight 0.0198 kg = 0.0437 lb = 0.6984 oz
Category DIY RC Drone Accessories > Motor
Creation Time 2017-09-29

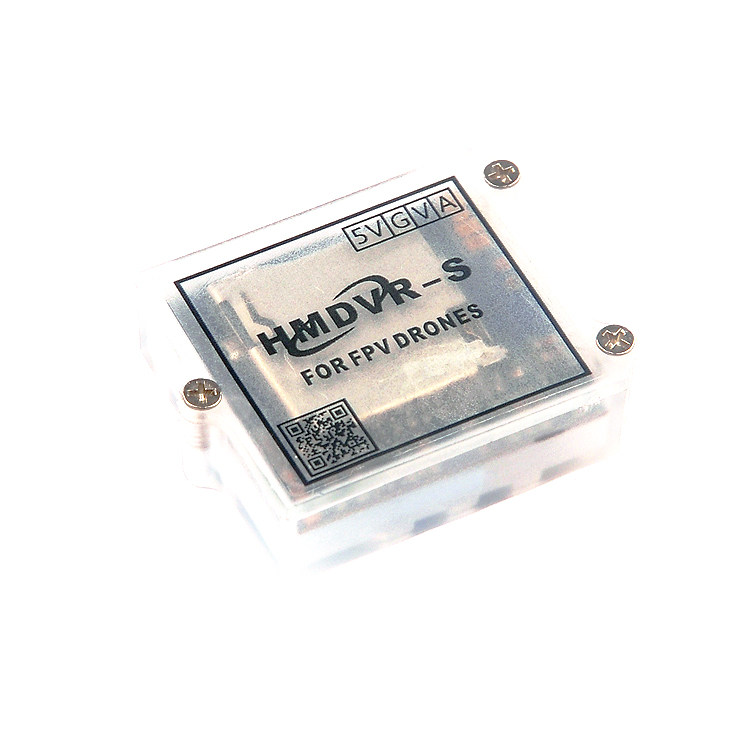

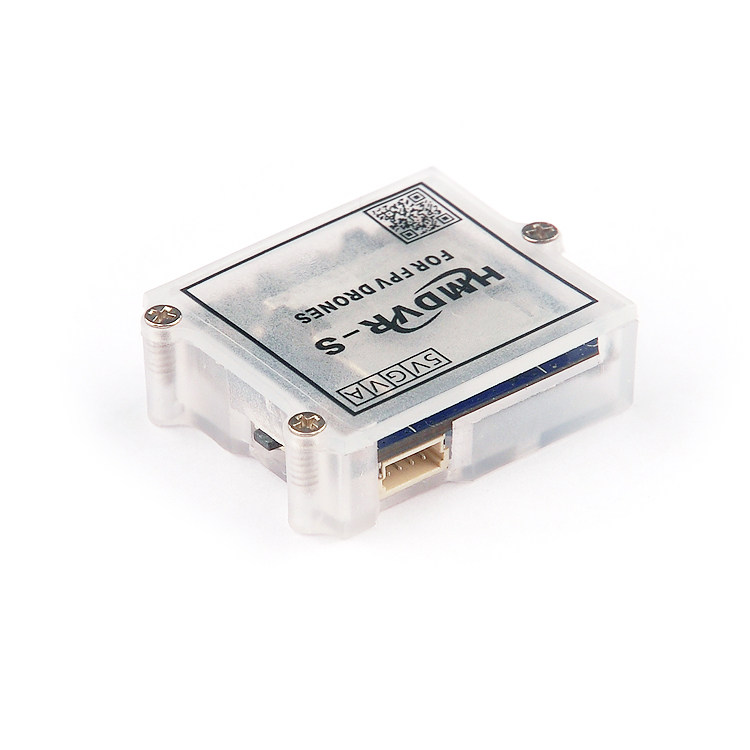

HMDVR-S DVR Video Audio Recorder for Micro FPV Quadrocopter Multicopter RC Drone

Item name: HMDVR-S DVR Video Audio Recorder for Micro FPV Multicopters
Brand name: JMT
POWER SUPPLY: 5.0v (3.6V-5.5V)

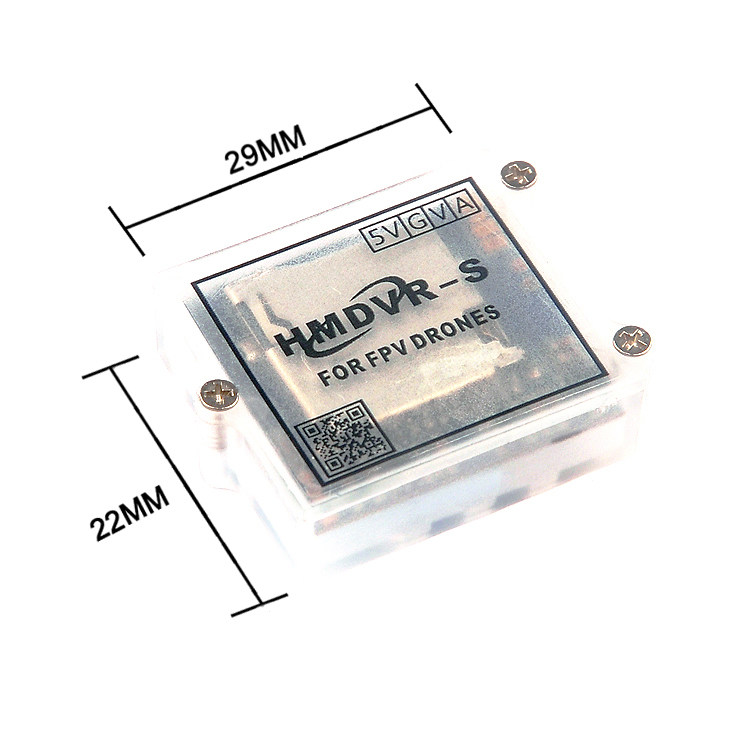

Size: 29mm * 22mm * 9mm

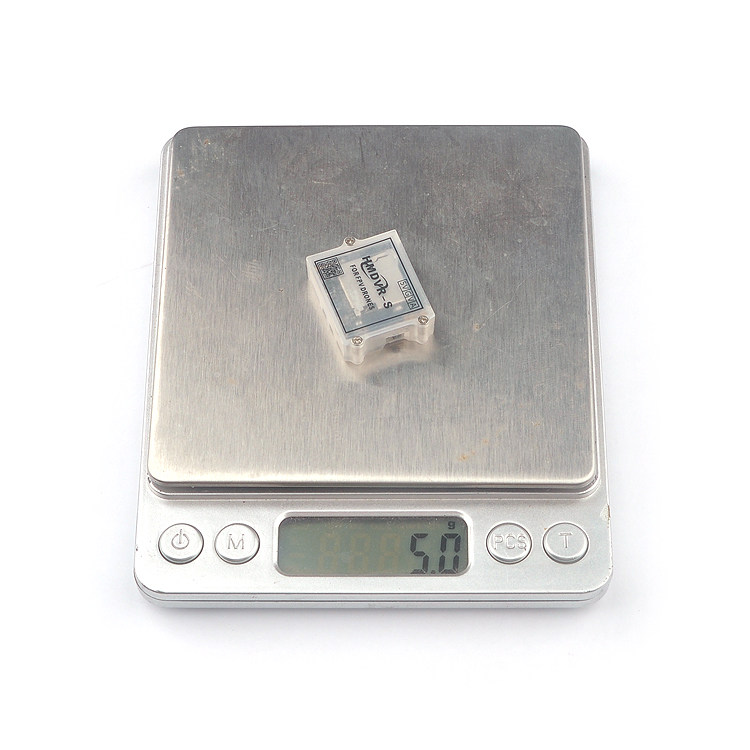

Weight: 5g
Current Consumption: Max 260mA.
Operating temperature: -10 ~ +65 ºC
Video Output Size: VGA (640 × 480)
Light frequency: 50HZ / 60HZ
TF Card support: Max.32G

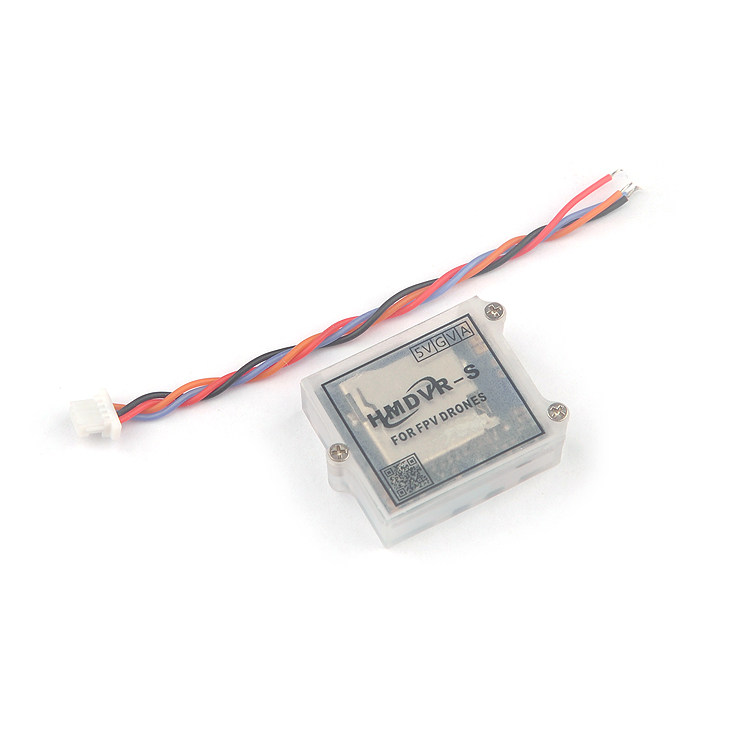

Interface: JST SH1.0 or 1.25 pin headers
Compress Format: MJPEG
Records the picture frame rate: 30Frames
Audio input: support Mic-phone input
Short touch the button to Start / Stop Video recorder
Model: HMDVR-S
Brand: Happymodel
Supply voltage: 4.2v (3.6V ~ 5V)
Maximum current: Max 260mA.
Operating temperature: -10 ~ +65 ºC (with heat treatment)
Storage temperature: -30 ~ +85 ºC
Ambient temperature / humidity: 25 ºC / 85% RH
Boot mode: Electricity boot
System startup time: 5-10 Second
Video Input Impedance: 75Ω, Typ.
Video output impedance: 75Ω, Typ.
Video output format VGA (640 × 480PX)
The video starts to stop: Short press Start / stop
Video time: every 3 minutes to store a section,
Support TF card: Max.32G
Video file format: AVI file
Interface: 1.0mm × 4Pin (or 1.25x4 pads)
Compression format: MJPEG
Video frame rate: 30Frames
Audio input: Mono
