Copy| Product Name | HGLRC Forward 1408 3600KV 3-4S Brushless Motor for DIY FPV Racing Drone Quadcopter Aircraft |
| Item NO. | F27597/F27597-4 |
| Weight | 0.036 kg = 0.0794 lb = 1.2699 oz |
| Category | DIY RC Drone Accessories > Motor |
| Brand | HGLRC |
| Creation Time | 2019-02-23 |

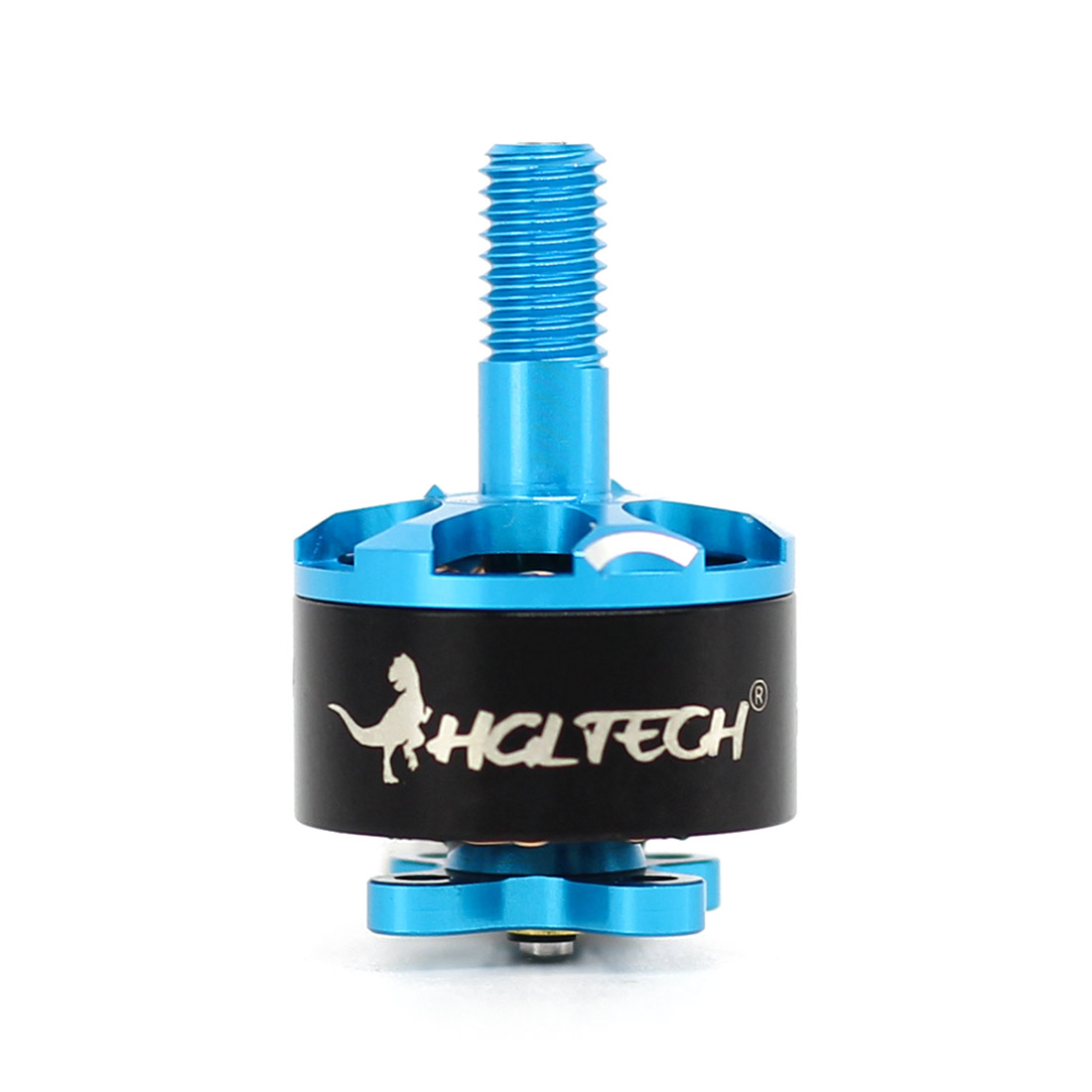

HGLRC Forward 1408 3600KV 3-4S Brushless Motor for DIY FPV Racing Drone Quadcopter Aircraft
Specification:
Forward 1408 3600KV Brushless Motor
Brand name: HGLRC
Item name: Forward 1408 3600KV Brushless Motor
Motor:KV 3600KV
Stator Diameter:14mm
Stator Thickness:8mm
No.of Stator Arms:9S
No.of Rotor poles:12P
No-load Current(A/10V):1.5A
Motor Resistance:90-108mΩ
Max Continuous Current:22.43A
No.of Cells(Lipo):3-4S
ESC:28-40A
Recommended Prop(inch):3 Inch
Wire type:24AWG 80mm
Weight:16.8g
Package Included:
1 * FD 1408 3600KV Brushless Motor
or 4 * FD 1408 3600KV Brushless Motor（optional）
