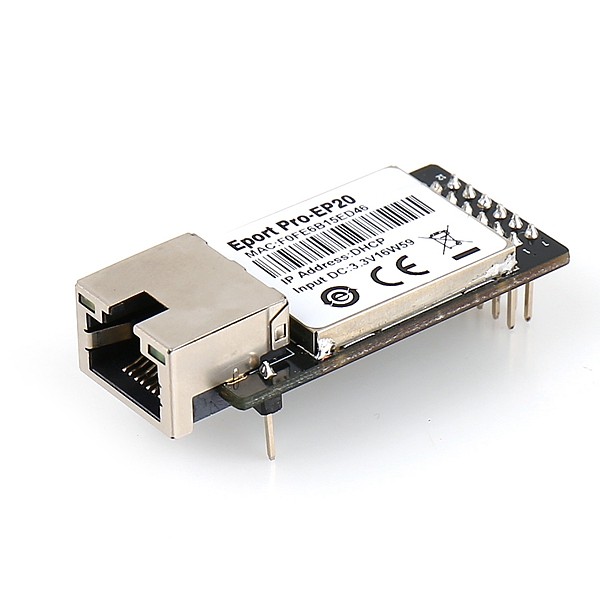

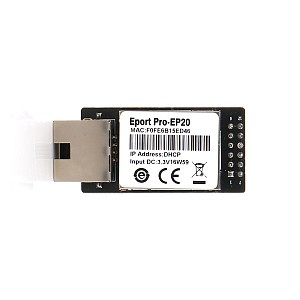

HF Super Ethernet Port Linux Eport Pro-EP20 MIPS/320MHz support TCP/IP/Telnet /Modbus TCP 460800 bps
-
Detail
- Product Name: HF Super Ethernet Port Linux Eport Pro-EP20 MIPS/320MHz support TCP/IP/Telnet /Modbus TCP 460800 bps
- Item NO.: F23960
- Weight: 0.033 kg = 0.0728 lb = 1.1640 oz
- Volume: 1 CBM
- Category: Computer Accessories
- Brand: HF
- Creation Time: 2018-01-31
- HF Super Ethernet Port Linux Eport Pro-EP20 MIPS/320MHz support TCP/IP/Telnet /Modbus TCP 460800 bps
HF Super Ethernet Port Linux Eport Pro-EP20 MIPS/320MHz support TCP/IP/Telnet /Modbus TCP 460800 bps
Features
MIPS MCU (32MB SRAM) and 16MB Flash
Using Linux operating system
Support TCP / IP / Telnet / Modbus TCP protocol
Support serial port to 10 / 100M Ethernet data transmission, the highest serial port speed 460800 bps
Support 10 / 100M Ethernet adaptation
Support webpage simple configuration
Support data SSL / AES / DES3 security encryption configuration
Support web OTA wireless upgrade
Single + 3.3V power supply
Size: 50 x 23 x 11 mm
FCC / CE / RoHS certification
System parameters
Processor / clocked MIPS / 320MHz
Flash / SDRAM 16MB / 32MB
Operating system Linux
Ethernet
Number of ports 1 RJ45 with LED
Interface standard 10/100 Base-T auto-negotiation
Protection 2KV isolation
Network transformer integration
Network protocols IP, TCP, UDP, DHCP, DNS, HTTP Server / Client, ARP, BOOTP, AutoIP, ICMP, Web socket, Telnet, FTP, TFTP, uPNP, NTP, SNMP, Modbus TCP
Security Protocols SSL v3 (2048), AES 128Bit, 3DES, SHA-1, MD5, Base-64, RSA, ECC
Support IPV6 support
Serial port
Port number 1 + 1 debug port
Interface Standard 3.3V TTL: 2 wire (TX, RX)
Data bits 7,8
Stop bit 1,2
Parity None, Even, Odd, Space, Mark
Baud rate TTL: 600 bps ~ 460800bps
Flow control flow control software Xon / Xoff flow control
Software
Web Page HTTP Network Configure a custom HTTP web page
Log Remote real-time log
Configure Web CLI XML Import Telnet IOTManager PC software
PC Configuration Software IOTManager PC software
SDK Development Kit Support
Basic parameters
Size 50x 23x 11mm
Operating temperature -45 ~ 70 ° C
Storage temperature -45 ~ 105 ° C, 5 ~ 95% RH (non-condensing)
Input voltage 3.3V
Operating current ~ 200mA
Power consumption <700mW
Certification CE, FCC, RoHS
