HC-SR501 Human Body Infrared Sensor Module Adjust IR Pyroelectric Infrared PIR Motion Detector Module

US$ 1.43

Customized Requirements

Add to Cart

Estimate Shipping Cost

Detail
- Product Name: HC-SR501 Human Body Infrared Sensor Module Adjust IR Pyroelectric Infrared PIR Motion Detector Module
- Item NO.: F18926
- Weight: 0.044 kg = 0.0970 lb = 1.5521 oz
- Category: Rebate Big Discount
- Brand: XT-XINTE
- Creation Time: 2017-07-25
HC-SR501 Human Body Infrared Sensor Module Adjust IR Pyroelectric Infrared PIR Motion Detector Module

Features:
1. automatic: when someone enters the sensing range is input high level, people leaving the induction range is automatically delayed closing high level. Output low level.
2. light control (optional): module to set aside a location, you can set the photo control, or strong light during the day without induction. Light control is an optional feature, factory photoresistance is not installed. If you want, please purchase the photoresistance installed.
3. two trigger modes: l not repeatable, h can be repeated. Jumper option defaults to h.
A. not repeatable trigger mode: after the sensor output high level, delay time is over, the output will automatically change from high to low level.
B. can repeat triggered way: that induction output high level Hou, in delay time paragraph within, if has human in its induction range within activities, its output will has been maintained high level, until people left Hou only delay will high level becomes low level (induction module detection to human of each times activities Hou will automatically extended a delay time paragraph, and to finally once activities of time for delay time of starting points).
4. induction blackout time (default setting: 0.2 sec): after each induction the induction module output (high level low level), you can immediately set a blackout time, during this time the sensor does not receive any sensor signal. This feature can be achieved (sensor output and blockade times) the interval between work, can be applied to interval detection products; at the same time this function can inhibit various disturbances load in the process of switching.
5. wide operating voltage range: default voltage DC5V to 20V
6. power consumption: quiescent current 65, particularly suitable for battery-powered appliances.
7. high level signal output: can be easily docked with the circuit.

Description:
Dimension: 3.2cm x 2.4cm x 1.8cm (approx)

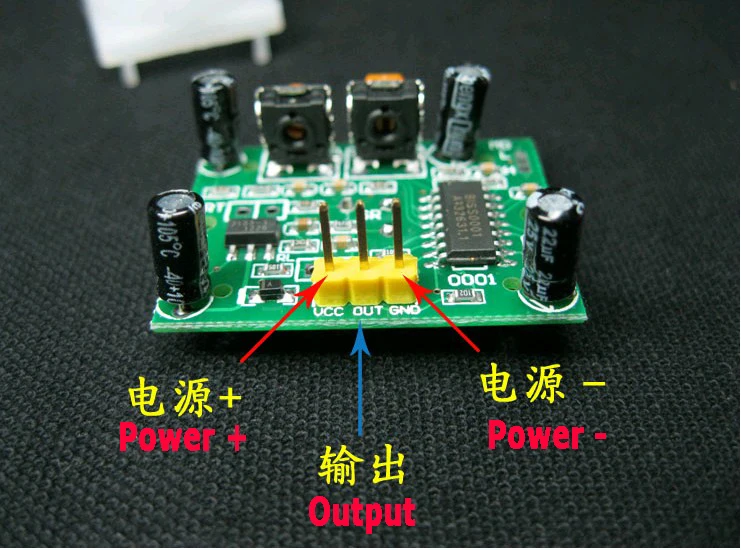

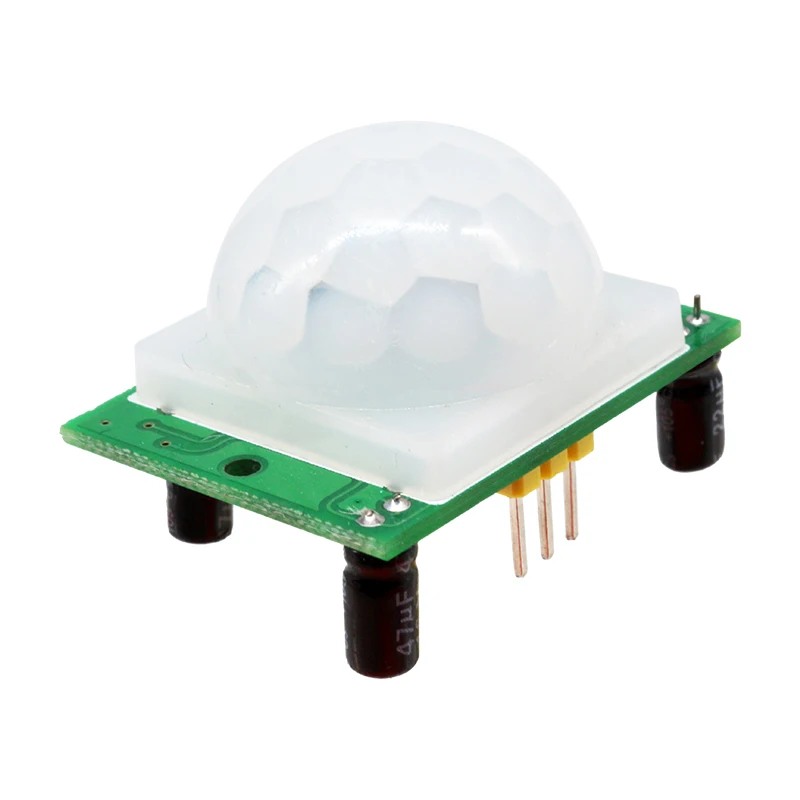

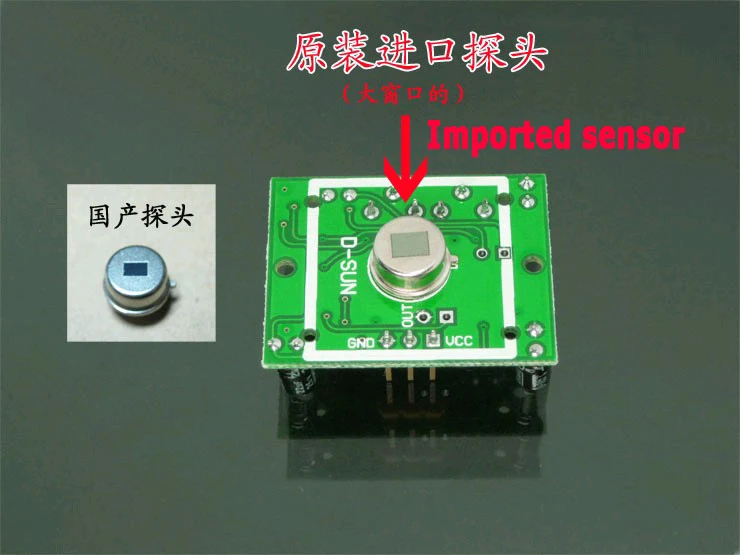

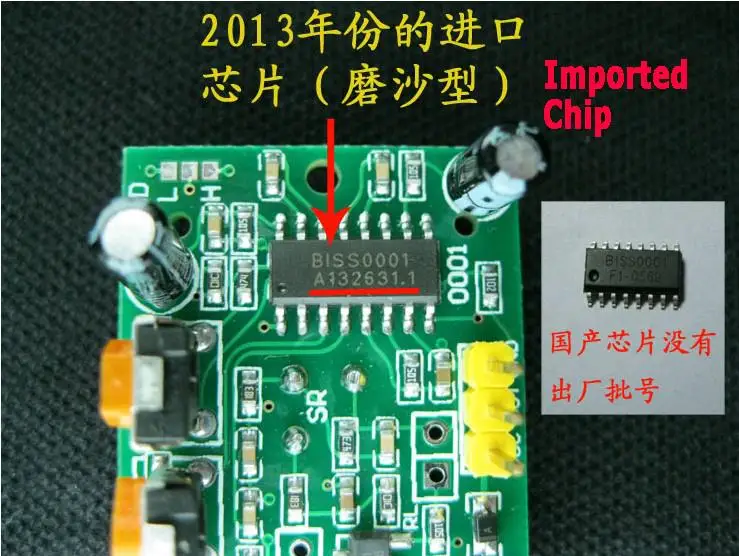

Infrared sensor with control circuit board

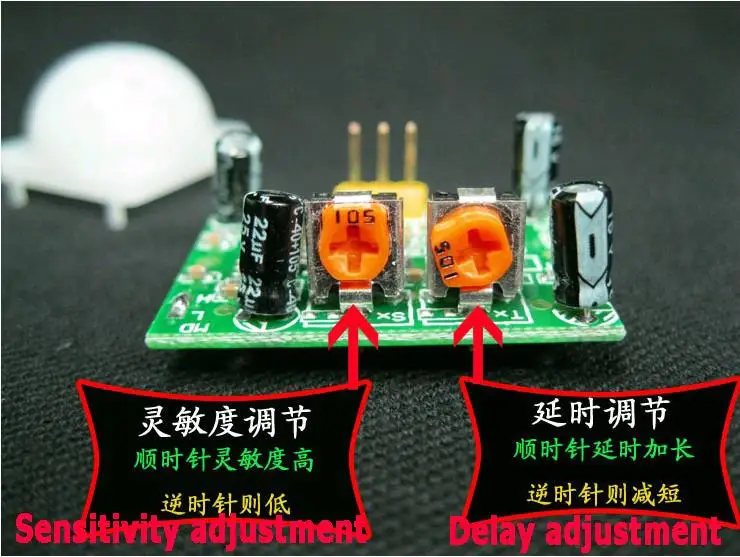

The sensitivity and holding time can be adjusted
Working Voltage Range: DC 4.5V- 20V
Current drain:<50uA

Level output: High 3.3 V / Low 0V
Trigger mode: L unrepeatable trigger / H repeat trigger (default trigger repeat)
Delay time: 0.5-200S (adjustable) range can be made zero seconds - several minutes
Block time: 2.5S (default) range of a few tenths can be made - tens of seconds
PCB Dimensions: 32mm * 24mm
Induction angle: <100 degree cone angle
Operating temperature" -15- + 70 degrees

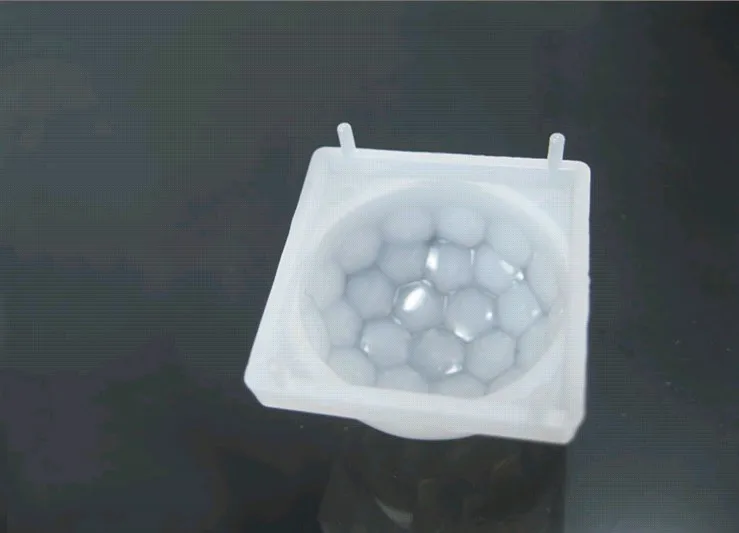

Induction lens size: Diameter: 23mm (default)
Package Included:
1 X HC-SR501 Adjust IR Pyroelectric Infrared PIR Motion Sensor Detector Module
