HAKRC Mini F4 Flight Controller 3Layer FlyTower Betaflight OSD BEC 4in1 20A BLheli_S ESC 200mW VTX for FPV Quadcopter Drone

HAKRC Mini F4 Flight Controller 3Layer FlyTower Betaflight OSD BEC 4in1 20A BLheli_S ESC 200mW VTX for FPV Quadcopter Drone Item NO: F27772-F27773

US$ 17.97
Version:
FPV MiniF4 Flytower FPV MiniF4 FC
Remark:
Customized Requirements
Quantity:
Shipping Cost:
Estimate Shipping Cost
Specifications
Product Name HAKRC Mini F4 Flight Controller 3Layer FlyTower Betaflight OSD BEC 4in1 20A BLheli_S ESC 200mW VTX for FPV Quadcopter Drone
Item NO F27772-F27773
Weight 0.0330 kg = 0.0728 lb = 1.1640 oz
Category DIY RC Drone Kit / RC Drone Accessories > ESC
Brand Hakrc
Creation time 2019-03-15

Detail

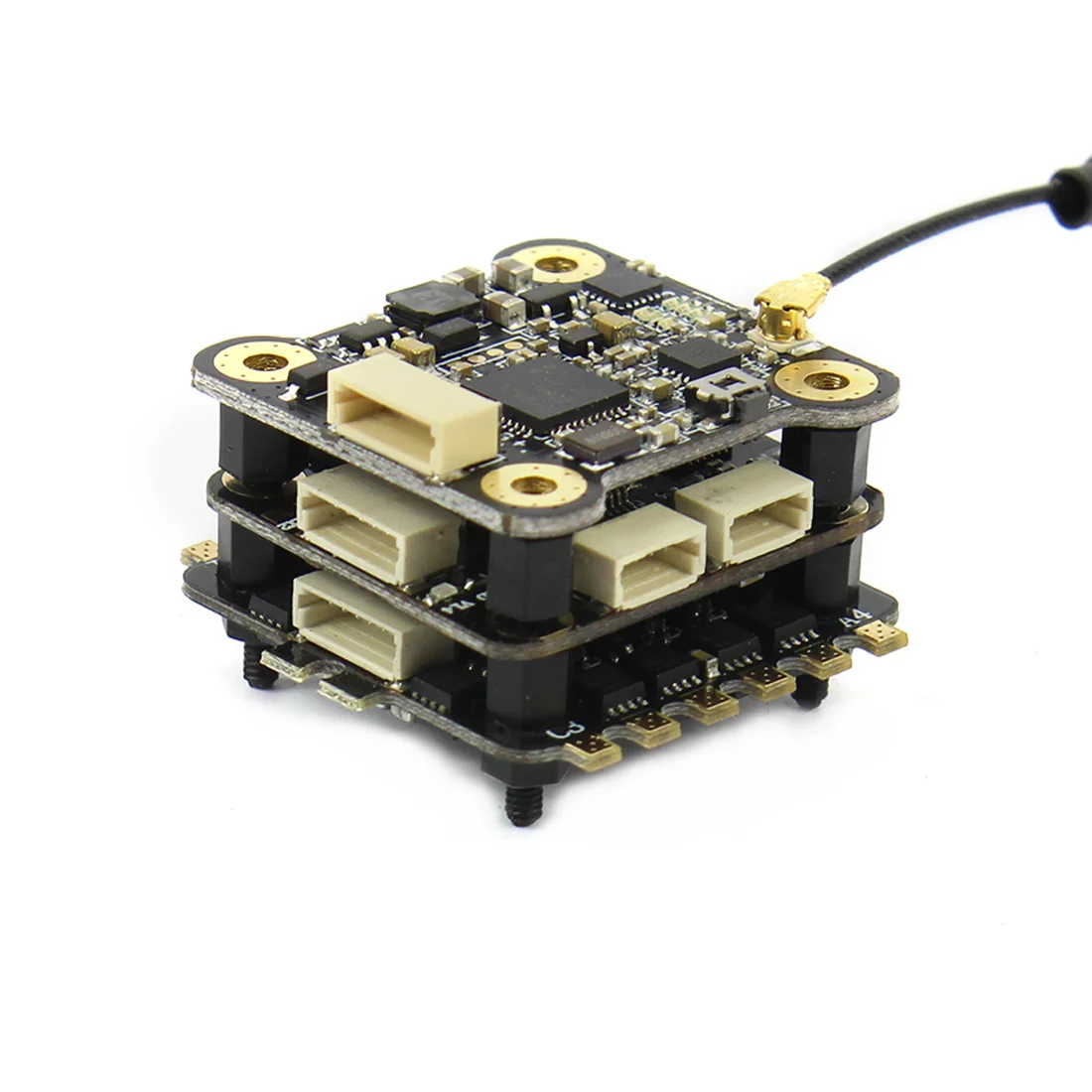

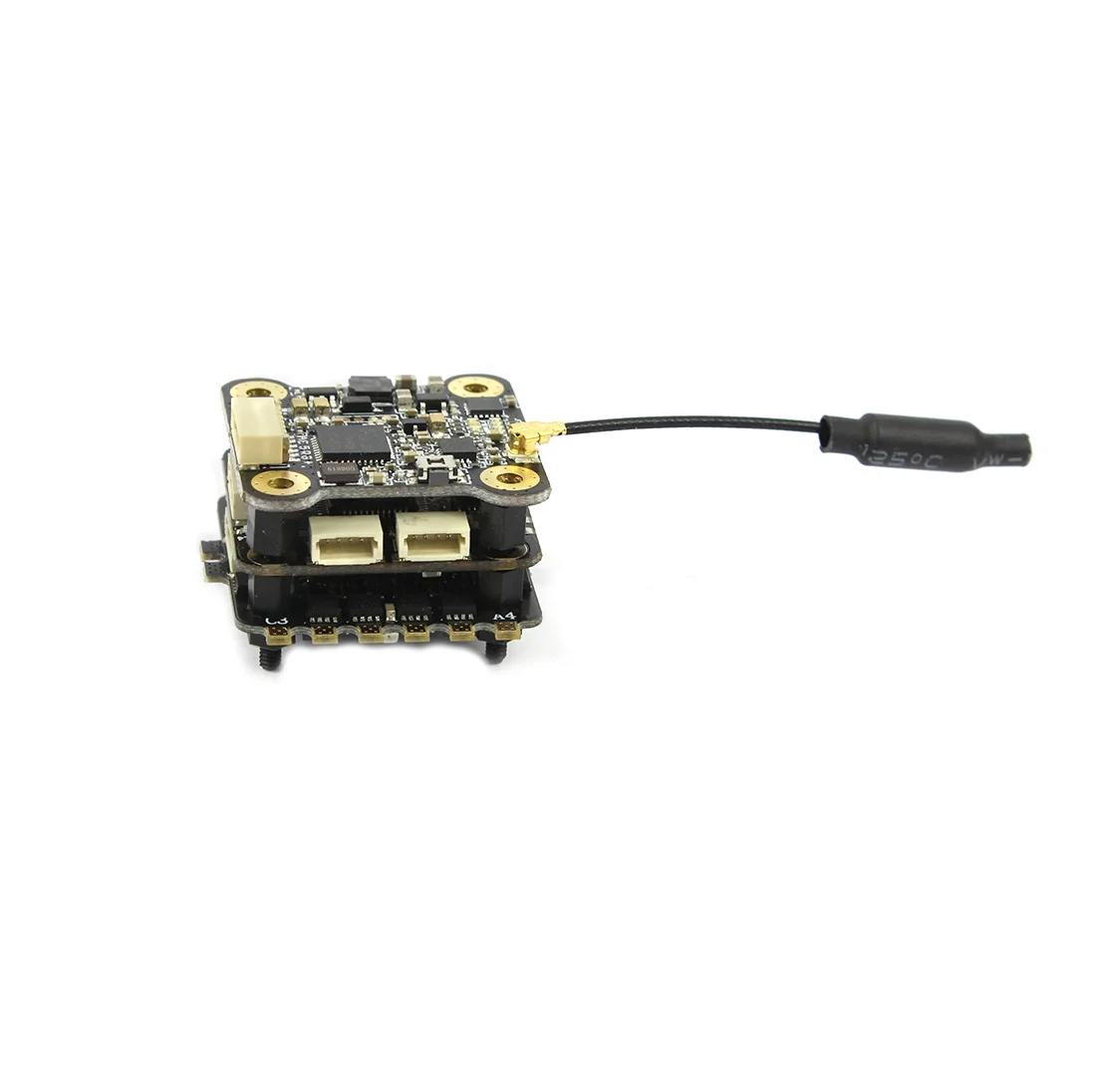

HAKRC Mini F4 Flight Controller 3-Layer FlyTower with Betaflight OSD BEC 4in1 20A BLheli_S ESC & 200mW VTX for FPV RC Racing Quadcopter Drone

Features:
Built-in BETAFLIGHT OSD to adjust PID, BEC, Barometer
Support PPM, SBUS (RX1), IBUS (RX6), ds m2 (RX6) Receiver
Support Cleanflight and INAC firmware for falsh
MicroSD card blackbox, large capacity storage, Dshot support
200mW transmitter

Description:
1.This is flight control F4 Tower comes with mini size.
2.It supports data and image transmission.
3.Get it and you would sure have a stimulating flight!

Specifications:
Brand: HAKRC
Mini Flight Controller F4 size: 29x31mm
VTX Size:27x27mm
ESC:26x27mm

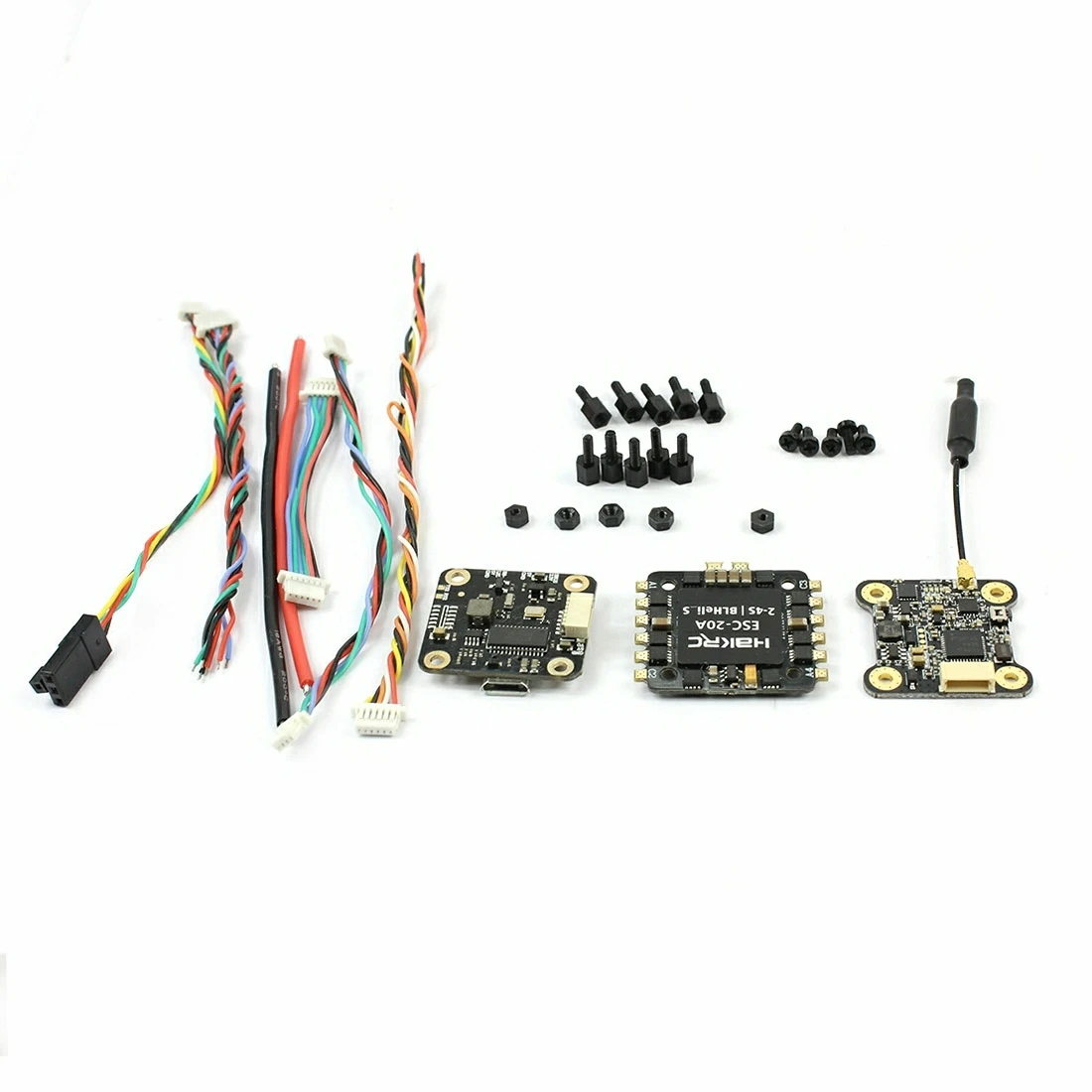

Package Included:
1 * F4 flight control
1 * 20A four-in-one ESC

1 * 200mW mini image transmission

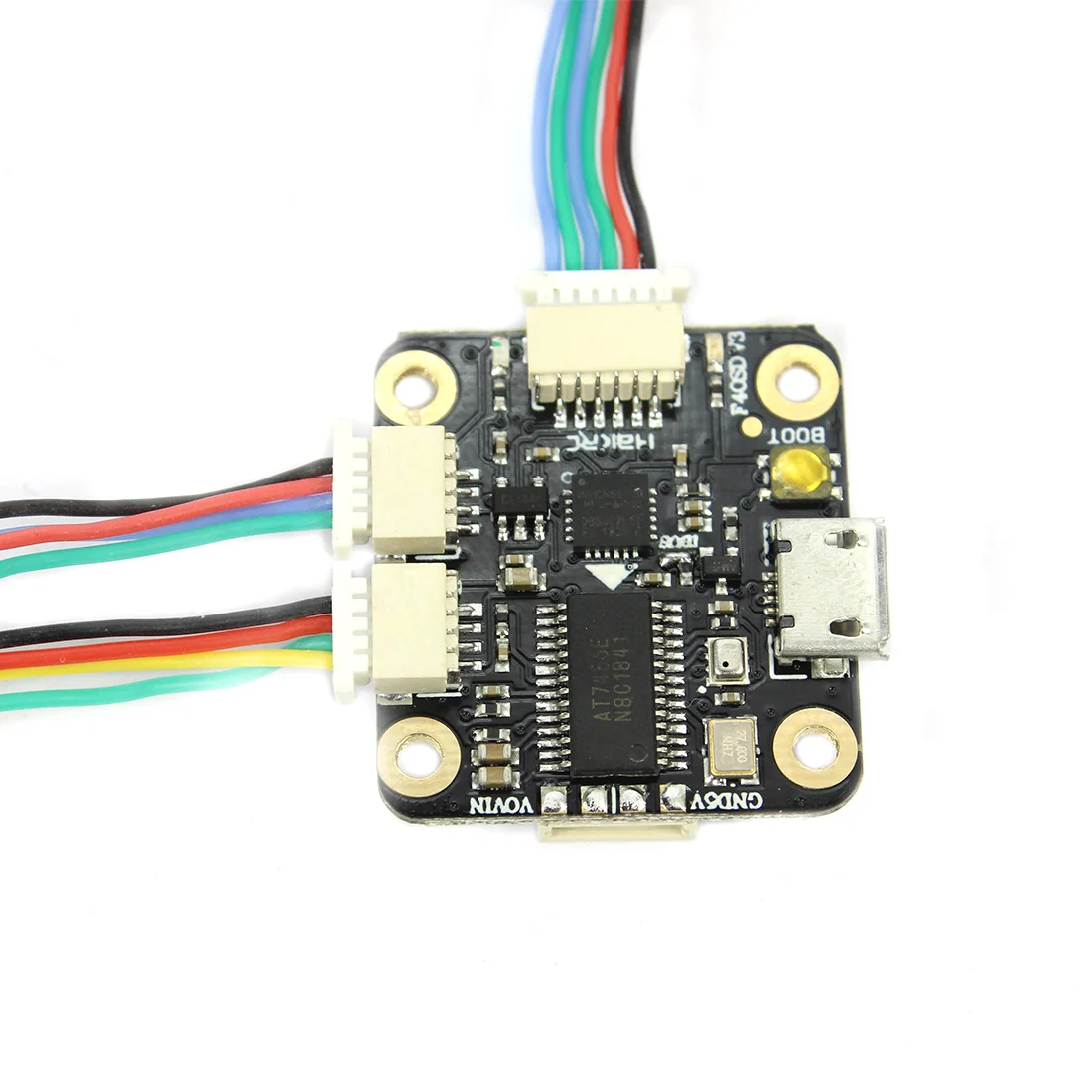

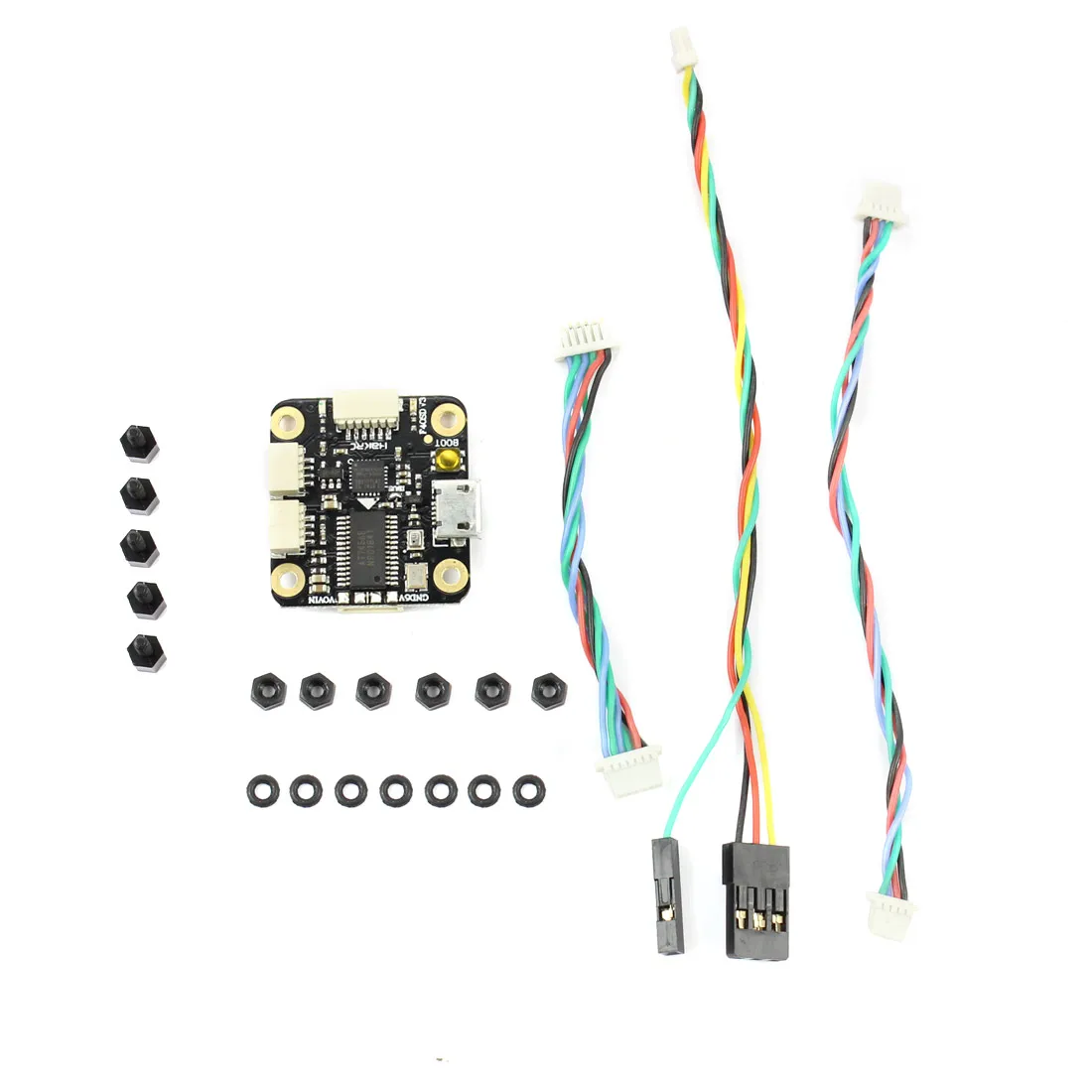

Mini Flight Controller F4 Specifications:
Name of the article: STM32F405 F4 AIO Flight Controller OSD and BEC
Input voltage: 2-4 S Lipo
built-in OSD Betaflight Originals
-com Output 5V @ 2A BEC
without black box
-support BLHeliSuit configuration
-also supports Cleanflight and INAC firmware for falsh
-Support PPM, SBUS (RX1), IBUS (RX6), ds m2 (RX6) Receiver
Firmware: BetaFlight 3.20 SD


ESC 20A 4 In 1 BLheli_S (Lower Layer)
Con. current: 20A
pk Current: 25A (5S)
BEC: No
Lipo: 2-4 S
Developer: Yes

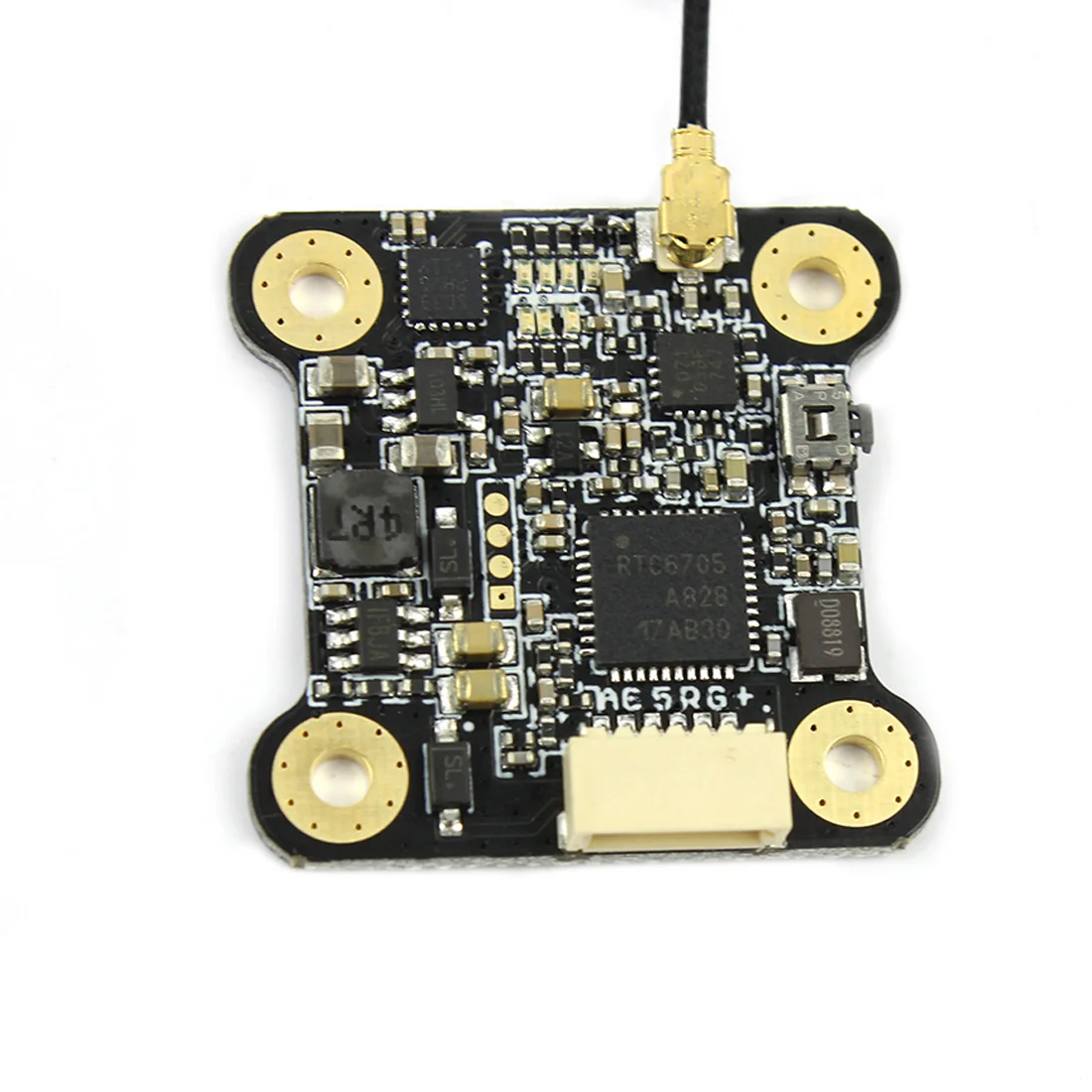

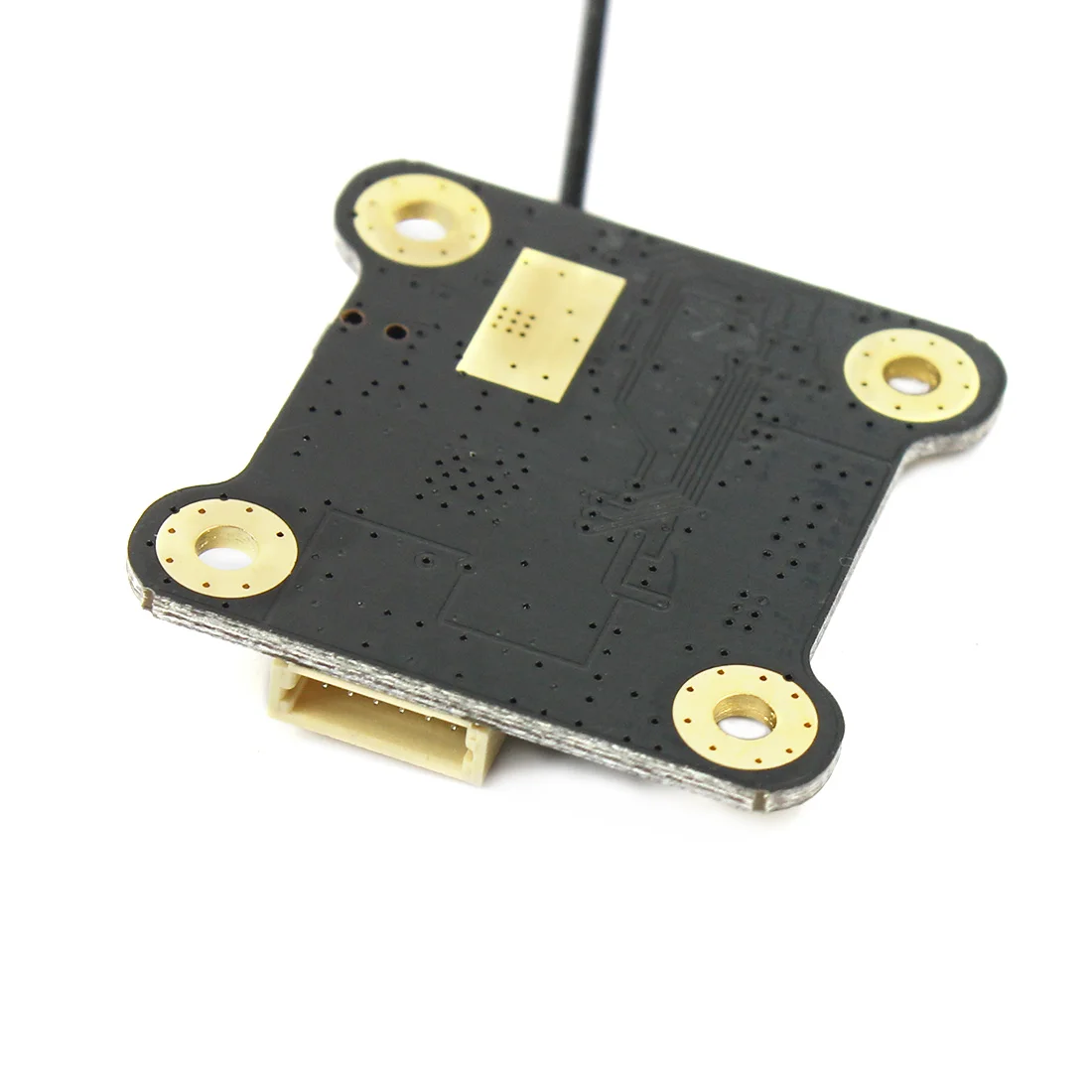

VTX Specification:
Item name: 5848 V2 5.8G 48CH 0/25/100/200mW FPV Transmitter Switchable
Frequency: 5.8G
Power : 0/25/100/200mW Switchable
Channe: 48CH
Operating voltage: 7V-27V
Output voltage: 5V
Transmission distance: about 0.5km at 25mW, about 1km at 200mW, (no obstacle and interference)
Video format: NTSC / PAL
Antenna connector: IPEX connector
Dimension: 27 * 27 * 4mm
Weight: 3g

Frequency and power operation:
1. Support OSD interface remote control to adjust the transmission frequency and power.
2. Press the key frequency control: Press once to change the number of channels CH (CH1-CH8), press and hold the key for 2 seconds and then press the key to change the frequency group FR (A-F)
3. Key power control: long press the button for 10 seconds and then press the button to change the power level 25/100/200
