Copy| Product Name | GEPRC GEP-DoMain3.6 DoMain4.2 Frame Parts Replacement Repair Part for RC DIY FPV Freestyle Drone |
| Item NO. | F52530-D1 F52530-D2 |
| Weight | 0.16 kg = 0.3527 lb = 5.6438 oz |
| Category | DIY RC Drone Accessories > Frame |
| Brand | GEPRC |
| Creation Time | 2024-07-16 |

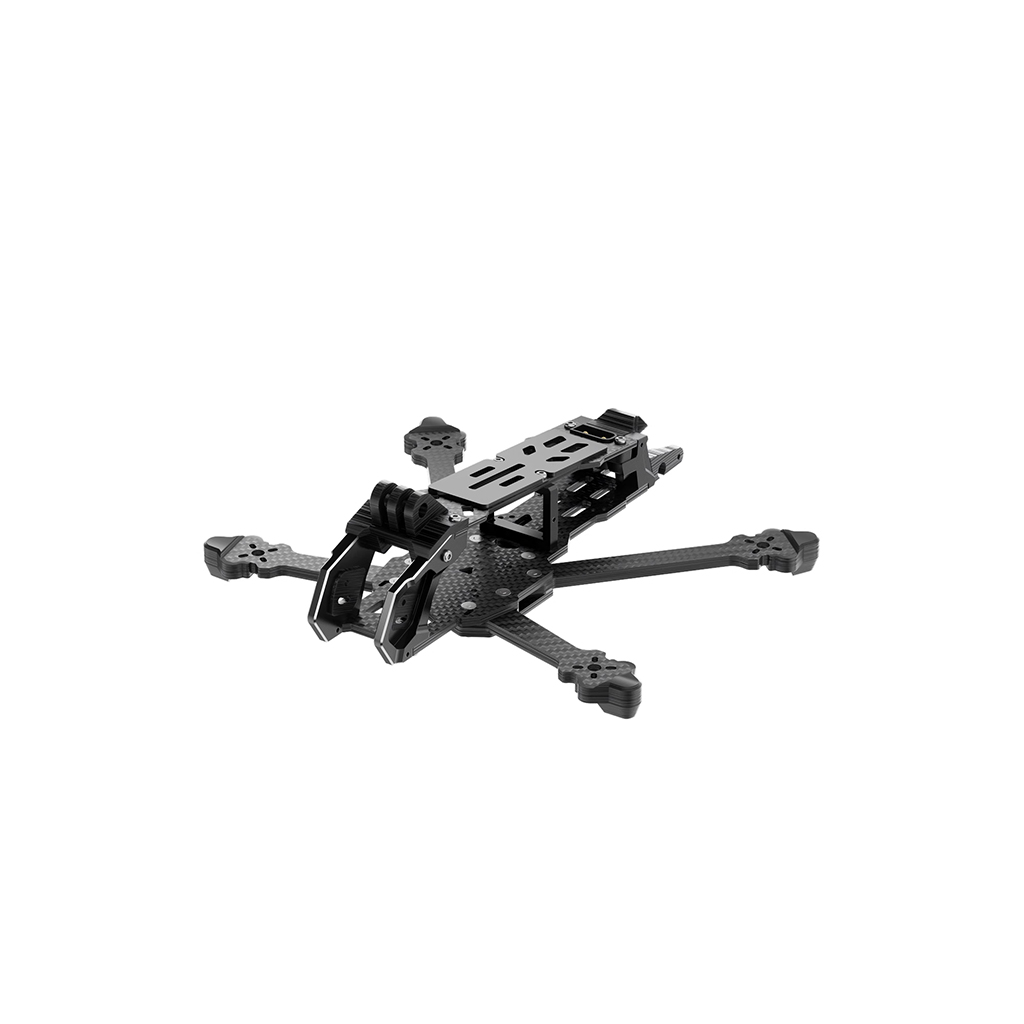

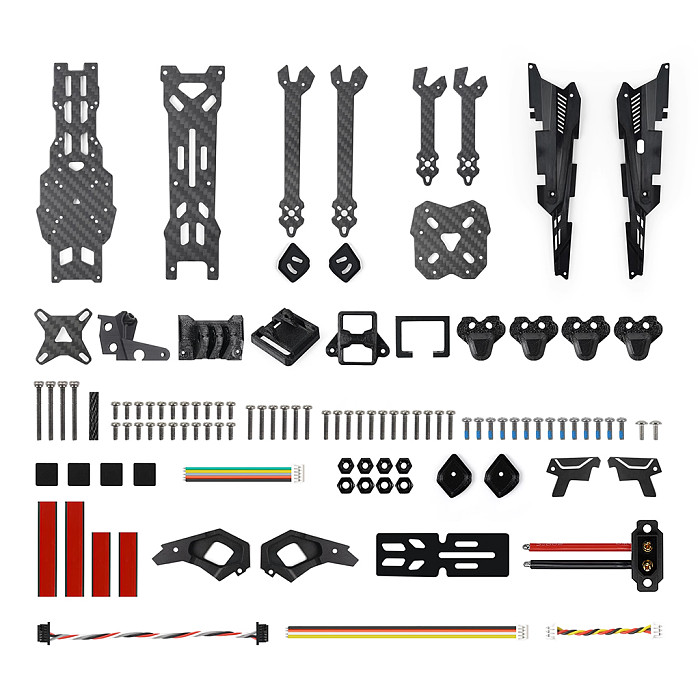

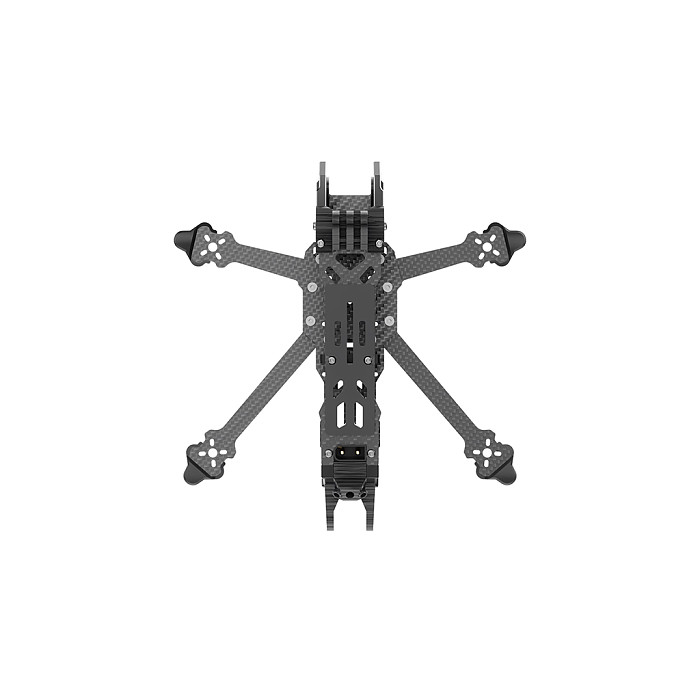

GEPRC GEP-DoMain3.6 DoMain4.2 Frame Parts Replacement Repair Part for RC DIY FPV Freestyle Drone
Model Domain3.6-inch version, Domain4.2-inch version
Wheelbase size 170±3mm 190±3mm
Top plate thickness: 2.0mm
The thickness of the base plate is 2.5mm
Arm thickness: 4.0mm
The installation hole of the flight controller is 20.5mm*20.5mm, 25.5mm*25.5mm
The motor mounting hole is 9*9mm 12*12mm
The mounting holes for the video transmission are 36mmx 36mm and 28mmx28mm
Lens size 19-20mm
Suitable for propeller size: 3.6 inch propeller and 4.2 inch propeller
Weight 110g±5g
Main parameters:
