Copy| Product Name | For M.2 NGFF NVMe Key M to PCI-E 4.0 x16 Adapter Cable PCIe4.0 x4 gen4 64G/bps Extension Cable 90° Angled with SATA Power Cable |
| Item NO. | F52601-B1/B2 |
| Weight | 2024 kg = 4462.1562 lb = 71394.4990 oz |
| Volume | 1 CBM |
| Category | Computer Accessories |
| Creation Time | 2024-07-15 |

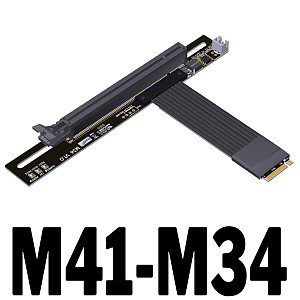

Product Model:M41 Series Products
Product Name：M.2 NVMe key M to PCI-E 4.0 X16 extension adapter cable
Cable length: 15cm 25cm (support cable length customisation,
if you need other length, please contact us!)
Speed Bandwidth: PCIe 4.0 x4, gen4 64G/bps
Purchasing tips: be sure to buy 1~2 samples first to test and verify that
there is no error before purchasing large quantities.

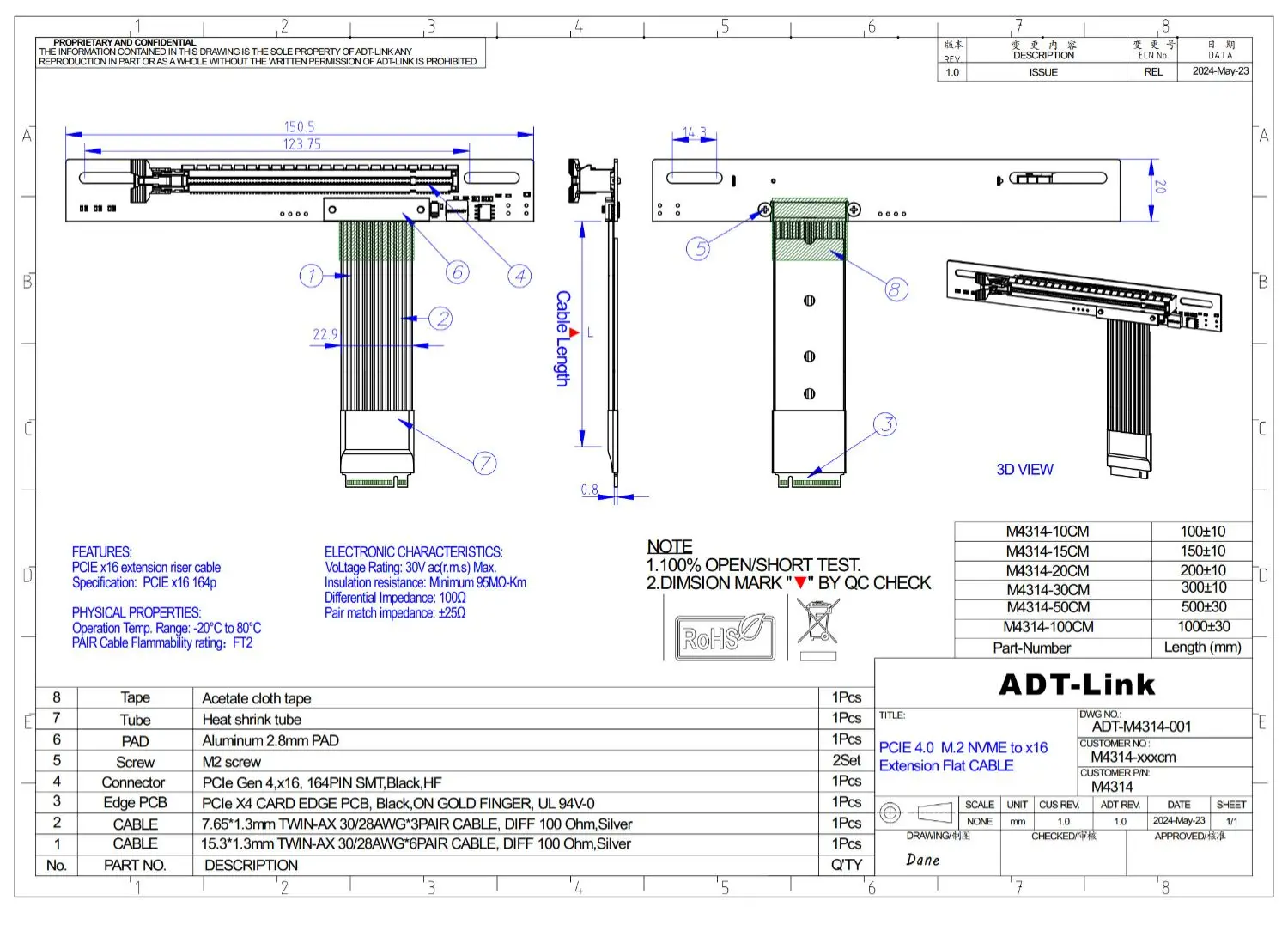

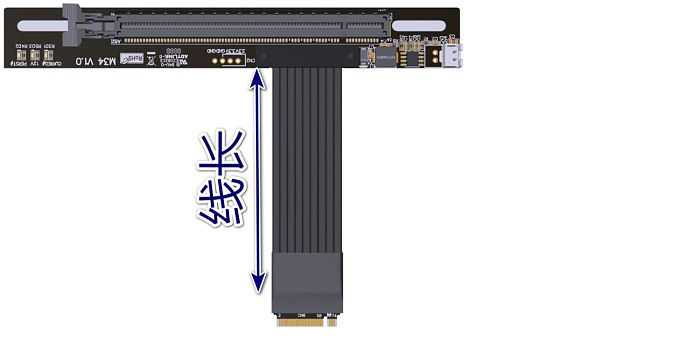

Wire length and hole spacing.
Cable length refers to the visible part of the cable, excluding the PCB as well as the connectors.
Accessory Note: Comes with a SATA power adapter cable that must be connected for 12V power.

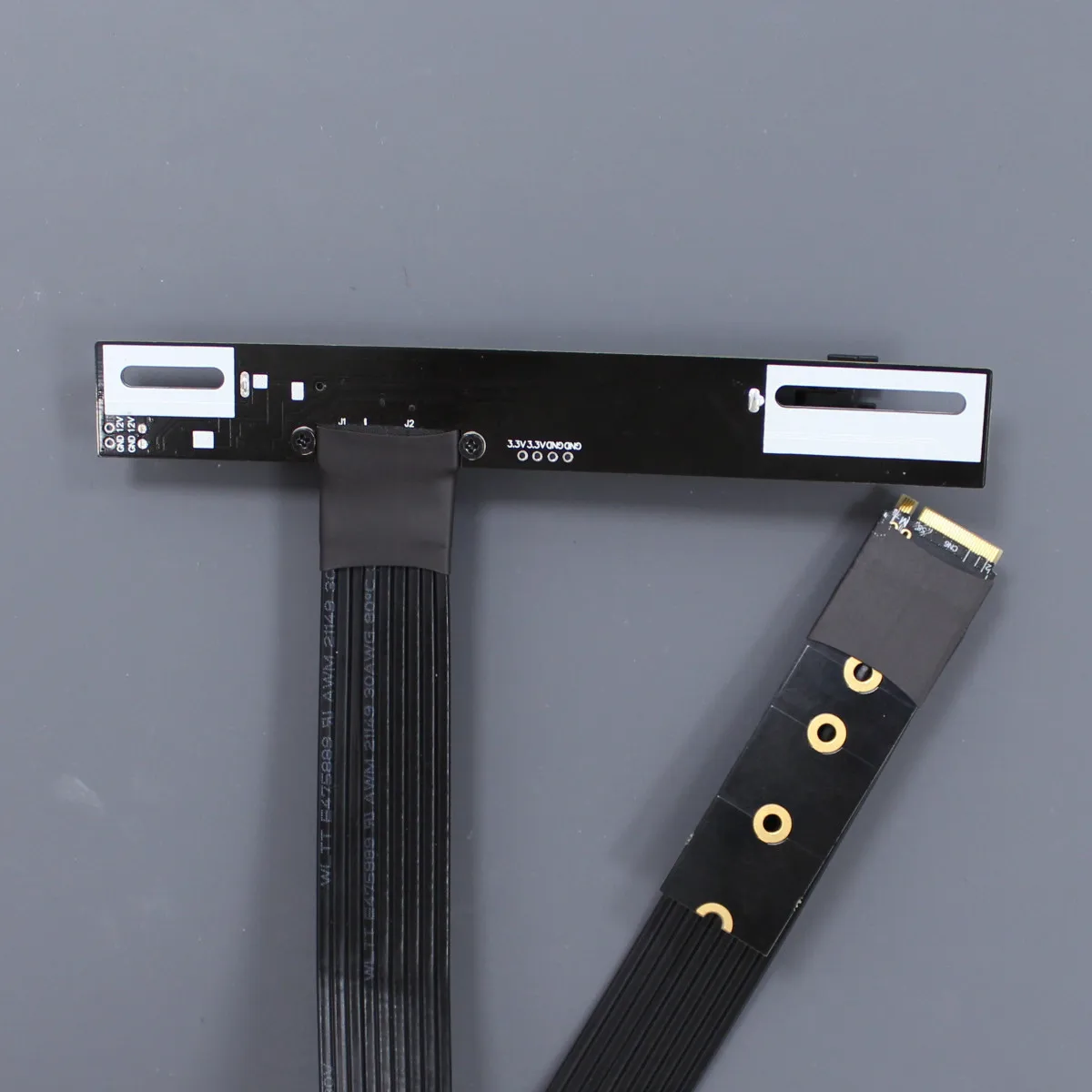

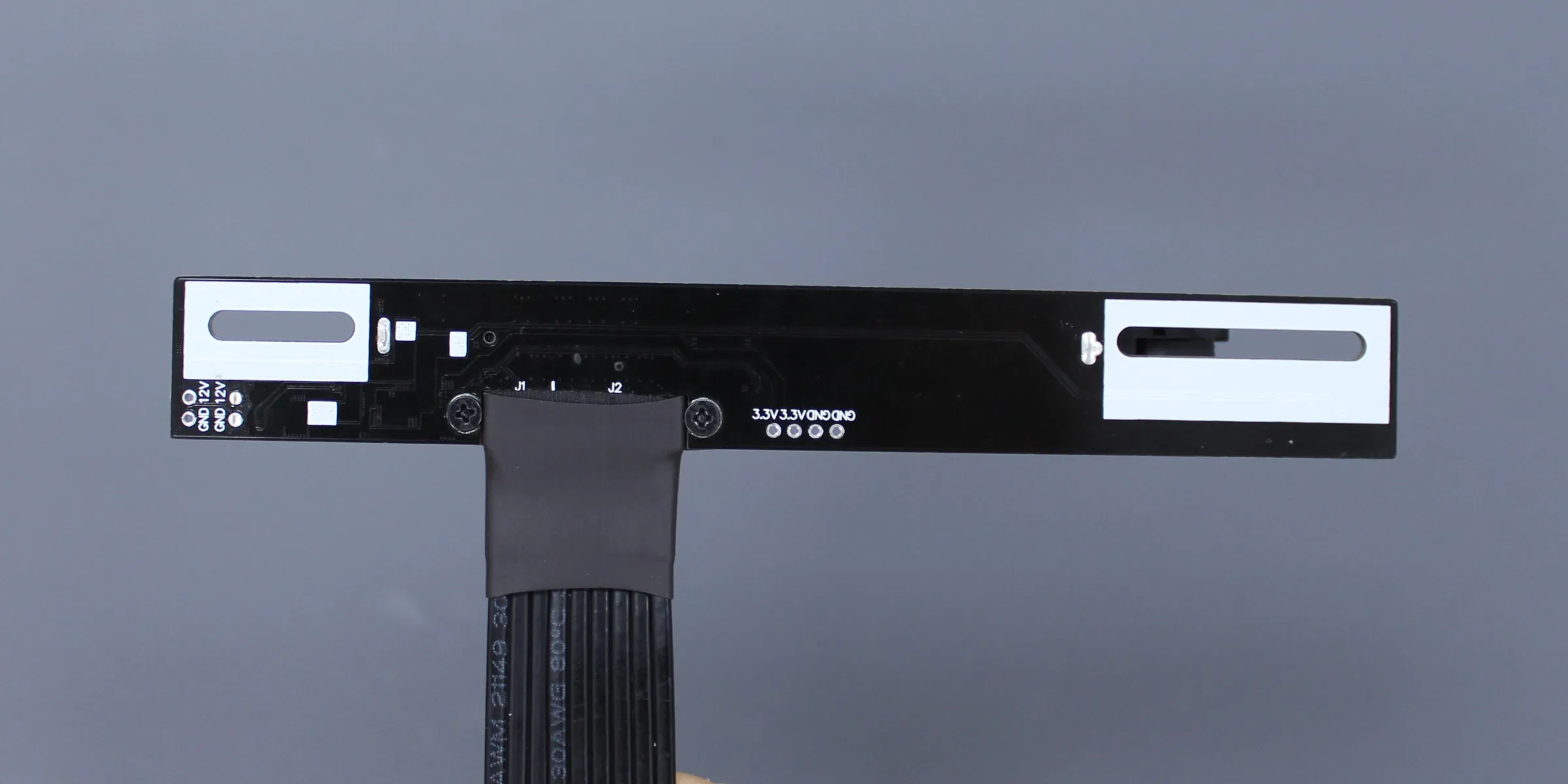

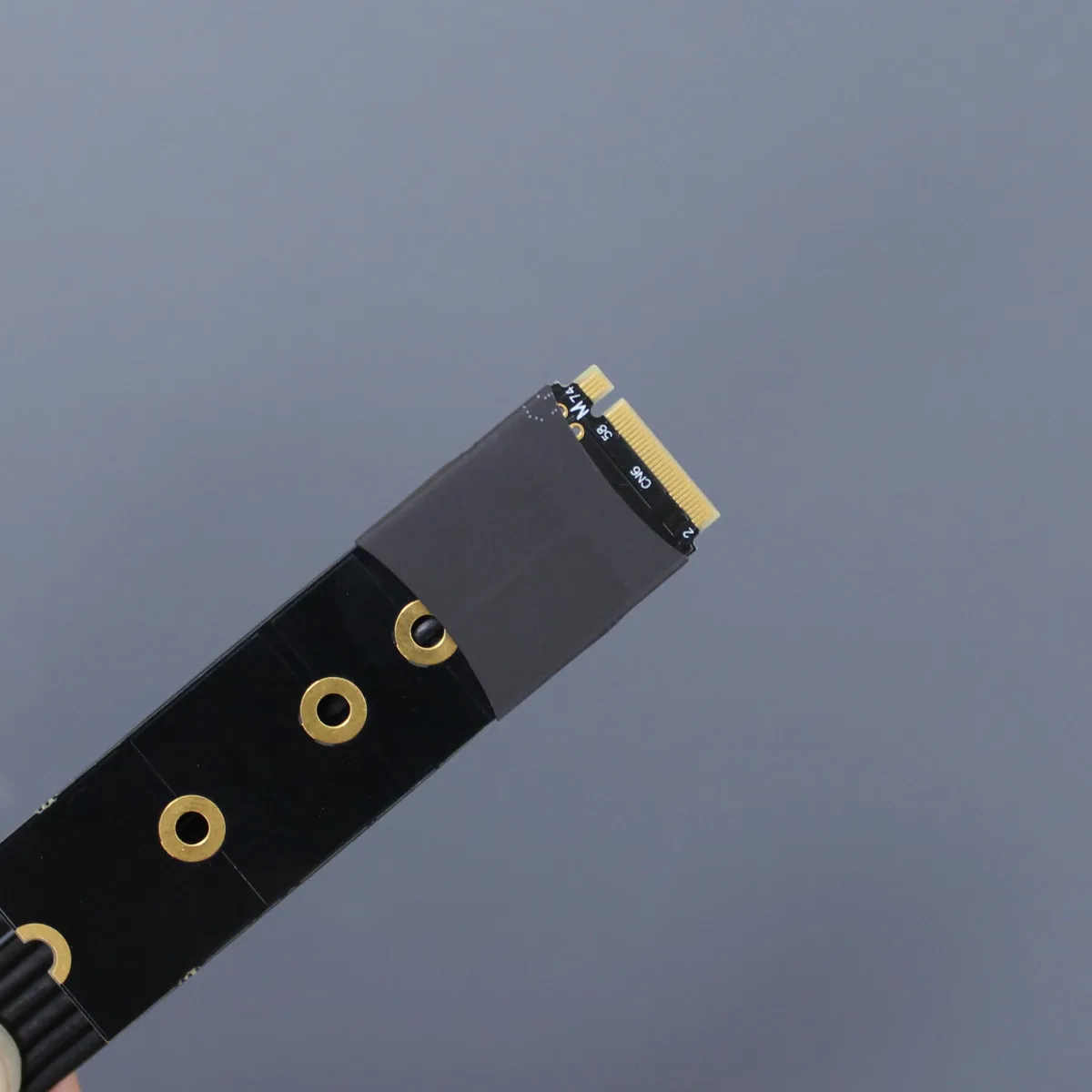

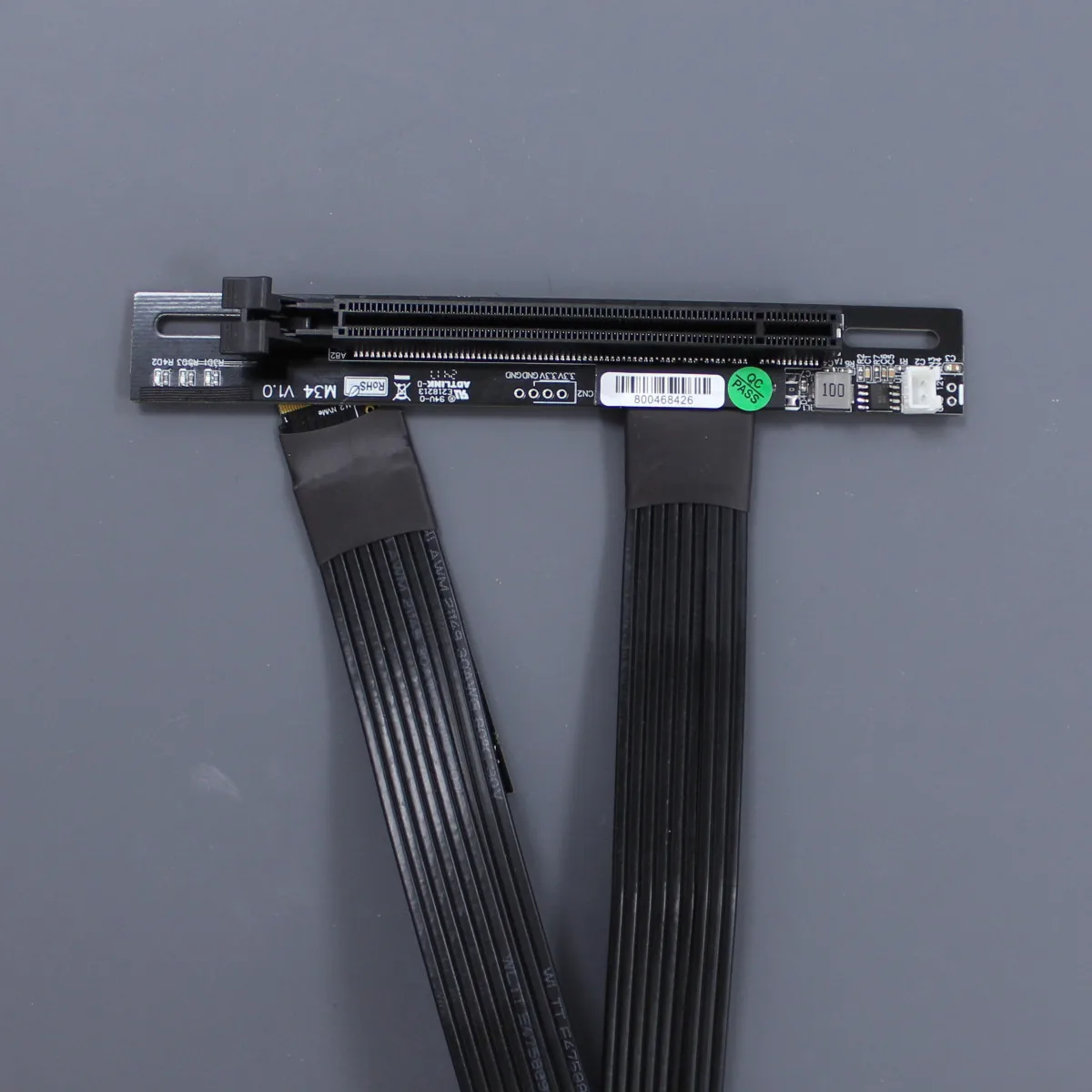

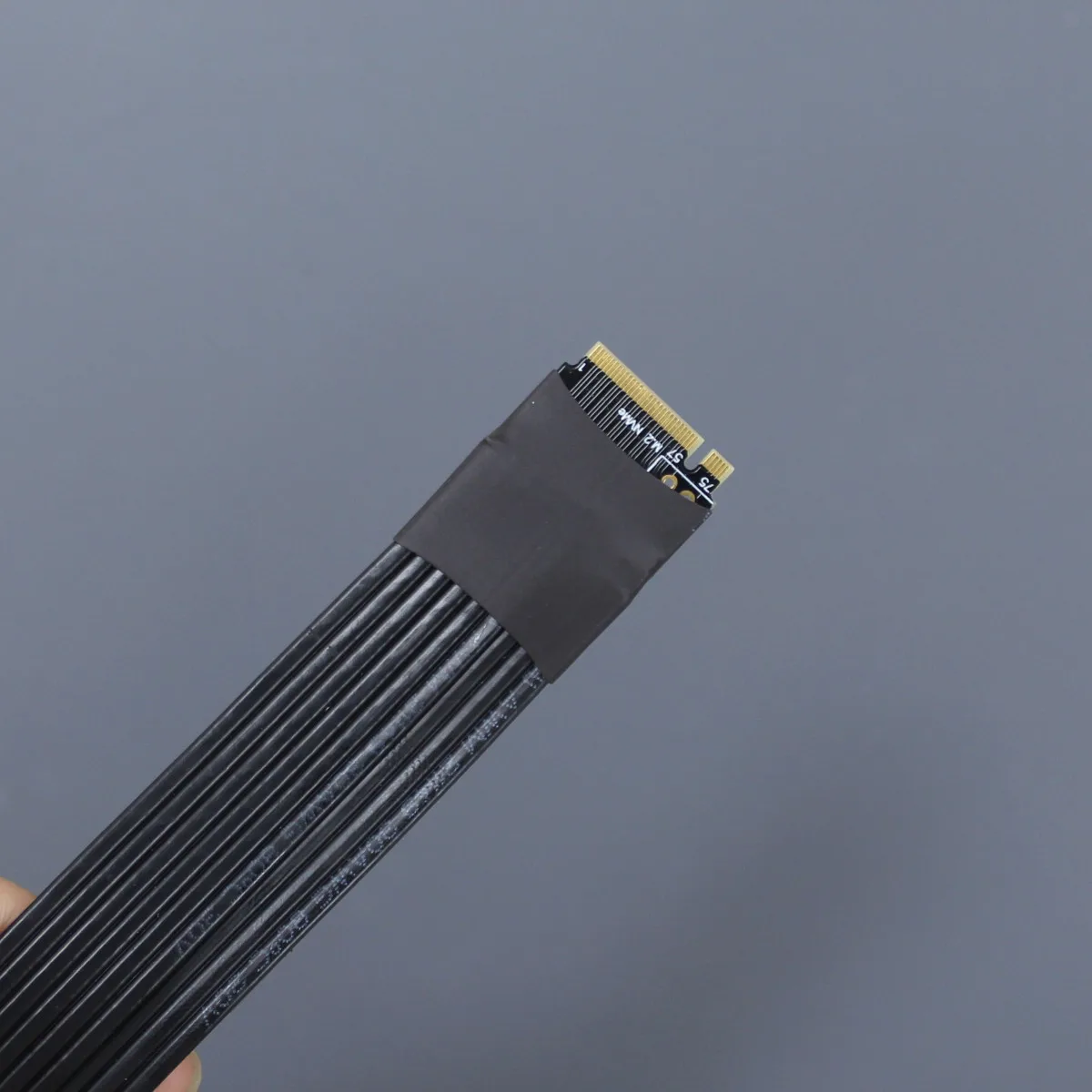

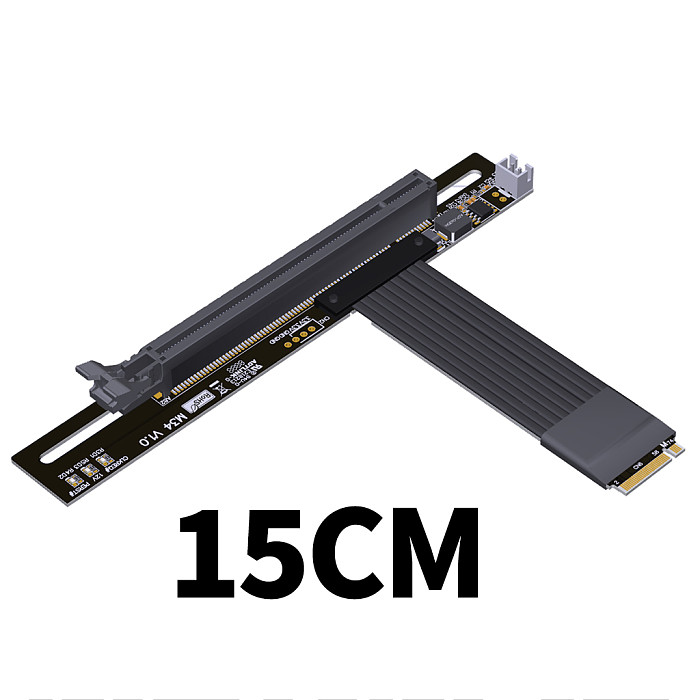

Product Image：

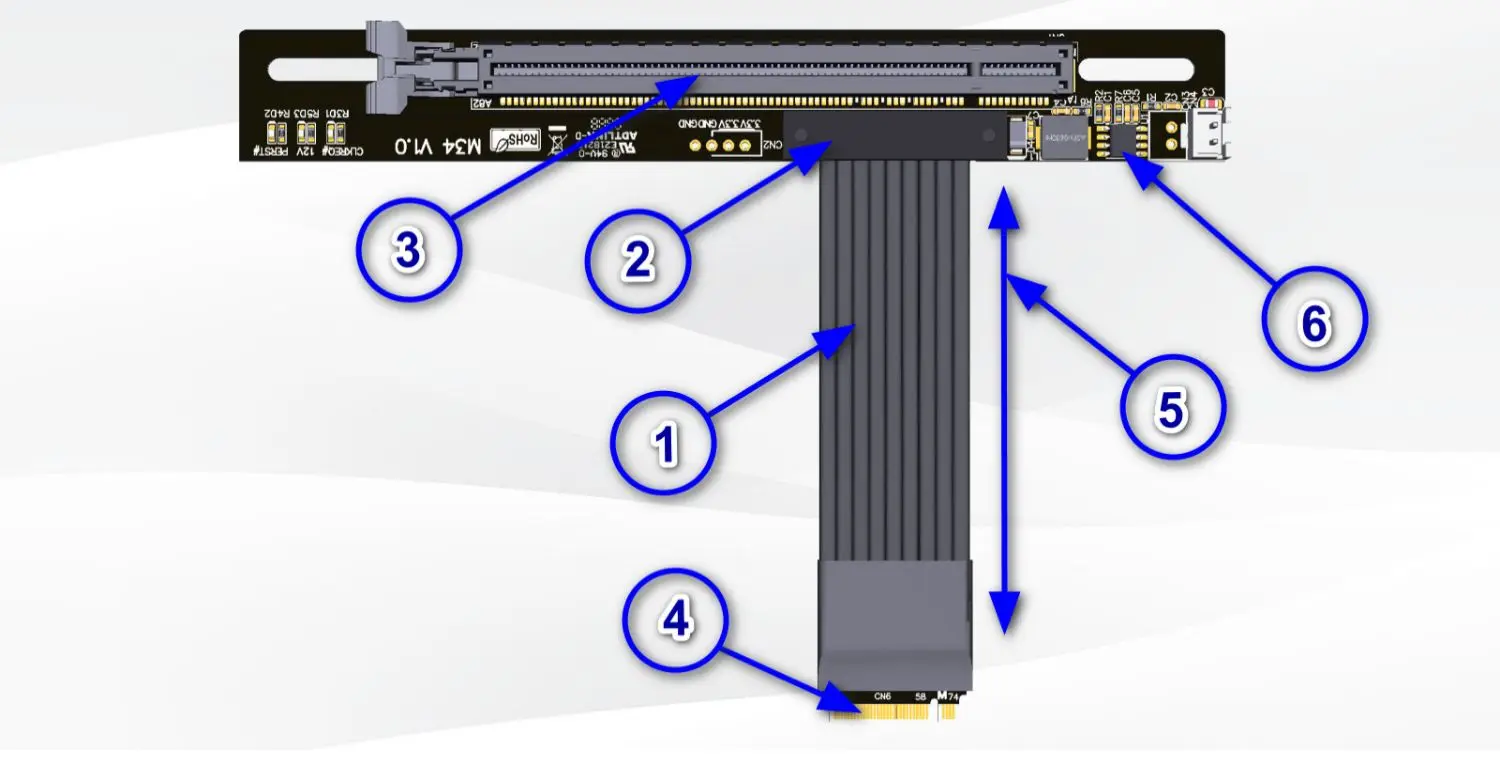

Product Advantage：
1. Cable advantage, the use of shielded cable, high-frequency support for PCIe 4.0 stable transfer.
2. The product selection of the wire itself is more durable, the thickness of 2.8mm aluminium alloy
spacer protection at the metal weld points, the product is strong and reliable, anti-interference,
there will be no breakage of the line off the nail problem.

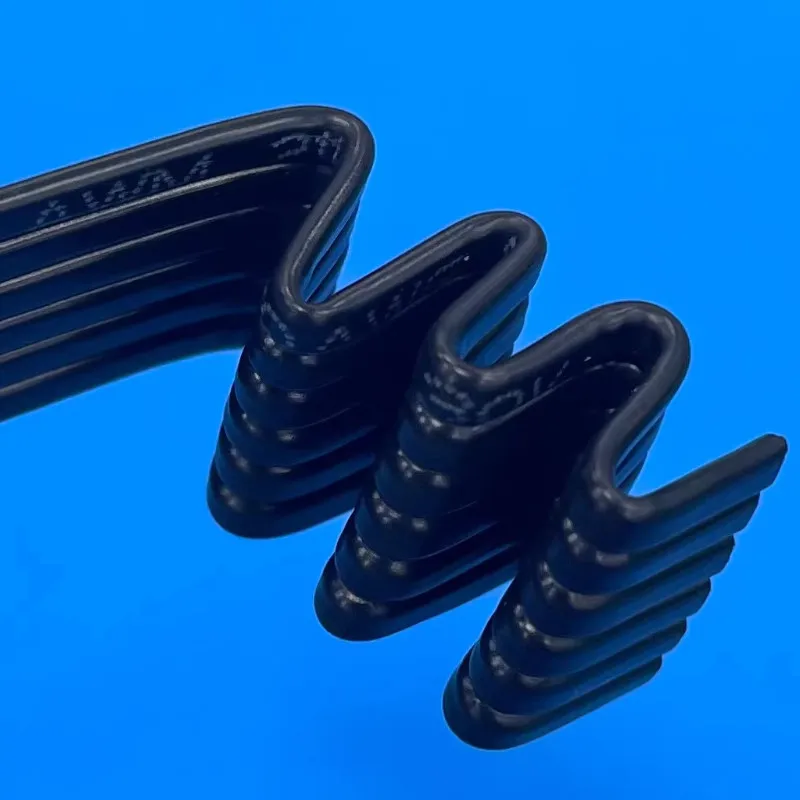

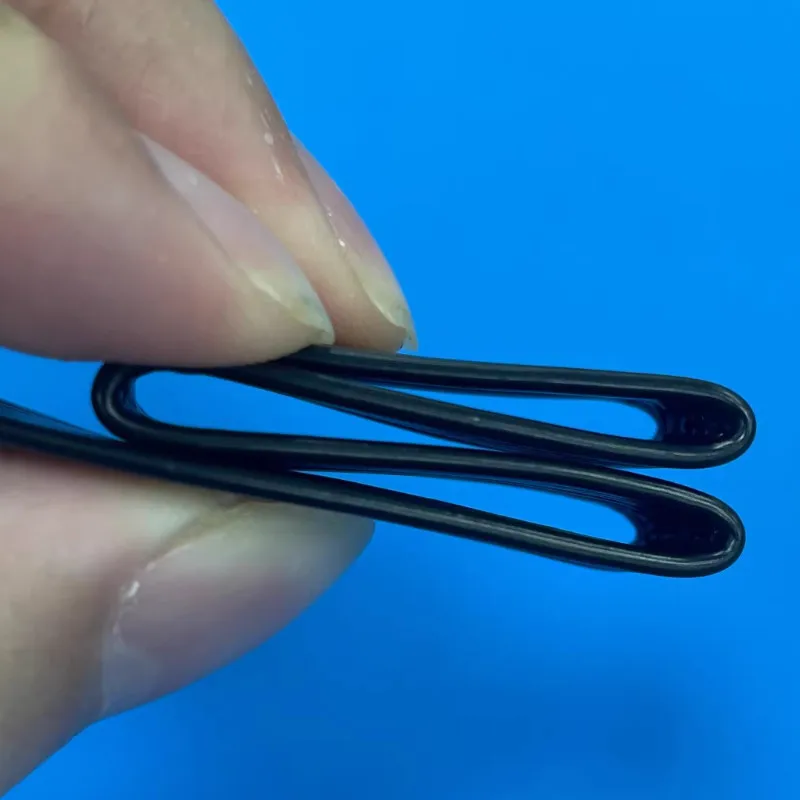

The wire can be bent or folded, does not affect the use.
3. The shell material is PA10T/LCP, gold-plated 15µ" anti-plugging,
and high-frequency in line with RoHS/Free (HF) requirements.
4. PCB precision workmanship, copper thickness thickened to 1oz,
gold-plated gold finger content of 3µ", good conductivity,
can reduce oxidation and rust impedance rise caused by
the problem of blue screen of death.
5. Wire length advantage, from 10cm to 1.5 metres can be customized.
6. This product adopts DCDC chip, the advantages include stable power supply,
high efficiency and energy saving, as well as over-current, over-temperature and
short-circuit protection functions,
while protecting the efficiency and stability of the system.

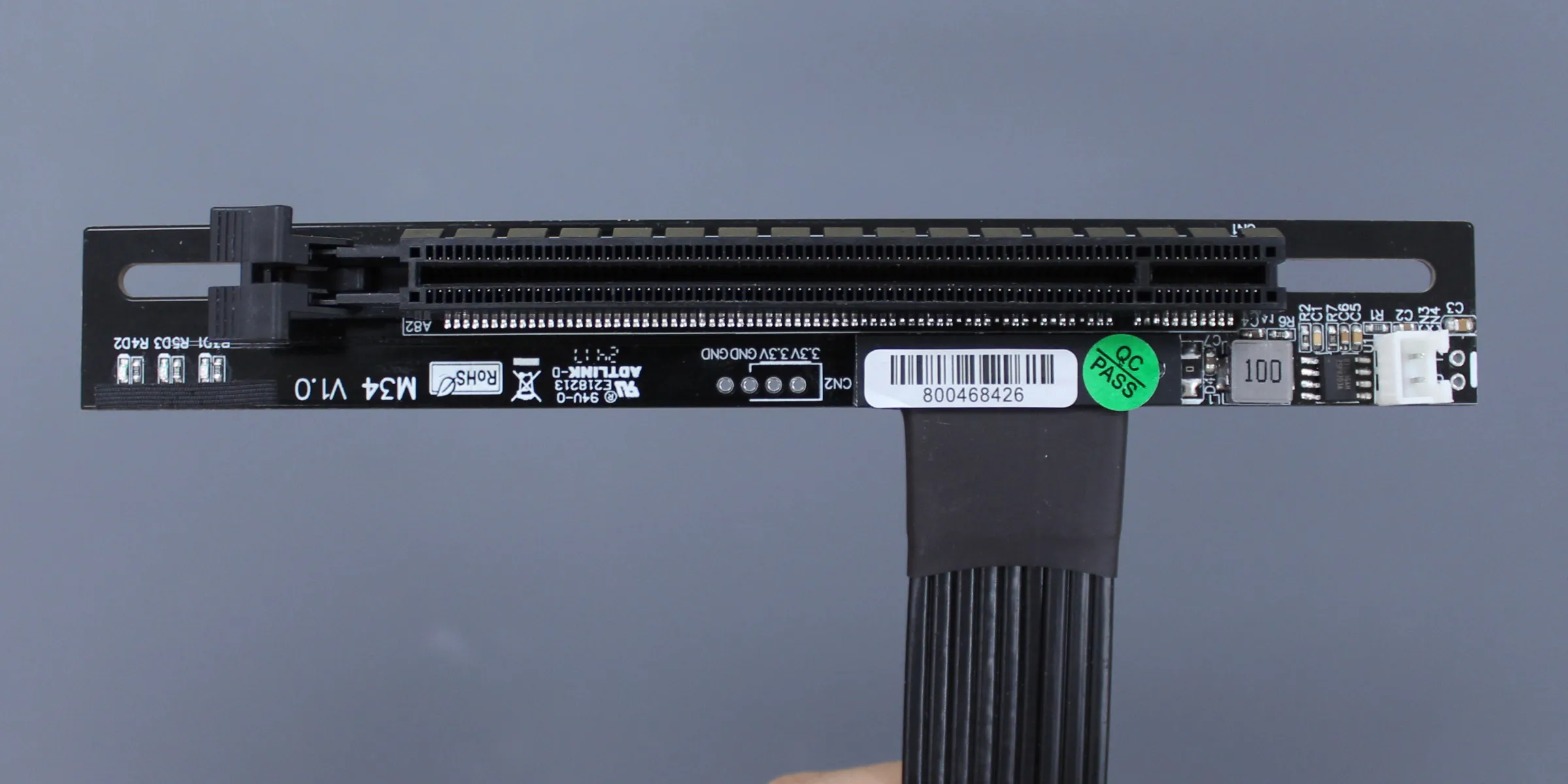

7. Three LED indicators D1_CLKREQ#, D2_12V and D3_PERST#.
Open and run GPU-Z software, click "?". After that, you can see the external graphics card
information and the bandwidth used is @x4 4.0
Summary of technical questions.
What is the thickness of the M41-M34 4.0 wire? What is the quality? Is it shielded?
The black version is 1.3mm thick, shielded with a metal layer, and features an advanced EMI shielding
conductive polymer, a new type of material used for EMI shielding, in a flat cable design.
This technology allows each cable to be completely covered by the EMI shielding of the conductive
polymer to prevent incoming or outgoing emissions of electromagnetic frequencies,
miniaturise interference and performance degradation, and reduce the weight of the cable.
Is an external power supply required? Why do I need two slots for external power supply?
SATA power cable is required. This device is designed with two power slots,
only one SATA power cable can be connected to meet the normal operation requirements of the device.
The other slot is mainly designed as a backup or redundancy to cope with some special circumstances
or possible future expansion needs.

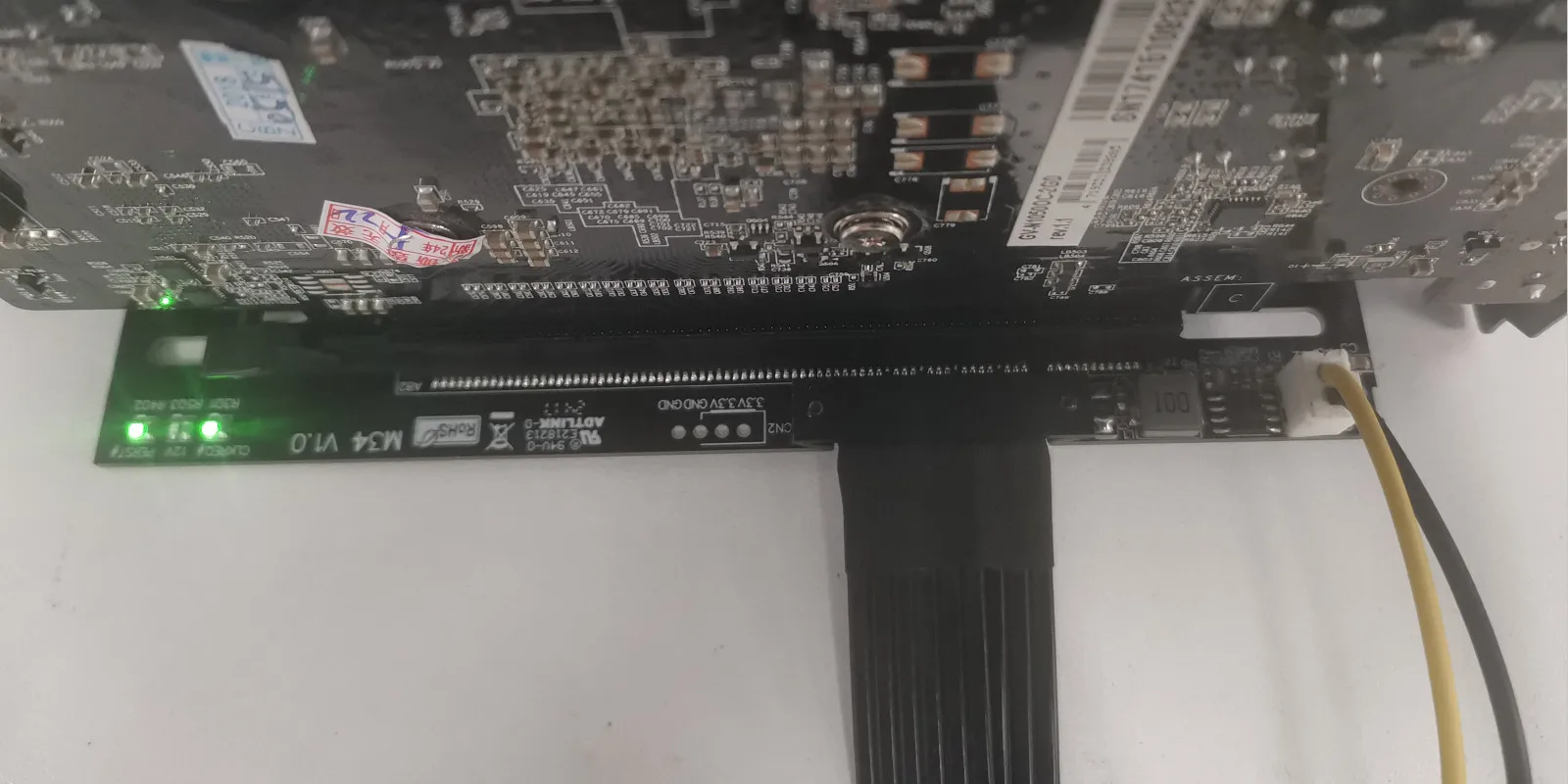

The installation is shown below:
Is PCIe 4.0 x4 full speed supported?
Yes, PCIe 4.0 x4 full speed is stable.
Purchase Notes.
1. Plug in the line must be clear direction, do not insert the reverse or insert bias,
to prevent burning equipment, plug in the line first hold the equipment socket and
then plug in the line, to avoid excessive force will be the socket pin plug off.
The second end of the wire and the circuit board within 2cm of the welded prohibit
bending prohibit pulling.
2. a variety of motherboards and equipment signal drive ability and other conditions
are not the same, our test results do not guarantee the same results and your test,
as long as it is connected to the extension cord, the signal will have loss, the requirements
of the perfect person, please do not buy.
3. graphics card or motherboard is an electronic device will increase with time
and aging oxidation, and then connected to the extension cable will only be more unstable.
Does not support old devices. If your device is more than three years old, please do not purchase.
4. Purchase is limited to product engineers designated for product testing purposes only.
