Copy| Product Name | For APM2.8 2.6 2.5 2.52 and PIXHAWK model power module with 5.3VDC BEC (T plug) |
| Item NO. | F07638-D2 |
| Weight | 0.032 kg = 0.0705 lb = 1.1288 oz |
| Category | DIY RC Drone Accessories |
| Brand | XT-XINTE |
| Creation Time | 2022-03-11 |

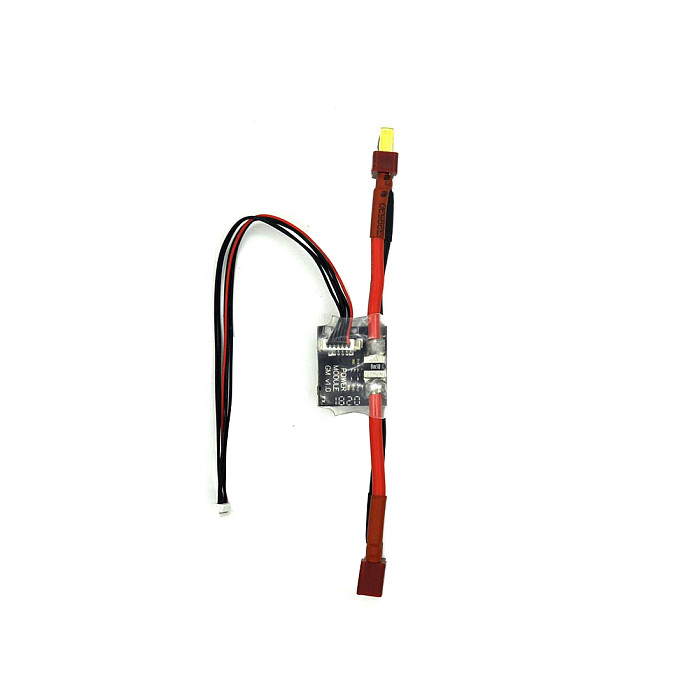

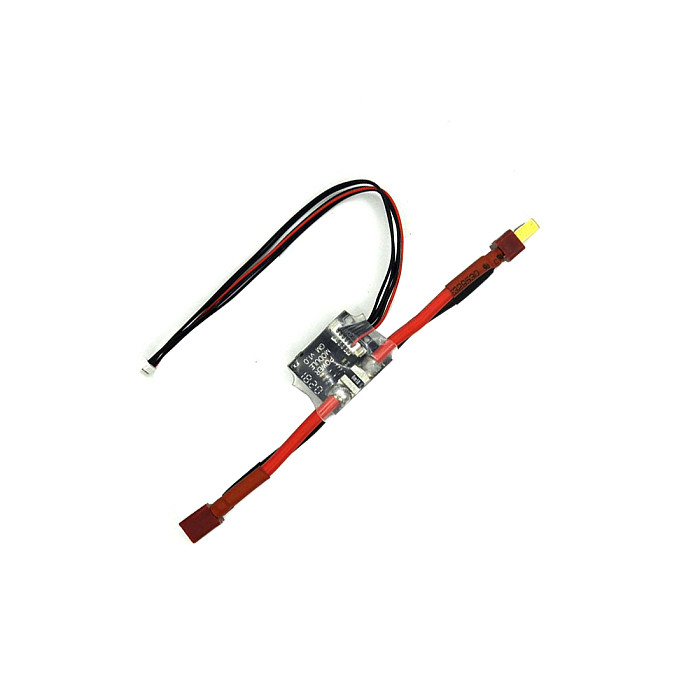

For APM2.8 2.6 2.5 2.52 and PIXHAWK model power module with 5.3VDC BEC (T plug)
The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is notdesigned to power servos. Use your aircraft's own ESC/BEC for that.
Specifications:
Max input voltage: 25V
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 2.25A max
6-pos DF13 cable plugs directly to APM 2.5's 'PM' connecto
For APM 2.8 PIX PIXHAWK
