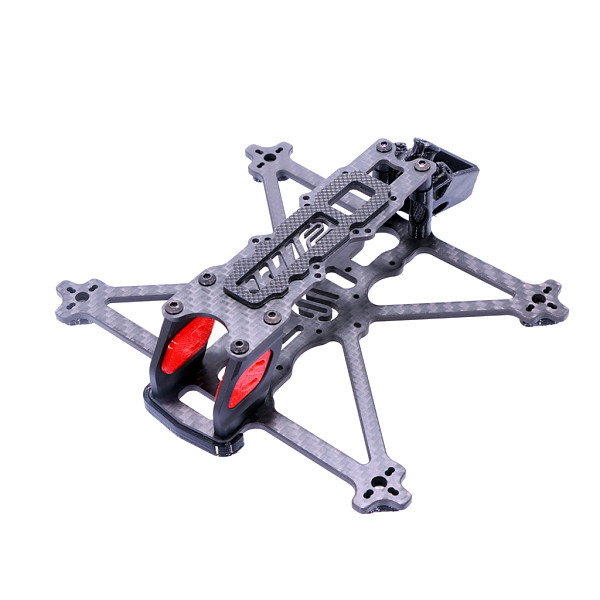

Fi-150 EVO 3.5inch/ Fi-100-EVO 2 inch/ Fi-118-EVO 2.5 inch/ Fi-135-EVO 3 Inch Toothpick Frame Kit RC Drone For O3 Air Unit

Fi-150 EVO 3.5inch/ Fi-100-EVO 2 inch/ Fi-118-EVO 2.5 inch/ Fi-135-EVO 3 Inch Toothpick Frame Kit RC Drone For O3 Air Unit Item NO.: F52521 F52522 F52523 F52524

Write a Review
US$ 9.13
US$ 10.74 Save US$ 1.61 (15% Off)
Version
Fi-150 EVO 3.5inch Fi-100-EVO 2 inch Fi-118-EVO 2.5 inch Fi-135-EVO 3 Inch
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • Fi-150 EVO 3.5inch/ Fi-100-EVO 2 inch/ Fi-118-EVO 2.5 inch/ Fi-135-EVO 3 Inch Toothpick Frame Kit RC Drone For O3 Air Unit
Product Name Fi-150 EVO 3.5inch/ Fi-100-EVO 2 inch/ Fi-118-EVO 2.5 inch/ Fi-135-EVO 3 Inch Toothpick Frame Kit RC Drone For O3 Air Unit
Item NO. F52521 F52522 F52523 F52524
Weight 0.039 kg = 0.0860 lb = 1.3757 oz
Category DIY RC Drone Accessories > Frame
Creation Time 2024-06-24

Fi-150 EVO 3.5inch/ Fi-100-EVO 2 inch/ Fi-118-EVO 2.5 inch/ Fi-135-EVO 3 Inch Toothpick Frame Kit RC Drone For O3 Air Unit

Description:

AlfaRC Fi-150 EVO 3.5inch Propeller Frame Kit RC Racing Drone For DJI O3 Air Unit Caddx Nebula flight control Motor Elrs GPS

Specification:

Model: Fi-150 EVO

Wheelbase: 152MM

Bottom Plate Thickness: 3mm.

Upper Plate Thickness: 2mm.

Side plate thickness:1.5mm.

Internal height:28mm.

FC Hole distance:  25.5x25.5 /26.5*26.5 / 20X20MM(Two or one group)

Motor Hole distance: 9*9/12*12MM

Suitable propeller: 3.5Inch

Suitable FPV camera: 20MM

GPS bin size:19*20mm(BN180)

Weight: 61g(Different production batches will vary)

Material: 3K Carbon Fiber


Package list:

1 set Frame KIT, without any electronic equipment.

AlfaRC Fi-100 EVO 2inch Propeller Toothpick Frame Kit RC Racing Drone Quadcopter Freestyle support 1103 1104 1206  Brushless Motor
Specification:
Model: Fi-100-EVO
Wheelbase: 100MM
Bottom Plate Thickness: 3mm.
Upper Plate Thickness: 1.5mm.
Internal height:23mm.
FC Hole distance:  25.5x25.5 /26.5*26.5 / 20X20MM
Motor Hole distance: 9*9MM
Suitable propeller: 2Inch
Suitable FPV camera: 19-20MM
GPS bin size:17*12.5*5mm(BE122/BZ122)
Weight: 29g(Different production batches will vary)
Material: 3K Carbon Fiber

Package list:
1 set Frame KIT, without any electronic equipment.


AlfaRC Fi-118 EVO 2.5inch Propeller Toothpick Frame Kit RC Racing Drone Quadcopter Freestyle For DJI  O3 Air Unit Caddx Nebula support 1103 1104 1206  Brushless Motor
Specification:
Model: Fi-118-EVO
Wheelbase: 118MM
Bottom Plate Thickness: 3mm.
Upper Plate Thickness: 2mm.
Internal height:23mm.
FC Hole distance:  25.5x25.5 /26.5*26.5 / 20X20MM
Motor Hole distance: 9*9MM
Suitable propeller: 2.5Inch/65MM
Suitable FPV camera: 19-20MM
GPS bin size:17*12.5*5mm(BE122/BZ122)
Weight: 32g(Different production batches will vary)
Material: 3K Carbon Fiber


Package list:
1 set Frame KIT, without any electronic equipment.


AlfaRC Fi-135 EVO 3inch Propeller Toothpick Frame Kit RC Racing Drone For DJI O3 Air Unit Caddx Nebula 1204 1206 1306 1303 Motor
Specification:
Model: Fi-135-EVO
Wheelbase: 135MM
Bottom Plate Thickness: 3mm.
Upper Plate Thickness: 2mm.
Internal height:23mm.
FC Hole distance:  25.5x25.5 /26.5*26.5 / 20X20MM
Motor Hole distance: 9*9MM
Suitable propeller: 3Inch/75MM
Suitable FPV camera: 19-20MM
GPS bin size:17*12.5*5mm(BE122/BZ122)
Weight: 38g(Different production batches will vary)
Material: 3K Carbon Fiber

Package list:
1 set Frame KIT, without any electronic equipment.
