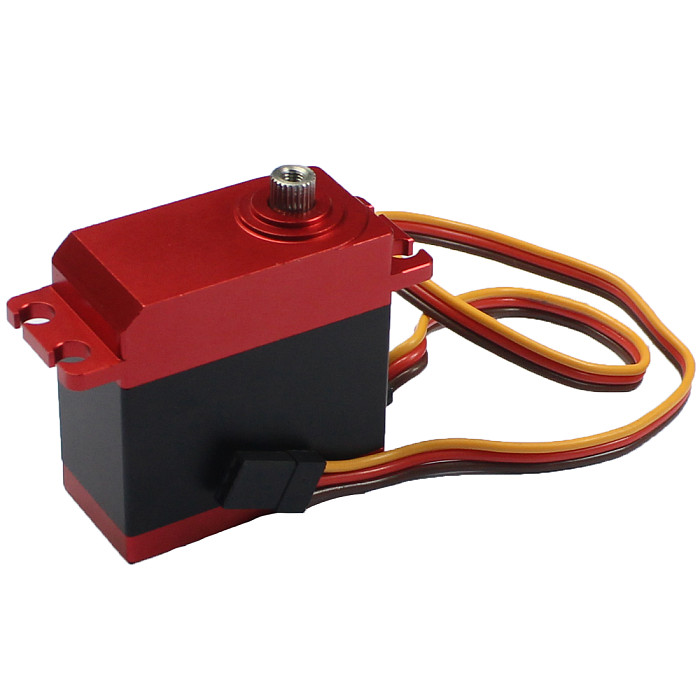

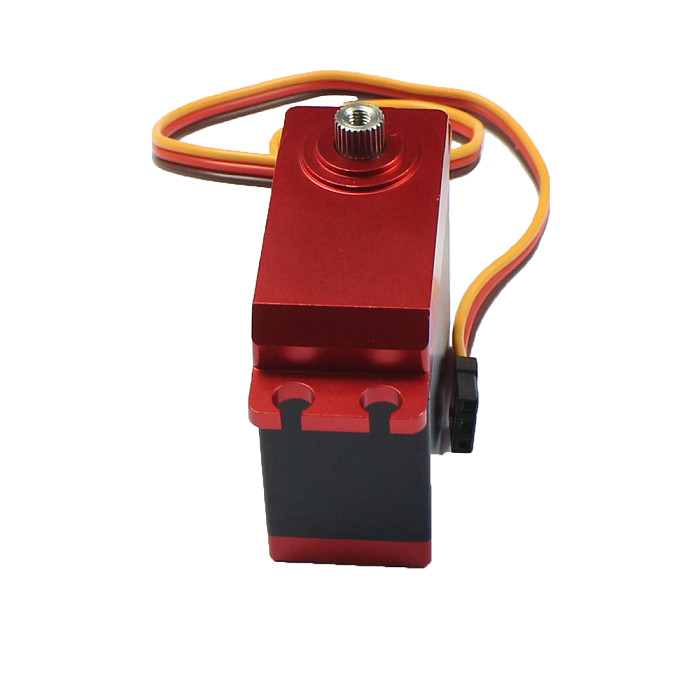

FEICHAO Waterproof Servo 20kg Coreless Servo 180 360 Degree Large Torque Digital Aluminium Metal Gears For Car Robot Drone Item NO.: F45095-D1 F45095-D2

Name: FEICHAO Waterproof Servo 20kg Coreless Servo 180 360 Degree Large Torque Digital Aluminium Metal Gears For Car Robot Drone
Brand: FEICHAO
SKU: F45095-D1 F45095-D2
Price: 73.09 USD
Availability: InStock

Write a Review

US$ 73.09

US$ 85.99 Save US$ 12.90 (15% Off)

Color: 20KG 180D 20KG 360D

Quantity: Stock ( 19999998 )

Estimate Shipping Cost

Add to Cart

Product Name	FEICHAO Waterproof Servo 20kg Coreless Servo 180 360 Degree Large Torque Digital Aluminium Metal Gears For Car Robot Drone
Item NO.	F45095-D1 F45095-D2
Weight	0.09 kg = 0.1984 lb = 3.1747 oz
Category	DIY RC Drone Accessories > Servo
Brand	FEICHAO
Creation Time	2021-09-29

FEICHAO Waterproof Servo 20kg Coreless Servo 180 360 Degree Large Torque Digital Aluminium Metal Gears For Car Robot Drone

Products Name:20kg Digital servo
1. Conditions of Use Apply Environmental Conditon
Specifcation
1.1 Storage Temperature Range -30°C～80°C
1.2 Operating Temperature Range -25°C～70°C
2. Standard Test Environment
No. Item Specifcation
2.1 Temperature Range -25°C～70°C
2.2 Humidity Range 65%±10%
3. Mechanical Specification
3.1 Servo size Size 40.0*20.0*39.8mm
3.2 Weight 80g±5%
3.3 Gear type "5 Metal
3.4 Limit angle 360°
3.5 Bearing 2BB
3.6 Outut shaft Horn gear spline 25T diameter: 5.9mm high 4.0mm
3.7 Horn type Plastic, POM
3.8 Case "Integral Aluminum alloy
3.9 Connector wire 320mm±5mm
3.10 Motor Carbon brush motor
3.11 Splash water resistance yes
4. Electrical Characteristics
No. Operating voltage Operat voltage 4.8V 8.4V
4.1 Quiescent current Idle current mA mA
4.2 No load speed 0.14sec/60° 0.10sec/60°
4.3 No-load current Runnig current 230mA 410mA
4.4 Peak stall torque 20.5kg.cm 23.8kg.cm
4.5 Stall current 2900mA±10% 4680mA±10%
4.6 "Working voltage range"4.8-8.4V
5. Control Specification
5.1 Control signal Command signal Pulse width modification
5.2 Amplifier type Digital controller
5.3 Pulse width range Pulse width range 500～2500usec
5.4 Neutral position 1500usec
5.5 Running degree 180°±3°(when 500～2500usec)
5.6 Dead band width 5 usec
5.7 Rotating direction Counterclockwise (when 1000～2000usec)
