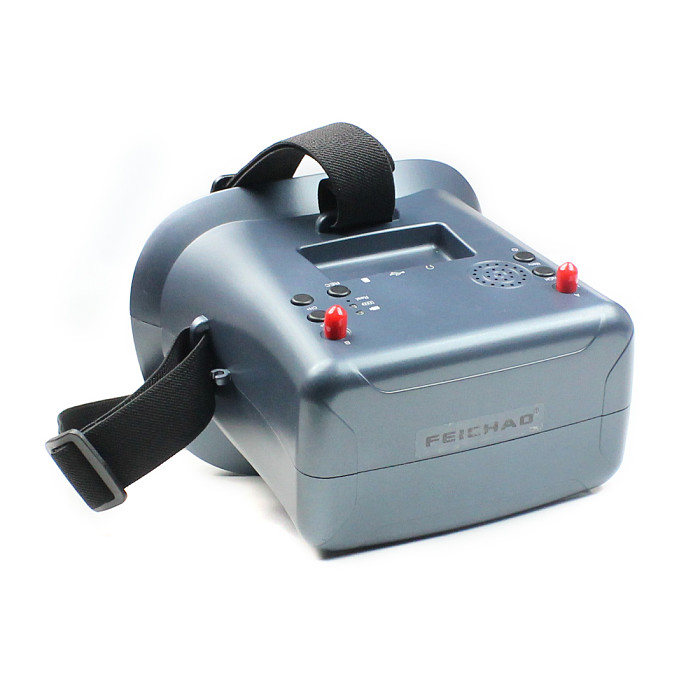

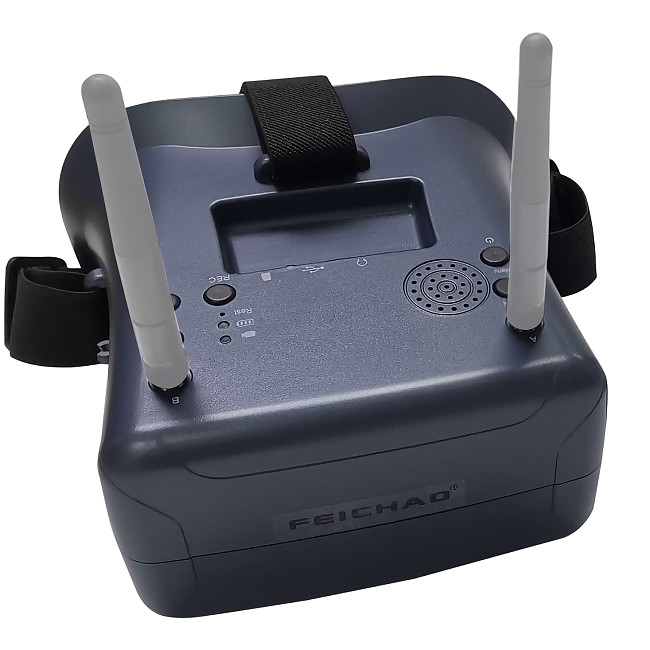

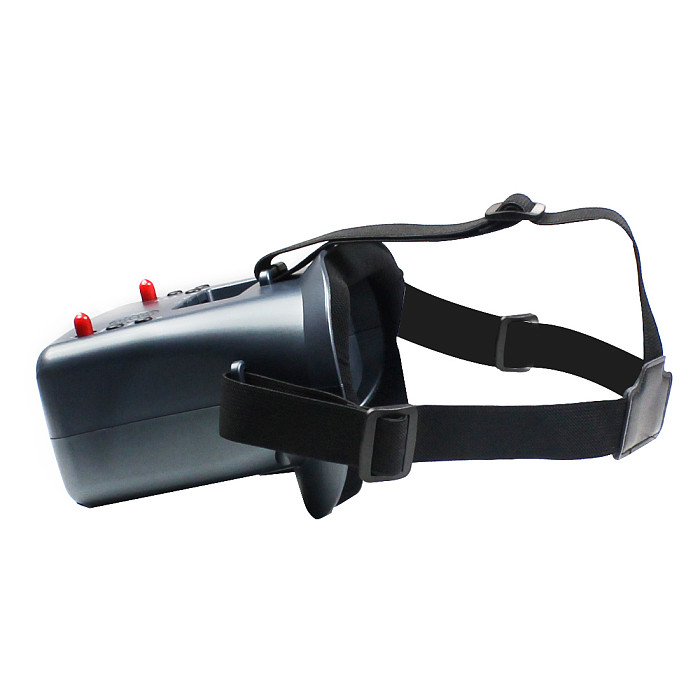

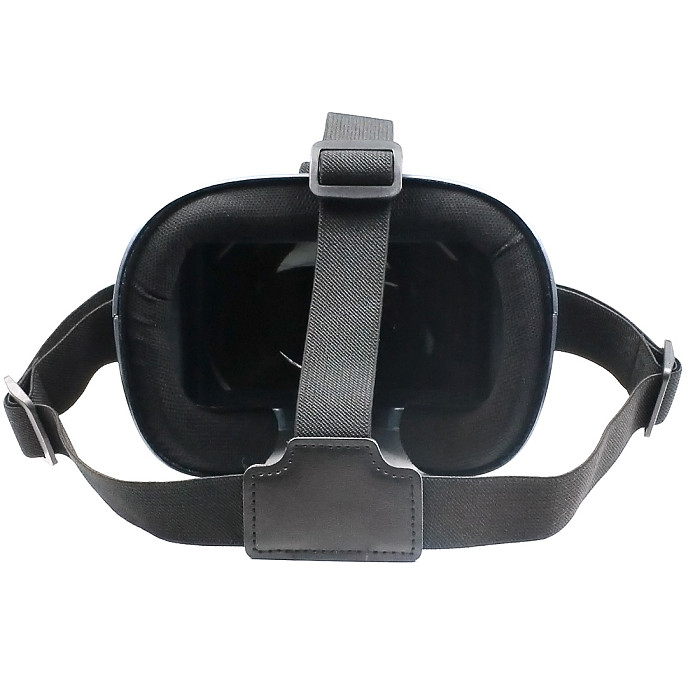

FEICHAO LS-008D 5.8G FPV Googles VR Glasses 40CH 4.3 inch With 2000mA Battery 92% Transparent Lens For RC Model FPV Racing Drone

FEICHAO LS-008D 5.8G FPV Googles VR Glasses 40CH 4.3 inch With 2000mA Battery 92% Transparent Lens For RC Model FPV Racing Drone Item NO.: F40684

Write a Review
US$ 41.34
US$ 48.64 Save US$ 7.30 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name FEICHAO LS-008D 5.8G FPV Googles VR Glasses 40CH 4.3 inch With 2000mA Battery 92% Transparent Lens For RC Model FPV Racing Drone
Item NO. F40684
Weight 0.565 kg = 1.2456 lb = 19.9298 oz
Category DIY RC Drone Accessories
Brand FEICHAO
Creation Time 2020-09-10

FEICHAO LS-008D 5.8G FPV Googles VR Glasses 40CH 4.3 inch With 2000mA Battery 92% Transparent Lens For RC Model FPV Racing Drone



Features:

1, dual antenna at the same time, the signal is stable
2. Built-in DVR recording function, support 32G memory.
3, built-in 3.7V 2000 mw battery, each charge can support 3 hours of work.
4, USB interface fast charge.
5, USB data export.
6, small size, light weight.
7, support for multiple languages.
8, multi-function menu.
9, a key search frequency.
10, the surface process is a metallic light paint.
11, with a portable zipper bag.



product features

# Separable design ,4.3 inch screen canbe used as small monitor on radio controller or with tripod

# High brightness 4.3 inch LCD specially tuned for FPV racing or Model airplane

# Buit-in super sensitiveness 5.8GHz 40ch receiver,especially with RaceBand.

# Come with advanced auto-searching function ad show yout the working frequency on screen

# Buit-in 3.7V/2000mA battery ,each full charge revive around 2 hours woking time

# Ergonomic design fit your faces

# 92%transparent lens adopted ,no distort,no blur on the adage of screen;

# Light weight 375g with 2hr 2000mAh battery,RTF for any scale,racing ,Model airplane game

# 4.3 inch 480*272px HD high brightness LCD



Product Specification:

Body

Dimension: 155x144x113mm

Weight: 375g with 2hr 2000mAh battery

Belt: three-Ways adjustable belt



Screen

screen size: 4.3 inch

Screen resolution: 480*272(No blur after enlarge by the lens)

Screen brightness; 300cd/m2 with special high brightness backlight LED for outdoor FPV

View Angle: 12 O’CLOCK



Lens

2.8x boost of the video to acquire intense feel-in-there video

92% transparent rate no distort of light



JACK

1.  Input CVBS

2.  Headphone sound output

3.  TF Card(C10) Max32G

4.  USB DC5V IN, the device operating current of 550mA@5V,built-in battery maximum charge current of 750mA@5V; if the device is working when charging, please pay attention to selecting the rated current greater than 2A/5V charging equipment.

Battery:

 Built-in 3.7V/2000mAh high-capacity polymer battery, when the battery is charging, the device the red LED will light when charging is completed, here are bright green LED.

Band and Channel selection

     CH

CH 1

CH 2

CH 3

CH 4

CH 5

CH 6

CH 7

CH 8

GROUP

A

5865 MHZ

5845 MHZ

5825 MHZ

5805 MHZ

5785 MHZ

5765 MHZ

5745 MHZ

5725 MHZ

B

5733 MHZ

5752 MHZ

5771 MHZ

5790 MHZ

5809 MHZ

5828 MHZ

5847 MHZ

5866 MHZ

D

5705 MHZ

5685 MHZ

5665 MHZ

5645 MHZ

5885 MHZ

5905 MHZ

5925 MHZ

5945 MHZ

E

5740 MHZ

5760 MHZ

5780 MHZ

5800 MHZ

5820 MHZ

5840 MHZ

5860 MHZ

5880 MHZ

R

5658 MHZ

5695 MHZ

5732 MHZ

5769 MHZ

5806 MHZ

5843 MHZ

5880 MHZ

5917 MHZ

Operation Instructions



KEY

1. K1à SearCH/AV

 Default mode, Short press for automatically search signals to a certain signal strength and stops on that channel; Long press switch RF MOD and Long press for AV MOD; In Play mode, pressed jump volume adjust OSD.



2. K2àMENU/Power

 Default mode, Short press for MENU OSD; Long press 3S for Power OFF/ON; MENU pressed, this button is use as the Return.

3. K3àREC/Play/OK

 Default mode, Short press for recording /STOP; Long press for Play mode; MENU pressed, this button is use as the confirmed.

4. K4àBand+/VOL+

Default mode, Short press for Band+ option A,B,D,E,F,R cycle selection; Long press for Volume control -; MENU pressed, this button is use as the UP.

5. K5à CH+/VOL-

 Default mode, Short press for CH 1~8 cycles; Long press for Volume control +, MENU pressed, this button is use as the DOWN.





Playback

 Call MENU and select Playback (Short Press K1 button to call menu, and use K3 button to select Playback mode; Or long pressed K3 )

Review/Replay in Playback mode (Playing Short K1 jump volume adjust OSD)

Buttons have different function in playback mode

Record file: AVI, 720*480px progressive

Support up to 32G TF card (C10 recommend)

K2: Playback menu (volume control/file delete/protect)

K4: UP/ fast backward<<

K5: DOWM/ fast backward>>

K3: Select/Play/ Pause

K1: Quit Playback mode


NOTE: If the device is not used for a long time, please charged once every four months, inorder to protect the battery.
