Copy| Product Name | FEICHAO DIY H135 135MM Drone 1200TVL Global WDR FPV Camera GHF411AIO F4 Betaflight OSD 25A VTX 40CH 5.8G FLysky FS-i6 TX Quadcopter |
| Item NO. | F45127-B F45127-CF45127-FF45127-BF45127-BH |
| Weight | 0.32 kg = 0.7055 lb = 11.2877 oz |
| Category | DIY RC Drone Accessories > DIY RC Drone Kit |
| Brand | FEICHAO |
| Creation Time | 2021-11-04 |
Functions and features:
Propeller:
Material: PC
Weight: 1.18g/Piece
GHF411AIO Pro F4 Betaflight OSD Flight Controller Built-in 25A BLheli_S 4in1 ESC:
Model: GHF411AIO Pro
Item Name: F4 OSD Flight Controller Built-in 25A 4in1 ESC
Size: 32.5x32.5mm
Mounting Hole: 25.5x25.5mm
Weight: 7.3g
CPU: STM32F411CEU6 (100MHZ)
MPU: MPU6000 ( SPI)
Firmware: Betaflight JHEF411
Built-in Betaflight OSD ( AT7456E)
BEC Output(two): 9V/2A, 5V2.5A
USART: UART1,UART2
Receiver;SBUS,IBUS,DSM-2,DSM-X ,TBS (UART2)
Blackbox: 8MB
Built-in Current Sensor
Support WS2812 LED
Input Voltage: 2-6S Lipo
ESC Current: 25A/35A
Firmware: BLHELI_S G-H-30.HEX
Support PWM, Oneshot42, Oneshot125, Multishot, Dshot150, and Dshot300, Dshot600
Supra-VTX VTX 5.8G 40CH 25mw 100mw 200mw Transmitter OSD Adjustable
Model: Supra-VTX
Brushless Motor:
MT1204 brushless motor, weighs only 5.9 grams, cool design, imported NMB dual bearings, 2mm inner shaft, efficient and durable smooth, Advanced power of 2.5~3.5 inch advanced Micro brushless FPV Racing Drone
Mode: MT1204
KV option: KV5000
Configu-ration:9N12P
Stator Diamter: 12mm
Stator Length: 4mm
Inner Shaft Diameter: Φ2mm
Outer Shaft Diameter: Φ1.5mm
Motor Dimension(Dia.*Len): Φ15mm*16.2mm
Weight(g): 5.9g
No.of Cells(Lipo):KV5000 support 2-4s
FPV camera:
Weight: 2g (N.W.)
Power Supply:
3s 11.1v 450mah Lipo Battery, IMAXRC B3 pro Charger (optional)
FRSKY version, FLYSKY version, without receiving version (optional)
Transmitter Remote Controller: (Mode 2 Left Throttle)
Flysky I6 Transmitter, Jumper T-Lite Open TX 16CH Hall Sensor Gimbal JP4IN Multi-protocol (optional)
Upgrade FPV: (Optional)
Highlight:
Double Antennas
Built-in 3.7V 1200mAh Battery
Support a key search frequency
RaceBand 40 channel Auto-Searching
Real-time video return 5.8G FPV Receiver
Feature:
● Small size and lightweight;
● Low power consumption, Working current 300~330mA;
● Double antenna reception to make the signal more stable;
● RaceBand 40 channel, Auto-Searching;
● 3.0 Inch 480*320 dot high brightness LCD screen;
● Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
● Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
● Universal USB charging interface;
● Real-time video return, Very low time delay;
● Bilingual menu in support of Chinese and English;
● Support external video signal input;
● Support AV signal output (Connect external DVR);
Q&A:
Package includes: (PNP Version)
1x H135 135mm Frame Kit
1x JHEMCU GHF411AIO F4 2-6S AIO Build-in 25A Flight controller
4x MT1204 5000kv Brushless Motors
2x Pair 3016 3inch 3-Blade Propellers
1x Supra-VTX 25-100-200MW Adjustable OSD 40CH 5.8G
1x (Caddx.us) Ant 1200TVL 1.8mm Global WDR 4:3 FPV Camera
4x Blue Propeller Guard
1x Accessory kit
Package includes: (BNF Version No Lipo Battery for Frsky)
1x Ti145 Carbon Fiber Frame Kit
1x JHEMCU GHF411AIO F4 2-6S AIO Build-in 25A Flight controller
4x MT1204 5000kv Brushless Motors
2x Pair 3016 3inch 3-Blade Propellers
1x Supra-VTX 25-100-200MW Adjustable OSD 40CH 5.8G
1x (Caddx.us) Ant 1200TVL 1.8mm Global WDR 4:3 FPV Camera
4x Blue Propeller Guard
1x FD800 Mini Receiver for Frsky D8
1x Accessory kit
Package includes: (BNF Version No Lipo Battery for Flysky)
1x Ti145 Carbon Fiber Frame Kit
1x JHEMCU GHF411AIO F4 2-6S AIO Build-in 25A Flight controller
4x MT1204 5000kv Brushless Motors
2x Pair 3016 3inch 3-Blade Propellers
1x Supra-VTX 25-100-200MW Adjustable OSD 40CH 5.8G
1x (Caddx.us) Ant 1200TVL 1.8mm Global WDR 4:3 FPV Camera
4x Blue Propeller Guard

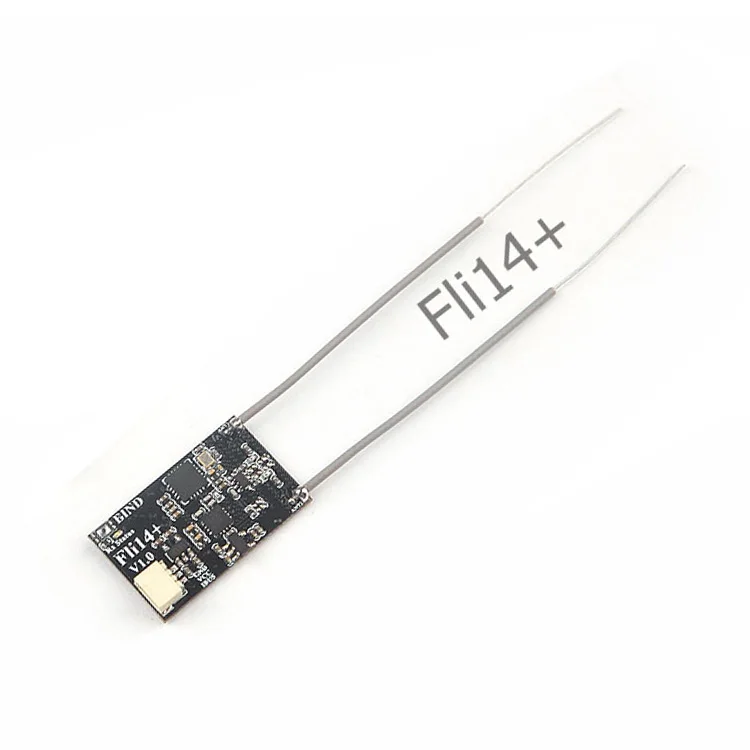

1x Flysky 2.4G Fli14+ Receiver
1x Accessory kit
Package includes: (RTF Version No Lipo Battery for Flysky)
1x Ti145 Carbon Fiber Frame Kit
1x JHEMCU GHF411AIO F4 2-6S AIO Build-in 25A Flight controller
4x MT1204 5000kv Brushless Motors
2x Pair 3016 3inch 3-Blade Propellers
1x Supra-VTX 25-100-200MW Adjustable OSD 40CH 5.8G
1x (Caddx.us) Ant 1200TVL 1.8mm Global WDR 4:3 FPV Camera
4x Blue Propeller Guard
1x Flysky 2.4G Fli14+ Receiver
1x Flysky I6 2.4G 6CH Transmitter
1x Accessory kit
Package includes: (RTF Version for Flysky)
1x Ti145 Carbon Fiber Frame Kit
1x JHEMCU GHF411AIO F4 2-6S AIO Build-in 25A Flight controller
4x MT1204 5000kv Brushless Motors
2x Pair 3016 3inch 3-Blade Propellers
1x Supra-VTX 25-100-200MW Adjustable OSD 40CH 5.8G
1x (Caddx.us) Ant 1200TVL 1.8mm Global WDR 4:3 FPV Camera
4x Blue Propeller Guard
1x Flysky 2.4G Fli14+ Receiver
1x Flysky I6 2.4G 6CH Transmitter
1x 3S 11.1V 450mAh Lipo Battery
1x IMAX RC B3 Pro Charger
1x Accessory kit
Package includes: (RTF & FPV Goggles Upgraded for Flysky)
1x Ti145 Carbon Fiber Frame Kit
1x JHEMCU GHF411AIO F4 2-6S AIO Build-in 25A Flight controller
4x MT1204 5000kv Brushless Motors
2x Pair 3016 3inch 3-Blade Propellers
1x Supra-VTX 25-100-200MW Adjustable OSD 40CH 5.8G
1x (Caddx.us) Ant 1200TVL 1.8mm Global WDR 4:3 FPV Camera
4x Blue Propeller Guard
1x Flysky 2.4G Fli14+ Receiver
1x Flysky I6 2.4G 6CH Transmitter
1x 3S 11.1V 450mAh Lipo Battery
1x IMAX RC B3 Pro Charger
1x 5.8G FPV LST-009 Goggles
1x Accessory kit
Package includes: (RTF Version No Lipo Battery for Frsky)
1x Ti145 Carbon Fiber Frame Kit
1x JHEMCU GHF411AIO F4 2-6S AIO Build-in 25A Flight controller
4x MT1204 5000kv Brushless Motors
2x Pair 3016 3inch 3-Blade Propellers
1x Supra-VTX 25-100-200MW Adjustable OSD 40CH 5.8G
1x (Caddx.us) Ant 1200TVL 1.8mm Global WDR 4:3 FPV Camera
4x Blue Propeller Guard
1x FD800 Mini Receiver for Frsky D8
1x (Jumper-XYZ) T-LITE JP4IN1 Transmitter
1x Accessory kit
Package includes: (RTF Version for Frsky)
1x Ti145 Carbon Fiber Frame Kit
1x JHEMCU GHF411AIO F4 2-6S AIO Build-in 25A Flight controller
4x MT1204 5000kv Brushless Motors
2x Pair 3016 3inch 3-Blade Propellers
1x Supra-VTX 25-100-200MW Adjustable OSD 40CH 5.8G
1x (Caddx.us) Ant 1200TVL 1.8mm Global WDR 4:3 FPV Camera
4x Blue Propeller Guard
1x (Jumper-XYZ) T-LITE JP4IN1 Transmitter
1x 3S 11.1V 450mAh Lipo Battery
1x IMAX RC B3 Pro Charger
1x Accessory kit
Package includes: (RTF & FPV Goggles Upgraded for Frsky)
1x Ti145 Carbon Fiber Frame Kit
1x JHEMCU GHF411AIO F4 2-6S AIO Build-in 25A Flight controller
4x MT1204 5000kv Brushless Motors
2x Pair 3016 3inch 3-Blade Propellers
1x Supra-VTX 25-100-200MW Adjustable OSD 40CH 5.8G
1x (Caddx.us) Ant 1200TVL 1.8mm Global WDR 4:3 FPV Camera
4x Blue Propeller Guard
1x (Jumper-XYZ) T-LITE JP4IN1 Transmitter
1x 3S 11.1V 450mAh Lipo Battery
1x IMAX RC B3 Pro Charger
1x 5.8G FPV LST-009 Goggles
1x Accessory kit
More Details:
Precautions:
1. Do not charge the battery when you are away from home, do not charge the battery immediately after flying, do not over-discharge the battery (over-discharge may cause the battery to be uncharged and become useless). After the battery is fully charged, cuts off the power in time and cannot charge for a long time.
2. Do not modify any parameters and wiring without knowing the flight control and remote control. (It’s very important, we won’t compensate if it’s man-made damage!)
3. Turn on the remote control before powering on the aircraft, unplug the power switch after the flight, and then turn off the remote control to prevent accidents.
4. This product is not a toy and is not suitable for children under 14 years of age.
5. If you are a beginner, it is recommended to be assisted by an experienced adult.
6. Novices should pay attention: Do not use your hands to hold the plane when it is turning or let children touch it. Prevent being scratched.
7. When the plane falls or hits other objects at a high altitude during flight, please turn off the start switch in time, otherwise, it may cause damage to the flight control and motor. Check if the aircraft is not damaged and the screws are not loosened, and everything is normal, you can take off again.
