FEICHAO BT5.0 Audio Receiver 3.7-5V Board MP3 Lossless Decoder Board DIY Wireless Stereo Music Car Speaker Module Support WAV/FLAC/MP3 Item NO.: F44937-A1 F44937-A2

Write a Review Sold (2)

US$ 1.85

Color

Quantity: Stock ( 19999996 )

Product Name	FEICHAO BT5.0 Audio Receiver 3.7-5V Board MP3 Lossless Decoder Board DIY Wireless Stereo Music Car Speaker Module Support WAV/FLAC/MP3
Item NO.	F44937-A1 F44937-A2
Weight	0.02 kg = 0.0441 lb = 0.7055 oz
Category	Consumer Electronics > MP3 Player
Brand	FEICHAO
Creation Time	2021-09-18

FEICHAO BT5.0 Audio Receiver 3.7-5V Board MP3 Lossless Decoder Board DIY Wireless Stereo Music Car Speaker Module Support WAV/FLAC/MP3

Description:
This product uses Bluetooth 5.0 main control chip, JL6925A, true stereo 5.0 chip. Good sound quality
Support automatic connection function, support WAV+APE+FLAC+MP3 lossless decoding, stereo output.
Parameter：
Power Supply ：3.7-5V
SNR ：90dB
THD+N ：-70dB
Crosstalk ：-86dB
DNR ：91dB
Support Profile ：A2DP/AVCTP/AVDTP/AVRCP/HFP
LOS ：>15m
Size：30mm*30mm
Specifications:

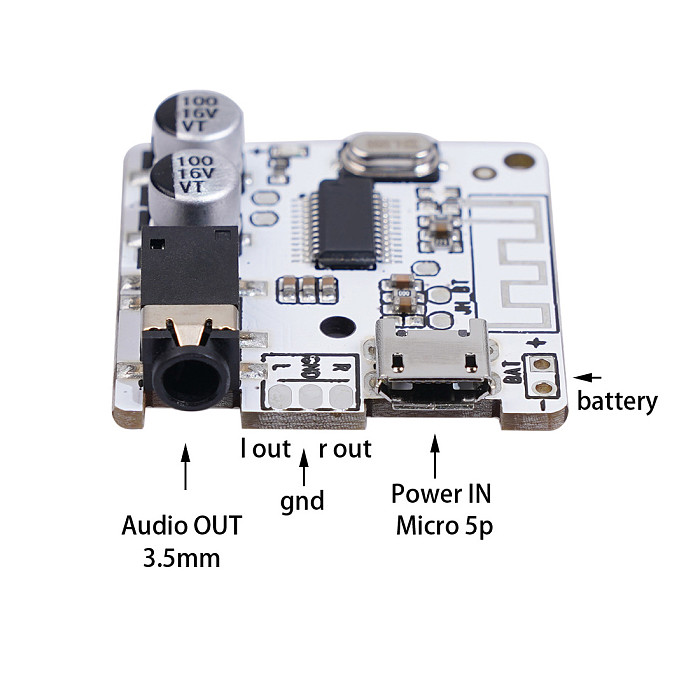

Interface detailed description
USB power supply: Universal Micro USB 5V power supply
3.7-5V power supply pad: Realize external 3.7-5V lithium battery power supply modification
LED indicator: blue light in bluetooth mode is on
3.5mm stereo audio interface: standard 3.5mm interface, output stereo sound source, can insert earphones, connect power amplifier and other equipment
Pairing instructions: Connect the power, the blue indicator light flashes, and enter the Bluetooth-compatible mode; when you hear the voice announcement "The Bluetooth-compatible device is ready to pair", it means you enter the Bluetooth mode and wait for pairing; after the mobile phone Bluetooth searches for "JH-BT", Click Connect. When you hear the voice announcement "The Bluetooth-compatible device is connected successfully",
It means that the decoder board is successfully connected to the mobile phone, and the blue indicator light is on, and the music can be played, and the blue indicator light flashes
Package Included:
1*BT5.0 Audio Receiver
