Home>DIY RC Drone Accessories>FEICHAO 3-6S 380KV 4108 Multi Rotor Disc Brushless Motor Pull-2080g for 4/6/8-Axle Plant Protection Aircraft DIY Drone Kit

FEICHAO 3-6S 380KV 4108 Multi Rotor Disc Brushless Motor Pull-2080g for 4/6/8-Axle Plant Protection Aircraft DIY Drone Kit Item NO.: F42610 F42610-2 F42610-4

Sold (23)

US$ 13.88 ~ US$ 15.42

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 15.42	US$ 14.65	US$ 13.88

Version: 1PC 2PCS 4PCS

Quantity: Stock ( 29999974 )

Estimate Shipping Cost

Product Name	FEICHAO 3-6S 380KV 4108 Multi Rotor Disc Brushless Motor Pull-2080g for 4/6/8-Axle Plant Protection Aircraft DIY Drone Kit
Item NO.	F42610 F42610-2 F42610-4
Weight	0.145 kg = 0.3197 lb = 5.1147 oz
Category	DIY RC Drone Accessories
Brand	FEICHAO
Creation Time	2020-12-25

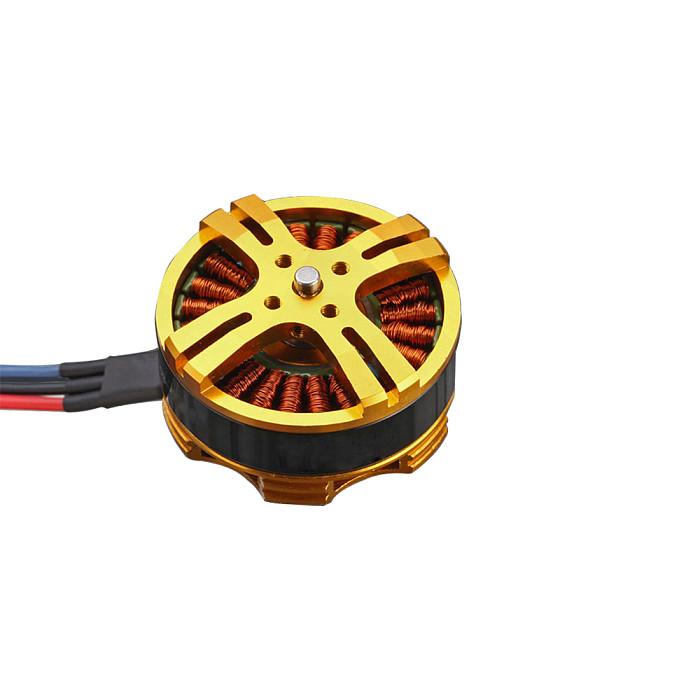

FEICHAO 3-6S 380KV 4108 Multi Rotor Disc Brushless Motor Pull-2080g for 4/6/8-Axle Plant Protection Aircraft DIY Drone Kit

Each Pcs included:

380KV Brushless Motor × 1
Propeller Bullet Adapter and Screws × 1 Set

Brand: QWinOut
KV: 380KV
Stator Diameter: 41mm
Stator Length: 8mm
Shaft Diameter: 4.0mm
Propeller Installation Hole Diameter: 3mm
Propeller Installation Distance: 12mm

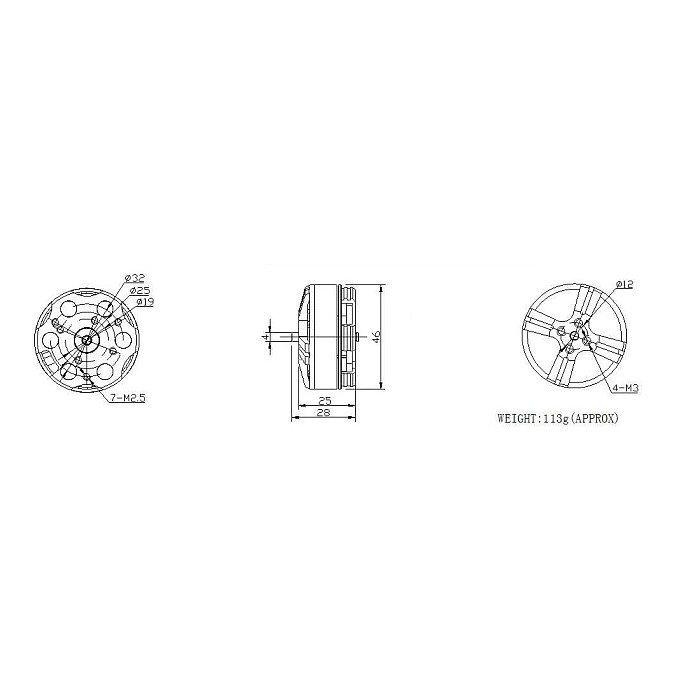

Motor Installation Hole Diameter: 2.5mm
Motor Installation: 32mm Equilateral Triangle, 19/25mm Straight Line
Motor Dimensions(Dia.*Len): D46x25mm
Weight(g): 113g
No.of Cells(Lipo): 3-6S
Max Continuous current(A): 17.2A
Max Continuous Power(W): 381W
Internal resistance: 0.1932 ?

Final released 4108 series super strength out-runner high-end brushless motor, The 4108 series motor is compatible with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet.

Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced.

4108 Series high-end brushless motor perfectly compatible with more than 99% of commercially available brushless ESC.

Low vibration motor great for flying

Features:
-To make aircraft more stable
-Less operating noise
-More efficient
-Bearings long life.
