Copy| Product Name | F4 Corner Nano Flight Controller Board ICM20608 for RC FPV Racing Drone |
| Item NO. | F23328-F23329 |
| Weight | 0.015 kg = 0.0331 lb = 0.5291 oz |
| Category | Consumer Electronics > Household Products |
| Brand | JAKEMY |
| Creation Time | 2017-12-01 |

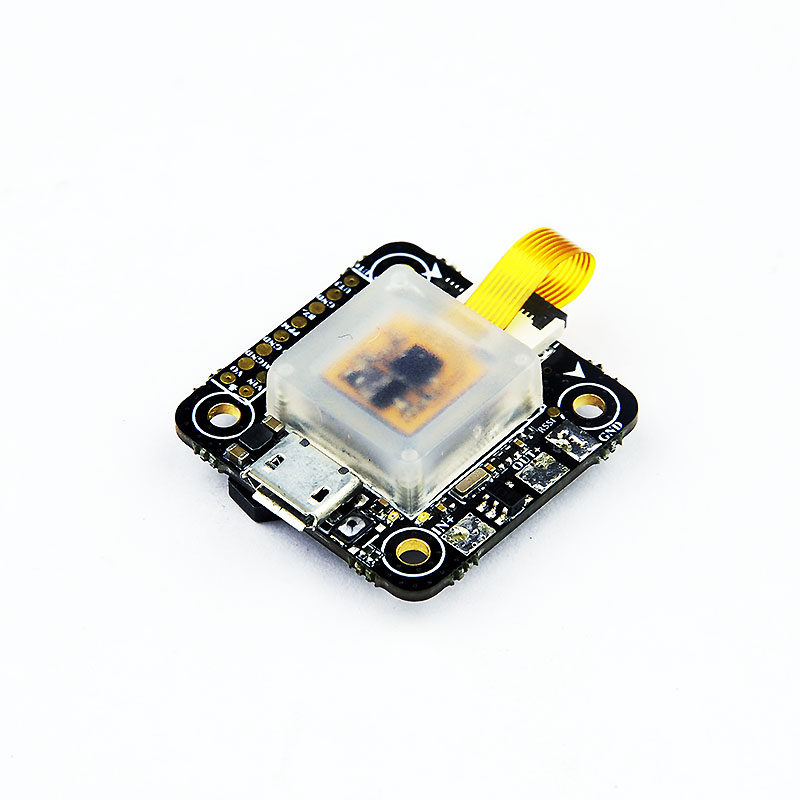

F4 Corner Nano flight controller board With Damping Box ICM20608 / MPU6000 IMU For RC FPV Racing Drone
F4 Corner Nano flight controller board
Specification parameters
Specification:
Item name: F4 Corner Nano flight controller board
Size: 27*27mm
Mounting hole distance: 20*20mm
Mount hole Diameter: 2.3mm
Weight: 5.7g
Processor: STM32F405RGT6
Sensor option: ICM20608( connected by SPI) or MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.2.0_SF4SD
Built-in ESC: 5V 1A output(BUCK)
Built-in LC filter for VTX power (max 800ma)
Built-in Current Sensor

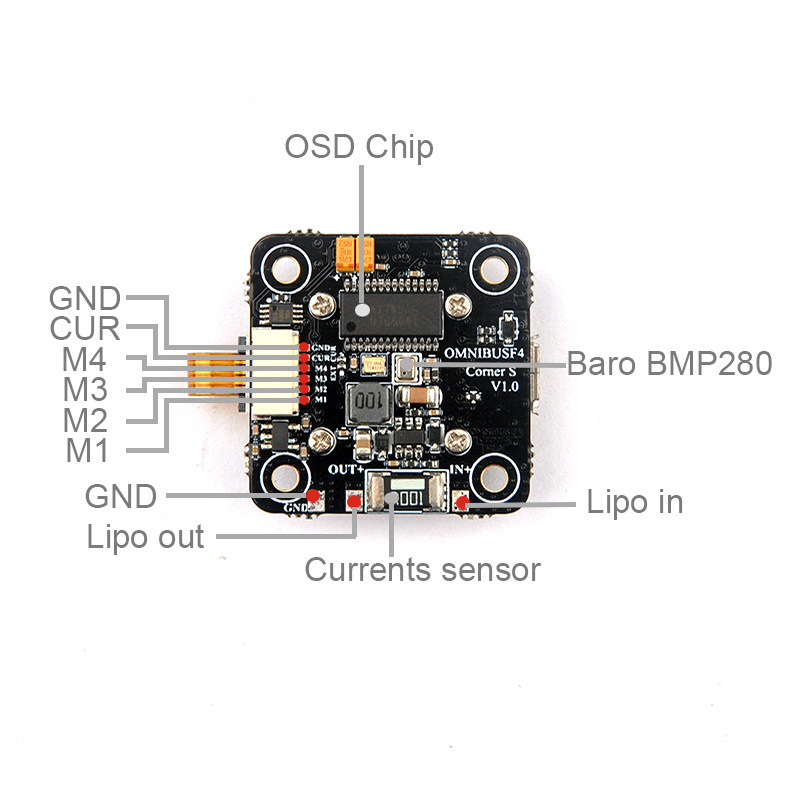

Built-in Barometer BMP280
Power supply: 2S-4S Lipo battery
Receiver: PPM, IBUS, SBUS, DSM2, DSMX etc.
Suitable for Micro FPV brushless frame
Features:
-IMU installation with damping box
-Up to 32k Gyro loop
-Support programmable LED Sprit
-Support BLheli/BLHELI_S suite Pass-through ready
-ESC Protocol PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 compatible
-Built-in voltage sensor and Current sensor
-Built-in Betaflight-OSD, Configure by Betaflight GUI
-Buzzer Ready (Solder pin)
Package included:
1* F4 flight controller board
4*M2*5+5 Nylon column
4*M2 Nuts
4*M2 Screw
1*4in1 ESC cable
