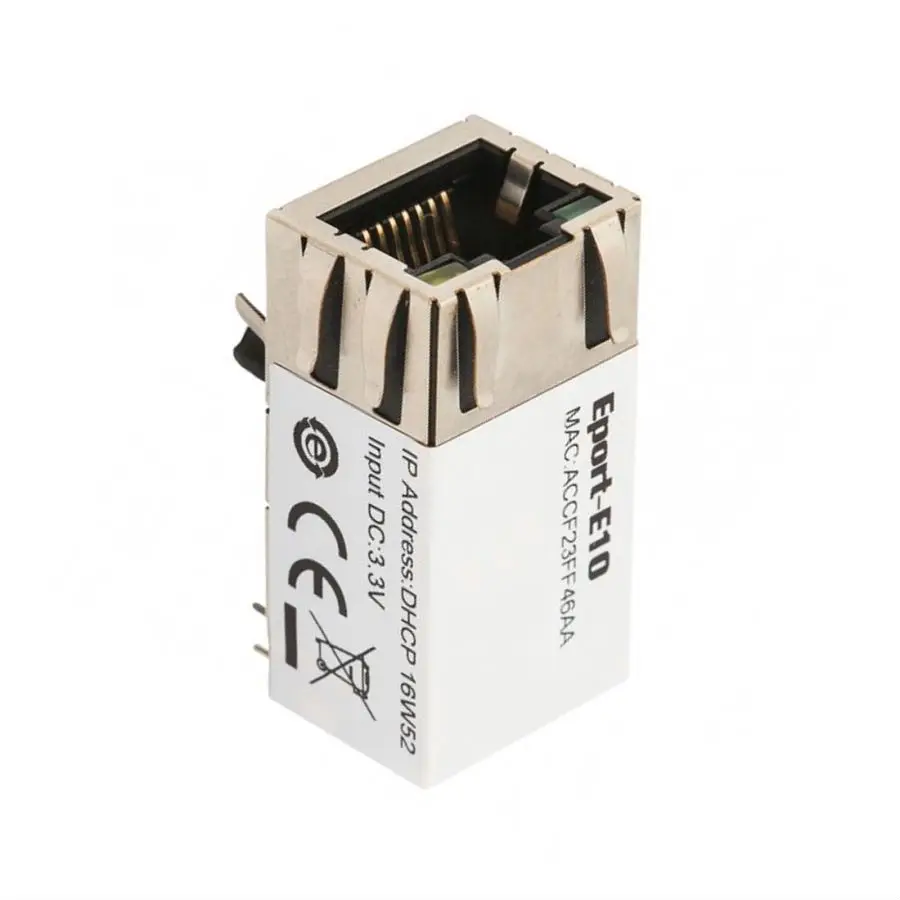

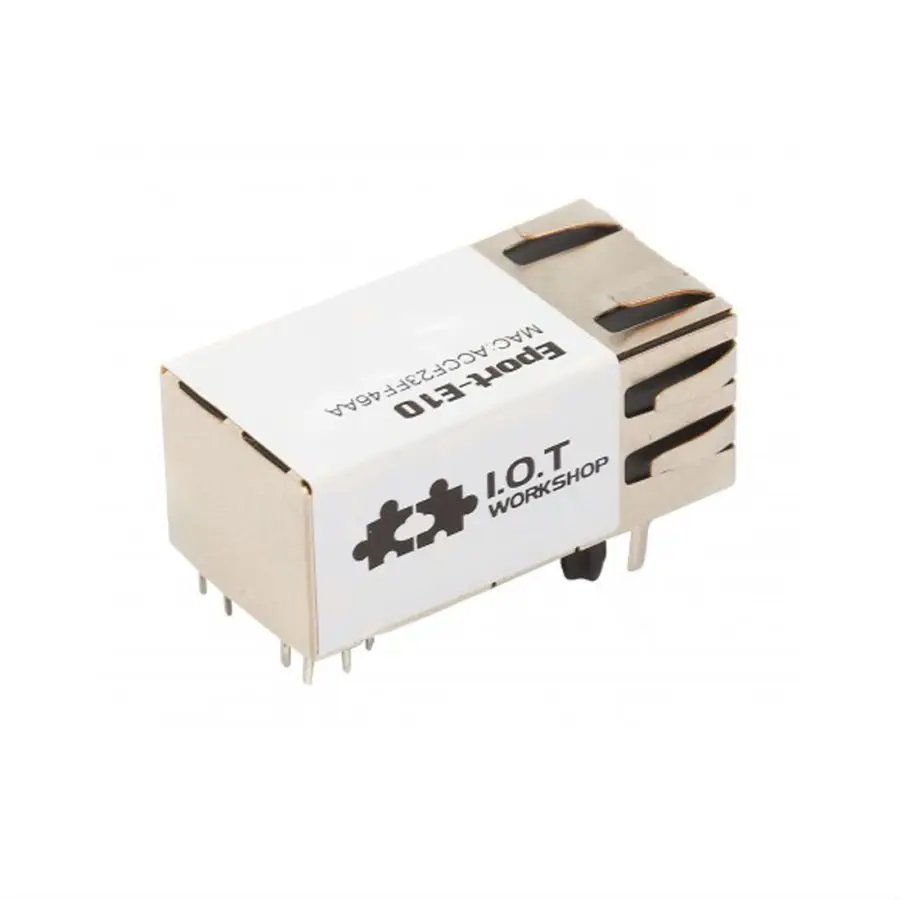

Eport-E10 Super Port Serial to Ethernet Module RJ45 to TTL Server Device Network Module Support TCP IP Telnet Modbus Protocol
-
Detail
- Product Name: Eport-E10 Super Port Serial to Ethernet Module RJ45 to TTL Server Device Network Module Support TCP IP Telnet Modbus Protocol
- Item NO.: F46025
- Weight: 0.017 kg = 0.0375 lb = 0.5997 oz
- Category: Consumer Electronics > Computer Accessories
- Brand: XT-XINTE
- Creation Time: 2022-01-20
Eport-E10 Super Port Serial to Ethernet Module RJ45 to TTL Server Device Network Module Support TCP IP Telnet Modbus Protocol

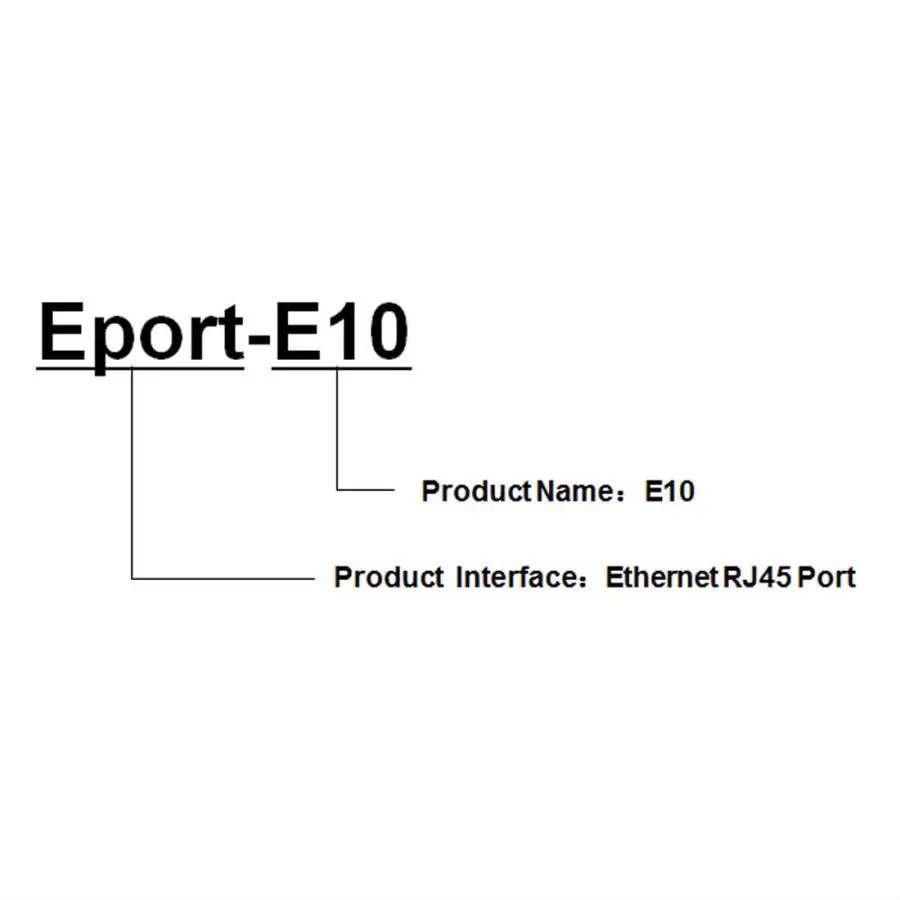

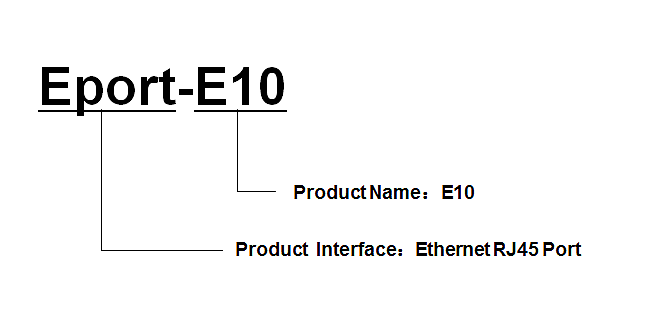

Eport-E10
Base on customer detailed requirement, Eport-E10 provide different variants and physical type for detailed application.
Overview of Characteristic
² Cortex-M3 MCU with 2MB Flash and 128KB SRAM
² Use FreeRTOS Operation System
² Support TCP/IP/Telnet /Modbus TCPProtocol
² Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 921600 bps
² Support 10/100M Ethernet Auto-Negotiation
² Support Easy ConfigurationThrough a Web Interface
² Support Security ProtocolSuch As AES/DES
² Support Web OTA Wirelss Upgrade
² Support Industrial Temperature:-40 to +85˚ C
² Single +3.3V Power Supply
² Size: 33 x 18.6x 15 mm(L x W x H)
² FCC/CE/RoHSCertificated
Item
Parameters
System Information
Processor/Frequency
Cortex-M3/96MHz
Flash/SDRAM
2MB/128KB
Operating System
FreeRTOS
Ethernet Port
Port Number
1 RJ45 with LED
Interface Standard
10/100 Base-T Auto-Negotiation
Protection
2KV Isolation
Transformer
Integrated
Network Protocol
IP, TCP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, AutoIP, ICMP, Web socket, Telnet, FTP,TFTP, uPNP, NTP, Modbus TCP
Security Protocol
SSL v3
AES 128BitDES
IPV6 Support
Not yet
Serial Port
Port Number
1 + 1 debug
Interface Standard
3.3V TTL: 2 wire（TX,RX）
Data Bits
5,6,7,8
Stop Bit
1,2
Check Bit
None,Even,Odd,Space,Mark
Baud Rate
TTL: 600 bps~460800 bps
Flow Control
No Flow control
Hardware RTS/CTS
Software Xon/ Xoffflow control
Software
Web Pages
Http Web Configuration
Customization of HTTP Web Pages
Log
Remote Realtime Log,
Configuration
Web
CLI
XML import
Telnet
IOTManagerPC Software
Firmware Upgrade
Web
SDK For Dev.
Not yet
Basic Parameter
Size
33 x 18.6 x 15 mm
Operating Temp.
-45 ~ 85°C
Storage Temp.
-45 ~ 105°C, 5 ~ 95% RH（no condensation）
Input Voltage
3.3V
Working Current
~100mA
Power
<400mW
Other Information
Certificate
CE, FCC, RoHS
Material
Metal shell, thermoplastic case
