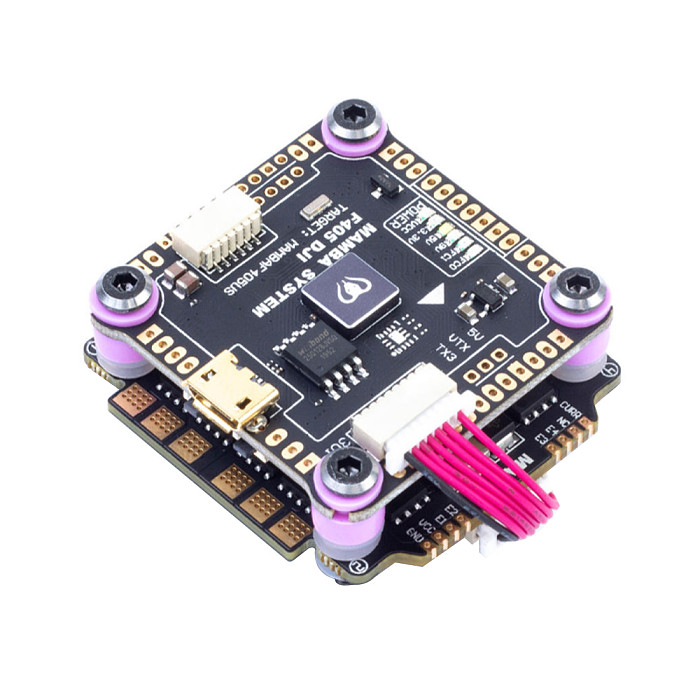

Diatone MAMBA F405DJI/F50 PRO Stack 50A 3-6S F405US DSHOT600 STM32F405RGT6 Betaflight Flight Controller ESC For DIY RC FPV Drone

Copy and share this link on social network or send it to your friends

Copy

Diatone MAMBA F405DJI/F50 PRO Stack 50A 3-6S F405US DSHOT600 STM32F405RGT6 Betaflight Flight Controller ESC For DIY RC FPV Drone Item NO.: F42352

Write a Review
US$ 74.28 (10% Off)
US$ 82.53 Save US$ 8.25
Quantity:
Shipping Cost:
Estimate Shipping Cost

Product Name Diatone MAMBA F405DJI/F50 PRO Stack 50A 3-6S F405US DSHOT600 STM32F405RGT6 Betaflight Flight Controller ESC For DIY RC FPV Drone
Item NO. F42352
Weight 0.09 kg = 0.1984 lb = 3.1747 oz
Category DIY RC Drone Accessories > Flytower
Brand Diatone
Creation Time 2020-12-04

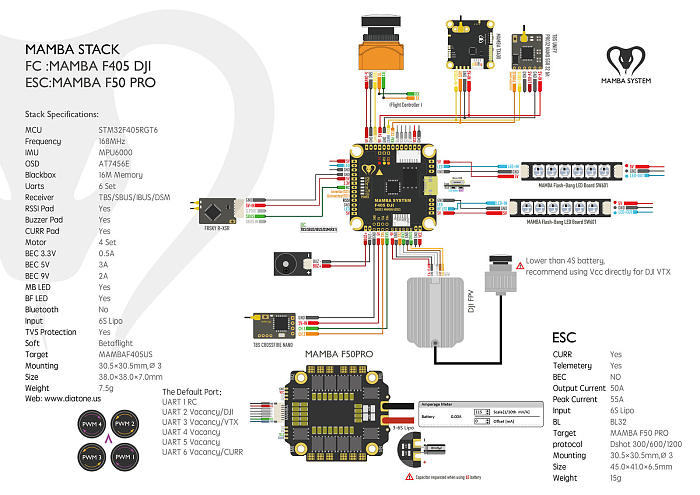

Diatone MAMBA F405DJI/F50 PRO Stack 50A 3-6S F405US DSHOT600 STM32F405RGT6 Betaflight Flight Controller ESC For DIY RC FPV Drone


product description:
Main control: STM32F405RGT6
Sensor: MPU6000
OSD: AT7456E
Black box: 16M
Number of serial ports: 6 Set
LED controller: 4 channels 2812 programmable LED
BEC: 5V 2.5A & 9V 2A
Receiver type: TBS/SBUS/IBUS/DSM
Input voltage: 3~6S Lipo (12.6V~25V)
Rated current: 50A×4
Peak current: 60A (10S)
Ammeter: Yes
Program: Dshot300/600/1200
Mounting hole: 30.5mm/M3
Weight: 22.5g
Flight control firmware: MAMBAF405US
