DarwinFPV FPV X10 Frame Long Range Folding Frame Kit 10 Inch 410MM Wheelbase For Drone Quadcopter Parts Item NO.: F52765

US$ 55.54

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	DarwinFPV FPV X10 Frame Long Range Folding Frame Kit 10 Inch 410MM Wheelbase For Drone Quadcopter Parts
Item NO.	F52765
Weight	0.38 kg = 0.8378 lb = 13.4041 oz
Category	DIY RC Drone Accessories
Brand	DarwinFPV
Creation Time	2024-07-19

DarwinFPV FPV X10 Frame Long Range Folding Frame Kit 10 Inch 410MM Wheelbase For Drone Quadcopter Parts

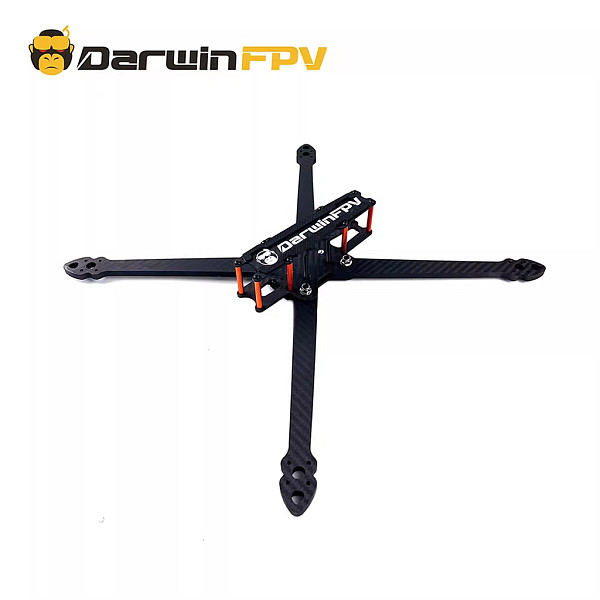

The DARWIN X10, a 10-inch frame meticulously designed by the DARWINFPV team, is specifically tailored for large payload ，long-distance flights , the innovative foldable design makes it easy to carry when you go out and saves space.

Featuring a true X structure and reinforced 7mm arms, coupled with 3115 motors, it maintains stability even under a payload of 3.5kg.

The extended top plate accommodates a 6S 8000mAH battery ， Its spacious body provides ample room for various electronic components, allowing for greater freedom in DIY configurations.

Features:

1.Foldable quick-release design for extremely convenient transportation and outdoor usage.

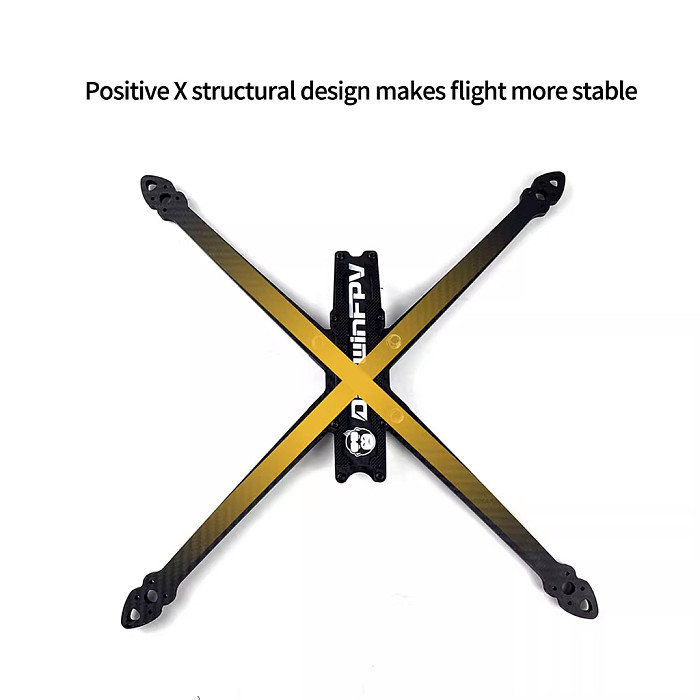

2.True X structure design for enhanced flight stability.
3.Extended top plate design to accommodate larger batteries.

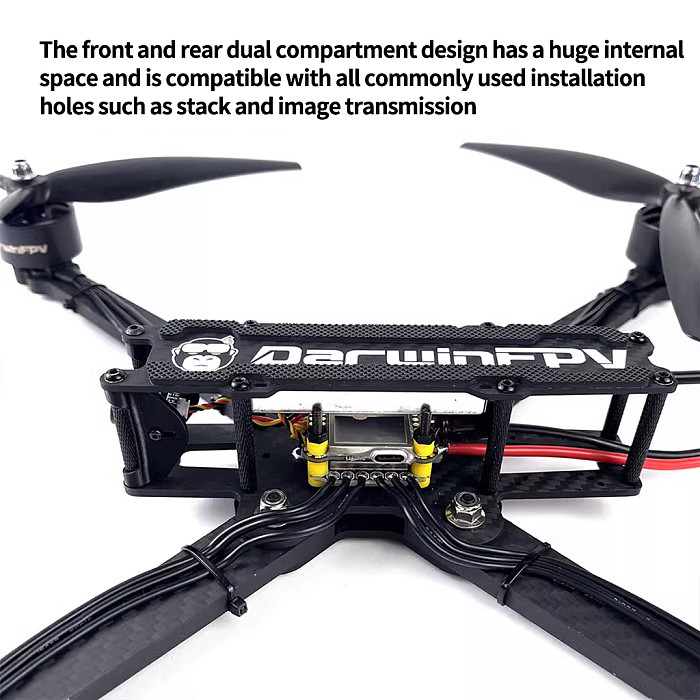

4. Dual front and rear compartments design, offering ample internal space and compatibility with all common stacks, VTX etc.

Darwin X10 rack parameters:

Rack structure: X

Arm structure: single quick release arm

Wheelbase: 410mm

Overall dimensions: 328 x 328 x 57mm

Arm thickness: 7mm

Thickness of top plate: 2mm

Thickness of center plate: 3mm

Thickness of bottom plate: 3mm

Flight control mounting hole spacing: 30.5x30.5mm

Hole pitch for map transmission: 20x20mm/25.5x25.5mm/30.5x30.5mm

Motor Mounting Pitch: 19x19mm

Camera pitch: 19mm

Fly tower internal mounting height: 35mm

Internal mounting height: 35mm

Applicable propeller size: 10 inch

Standard printouts: 1, antenna mount printout 2, camera printout

Including standard printouts Weight: 293.9g±5g

Motor: 3110-3115

Battery: 6S 6000-8500mAh 60C XT60

ESC: 60A or above

Propeller: Gemfan 1050-3

Packing List:

1 x Top Plate
1 x Bottom Plate
1 x Middle Plate
4 x Arms
2 x Arm Limit Plates
2 x Battery Anti-slip Pads
2 x Battery Straps 20 x 260mm
1 x Sticker
1 x Screws pack

Thank you for choosing our product , we are trustworthy ,if you have any questions ,please message us freely , we would like to try our best to solve your issue .
