- Product Name: DW1000PA+LNA/UWB High-power Wireless Ranging Module Ultra-Wideband Ranging Centimeter-level Positioning Module Built-in PA/LAN
- Item NO.: F46777
- Weight: 0.015 kg = 0.0331 lb = 0.5291 oz
- Category: Consumer Electronics
- Creation Time: 2022-04-27

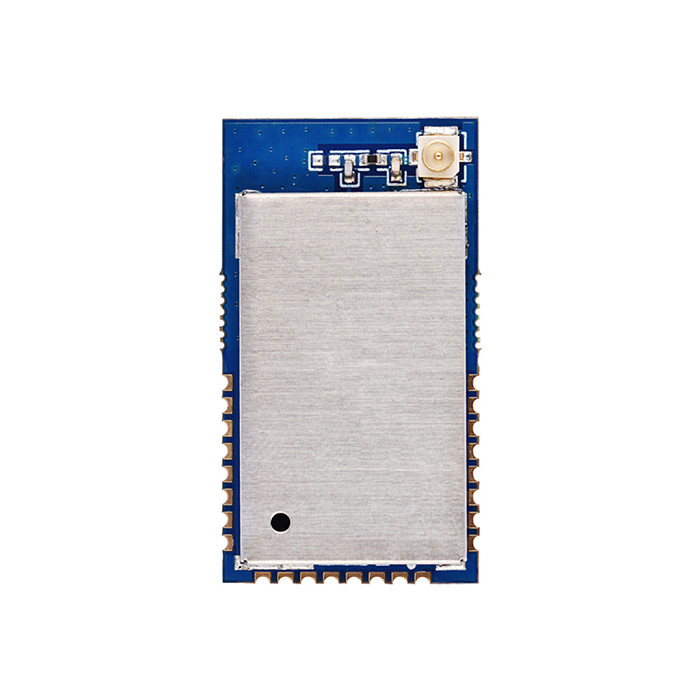

DW1000PA+LNA/UWB High-power Wireless Ranging Module Ultra-Wideband Ranging Centimeter-level Positioning Module Built-in PA/LAN

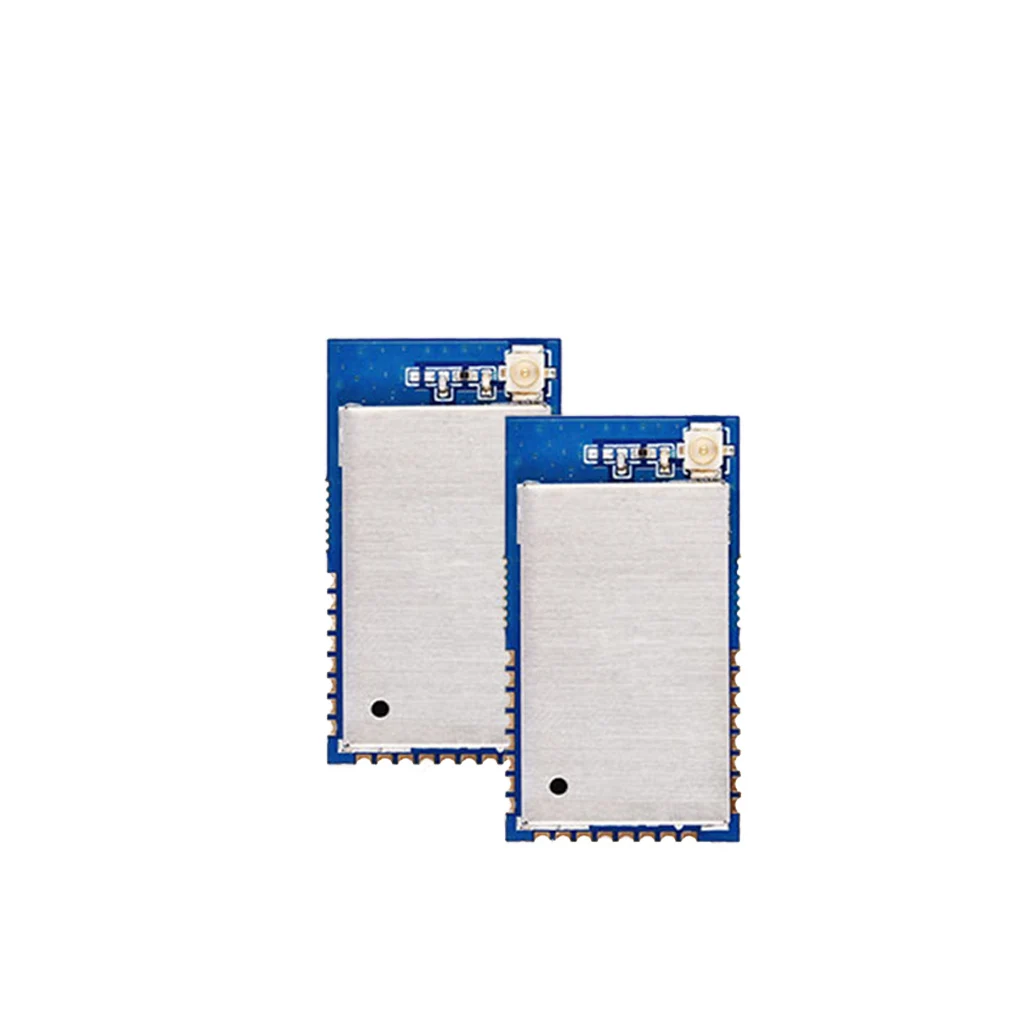

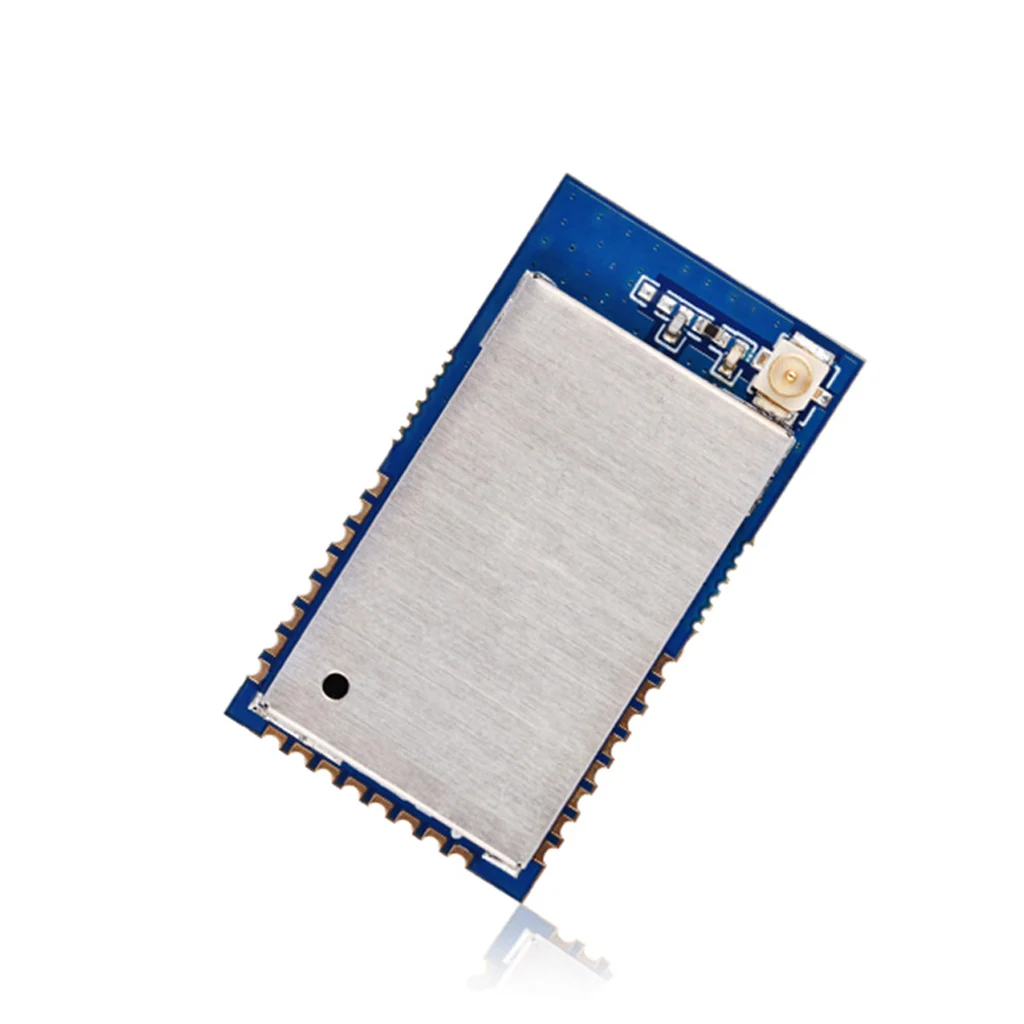

DW1000PA+LAN Wireless Ranging Module

Features.

UWB positioning

Ultra Wideband Indoor Positioning

High power

SPI interface

Low power consumption

Highly accurate positioning at centimeter level

Built-in PA/LNA RF front-end, communication distance up to 300m, broader coverage.

Support bi-directional TOP (Time of flight) - bi-directional ranging technology, TDOA (Time difference of arrival) - positioning system technology, dual technology, more accurate positioning

Parameters.

Working voltage: 2.8-3.6V

Working temperature: -40-85℃

Operating frequency: 3.5-4.5GHz

Power consumption.

SLEEP:<10μA

TX:290mA

RX:170mA

Transmit power: 20dBm (max)

Modulation mode: BPM/BPSK

Receive sensitivity: -104dBm@110Kbps

Communication rate: 110Kbps,850Kbps,6.8Mbps

Interface type: Stamp hole

Communication interface: SPI

Size: 29*16mm

Q&A.
Q: What is the SPI hardware module.
A: SPI wireless module is a pure hardware wireless module, its interface using the SPI universal mode, need to external connection MCU. programming the MCU to configure the module chip register parameters to complete data communication.
