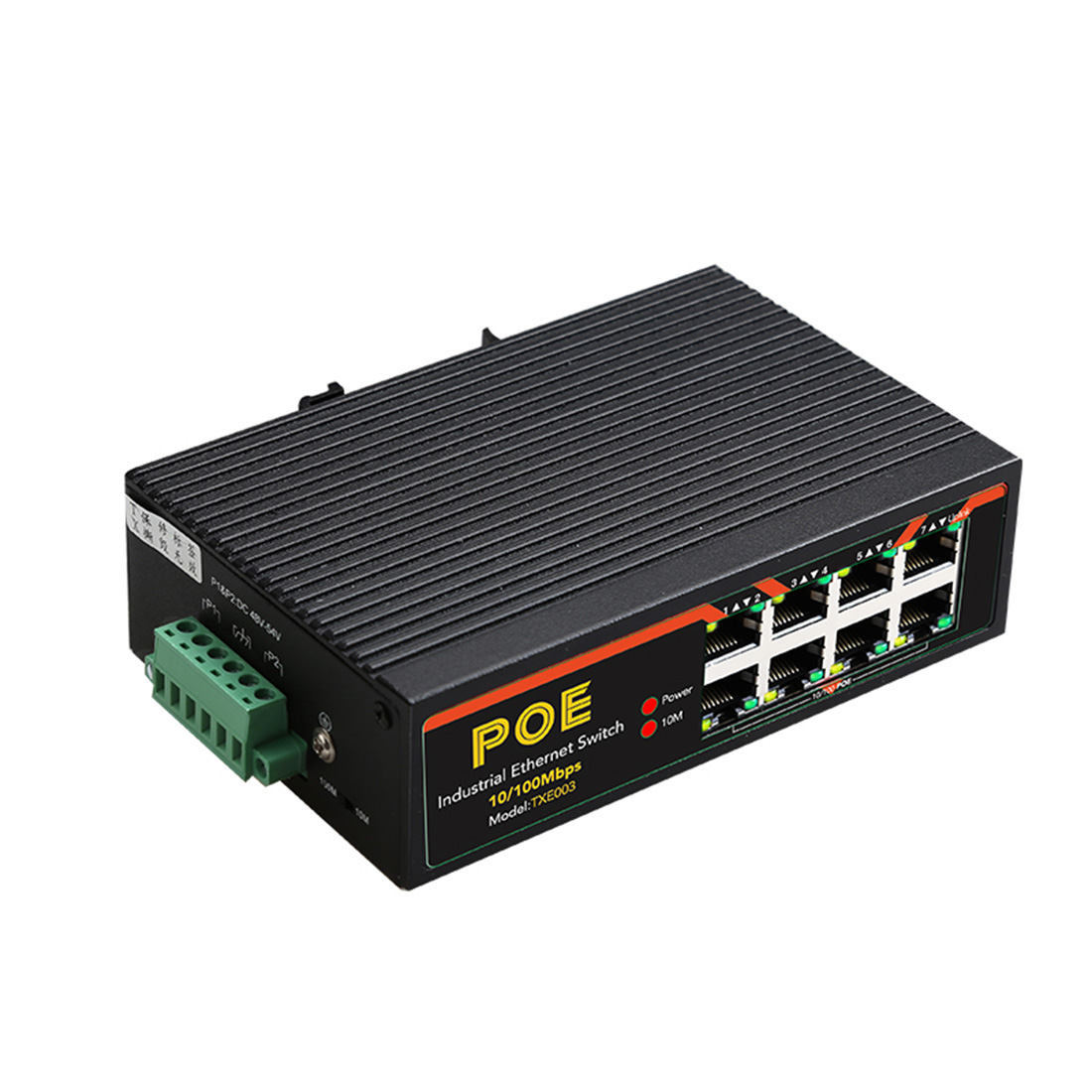

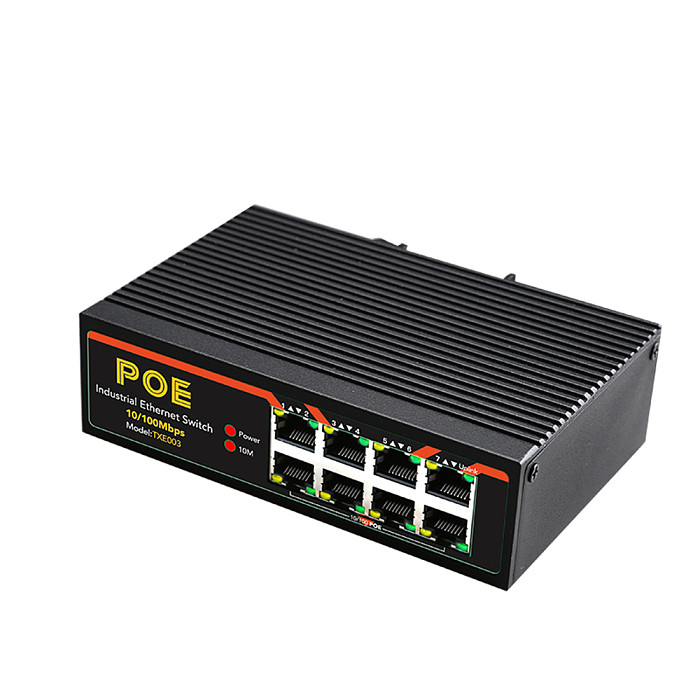

DIEWU-TXE003 8-Port Fast Ethernet Switch, 10 / 100Mbps POE Network Switch, DIN Rail Type Network Adapter, RJ45
Characteristic:
DC48-54V Dual power input, with voltage connection reverse protection circuit;
Industrial grade products, built-in lightning protection, ESD and surge protection circuits;
Independent indicator light for connection and POE, the network working status is clear at a glance;
With 10M switch, improve transmission distance;
Aluminum alloy slotted shell, super heat dissipation.
Product parameters:
Network standards: IEEE 802.3af IEEE 802.3at IEEE 802.3x IEEE 802.3az
Connection ports: 8x10 / 100M adaptable RJ45 POE ports
10 / 100Mbps transmission speed (full duplex / duplex)
Upload forwarding: 10 Mbps / 14,880 bps 100 Mbps / 148,800 bps
Indicator light: power supply, signal enhancement, connection status indication
Product size: 140x90x41mm
Power supply: DC48V-54V / 1.5W
Use environment: working temperature: -40 ℃ -85 ℃
Storage temperature: -40 ℃ -85 ℃
Humidity: 5% -90% non-condensing
Product net weight: 0.42 kg
Instructions for use:
1. LED operating status:
Red light Power indicator Power on
Signal light red Signal booster Illuminates when signal increases
RJ45 green light Connection and data transmission work indicator flashes
RJ45 orange light POE power indicator
Lights when connected to a powered device
2 port Description
All 8 ports are POE ports, of which the lower right corner is the uplink port. If 10M mode is on, the access terminal must
Connect it to the uplink port.
3. 10M switch
When the switch is set to 10M position, it will self-test and reset, which can increase the signal transmission distance to more than 200 meters, and the signal enhancement indicator on the panel is on. At this time, the connection speed of the other ports 1-7POE is 10M, except that the uplink port is 100M.
Note: If the switch cannot change modes when the switch is on, please turn the switch off and on again.
4. Input voltage:
DC48V-54V, either group can be entered, set the appropriate power supply according to the power of the power receiving equipment.
