DIEWU-TXE002 5-Port Fast Ethernet Switch, DIN Rail Type Network Switch with RJ45 POE Port, 10 / 100Mbps, Industrial Grade

DIEWU-TXE002 5-Port Fast Ethernet Switch, DIN Rail Type Network Switch with RJ45 POE Port, 10 / 100Mbps, Industrial Grade Item NO.: F44630

Write a Review
US$ 23.50
US$ 27.65 Save US$ 4.15 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name DIEWU-TXE002 5-Port Fast Ethernet Switch, DIN Rail Type Network Switch with RJ45 POE Port, 10 / 100Mbps, Industrial Grade
Item NO. F44630
Weight 0.515 kg = 1.1354 lb = 18.1661 oz
Category Consumer Electronics > Computer Accessories
Brand DIEWU
Creation Time 2021-09-16

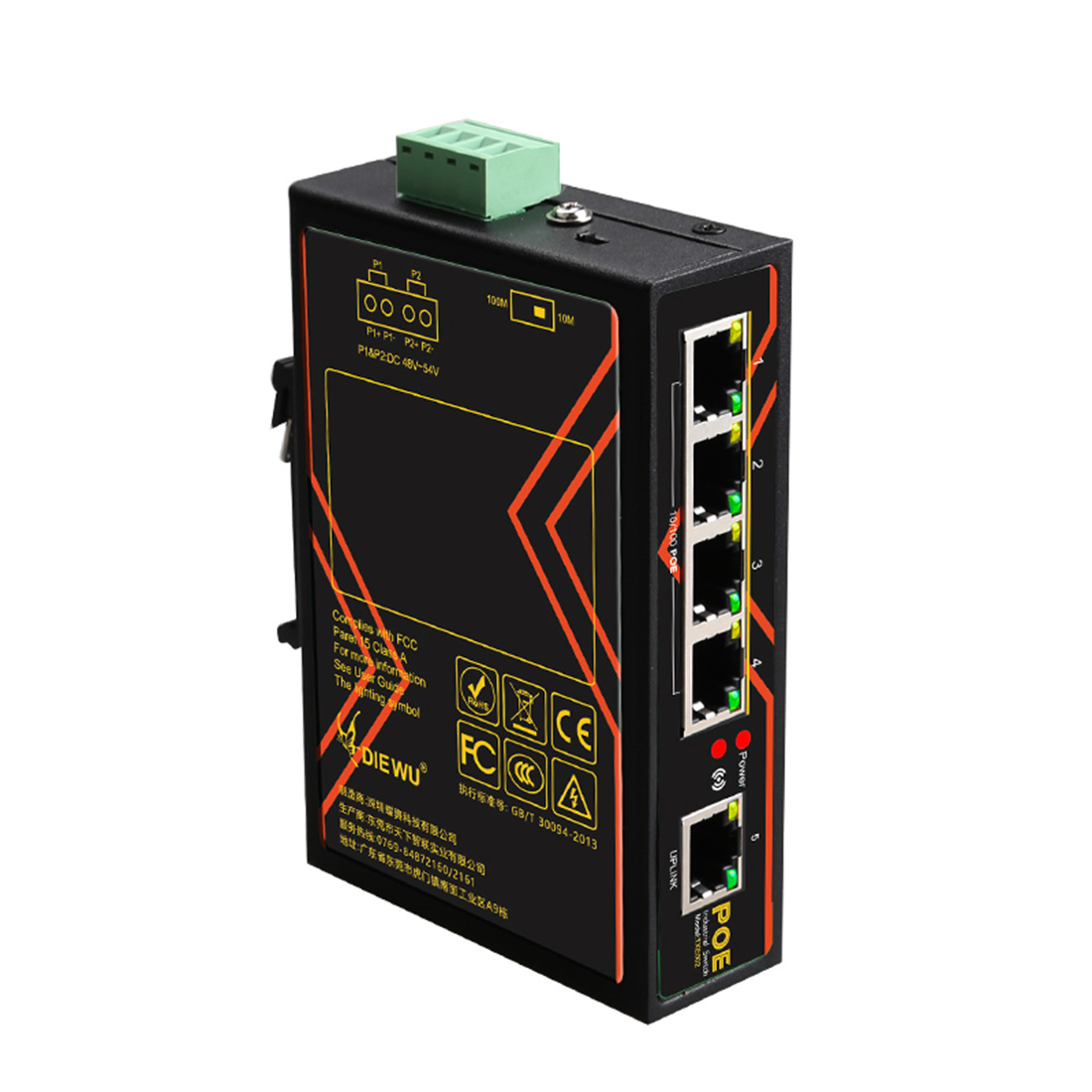

DIEWU TXE002 Industrial Grade 5 Port 10 / 100Mbps POE Switch, DIN Rail Type Network Switch with RJ45 POE Port

Characteristic:
DC48V-54 Dual power input, with power supply reverse protection circuit;
Industrial grade products, built-in lightning protection, ESD and surge protection circuits;
Independent indicator light for connection and POE, the network working status is clear at a glance;
With 10M switch, improve transmission distance;
Product parameters:
Network standards: IEEE 802.3af IEEE 802.3at IEEE 802.3x IEEE 802.3az
Connection ports: 5x10 / 100M adaptable RJ45 POE ports
10 / 100Mbps transmission speed (full duplex / duplex)
Upload forwarding: 10 Mbps / 14,880 pps 100 Mbps / 148,800 EPA
Indicator light: power supply, 10M, connection status and POE indication
Product size: 118x80x30mm
Power supply: DC48V-54V / 1.5W
Use environment: working temperature: -40 ℃ -85 ℃
Storage temperature: -40 ℃ -85 ℃
Humidity: 5% -90% non-condensing
Product net weight: 0.4kg
Instructions for use:
1. LED operating status:
Red light Power indicator Power on
Signal light red Signal booster Illuminates when signal increases
RJ45 green light Connection and working indicator When the network cable is inserted, it lights up and the transmission data flashes
RJ45 orange light POE power indicator Lights when connected to a powered device
2. 10M switch
When the switch is set to 10M position, it will self-test and reset, which can increase the signal transmission distance to more than 200 meters. The 10M indicator on the panel is on. At this time, the connection speed of POE ports 1 to 4 is 10M.
Note: If the switch cannot change modes when the switch is on, please turn the switch off and on again.
3. Input voltage:

DC48V-54V, either group can be entered, set the appropriate power supply according to the power of the received electrical equipment.
