DIEWU POE PCI-E Network Card POE 10/100/1000M Gigabit Ethernet Converter Network LAN Adapter for POE Camera Visual Capture Card

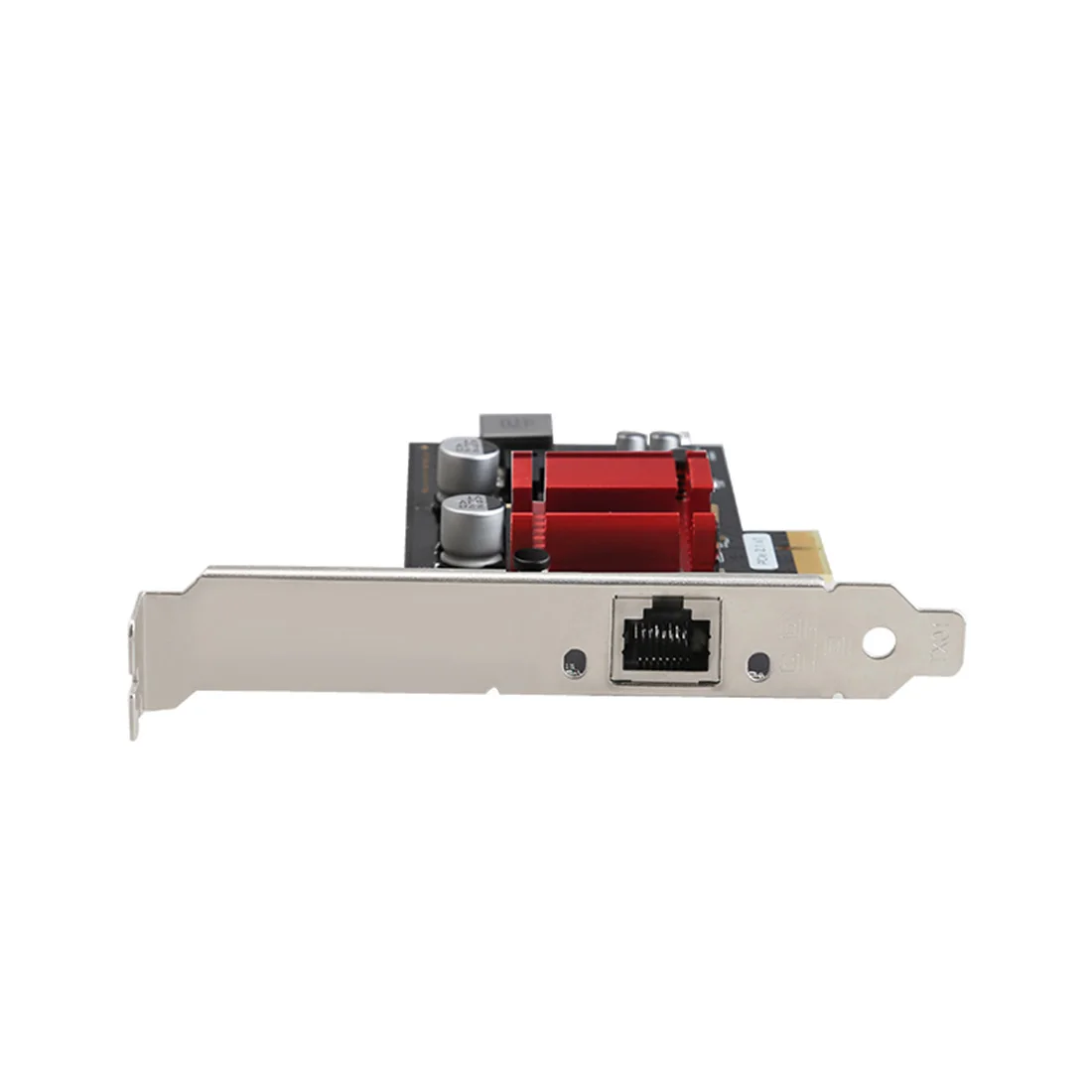

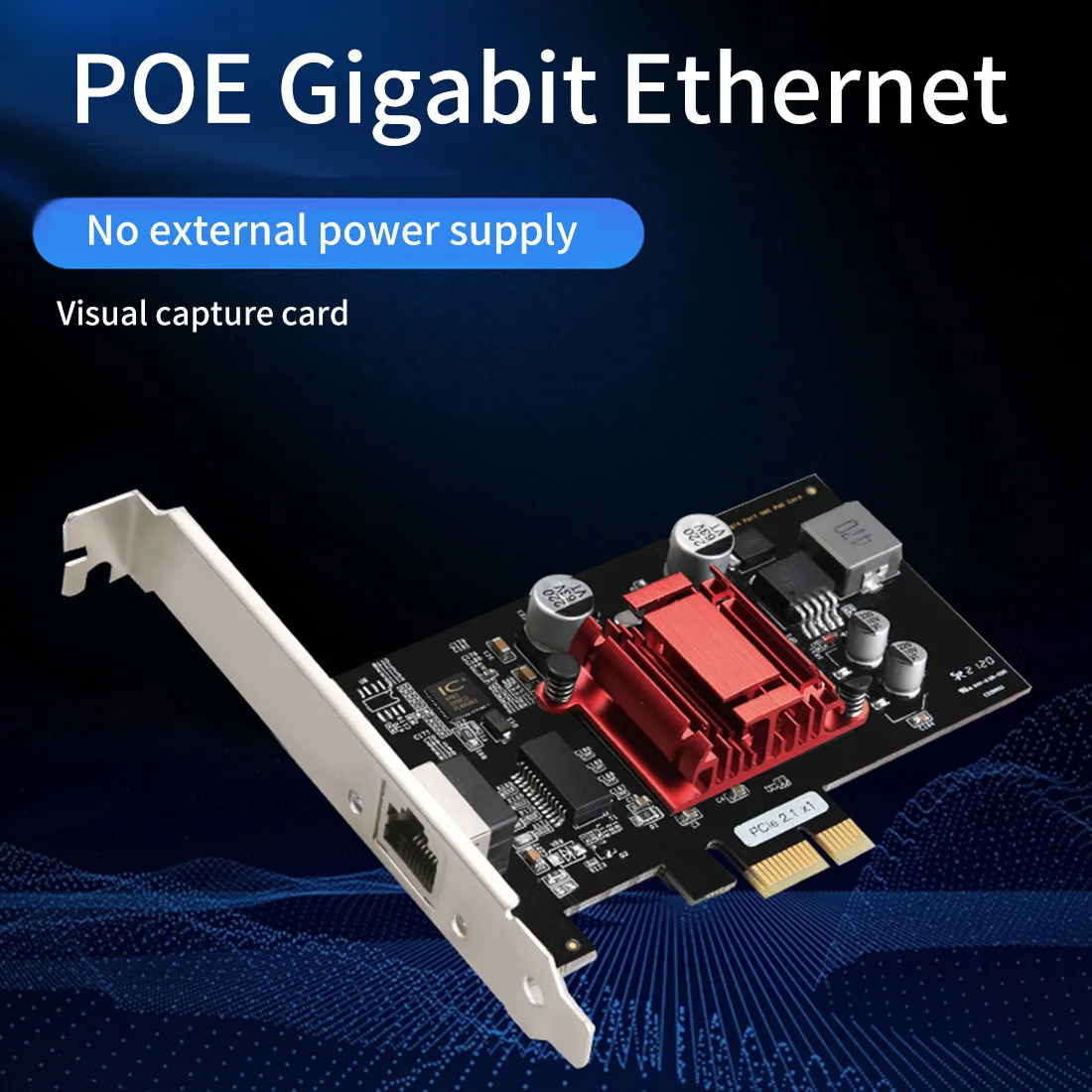

Product name: 1 port POE Gigabit Ethernet

Product model: TXI053 1-port POE Gigabit Ethernet vision capture card

Product description: Power output up to 30W Ethernet cable

Product size: 1 Port Card-110X120mm (lengthxwidth)/2 Port Card-189X120mm(lengthxwidth)

Transmission speed: 1000mb/s bandwidth

Port description: single port maximum 30W 1000MB/S port

Support functions: PXE, SR-IOV, IPsec offloading, IPv4\IPv6, RSS supports jumbo data frames

Applicable system: Comply with Microsoft and Nruix platform

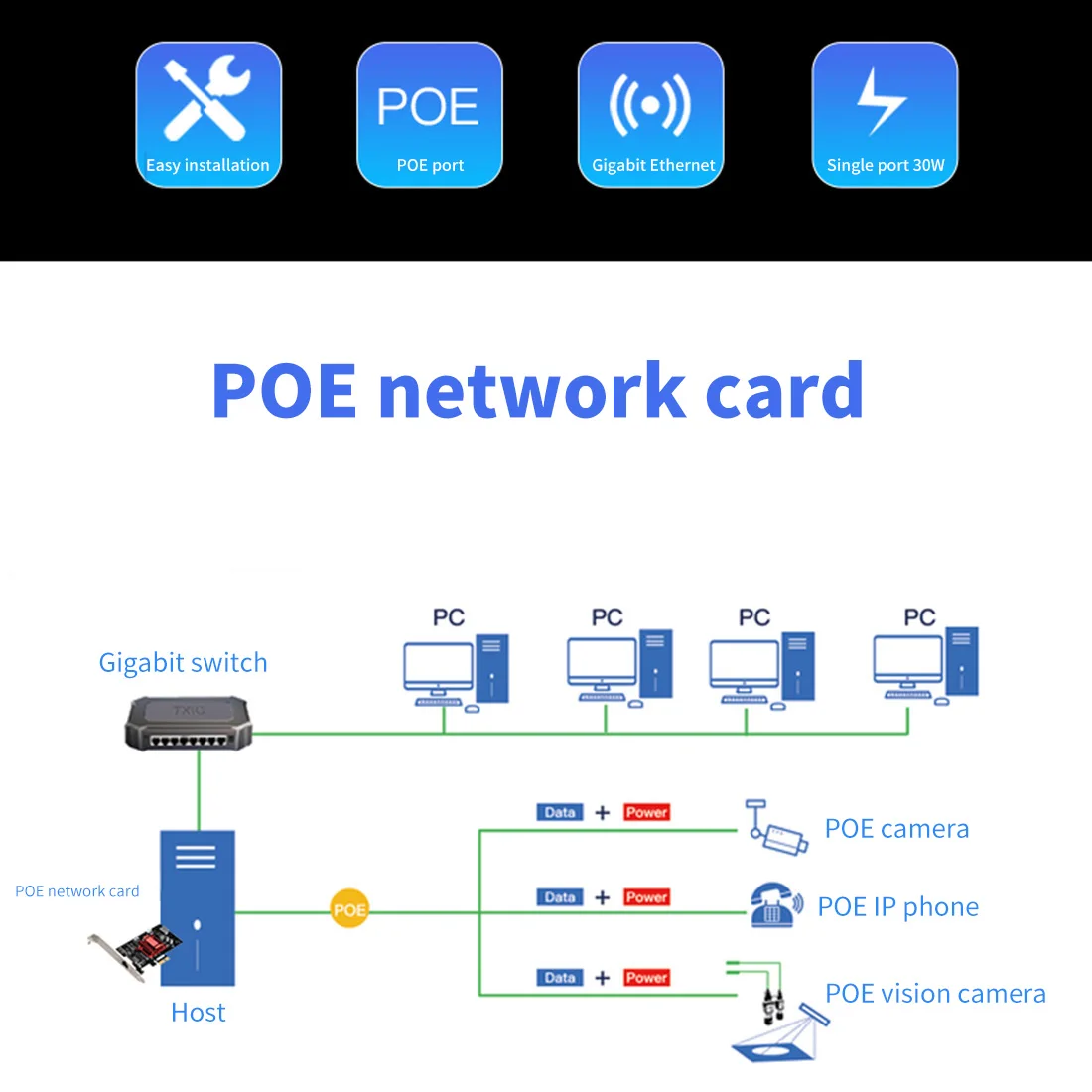

Applicable equipment: industrial computer, server, storage equipment, etc.

feature:

Single port PoE output power consumption 30W;

Adapt to the required power output of external equipment: Class 0, Class 1, Class 2, Class 3;

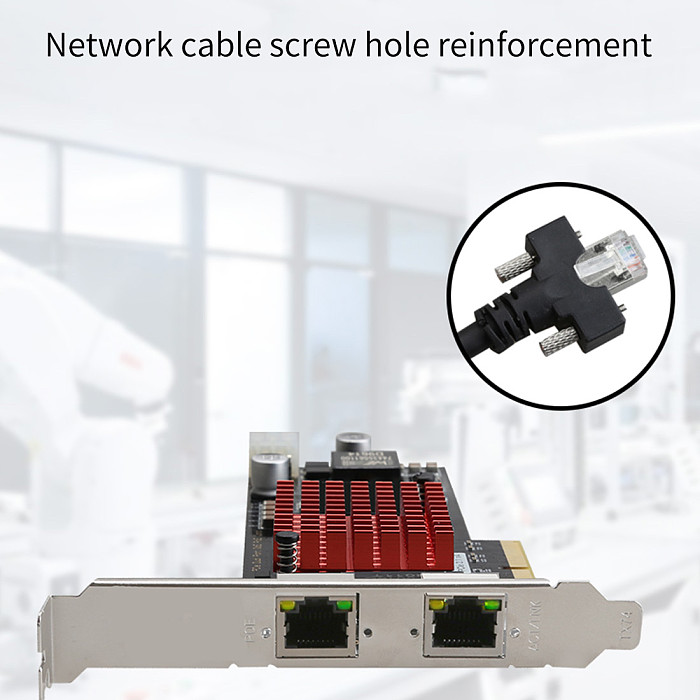

The interface specially designed for industrial-grade cable access can lock cables and network ports more firmly, effectively solving the problem of unstable connection between network ports and cables in industrial sites and compatible with ordinary cable access;

The thickened heavy gold RJ45 connector is selected to ensure a more solid and reliable connection.

Packing list:

1 x Visual capture card
