Product Name DIEWU-HUB Industrial TXE172 with 5 built-in ports, 10 / 100M switch, enhance the built-in signal and VLAN Ethernet network switch controller
Item NO. F44635
Weight 0.402 kg = 0.8863 lb = 14.1801 oz
Category Consumer Electronics > Computer Accessories
Brand DIEWU
Creation Time 2021-09-16

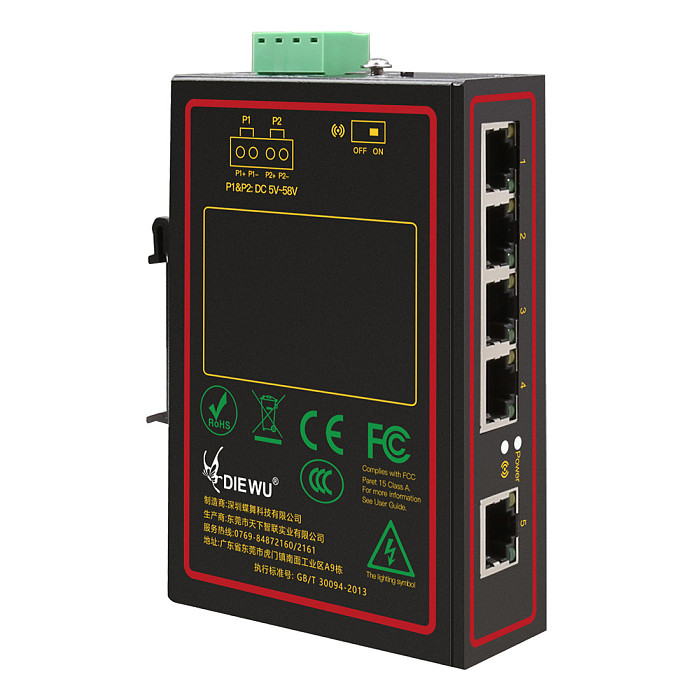

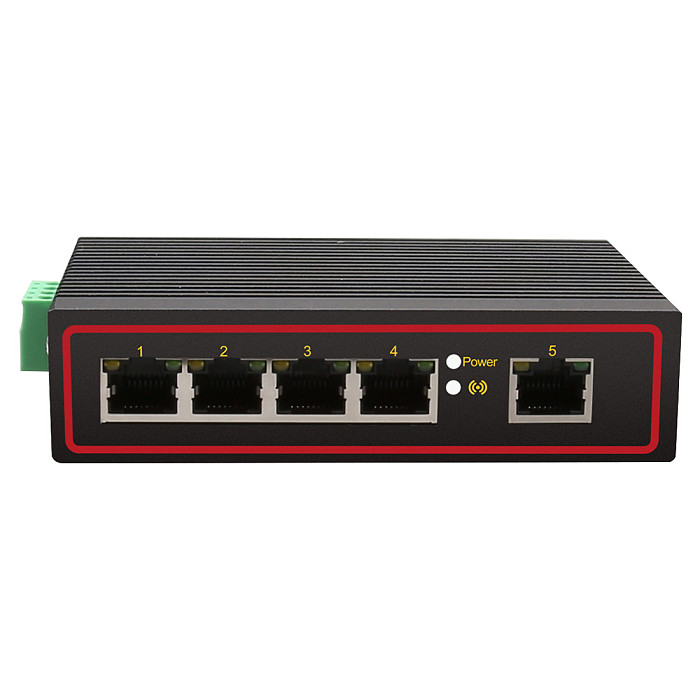

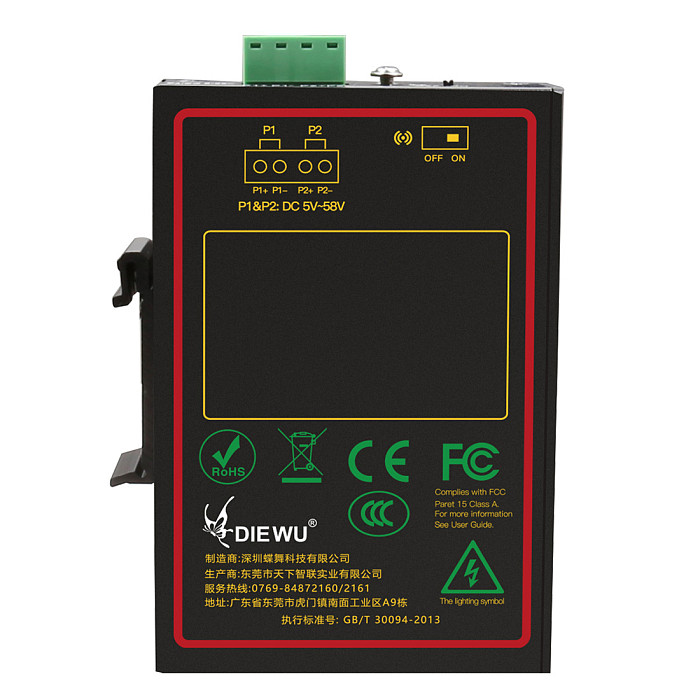

DIEWU-HUB Industrial TXE172 with 5 built-in ports, 10 / 100M switch, enhance the built-in signal and VLAN Ethernet network switch controller

Design highlights:
Supports DC 5 ~ 58V input range;
Industrial-of;
Enhance the built-in signal and VLAN switch;
Innovative design, metal housing.
Product specification:
Model number
TXE172
Chipset
IP175GHI
Port number
5-port 10 / 100M MDI-MDIX RJ45
Standard
IEEE 802.3 、 IEEE 802.3u 、 IEEE 802.3x 、 IEEE 802.3az
Media network
10Base-T, cat3 or higher UTP, 100Base-Tx, cat5 UTP
Data speed
10 / 100M
Of the rate
10 Mbps / 14,880 pps 100 Mbps / 148,800 EPA
LED indicator
10 / 100Mbps (link / action, speed), power, improvement indicator
Dimension
118 * 80 * 30mm
Input power
DC5V-58V
Energy consumption
Max1.5W
Environment
Operating temperature: -40 ℃ -85 ℃
Corresponding humidity: 10% -90% (non-condensing)
Storage temperature: -40 ℃ -85 ℃
Corresponding humidity: 5% -90% (non-condensing)
Other function
Upgrade switch
Chipset characteristic:
Integrated 5 ports 10/100 PHY switch controller
Support 5 100BaseTX or 4 100Base TX + 1 FX
Support automatic MDI-MDIX function
Power Management Tool (PWMT) ®)
-AP, automatic power saving while
plugging -off -Power saving based on IEEE 802.3az protocol and 10Mbps Te per 10Mbps
-WOL + ®, Light Traffic
Energy Saving -PWD, Shutdown Energy Saving
Supports Automatic Factory Test (AFT®)
3.3V single power supply
Built in Vcore regulator
Two priority queues per port
Support 802.1p & DiffServ based on QoS
QoS
-Port base
-802.1 p
-IP DiffServ IPV4 / IPV6
- TCP / UDP port number
-Pins configure priority ports (VIP port)
Supports maximum packet length option of 1552/1536 bytes
Support port mirror function
Compatible with 1k MAC address
Support transmission storm protection
Support Port trunking (LACP)
Support 16 VLAN (IEEE 802.1q)
-VLAN based on port / tagging
-Insert bracket, remove tag
Built-in 50 ohm resistors to simplify BOM
85nm process
Package, and operating temperature

IP175G: 48-pin QFN (6x6) 0 ~ 70 ℃
