CADDXFPV Gofilm 20 Quadcopter 2 INCH with Moonlight Kit F405HD ELRS AIO 1303 6000KV motors Drone

US$ 388.38

Add to Cart

Estimate Shipping Cost

Detail

Product Name: CADDXFPV Gofilm 20 Quadcopter 2 INCH with Moonlight Kit F405HD ELRS AIO 1303 6000KV motors Drone
Item NO.: F53372
Weight: 0.12 kg = 0.2646 lb = 4.2329 oz
Category: DIY RC Drone Accessories
Creation Time: 2024-11-20

Gofilm 20 Parameters
Model	Gofilm 20
FC	CADDXF4_AIO_ELRS
VTX	Moonlight Kit
Wheelbase	94mm

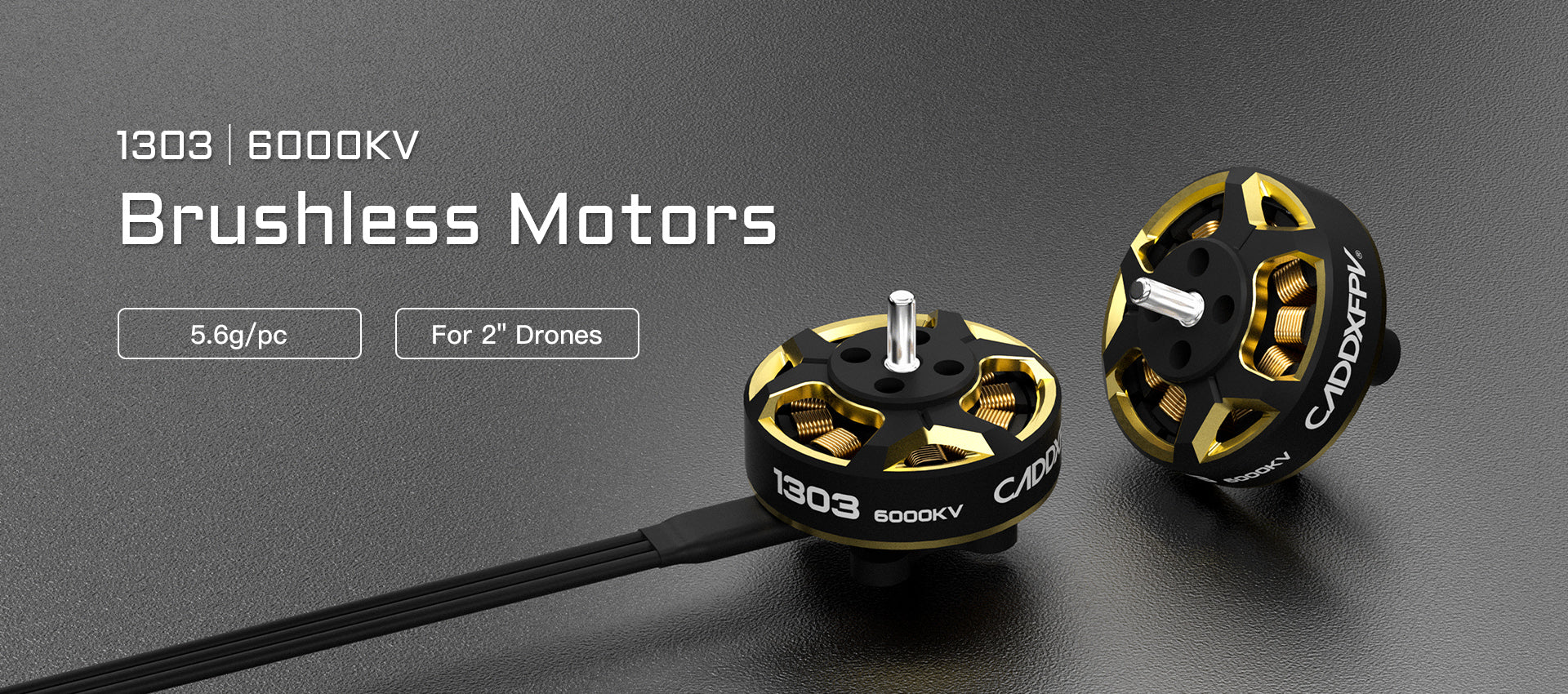

Motor	1303 6000KV
Propeller	HQprop T2×2×3
Weight	115±5g
Size	133×123×39mm
Flight time	4S 650mAh & about 5.5 minutes
Receiver	ELRS 2.4G
Battery interface	XT30
FC Parameters
MCU	STM32F405RGT6
GYRO and IMU	ICM42688
Barometer	BMP280
ExpressLRS receiver	ELRS V3.0 UART
ESC	20A 4-IN-1
Blackbox	8MBp
Support Power	2~4S Lipo/Lihv
Mounting hole Distance	25.5×25.5mm
Firmware target	CADDXF4_AIO_ELRS
VTX Parameters
Model	Moonlight Kit
Firmware name	AvatarMoonlight_Sky_X.X.X
Communication Frequency	5.725-5.850 GHz
Transmitter Power (EIRP)	FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
I/O Interface	JST1.04(power cable); JST0.86(USB)；microSD Card Slot; IPEX-1
Sensor	Starlight sensor
FOV	Max 160°
Aperture	F2.1
Shutter	Rolling shutter
ISO	100-25600
Recording resolution	4K@30/60fps; 2.7K@30/60fps; 1080p@100/60fps; 720p@60fps
Max Mbps	150Mbps
Video format	MP4 (H.264)
3D DNR	Support
Gyro flow	Support
Built-in EIS	Support
Wide Power Input	7.4V-25.2V
Power consumption	12V@1.4A, 8V@2.2A
Memory card type	U3 microSD, Max 256G
camera size	19.6mm×19mm×24mm
VTX size	15.3mm×34.5mm×34.5mm
VTX Installation hole	20×20mm/25×25mm (M2)
Weight	38.5g (Antenna not included)
OSD	Canvas mode
Latency	Average delay 22ms
Antenna	2 (IPEX)
