BETAFPV Snow 2306 Brushless Motors 5mm Shaft 1860KV/2500KV NMB Bearing suited for FPV Racing 5 -6 Freestyle Quadcopter

US$ 25.87

Color: 1PC 2500KV

Add to Cart

Estimate Shipping Cost

Detail
- Product Name: BETAFPV Snow 2306 Brushless Motors 5mm Shaft 1860KV/2500KV NMB Bearing suited for FPV Racing 5 -6 Freestyle Quadcopter
- Item NO.: F47929-D1 F47929-D2
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: FOR SALE
- Creation Time: 2022-08-04
BETAFPV Snow 2306 Brushless Motors 5mm Shaft 1860KV / 2500KV NMB Bearing suited for FPV Racing 5"-6" Freestyle Quadcopters

BETAFPV Snow 2306 Brushless Motors are made of top materials and come in a new design with a snowflake appearance style. It features a high-strength TC4 Titanium alloy shaft, N52 magnet, NMB bearing, and 7075 Aluminum rotator for great performance and durable use, working together to make our Snow 2306 one of the most powerful FPV brushless motors out there. Perfectly suited for FPV racing and FPV freestyle on 5"-6" quadcopters. Bullet Point
- Made of top materials. High-strength Titanium TC4 shaft, N52 magnet, NMB bearing, and 7075 Aviation Aluminum Alloy are applied to Snow 2306 motors, making the motors durable for use.
- With a snowflake appearance style design. The whole motors show a silver white color in the air, looking very nice.
- Compatible with 5"-6" quadcopters for FPV racing and FPV freestyle. It has 1860KV and 2500KV two motor KV versions for choice.
- Snow 2306 Brushless Motors and 5" props GF Freestyle 3S 3-Blade Props, GF 51433 3-Blade Props,GF 51466 MCK V2 3-Blade Props match perfectly, which will give you a super-efficient flight experience.
Specification

Item: Snow 2306 Brushless Motors

Dimensions: φ29.3*30.6mm

Shaft Length: 12.3mm

Shaft Diameter: 5mm

Motor KV (rpm/V): 1860KV/2500KV (optional)

Configuration: 12N14P

Input Voltage: 4S/6S Lipo

Wire Length: 20AWG 160mm

Weight: 34g (with wires)

Shaft Style: TC4 Titanium Shaft

Iron Core: 0.15mm Silicon Steel

Magnet: Sintered NdFeB N52SH

End Cap: 7075 Aviation Aluminum Alloy

Bearing: NMB Bearing

Test Reports

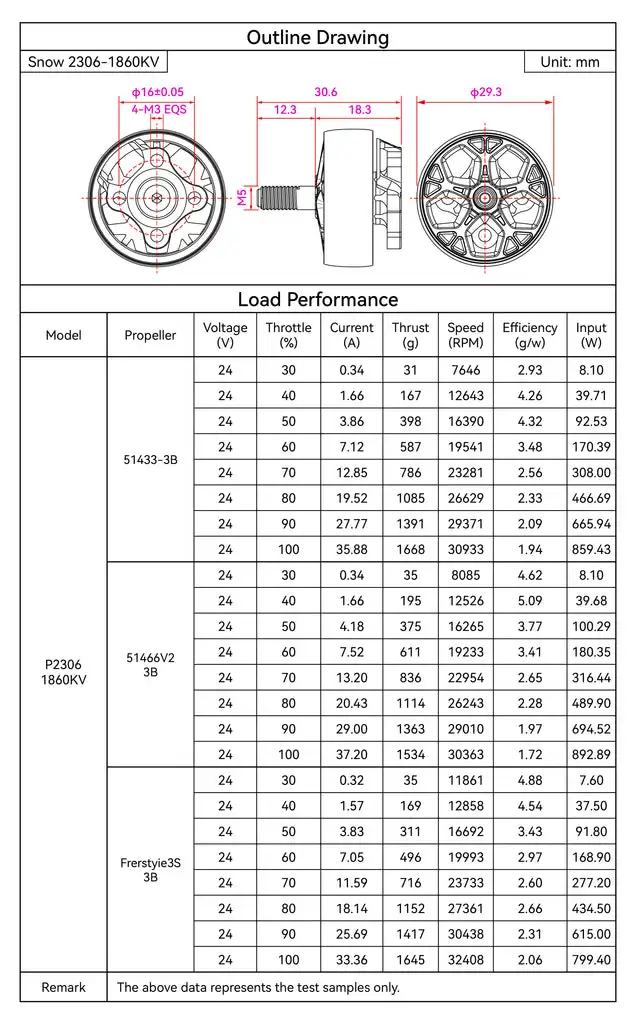

The below picture is the test data for 2306 1860KV motors.

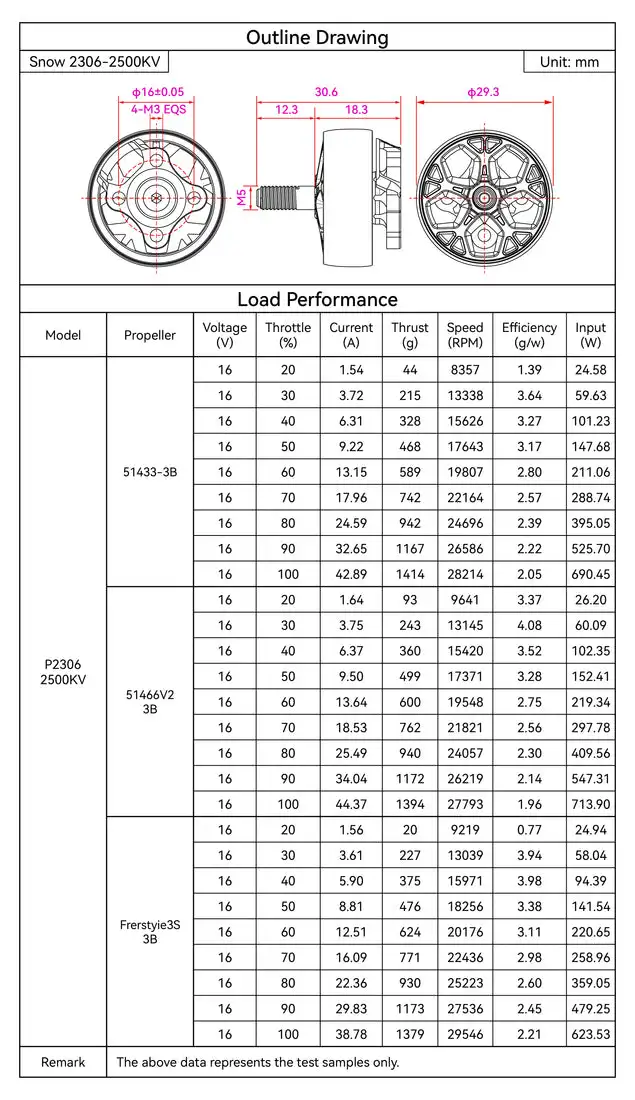

The below picture is the test data for 2306 2500KV motors.

Recommended

Quadcopter: 5"-6" Quadcopter

Frame: 5"-6" Frame

ESC: at least 40A ESC

Compatible Propellers: 5"-6" propellers, highly recommend 5" props GF Freestyle 3S 3-Blade Props, GF 51433 3-Blade Props,GF 51466 MCK V2 3-Blade Props

Battery: 4S 1500mAh 120C / 6S 1300mAh 120C

Takeoff Weight: 580g with 4S battery / 600g with 6S battery

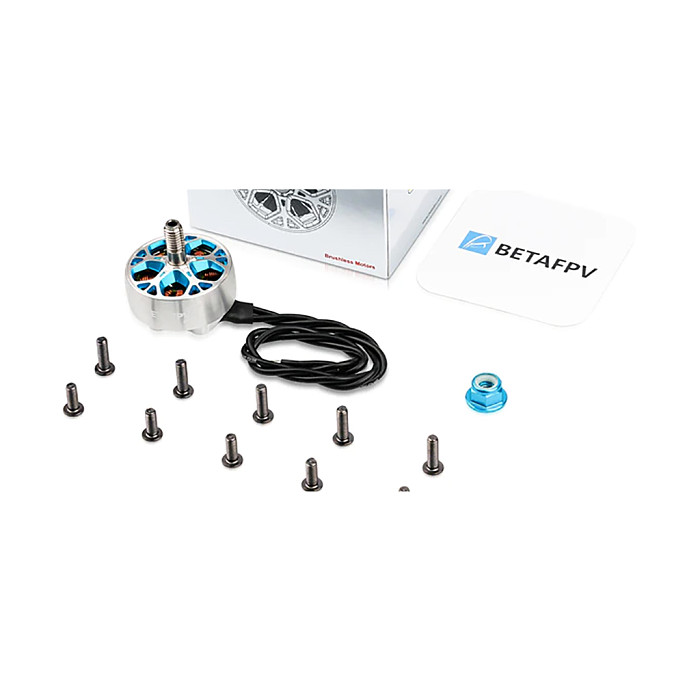

Package

1 * Snow 2306 1860KV or 2500KV Brushless Motor

5 * M3*8 Screws

5 * M3*10 Screws

1 * M5*6 Nut
