Home>Consumer Electronics>BETAFPV BT2.0 Battery Charger and Voltage Tester V2 for PH2.0 BT2.0 Plug 1S Battery 52.7*23.2*14.2mm

BETAFPV BT2.0 Battery Charger and Voltage Tester V2 for PH2.0 BT2.0 Plug 1S Battery 52.723.214.2mm Item NO.: F47252

US$ 8.99 ~ US$ 9.99

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 9.99	US$ 9.49	US$ 8.99

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	BETAFPV BT2.0 Battery Charger and Voltage Tester V2 for PH2.0 BT2.0 Plug 1S Battery 52.723.214.2mm
Item NO.	F47252
Weight	0.05 kg = 0.1102 lb = 1.7637 oz
Category	Consumer Electronics
Creation Time	2022-06-16

Not sure if it's worth switching BT2.0? Check more from Joshua Bardwell'video- Proof that the BT2.0 connector is better than PH 2.0

Bullet Points

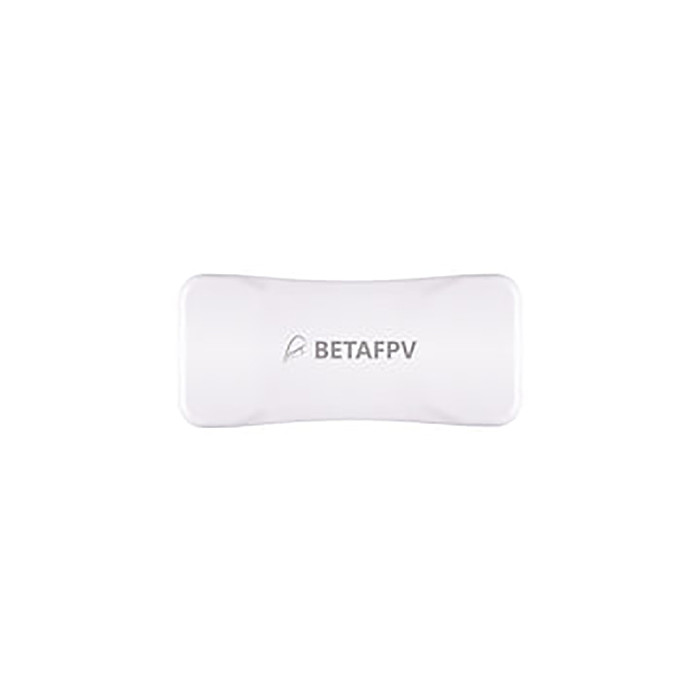

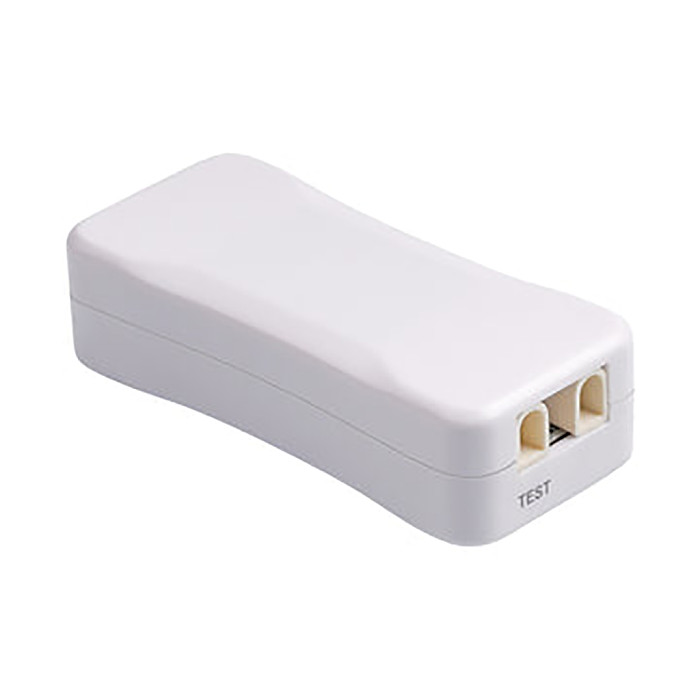

Specially made for our BT2.0 series battery. It has two functions of testing voltage and charging in one, compact and easy to carry.
Come with a Type-C input port to replace the USB input, which makes the charging is no longer limited by the socket, pilots can get more charging options.
The new charger also upgrades the design of appearance. With the hidden design of the electric display and charging instructions, it is simple and beautiful.
Supports to charge two batteries at the same time, its charging current is 1A, BT2.0 300mah battery can be fully charged in 20 minutes, BT2.0 450mah 1S battery can be fully charged in 30 minutes.

Power-on state

OUT1/OUT2 can be charged simultaneously
Input: USB-5V/2A
Output: 4.35V/1A
The red light indicates charging, and the green light indicates full charged

Power-off state

OUT1 can be used as a battery tester while OUT2 does not possess any function

Specifications

Model: BT2.0 1S Battery Voltage Checker V2
Plugs: BT2.0
Connector: Type-C
LCD: White
Weight: 12.37g
Dimensions: 52.7*23.2*14.2mm

BT2.0 Connector

BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector decreased internal resistance of connector effectively to allow more current that is transferred, which means it supports 9A continuous current(15A burst) offers stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A You can enjoy more flight time without disturb of low voltage warning through solving the problem of voltage sag. For more instruction, click here to reach.

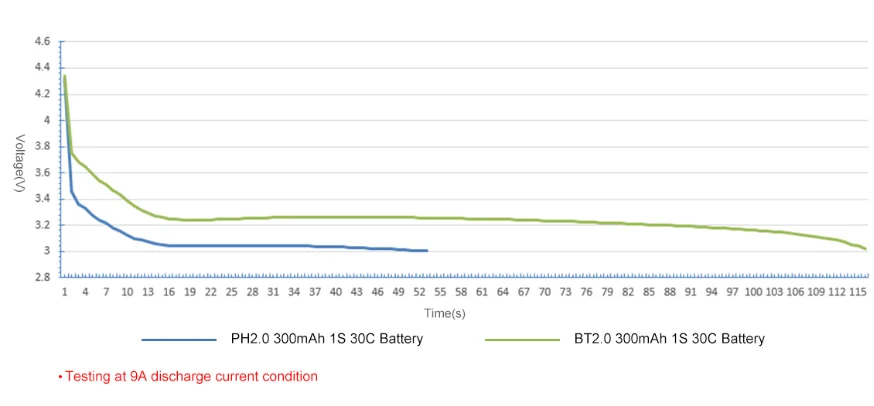

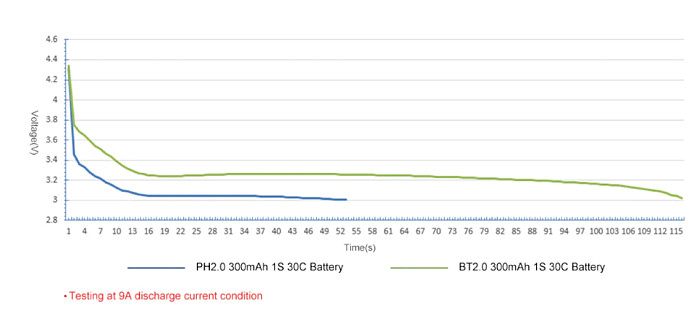

There is a graph of comparison between BT2.0 connector and PH2.0 connector (solid pins version) in BETAFPV 1S 300mAh battery. The discharge current is 9A in this testing. You could see that it has double time (about 2minutes) with BT2.0 connector.

Much more choices of BT2.0 series accessories.

We know some pilots might have a question about how to deal with the old PH2.0 1S battery. So we provide some accessories like BT2.0 Power whoop connectors for those people who wanna convert the PH2.0 connector to BT2.0 connector.

Highly recommend the below products with BT2.0 connectors or cables. BETAFPV will collaborate closely with more brand manufacturers in the future, in order to bring better service and experience to customers.
