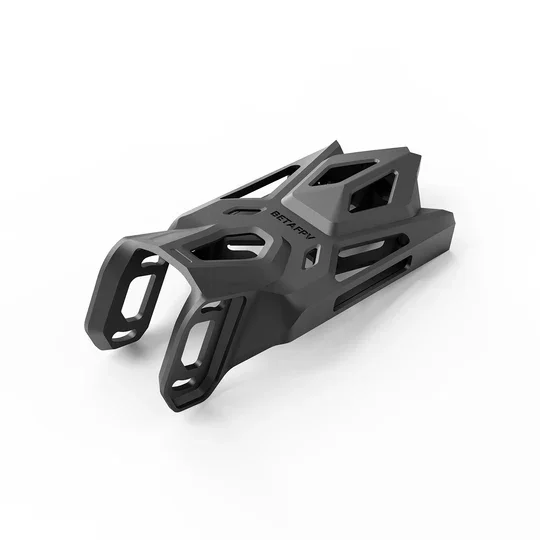

(BETAFPV）O4 Air Unit Bracket II Bracket/Shock-absorbing Balls
-
Detail
- Product Name: (BETAFPV）O4 Air Unit Bracket II Bracket/Shock-absorbing Balls
- Item NO.: F54706-A1 F54706-A2 F54707
- Weight: 0.02 kg = 0.0441 lb = 0.7055 oz
- Category: DIY RC Drone Accessories
- Brand: BETAFPV
- Creation Time: 2025-09-29
- (BETAFPV）O4 Air Unit Bracket II Bracket/Shock-absorbing Balls
Building on our proven design, the next-generation O4 Bracket II is engineered for one goal: perfect jello-free video. The first-generation bracket untilizes separate shock-absorbing components for the O4 camera, which is lightweight but complex to assemble and occasionally prone to jello from imperfect installation. In contrast, the O4 Bracket II introduces a fully integrated vibration-damping system. The camera is securely mounted with 4 screws for simplicity and rigidity, while 4 soft-mounted shock-absorbing balls replace rigid connections to isolate vibrations effortlessly. This refined approach eliminates complexity while delivering superior damping performance and long-term stability—so you can focus on capturing flawless video.
Bullet Points
- Total Vibration Elimination: Introduces a fully integrated vibration-damping system. Four soft-mounted shock-absorbing balls comprehensively isolate the O4 camera from all vibrations, guaranteeing perfectly smooth and jello-free video.
-
Precision Tilt Adjustments: Dual fixing holes optimize the camera's center of rotation for smooth and stable 5°-35° tilt adjustments, allowing you to perfectly frame your shot.
- Unwavering Signal Strength: An extended locking tail with two screws secures the antenna firmly in place, ensuring a robust and flawless digital video link for maximum transmission reliability.
Specifications
- Item: O4 Air Unit Bracket II
-
Material: PP
- Color: Black/Transparent Gray
- Weight: 4.1g
- Compatible Frame: Pavo Pico II Frame
Diagram
Recommended Parts
- Quadcopter: Pavo Pico II Brushless Whoop Quadcopter
- Frame: Pavo Pico II Brushless Whoop Frame
- Supported HD VTX: DJI O4 Air Unit
Package
O4 Air Unit Bracket II (Bracket Version)
- 1 * Top Plate for O4 Air Unit Bracket II
- 1 * Bottom Plate for O4 Air Unit Bracket II
-
2 * 5.8G VTX Antennas
- 6 * Shock-absorbing Balls for O4 Air Unit Bracket II (8mm)
- 6 * Shock-absorbing Pads for O4 Air Unit Bracket II (1.5mm)
- 6 * M2*4 Socket Head Cap Self Tapping Screws
- 8 * M1.4*6 Phillips Flat Washer Head Tapping Screws
O4 Air Unit Bracket II (Shock-absorbing Balls Version)
-

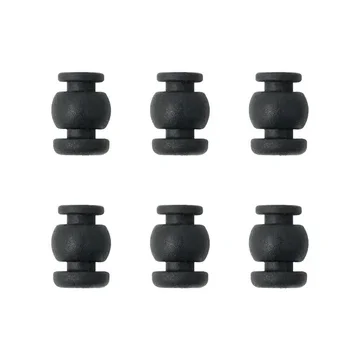

6 * Shock-absorbing Balls for O4 Air Unit Bracket II (8mm)
