(BETAFPV）Meteor65 Pro II Brushless Whoop Frame For Drone Accessories

US$ 4.99

Version

Estimate Shipping Cost

Detail

Product Name: (BETAFPV）Meteor65 Pro II Brushless Whoop Frame For Drone Accessories
Item NO.: F55685-A1 F55685-A2 F55685-A3 F55685-A4 F55685-A5
Weight: 4.6 kg = 10.1413 lb = 162.2602 oz
Category: DIY RC Drone Accessories > Frame
Brand: BETAFPV
Creation Time: 2026-07-13

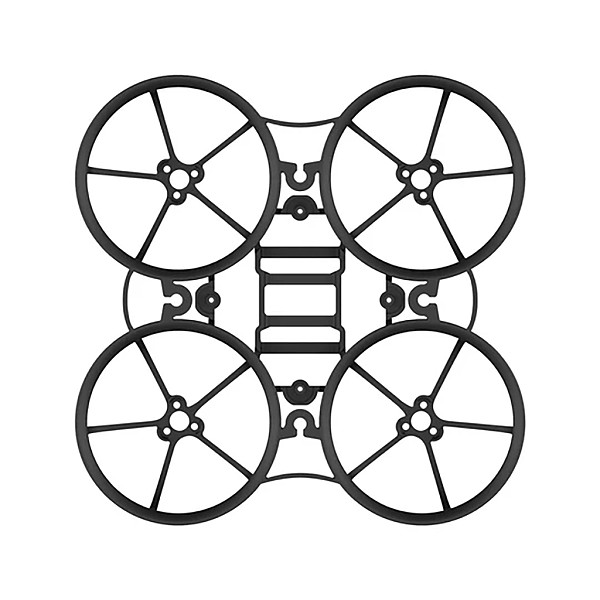

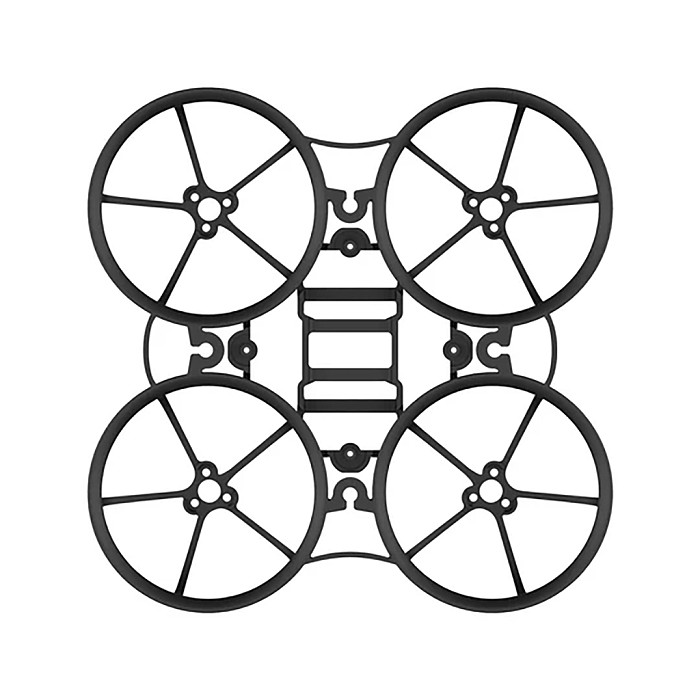

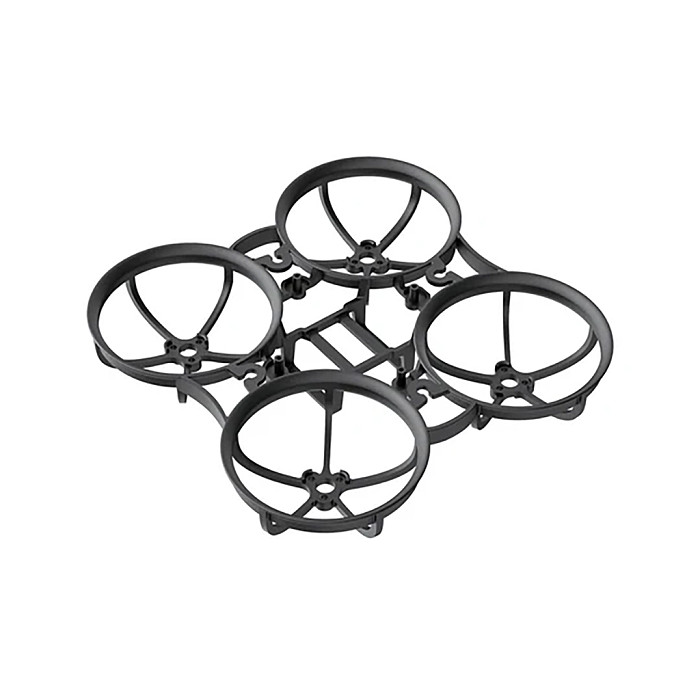

(BETAFPV）Meteor65 Pro II Brushless Whoop Frame For Drone Accessories

(BETAFPV）Meteor65 Pro II Brushless Whoop Frame For Drone Accessories

The Meteor65 Pro II Frame revolutionizes whoop frame design, delivering superior flight performance, extended flight times, and exceptional durability. Featuring an enlarged 70mm wheelbase, it provides a more stable and responsive flight base. Aerodynamic refinements—including reduced arm braces and curved duct design—improve flight efficiency, while a widened battery slot accommodates larger 480mAh batteries for extended sessions. With simplified installation through four shock-absorbing mounting holes and seamless Canopy II compatibility, the frame guarantees stable, jello-free footage and effortless maintenance. Enhanced stability and rock-solid durability make it perfect for daily training, micro aerial photography, education, and competitions.

Meteor65 Pro II Brushless Whoop Frame

Bullet Points

70mm Wheelbase: Enlarged from 66mm for a more stable and responsive flight base.
Optimized Derodynamics: Arm braces refined from 6 to 5 and curved whoop duct reducing weight and air resistance for improved flight efficiency.
Wider Battery Slot: 16.1 x 6.3mm slot supports larger 480mAh batteries, significantly extending flight times.
Strengthened Frame: Built tough with the same rugged durability as the Meteor75 Pro frame, perfect for daily training, micro aerial photography, education, and competitions.
Simplified Installation: Four shock-absorbing mounting holes with Canopy II compatibility ensure easy assembly, quick maintenance, and stable footage.

Specifications

Item: Meteor65 Pro II Brushless Whoop Frame
Material: PP
Wheelbase: 70mm
Weight: 4.60g

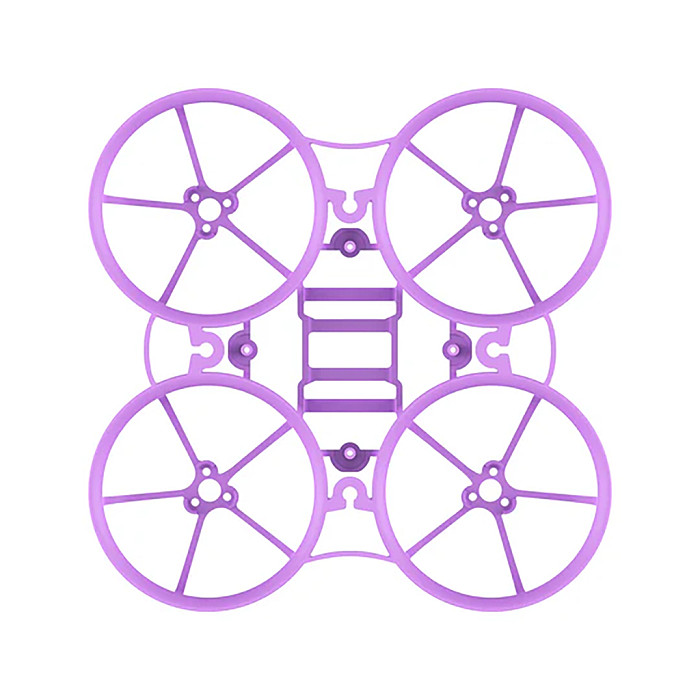

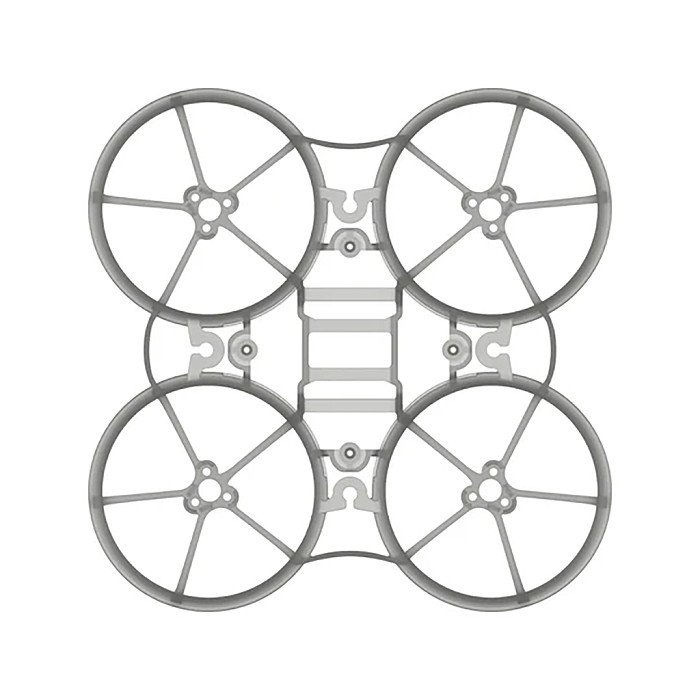

Color: Transparent gray, black, white, blue, purple
Motor Mounting Hole: 3-M1.4-φ6.6mm
FC Mounting Hole: 26*26mm
Battery Slot: 16.1*6.3mm
Dimensions: 91.4*91.4*15.4mm

Diagram

Meteor65 Pro II Brushless Whoop Frame diagram

Larger Wheelbase & Optimized Aerodynamics

The wheelbase has been innovatively enlarged from 66mm to 70mm, providing a more stable and responsive flight base. The arm braces have been refined from 6 to 5 and the whoop duct has been aerodynamically optimized to minimize air resistance and weight, resulting in improved flight efficiency and overall performance for the Meteor65 Pro II.

Meteor65 Pro II Brushless Whoop Frame comparision

Enhanced Battery Capacity

Thanks to the enlarged wheelbase, the battery slot has been widened to 16.1 * 6.3mm, accommodating larger and more powerful LAVA II 1S 480mAh batteries. This upgrade significantly extends flight times, allowing pilots to enjoy longer sessions without compromise.

Meteor65 Pro II Brushless Whoop Frame - enlarged battery slot

Simple Installation & Unmatched Durability

The entire frame has been strengthened to deliver the same rugged toughness as the Meteor75 Pro frame, ensuring long-lasting reliability for daily use. Four new installation holes for shock-absorbing balls, paried with the Canopy II for O4 Air Unit, simplify both installation and removal while delivering stable, jello-free footage performance. This durable and low-maintenance design makes the Meteor65 Pro II ideal for daily training, micro aerial photography, educational programs, and youth competitions.

Meteor65 Pro II Brushless Whoop Quadcopter vibration damping

Meteor65 Pro II Frame vs. Meteor65 Pro Frame

	Meteor65 Pro II Frame	Meteor65 Pro Frame
Wheelbase	70mm	66mm
Duct Diameter	37mm	36.6mm
Duct Height	4.5mm	5.0mm
Arm Braces	5	6
Screw Protection Structure	Supported	-
Motor Fixed Slot	Supported
Motor Screws	M1.4*3mm
Propellers	35mm props
Battery Slot Size	16.1*6.3mm	11.6*6mm
Battery	LAVA II 1S 480mAh	LAVA II 1S 320mAh
Weight	4.60g	3.20g
