- Product Name: (BETAFPV）Canopy II for O4 Air Unit
- Item NO.: F55686-A1 F55686-A2 F55686-A3 F55686-A4
- Weight: 2.66 kg = 5.8643 lb = 93.8287 oz
- Category: DIY RC Drone Accessories > others
- Brand: BETAFPV
- Creation Time: 2026-07-13

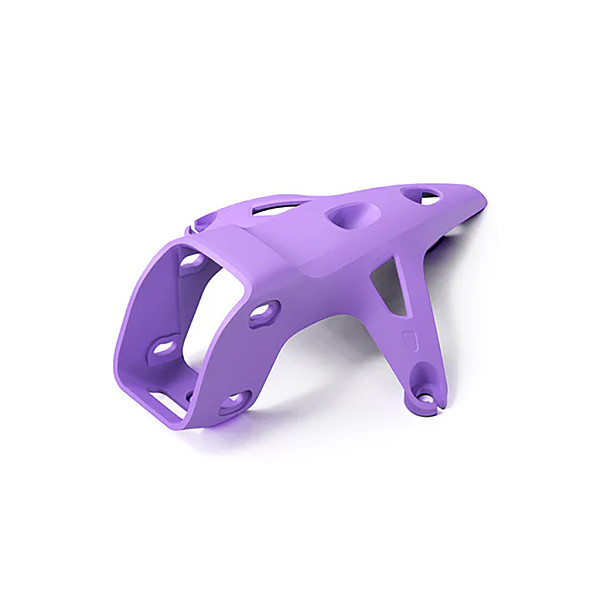

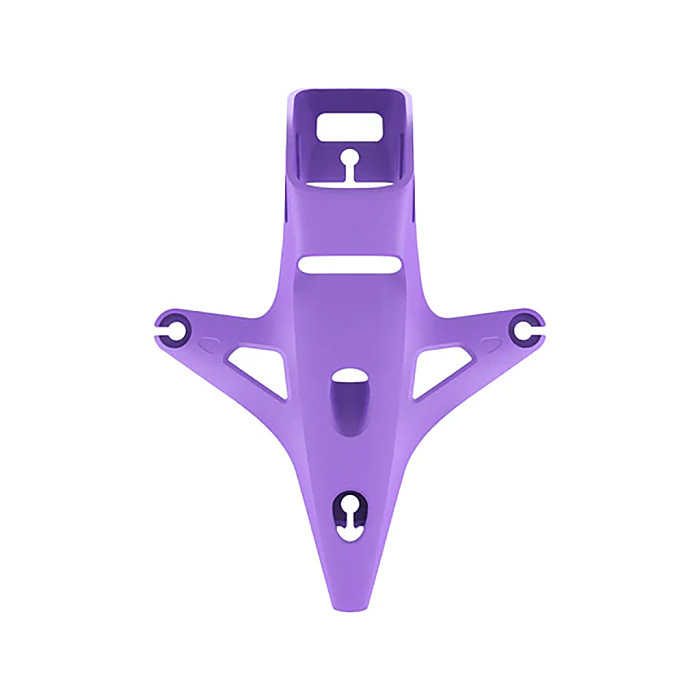

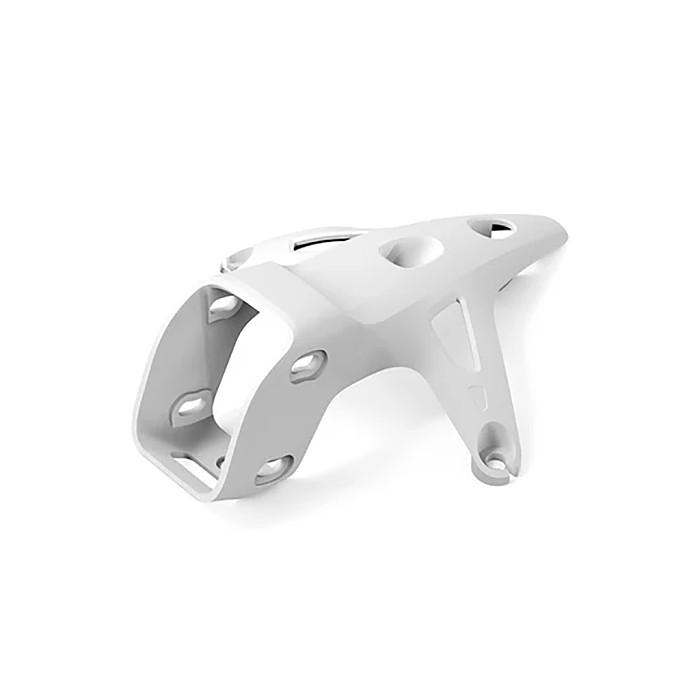

- (BETAFPV）Canopy II for O4 Air Unit
(BETAFPV）Canopy II for O4 Air Unit

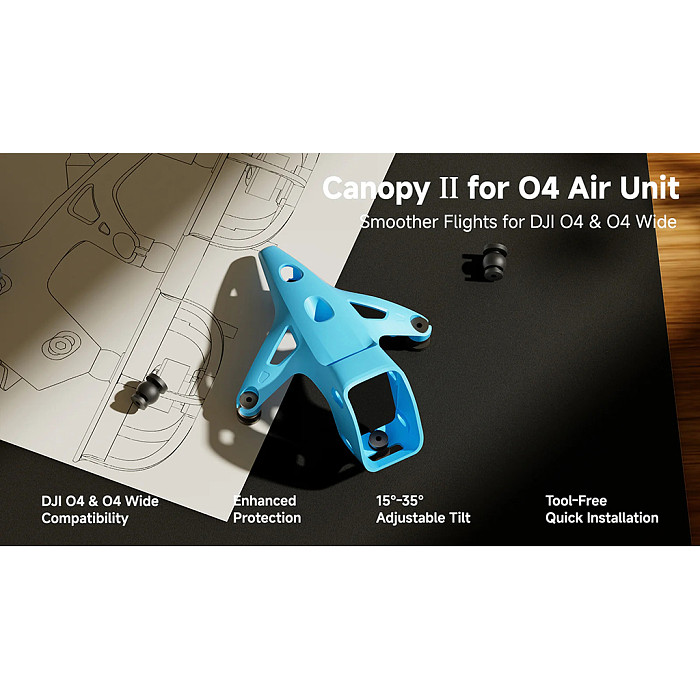

The Canopy II for O4 Air Unit boasts a redesigned vibration-damping and camera mounting system, purpose-built for the DJI O4 and O4 Wide Air Units to deliver superior stability, complete protection, and effortless installation. A secure four-screw fixation system, combined with flexible mounting holes, offers 15° to 35° camera angle adjustments for versatile shooting across any scenario.

Bullet Points
- Enhanced Vibration Damping: Four shock-absorbing balls effectively eliminate jello for professional-grade footage.
- Simplified Installation: Quick and easy to install and remove versus first-generation design.
- Complete Camera Protection: New form factor ensures full compatibility and robust protection for both DJI O4 and O4 Wide Air Units.
- Adjustable Tilt Range: 15° to 35° angle adjustments for versatile shooting.
- DIY-Friendly: Standard 25.5mm x 25.5mm mounting holes for customization flexibility.
Specifications
- Item: Canopy II for O4 Air Unit
- Material: PP
- Color: White/Black/Blue/Purple
- Weight: 2.66g
- Digital VTX Mounting Holes: 25.5mm * 25.5mm
- Camera Installation Spacing: 14mm
- Compatible Camera: DJI O4 and O4 Wide Camera
- Camera Tilt: 15°-35°
- Compatible Frame: Meteor65 Pro II Frame, Meteor75 Pro II Frame
Diagram

More Stability, Even Simpler

Featuring a four shock-absorbing ball connection system with the Meteor II Frame, the Canopy II for O4 Air Unit delivers outstanding vibration damping for smooth, crystal-clear HD footage. Compared to the first generation's complicated installation, the Canopy II draws on the proven O4 Pro bracket solution from the Pavo series, making it significantly easier to install and remove while delivering enhanced stability throughout every flight session. The redesigned form factor ensures complete protection for both DJI O4 and O4 Wide Air Units, safeguarding your investment during aggressive maneuvers.

Flexible and Stable Camera Design

With a secure four-screw fixation system, the camera remains firmly in place during even the most aggressive maneuvers. Flexible installation holes enable 15° to 35° camera angle adjustments, ensuring flawless HD footage across diverse shooting scenarios.

Recommended Parts
- Whoops: Meteor65 Pro II O4, Meteor75 Pro II O4
- Frames: Meteor65 Pro II Frame, Meteor75 Pro II Frame
- Camera: DJI O4 and O4 Wide
Package
- 1 * Canopy II for O4 Air Unit (White/Black/Blue/Purple)
- 6 * Shock-absorbing Balls (8.8mm)
- 1 * 5.8G Antenna
- 4 * M1.4*4 Phillips Screws
- 4 * M2*3 Flat Head Socket Cap Screws
