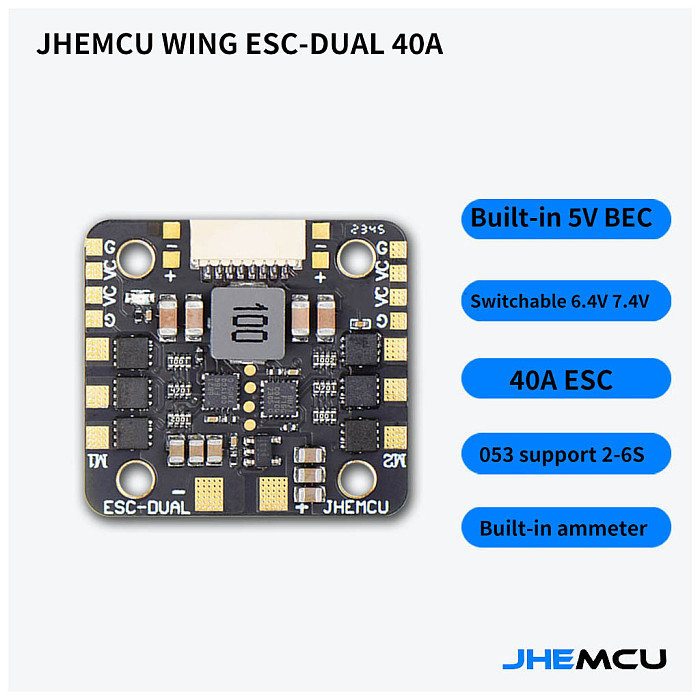

The electrical adjustment is mainly for the use of dual-engine fixed-wing models, of course, can also be used for a motor model, set
Two BLHELI-S 40A power modulation, input voltage support 2-6S. Two-in-one eliminates the need for complex wiring,

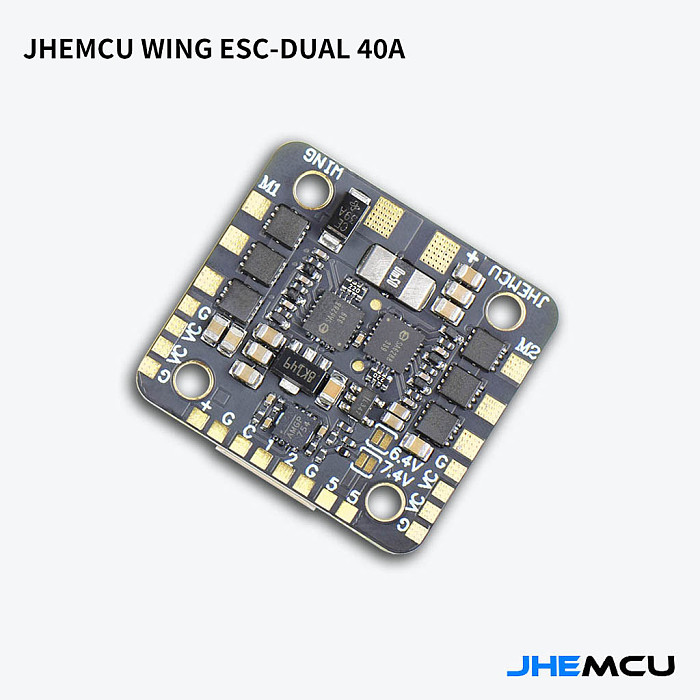

Simple and convenient installation. Built-in 5V BEC, reserved for multiple groups of pads, the BEC can be cut through the pad on the board
Replace 6.4V or 7.4V output, default shipment is 5V. Built-in galvanometer function, but also reserved 8P socket,
Can be more convenient compatible flight control docking.
Since the BLS firmware has a braking function by default, it is not required on the fixed wing, so the shipment is default
The brake function is off.
Specifications:
Product name: JHEMCU WING ESC-DUAL 40A
Input voltage: 2-6S (7.4-27V)
Continuous current: 40A * 2 channels
BEC: 5V/3A (default), can switch 6.4V/2.5A or 7.4V/2A
Galvanometer: Yes
Installation: Hole spacing 20MM/M3
Dimensions: 27*29.5MM
Firmware: BLHELI_SG-H-30 V16.7.HEX
Weight: 6.2g
