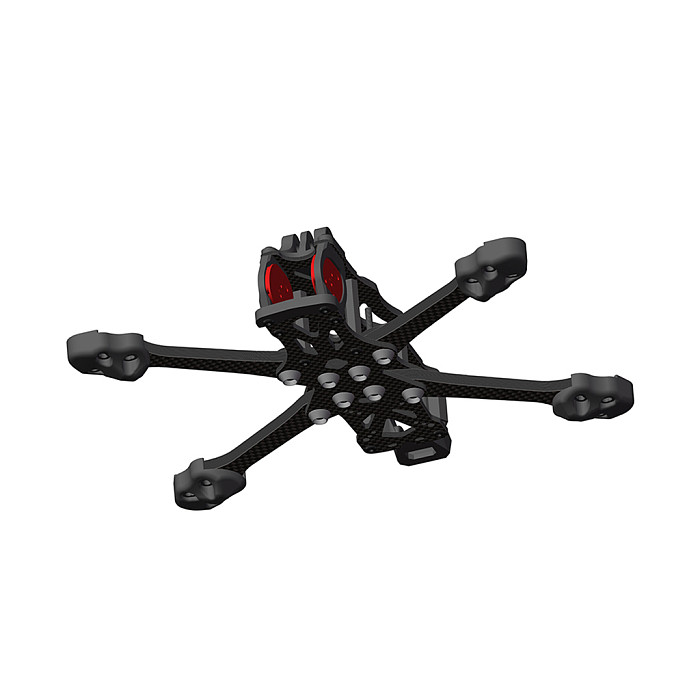

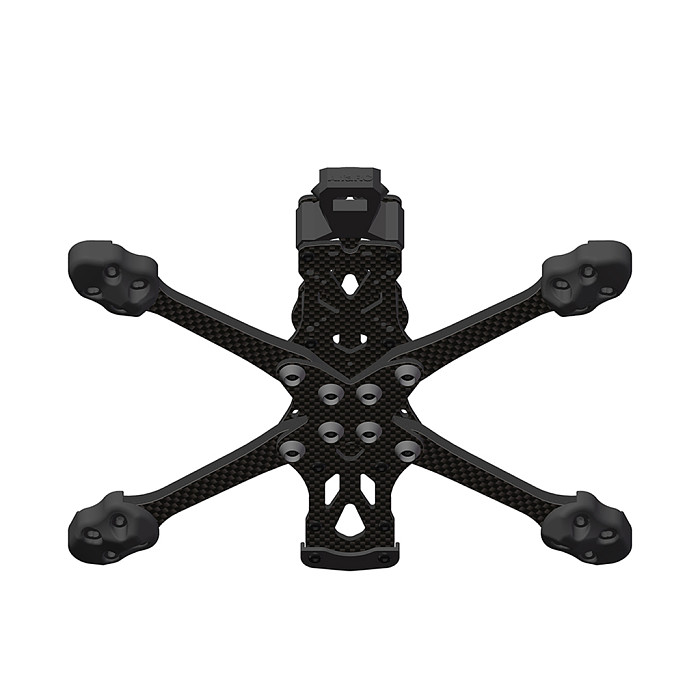

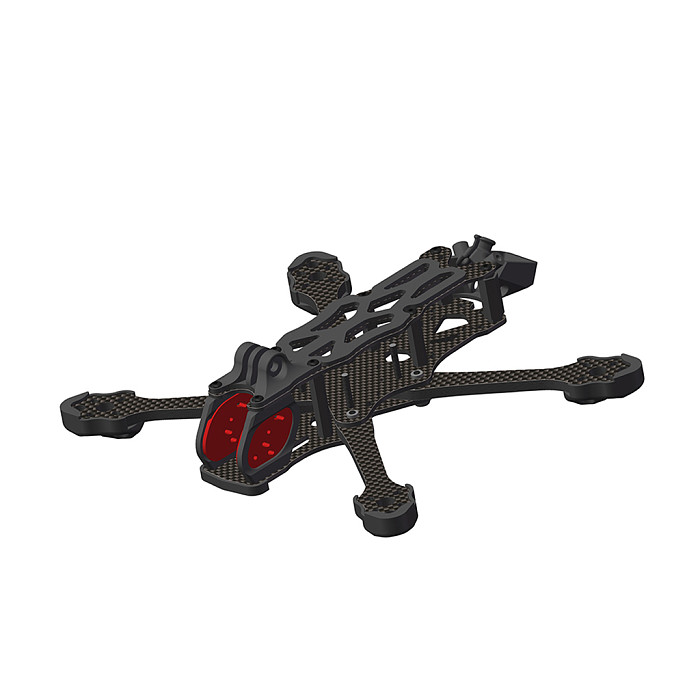

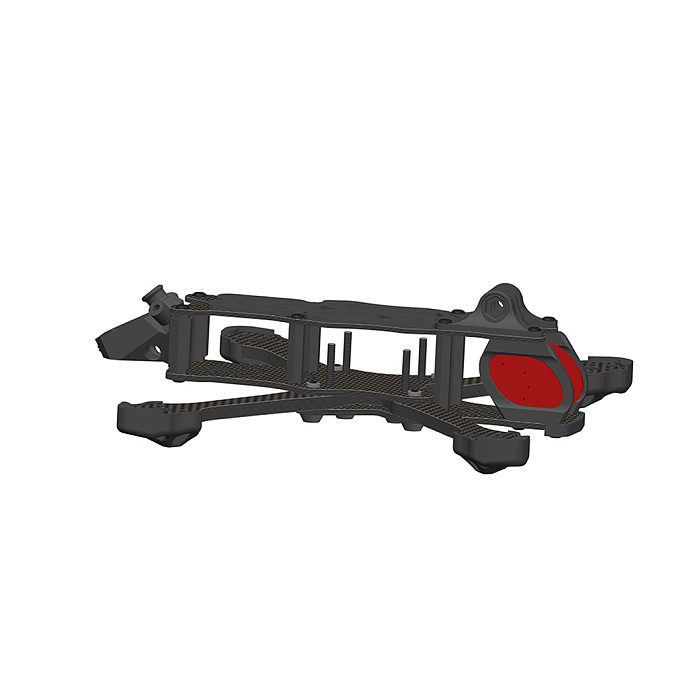

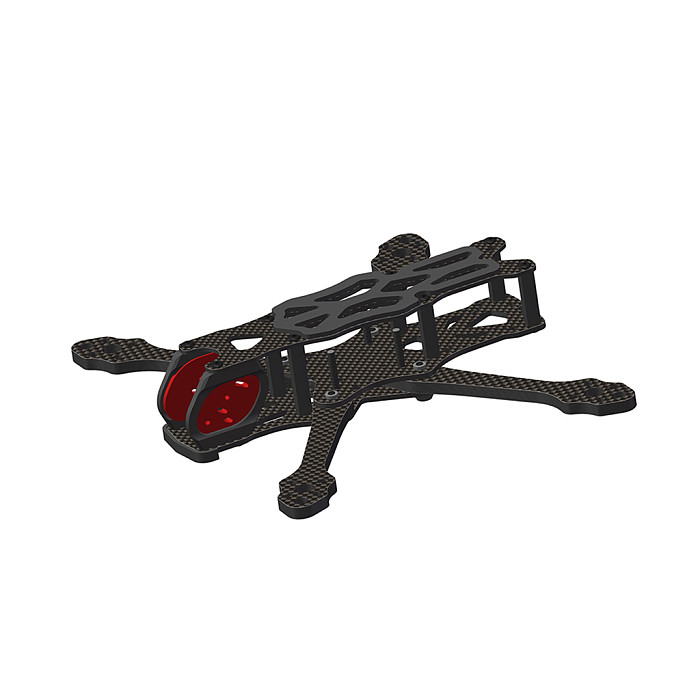

APEX EVO O4 Pro FPV Freestyle Frame, 5 Inch Quad Frame Compatible with DJI O4 Pro O3 Digital VTX System, Carbon Fiber Freestyle Drone Frame
-
Detail
- Product Name: APEX EVO O4 Pro FPV Freestyle Frame, 5 Inch Quad Frame Compatible with DJI O4 Pro O3 Digital VTX System, Carbon Fiber Freestyle Drone Frame
- Item NO.: F56086-D1 F56086-D2
- Weight: 0.18 kg = 0.3968 lb = 6.3493 oz
- Category: DIY RC Drone Accessories > Frame
- Creation Time: 2026-09-11
- APEX EVO O4 Pro FPV Freestyle Frame, 5 Inch Quad Frame Compatible with DJI O4 Pro O3 Digital VTX System, Carbon Fiber Freestyle Drone Frame
APEX EVO O4 Pro FPV Freestyle Frame, 5 Inch Quad Frame Compatible with DJI O4 Pro O3 Digital VTX System, Carbon Fiber Freestyle Drone Frame
APEX EVO O4 PRO FPV Frame Kit FPV RC Racing Drone For DJI O4 PRO CADDX vista polar nebula pro RunCam Link Phoenix 2306 motor
Included with the Apex EVO is a newly redesigned aluminium camera mount and 3D printed isolation inserts. This keeps the camera firmly locked in place and reduces vibrations, whilst ensuring it is electrically isolated from the frame.
Specification:
Brand Name: AlfaRC.
Model: APEX EVO-O4P.
Wheelbase:225mm(5inch).
Arm Plate Thickness: 5.5MM.
Base plate thickness: 2.5MM.
Middle plate thickness: 2.5MM.
Top plate thickness: 2.0MM.
Weight: 130g/Including 3D printed parts 158g（Different production batches will vary ）.
Material: 3K Carbon Fiber.

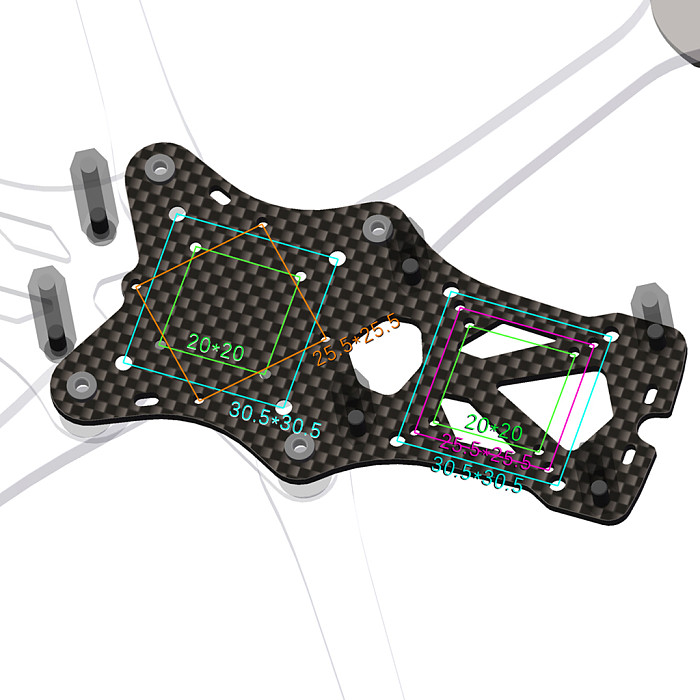

FC Hole distance: (front: 30.5X30.5 / 25.5x25.5 / 20X20MM) / (Rear: 30.5X30.5 / 25.5x25.5 / 20X20MM).
Motor Hole distance :16*16/19*19MM.
Suitable propeller: 5-5.2inch.
Support camera: 20MM（The installation of 14MM/19MM cameras can be achieved through 3D printed parts）
Package list:
1 set Frame KIT, without any electronic equipment
