Copy| Product Name | (ADT Link) R3G laptop graphics card external to M.2 nvme PCIe 3.0/4.0x4 docking station |
| Item NO. | F54230-B1 F54230-B2 |
| Weight | 0.38 kg = 0.8378 lb = 13.4041 oz |
| Category | Computer Accessories |
| Brand | ADT-Link |
| Creation Time | 2025-05-14 |
(ADT Link) R3G laptop graphics card external to M.2 nvme PCIe 3.0/4.0x4 docking station
Product model: R3G series products
Product Name: External graphics card adapter extension cable
Wire length: 25cm, 50cm
Graphics card compatibility: Supports new graphics cards manufactured after 2015 (older graphics cards manufactured before 2015 are not supported)
Motherboard compatibility: Notebook, ITX/STX motherboards, NUC， Only supports M.2 NVMe interface, does not support M.2 SATA interface, does not support M.2
WiFi interface, does not support M.2 WiMAX interface, does not support USB interface.
Power Description: Supports standard ATX 500W and above power supply. The power supply needs to be prepared by the buyer themselves.

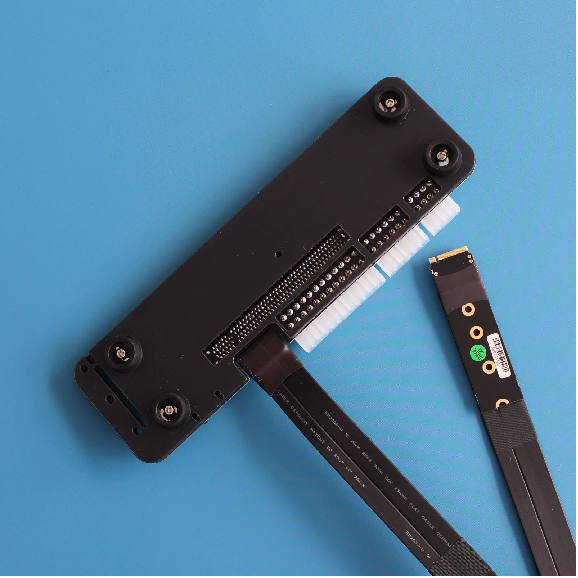

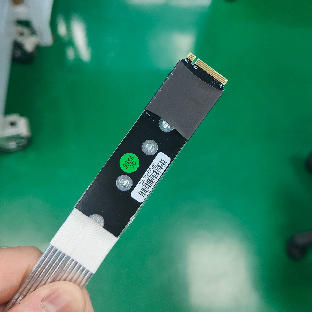

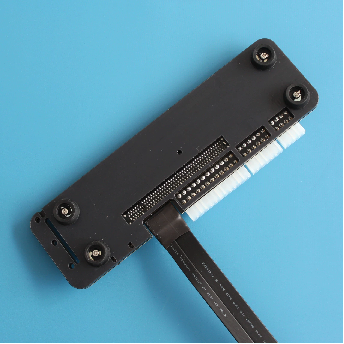

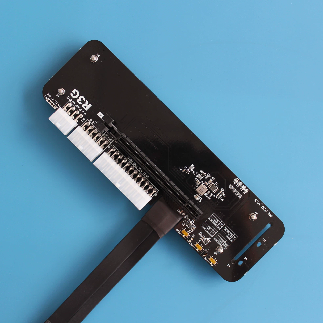

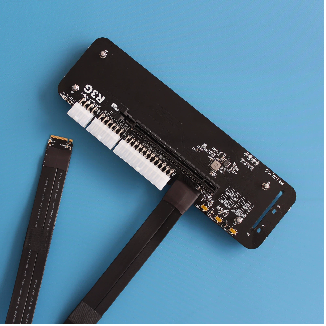

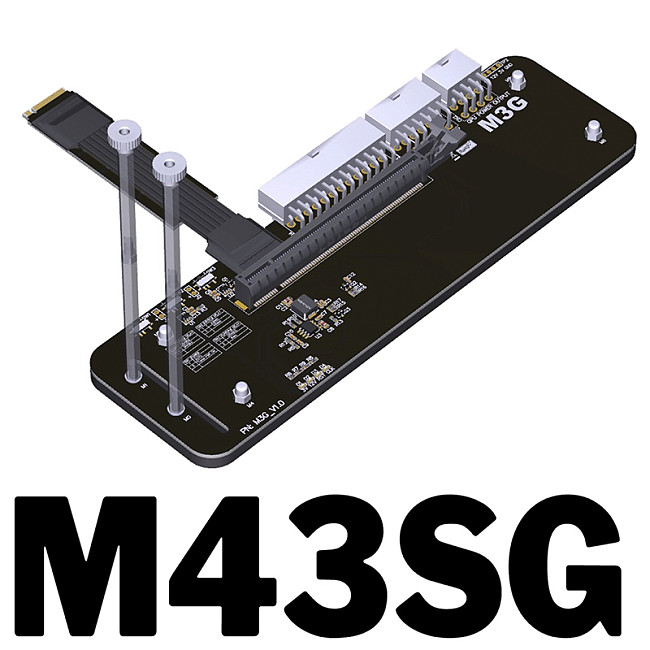

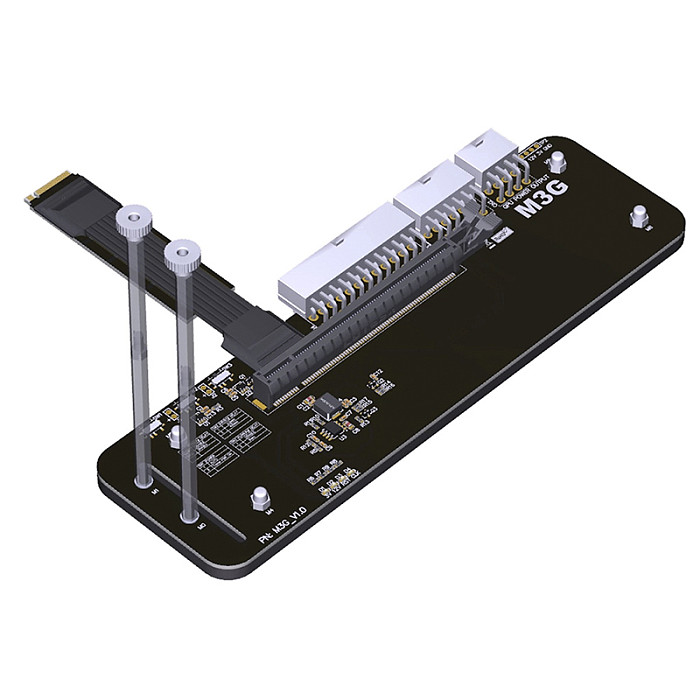

Product image:
Product accessories, hexagonal copper pillars and related screws for fixing graphics cards, as well as a single 6P to double 8P graphics card power adapter cable.

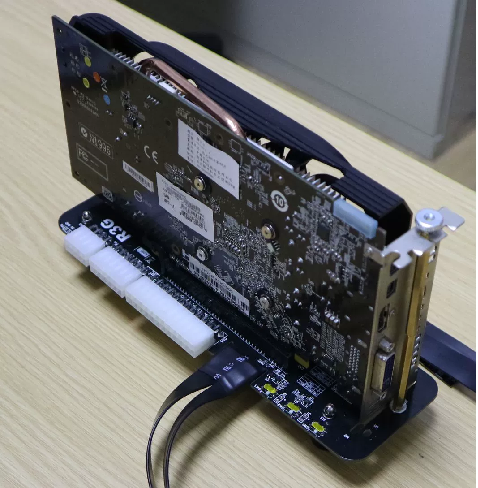

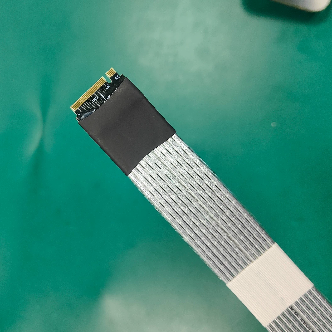

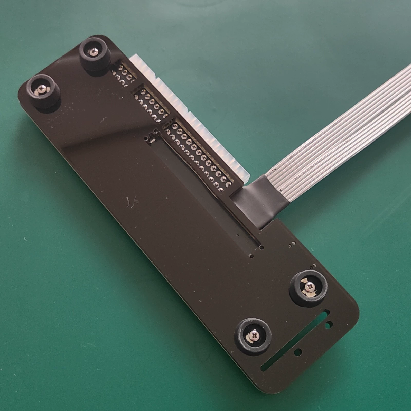

Product real-life photos:

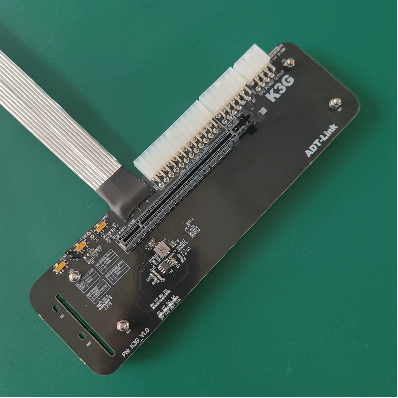

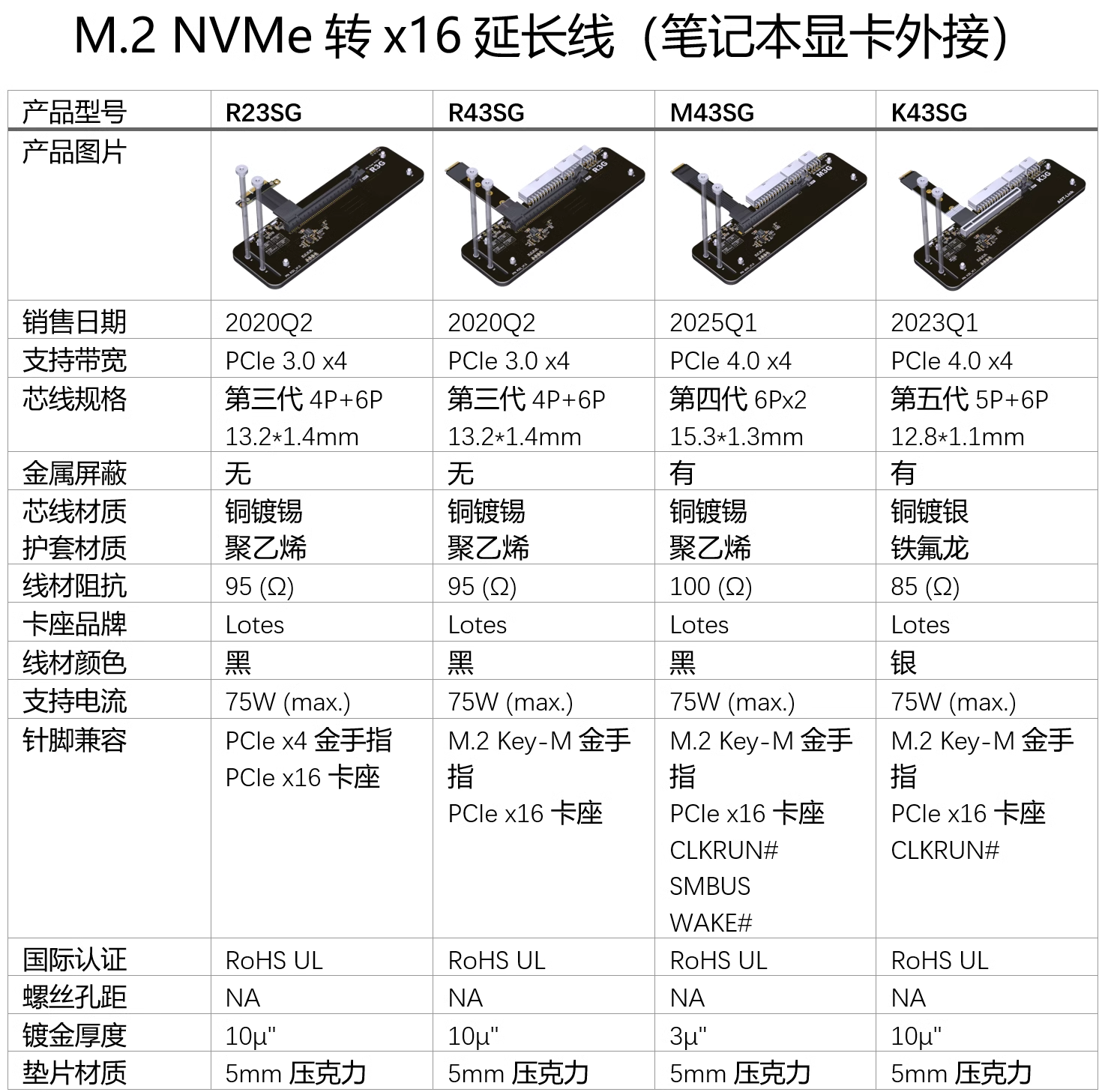

What is the difference between models R43SG and R43SG-TU?

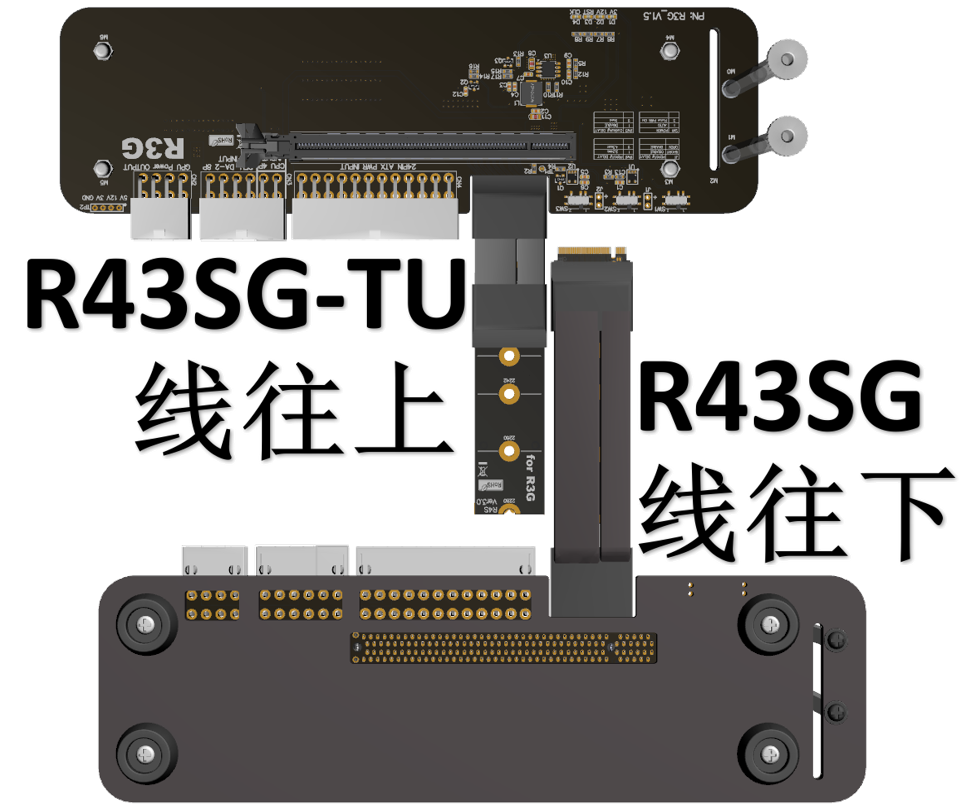

Distinguish the direction of wire material output, as shown in the following figure:
Is there any blocking?

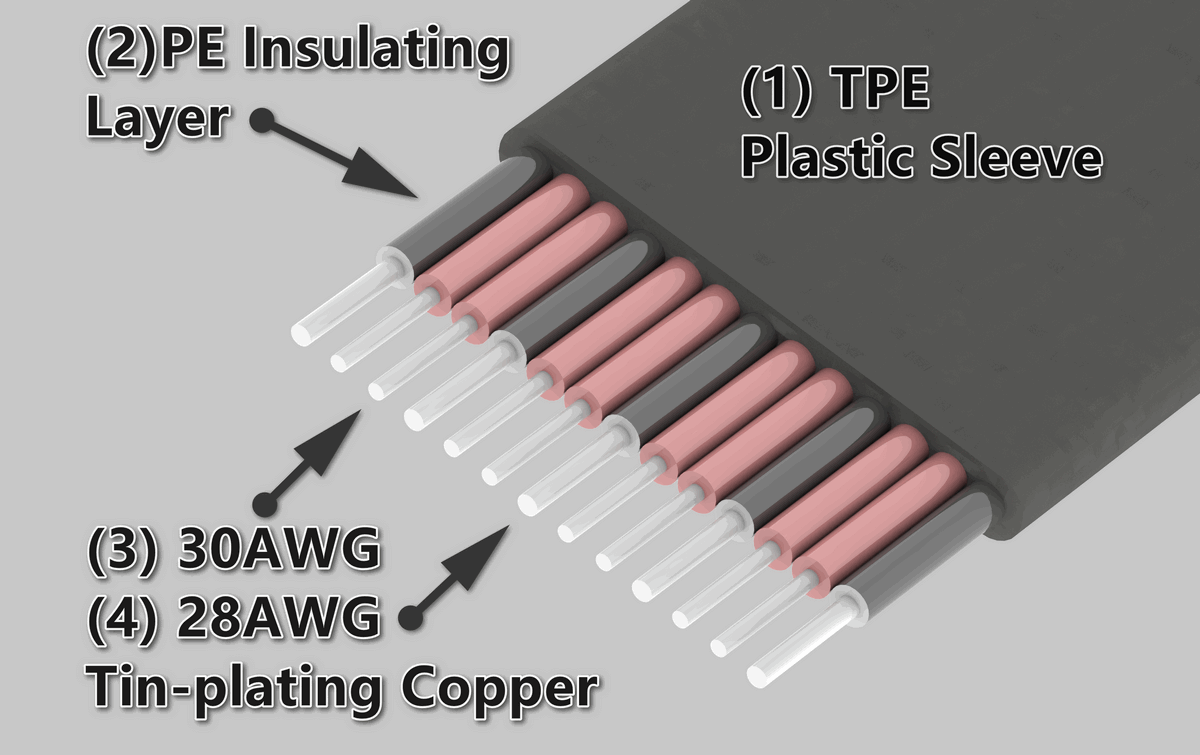

Shielded, using advanced EMI shielding conductive polymers, new materials for EMI shielding, flat cable design. This technology allows each cable to be
completely covered by electromagnetic interference shielding of conductive polymers to prevent incident or outgoing emissions of electromagnetic frequencies, minimize interference and performance degradation, and reduce the weight of the extender.
What is the thickness of the wire?
Is it soft?
The wire thickness of black products is 1.4mm, and the wire thickness of silver products is 1.3mm. The wire can be bent and folded, which does not affect use, but cannot be pulled or pulled.

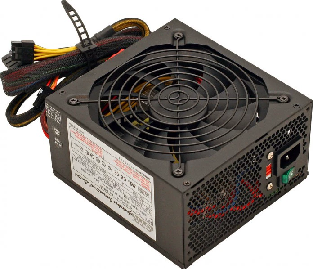

Support standard ATX power supply of 500W or above.
the chassis power supply directly into the graphics card.
The CPU 4P power supply is located in the lower left corner, and the motherboard 24P power supply is located in the upper right corner. Please install it properly.

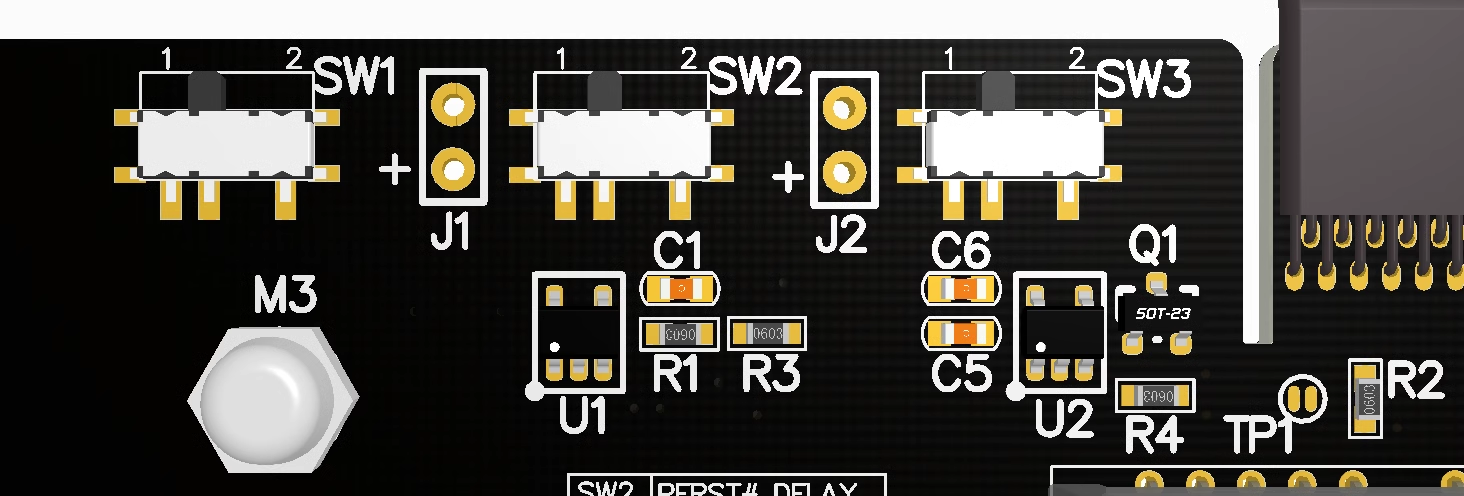

There are three switches on ADT R3G. What are their uses?
SW2, PERST # signal delay switch, with 1 delay of 2.2 seconds and 2 delay of 4.5 seconds, paired with eGPU software for graphics card compatibility optimization. Currently, the software does not support it, please switch to 1.
SW3, CLKRUN # signal delay switch, 1 is off, 2 is delayed for 9 seconds, paired with eGPU software for graphics card compatibility optimization. Currently, the software does not support it, please switch to 1.
J2, CLKRUN # capacitor delay, currently not supported by software, only for R&D engineers to plug in capacitors for testing delay. Inserting a 1uf capacitor causes a delay of approximately 2.2 seconds, inserting a 2.2u capacitor causes a delay of approximately 5 seconds, and so on.
What are the laptops supported by ADT R3G?
The laptop must have an M.2 NVMe interface or a Thunderbolt 3 interface to be installed and used

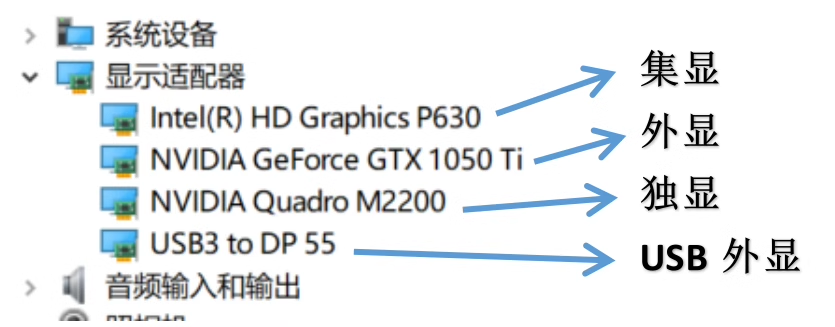

At present, it is known that Nvidia's latest Win10 driver supports both external and individual displays, USB external display, and integrated display, and can be used normally as shown in the following figure.
Supports all PCIe graphics cards in the
past three years. It is necessary to install the latest version of the Nvidia official website driver. If a yellow exclamation mark appears, please
reinstall the driver and restart the computer.
If the yellow exclamation mark (error code 43 or error code 12) still appears, please refer to the solution
provided by Nando experts abroad. The patch download is as follows:
https://egpu.io/nvidia-error43-fixer
How to solve the problem that the CLKREQ signal
light of ADT R3G is not on?
This is because there is a problem with the hardware design of the graphics card. Five years ago, some graphics cards did not

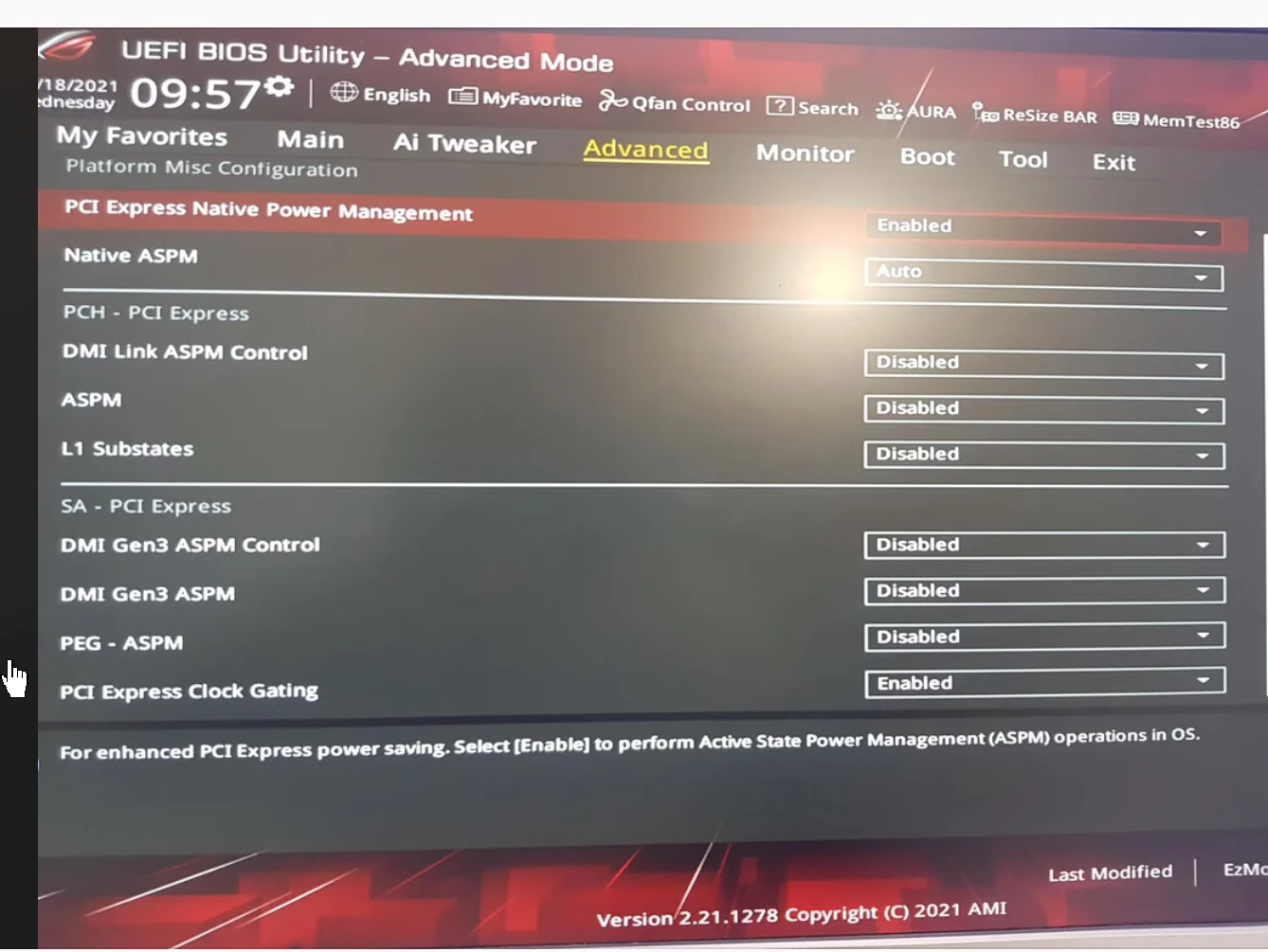

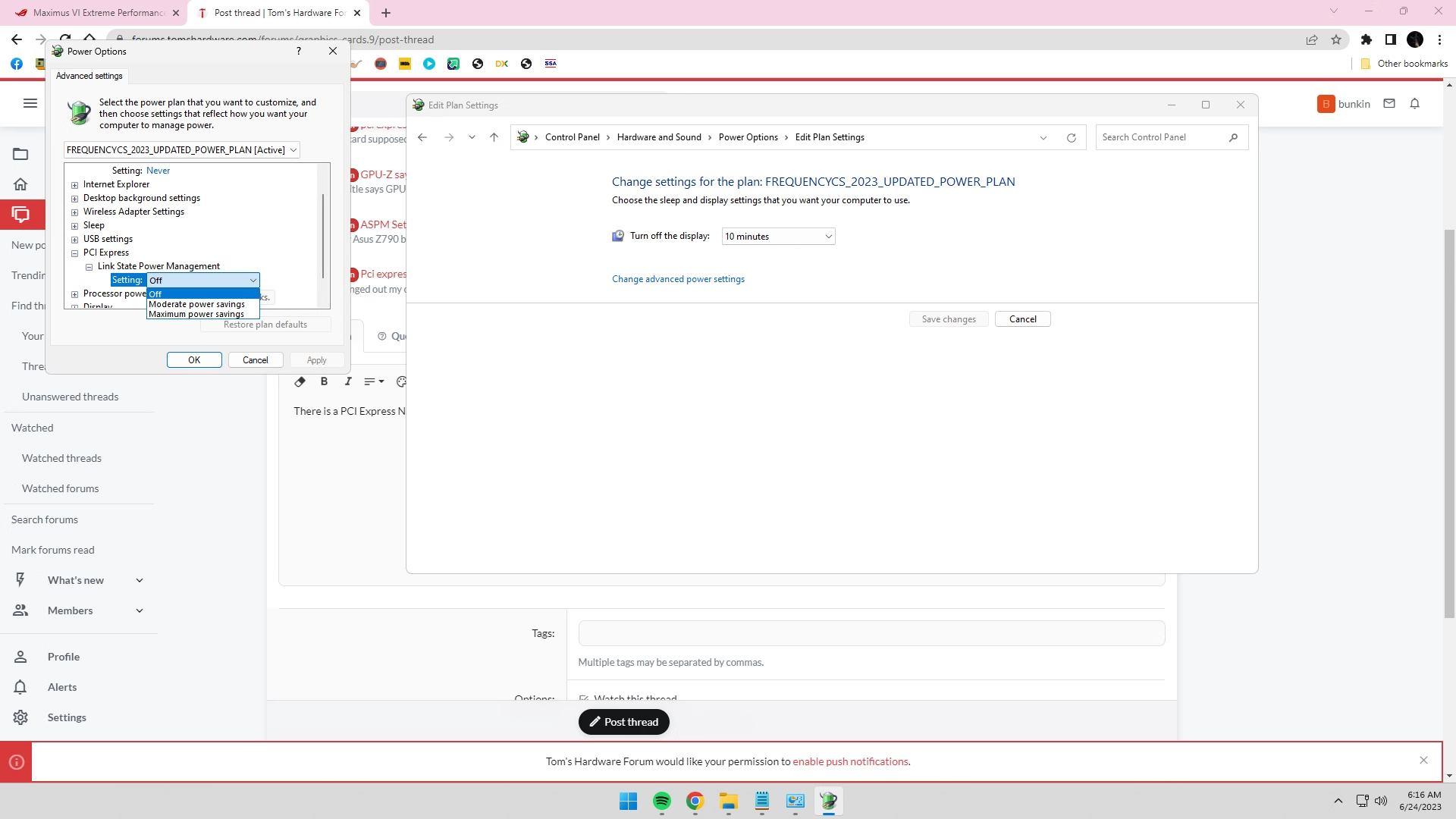

support the CLKREQ signal. If the CLKREQ signal light does not light up, you can turn off the PCIE power-saving function in the system or BIOS
Purchase precautions:
The installation of hexagonal copper columns is shown in the following figure:
This product is an external graphics card adapter device, and the graphics card needs to be purchased separately.
Summary of Technical Issues:
What is the quality of the wire?
What are the options for ADT R3G external power supply?
The wiring method for ATX power supply is shown in the following figure: (recommended for ATX power supply above 500W), plug the graphics card power cord of
SW1， Power forced start switch, 1 for automatic start, 2 for forced start, please switch to 1 for automatic start.
J1, PERST # signal delay switch, OPEN to enable delay function, SHORT to disable delay function, currently not supported by software, please plug in the jumper cap for SHORT.
Is there any way to use it normally?
Please clean and install Nvidia 417.01 or later for smooth installation and use
card driver is installed? The display adapter in the device manager has a yellow exclamation mark! How to solve it
1. When inserting the cable, be sure to recognize the direction and avoid inserting it in the wrong direction or position to prevent burning out the
equipment. When inserting the cable, first hold the device's socket and then plug it in to avoid forcefully disconnecting the socket pins. Bending and
pulling are prohibited within 2cm of the welding point between the two ends of the wire and the circuit board.
2. The signal driving capabilities and other conditions of various motherboards and devices are not the same. Our store's test results do not guarantee
consistency with yours. As long as an extension cable is connected, there will be signal loss.
3. Graphics cards or motherboards are electronic devices that will age and oxidize over time, and connecting extension cords will only make them more
unstable. Old devices are not supported. More than 3 years. Please do not purchase.
4. Unable to provide product installation technical guidance, please inquire with the external graphics card group on your own.
5. The signal driving capabilities and other conditions of various motherboards and devices are not the same. Our store's test results do not guarantee
consistency with yours. As long as an extension cable is connected, there will be signal loss. For those who require perfection, please do not purchase.
Attention: As long as it is an adapter cable, there may be compatibility issues. Please confirm the compatibility between your device and the motherboard
system by yourself. If you cannot confirm, please do not purchase.
