ADT-Link M.2 NGFF NVMe Key M Extender Cable to PCIE x16 Graphics Card Riser Adapter 16x PCI-e PCI-Express for M2 2230 2242 2260 2280 Item NO.: F32083-F32084

ADT-Link M.2 NGFF NVMe Key M Extender Cable to PCIE x16 Graphics Card Riser Adapter 16x PCI-e PCI-Express for M2 2230 2242 2260 2280

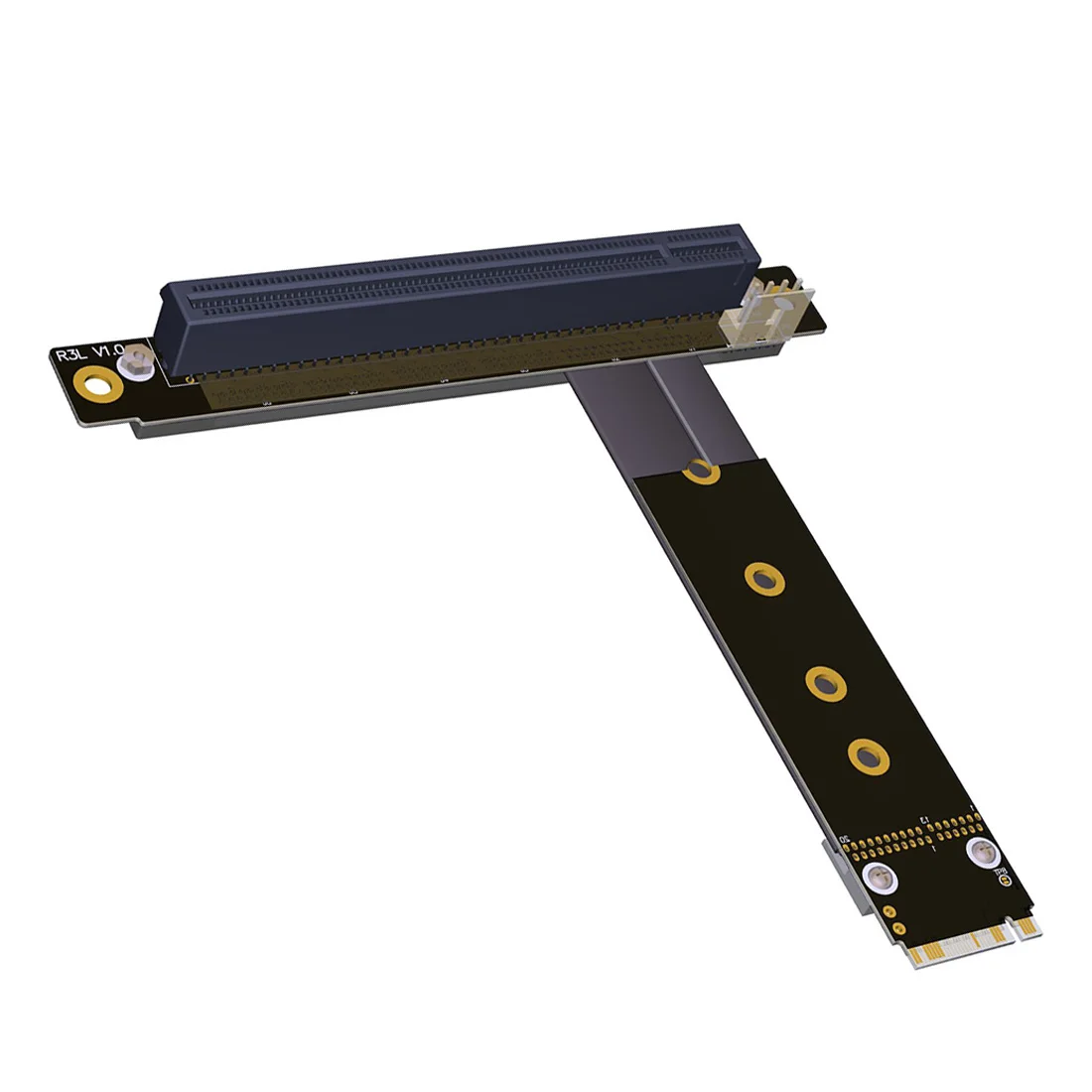

Product name: PCIe graphics card extension cord

Product model: R43SR (Suitable for NUC, motherboard, etc)

Connector 1:  PCIe x16

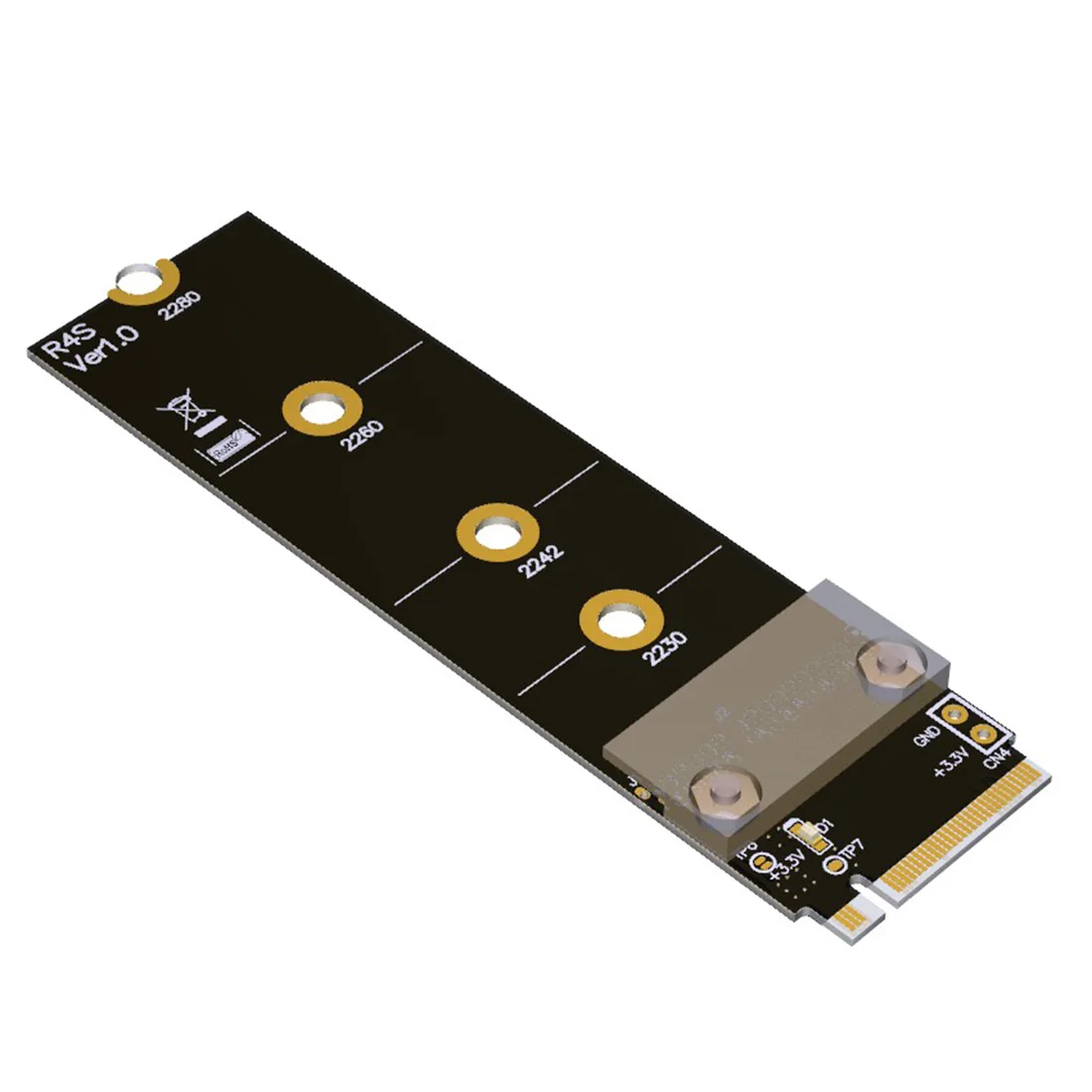

Connector 2:  M.2 NVMe M-key

Suitable graphics card: GTX1080ti High-end graphics CARDS, fireprow7100, radeon RX580, VEGA64, prowx5100, quadroK1200 professional graphics card, support for all the PCIe CARDS after 2015 years

Note: This product does not support external notebook graphics!

The length of the wire instructions:
Our wire length refers to the visual wire part, does not include the PCB and connector.

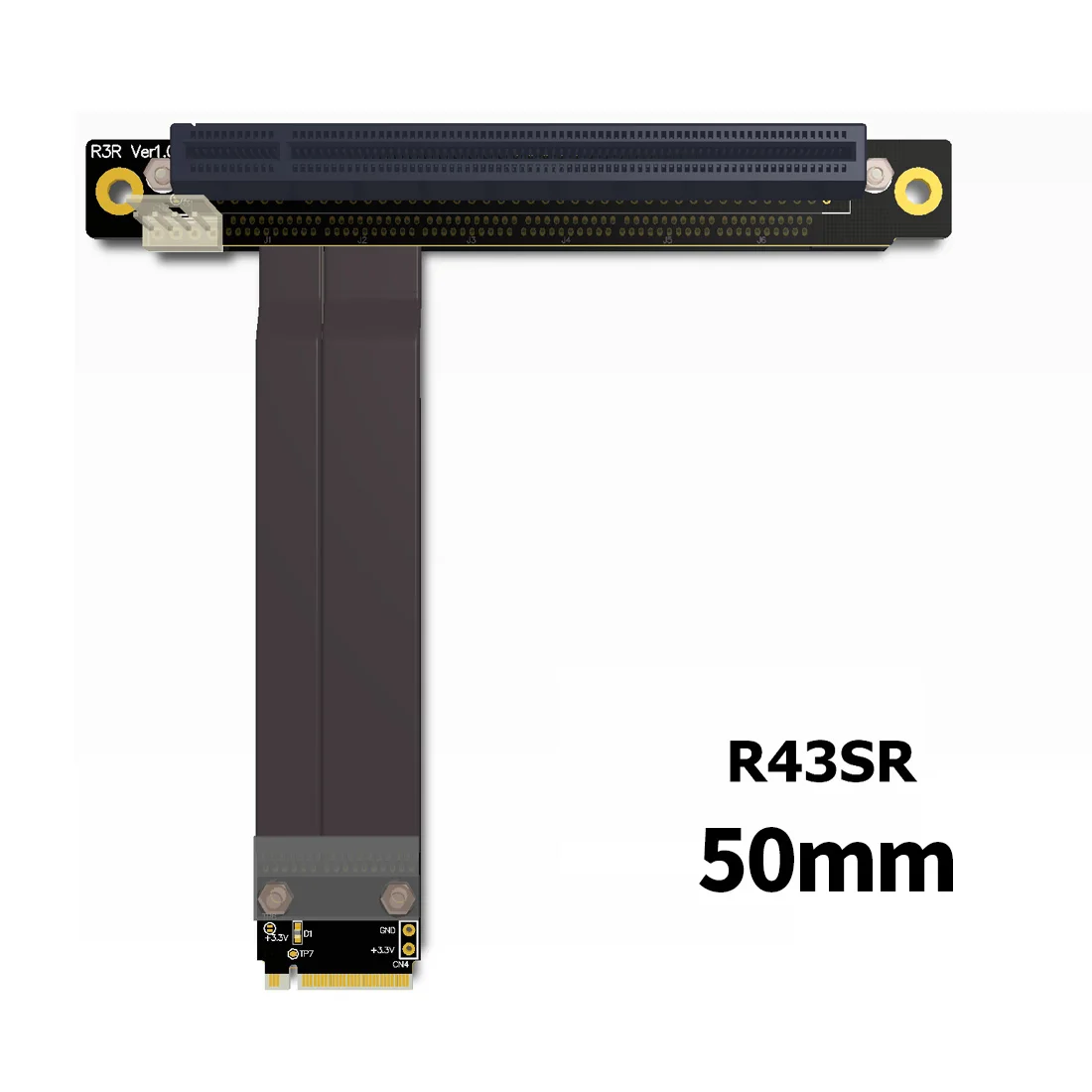

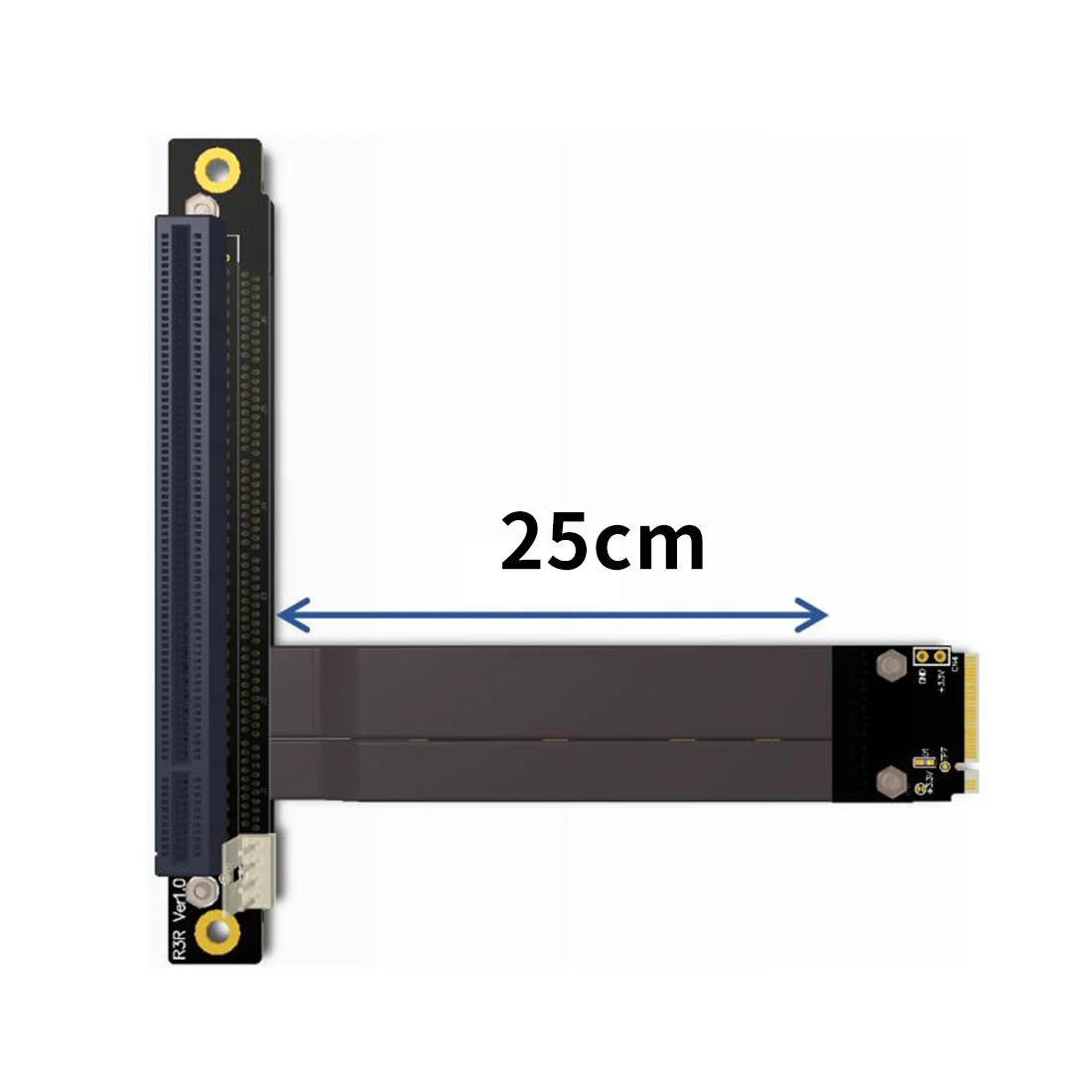

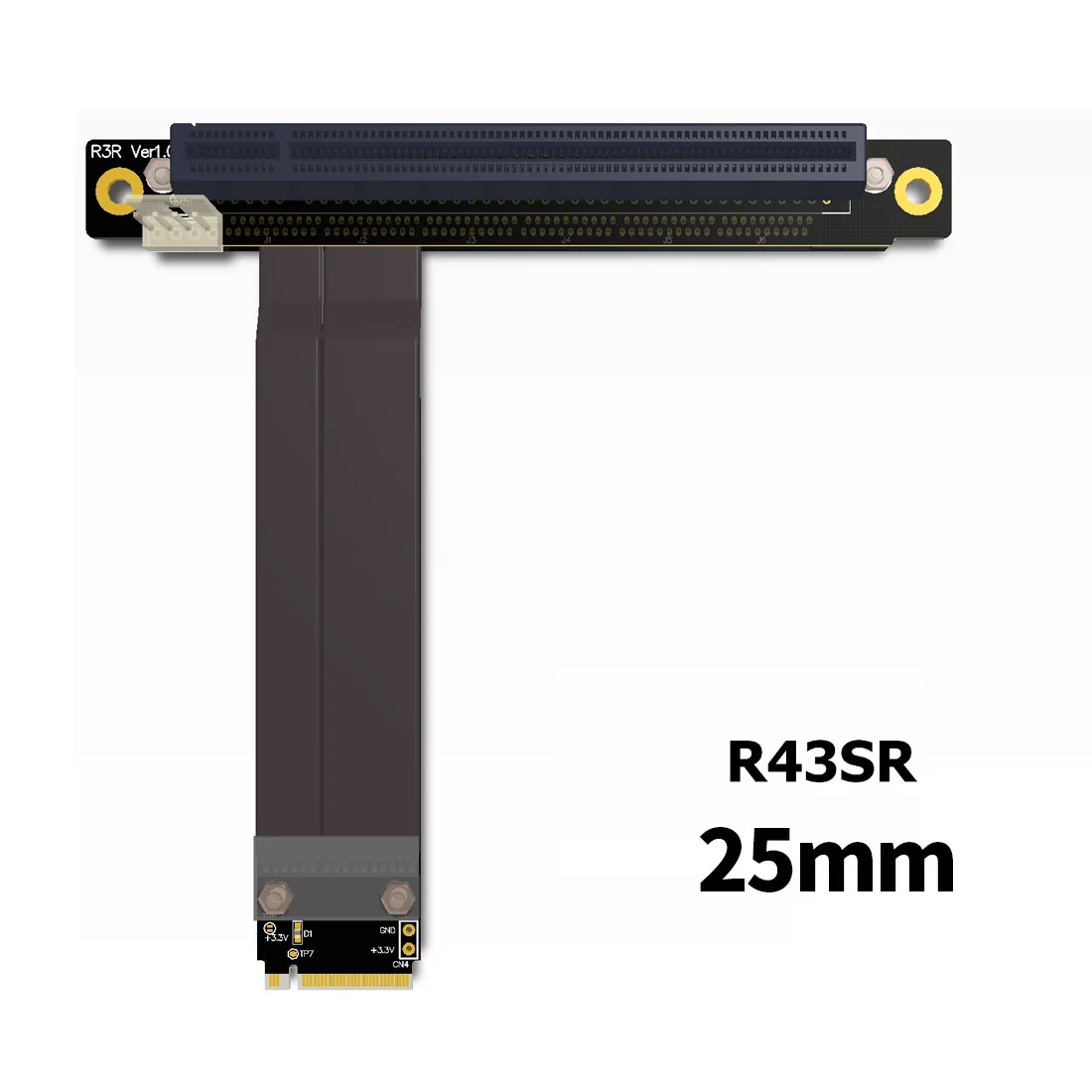

The following models for R43SR - 25 cm, refer to the below dimension.

Product advantage:

1. Wire advantages: using the German patent imported wire, using the Lotes connectors which imported from Taiwan, high frequency support PCIe 3.0 X16 8G/bps stable transfer.
2.Cable length: from 10 cm to 100 cm can be customized, our wire has a low impedance, the cable below 60cm can be stable at PCIe3.0 full speed reading and writing.
3.Differential signal without hole design, there is no problem of signal attenuation interference in a parasitic capacitance and parasitic inductance, there will be no more CAF micro short circuit, cable is durability.
4.PCB use high frequency low resistance of materials with high quality, PCB using high TG board, copper thickness thicken to 1oz, gold finger plating enough gold, Good conductive performance, can reduce oxidize higher impedance caused by the crash blue screen.

Purchase Notice:

1. You must identify the direction when you plug in this cable. Don’t reverse insert and bend, prevent burning equipment.

2. All kinds of Motherboard and equipment condition such as signal driving ability is different, the results of our test does not guarantee that it is the same as your test results. You need to know, as long as using a extension cable, the signal will have a loss. The buyer who requires perfectly, please don't buy.

3. The graphics card or motherboard is an electronic equipment which will increase over time and oxidative aging. It will become more unstable if plug in an extension cable. Does not support the old equipment. The device which is more than four years, please don't buy.

4. Only use for product testing, If other purposes or don't have DIY ability, please don't buy.

5. Only supports one gap M-key NVMe SSD, Don't support two gaps BM-key SATA SSD.
