CopyProduct Name | ADT-Link Laptop M.2 B Key to SD 4.0 Converter Board Support SD4.0 UHS-II Notebook WWAN 4G Slot to SD Network Card Adapter |
Item NO. | F49432 |
Weight | 0.019 kg = 0.0419 lb = 0.6702 oz |
Category | Computer Accessories |
Brand | ADT-Link |
Creation Time | 2023-01-28 |
ADT-Link Laptop M.2 B Key to SD 4.0 Converter Board Support SD4.0 UHS-II Notebook WWAN 4G Slot to SD Network Card Adapter
Product restrictions: This product is a special design, difficult to assemble, size compatibility restrictions, limited to professional engineers designated
for purchase. Please confirm your notebook space restrictions and product specifications before placing an order.
Purchase tips: Be sure to buy 1~2 samples before purchasing in bulk. This product is only an adapter board and does not include demonstration equipment such
as wireless network cards, hard disks, etc
This product is only an adapter board and does not include demonstration equipment such as SD cards.
Brand: ADT-Link

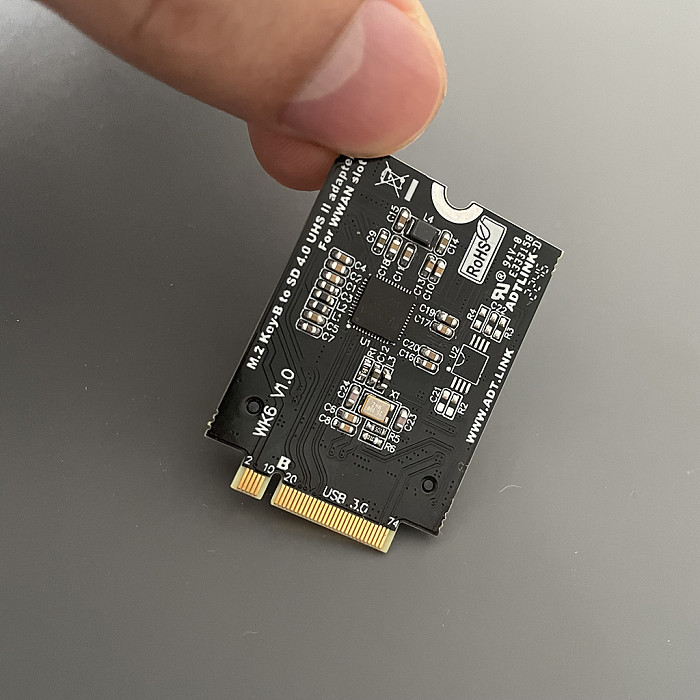

Product Model: WK6
Product name: M. 2 B-key WWAN 4G network card slot to SD 4.0 interface adapter board

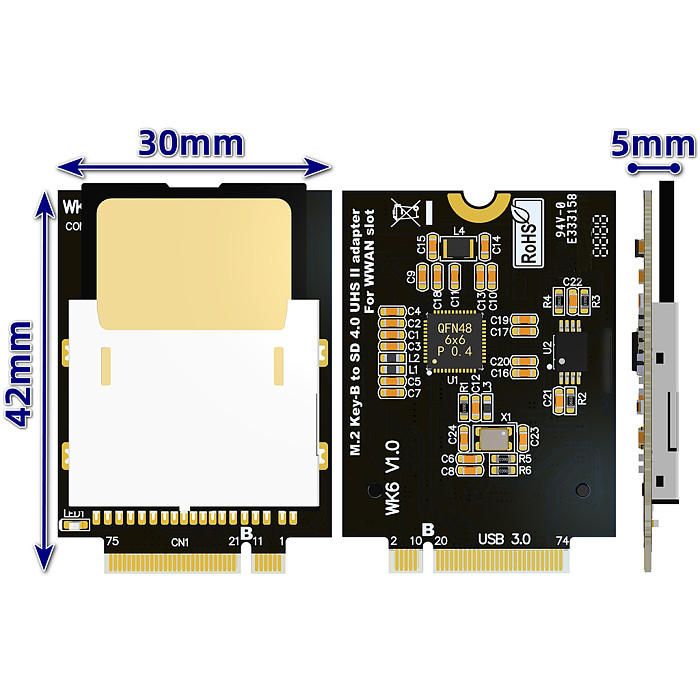

Specification: M. 2 B-key WWAN interface, size 30x42mm, adapter board supports SD 4.0 UHS-II
Applicable equipment: SD card
Product usage: it can convert the 4G network card slot that is not used in the notebook into an SD interface, this product is for transfer
Chip specification:
Genesys GL3232S
USB 3.2 GEN1 to SD 4.0
Memory Card Reader Controller
l USB specification compliance
- Comply with Universal Serial Bus 3. 1 Specification ( USB 3.1 GEN1)
- Comply with Universal Serial Bus Specification rev. 2.0 (USB 2.0)
- Comply with USB Mass Storage Class Specification rev. 1.0
- Support USB Mass Storage Class Bulk Only Transport (BOT)
- Support 1 device address and up to 3 endpoints: Control (0) / Bulk Data Read In (1) / Bulk Data Write Out (2)
- Support 5 Gbps SuperSpeed, 480 Mbps high speed, and 12 Mbps full speed transfer rates
l Integrated USB building blocks
- SuperSpeed US B/ USB 2.0 transceiver macro (UTM), Serial Interface Engine (SIE), and embedded P ower O n R eset (POR)
l Embedded high speed 8051 micro controller
l High efficien cy hardware DMA engine improves data transfer performance between USB and flash card interfaces
l Support Se cure Digital TM v1.0 / v1.1 / v2.0/ SDHC / SDXC c apacity up to 2TB)
l Support Secure Digital TM v 3.0 UHS I (Ultra High Speed): SDR12/SDR25/SDR50/DDR50/SDR104
l Support Secure Digital TM v 4.0 UHS II: Full Duplex Mode and Half Duplex Mode
l Support DDR200 speed mode to enhance the UHS-I performance
l Support SANDISK EXTREME® 160 MB/s microSD UHS-I CARD
l Support MultiMediaCard TM (MMC)
- MMC specification v3. x / v4.0 / v4.1 v4.2 / v4.3 / v4.4
- x1 / x4 bit data bus
l Support HUAWEI Nano Memory Card
l Support ISP (In System Programming) for firmware upgrade from the external SPI F lash via USB port
l On Chip power MOSFETs for supplying flash media card power
l On chip 5V to 3.3V and 3.3V to 1. 2 V regulator
l On chip 5V to 1.2V DC DC to improve power efficiency.
l Support Over Current protection mechanism
l Support USB 2.0 LPM (Link Power Management)
l Support USB 3.1 GEN1 LTM (Latency Tolerance Messaging)
l Support USB 3.1 GEN1 U1/U2/U3 low power link state
l Support La tency Tolerance Messaging
l Support remote wakeup funct ion
l Support Intel Power Optimizer
l Support Windows Connected Standby
l Support Spread Spectrum Clock for SD to reduce EMI effect
l Available in QFN48 pin package (6x6mm)
