(ADT Link) F9G OCuLink Interface External Graphics Card Docking Station ATX Type Open PCIe 4.0 64Gbps Extension Cable ADT-F4Q Item NO.: F53906-B1 F53906-B2 F53907

US$ 42.92 ~ US$ 47.69

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 47.69	US$ 45.31	US$ 42.92

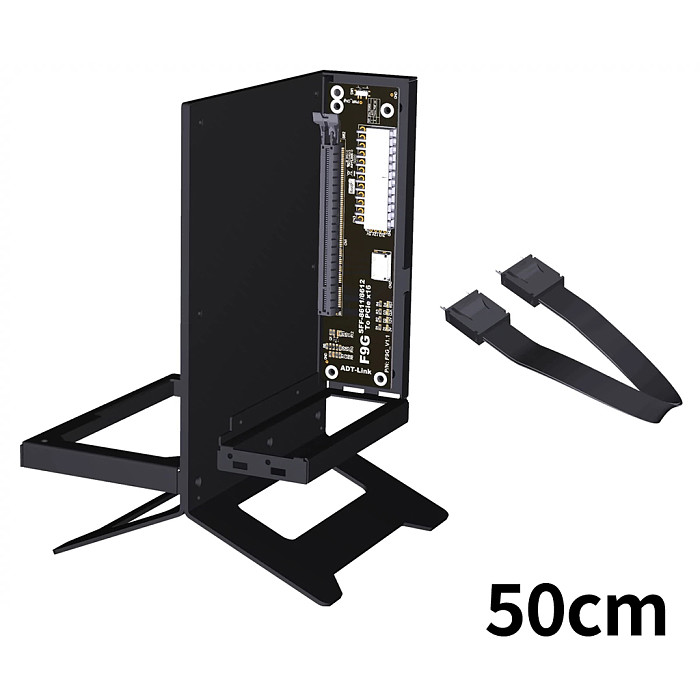

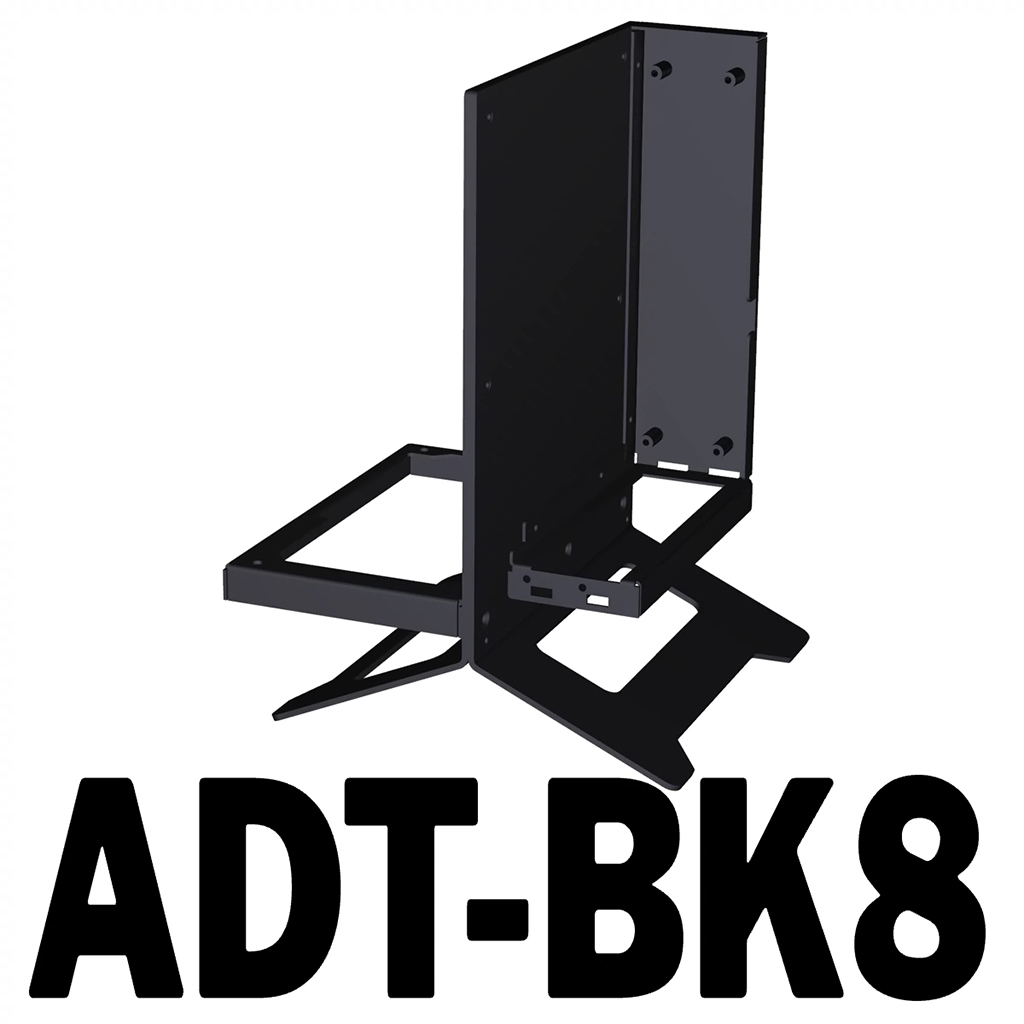

Version: F9G-BK8-F9934-25cm F9G-BK8-F9934-50cm ADT-F4Q Cable

Quantity: Stock ( 29999997 )

Estimate Shipping Cost

Product Name	(ADT Link) F9G OCuLink Interface External Graphics Card Docking Station ATX Type Open PCIe 4.0 64Gbps Extension Cable ADT-F4Q
Item NO.	F53906-B1 F53906-B2 F53907
Weight	2025 kg = 4464.3608 lb = 71429.7729 oz
Volume	1 CBM
Category	Computer Accessories
Brand	ADT-Link
Creation Time	2025-01-21

(ADT Link) F9G OCuLink Interface External Graphics Card Docking Station ATX Type Open PCIe 4.0 64Gbps Extension Cable ADT-F4Q

Brand: ADT Electronics

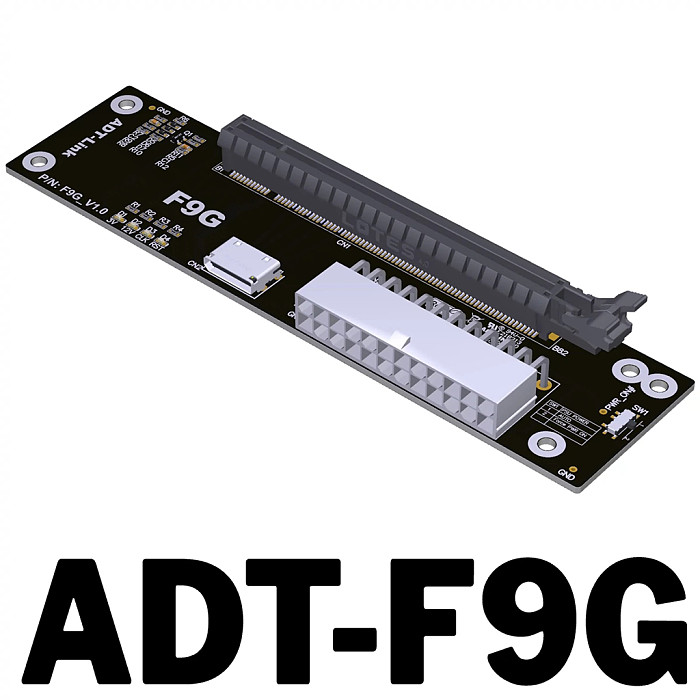

Product model: ADT-F4C、ADT-F4Q、ADT-F9G、F9G-BK
7-F9934

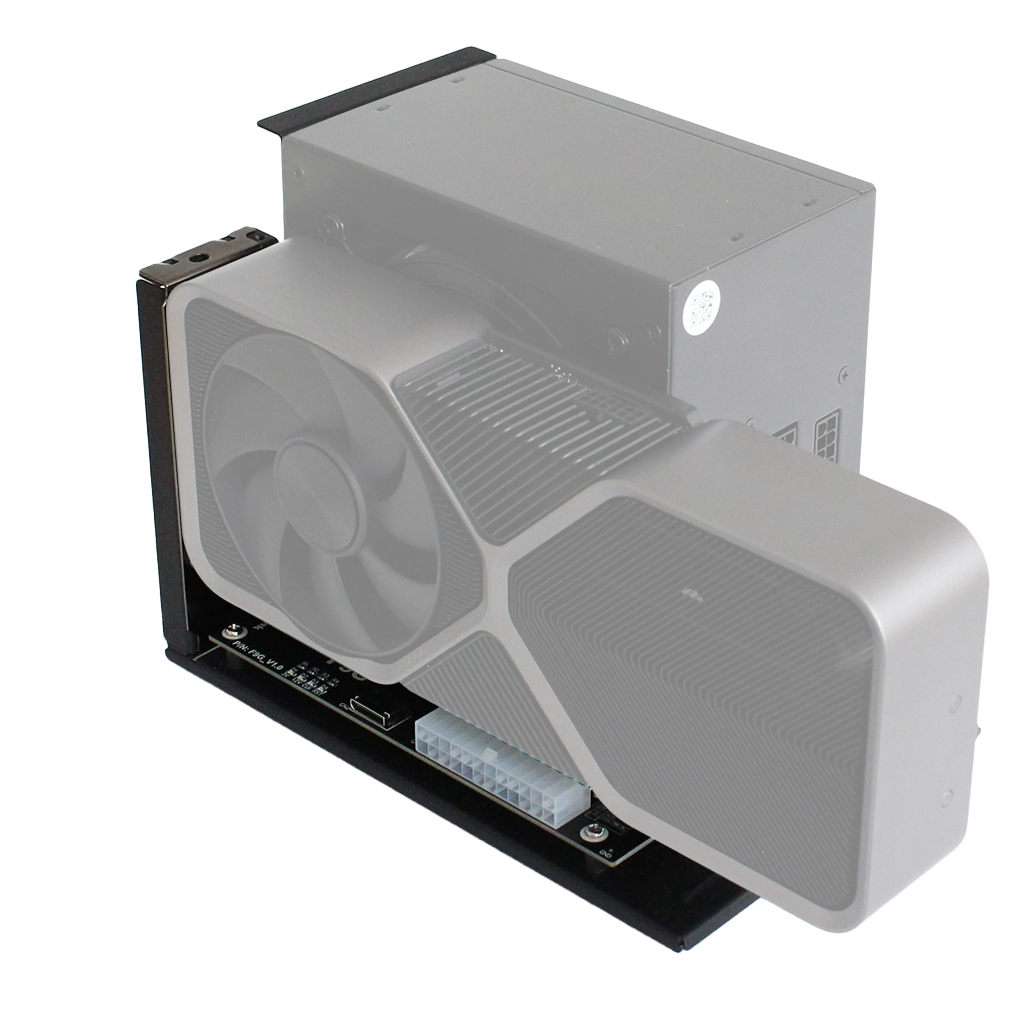

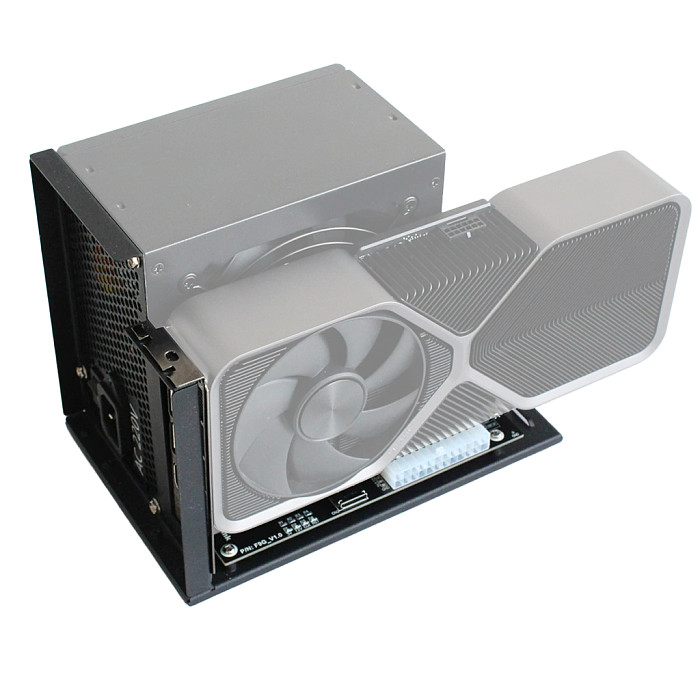

Product Name: OCuLink External Graphics Dock
Transmission speed: PCIe 4.0 x4， Effective bandwidth of 64Gbps
Product Usage: Used for external graphics cards or other PCIe devices

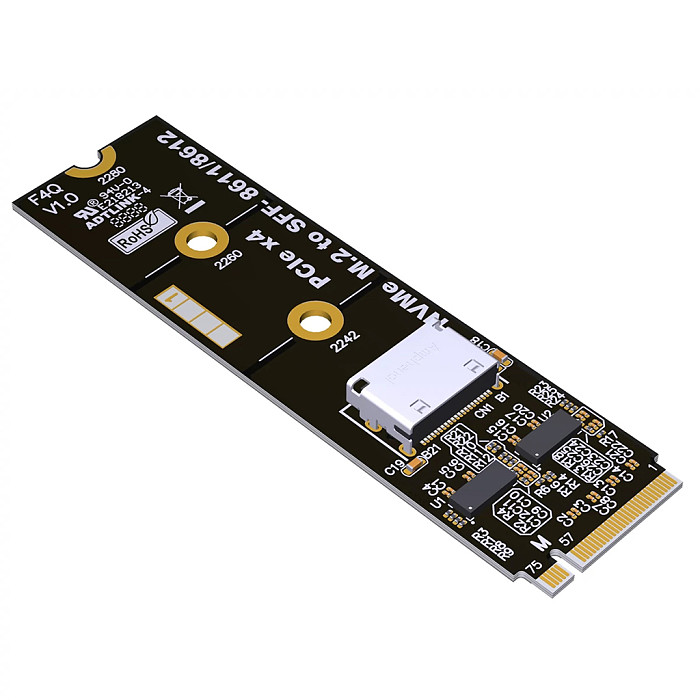

Product Description: OCuLink is plugged into a computer motherboard NVME solid-state drive
The interface transferred from the slot, NVME uses a pure PCIe channel, so OCuLin
The external graphics card dock also uses PCIe channels, resulting in minimal performance loss. Compared to transmission
Unified Thunderbolt Switching Solution, OCuLink's Performance in PCIe 4.0 x4
The effective bandwidth can reach 64Gbps, far exceeding the lightning scheme.
Friendly reminder: OCuLink does not support hot swapping
Power Description: Supports standard ATX 500W or above power supply, The power supply needs to be prepared by yourselves
Connector specifications:
 Support cable to board application
 Small size design: pitch 0.5mm connector
 Excellent SI performance: signal rates up to PCIe4 16GT/s and SAS 4.0 24Gbps
 Supports 85 ohm impedance applications, ten0 ohm is available on request
 RoHS compliant. Halogen free is available on request
