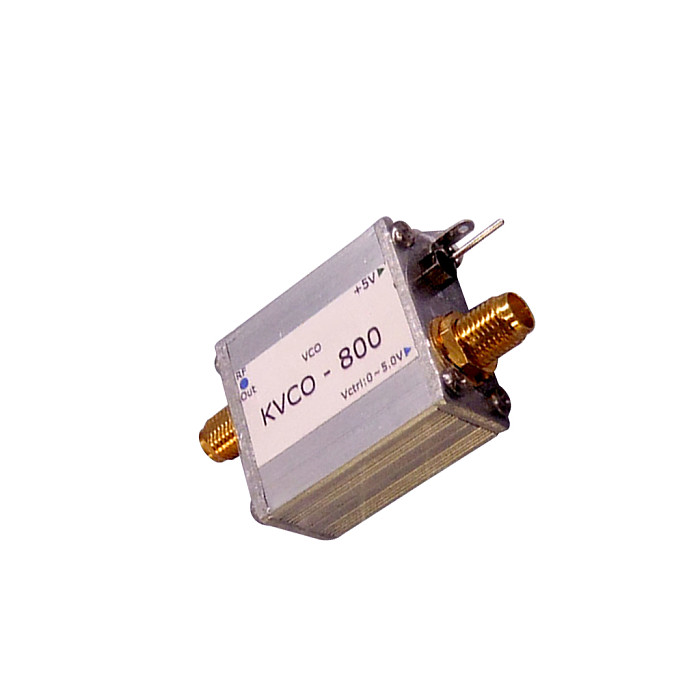

750-900MHz RF Microwave Voltage Controlled Oscillator VCO Available for Sweeping Signal Source SMA Interface Item NO.: F49804- F49806

US$ 27.87

Style

Quantity: Stock ( 29999997 )

Product Name	750-900MHz RF Microwave Voltage Controlled Oscillator VCO Available for Sweeping Signal Source SMA Interface
Item NO.	F49804- F49806
Weight	0.04 kg = 0.0882 lb = 1.4110 oz
Category	Consumer Electronics
Creation Time	2023-04-11

750-900MHz RF Microwave Voltage Controlled Oscillator VCO Available for Sweeping Signal Source SMA Interface

Model: KVCO-600
Output impedance: 50 Ohms
Output signal frequency: 550 ~ 750 MHz
Output signal power: 7.0 ~ 11.0 dBm
Tuning voltage range: 0.5 ~ 5.0 V
Phase noise ( C / N ): @100 KHz ≦ - 100 dBc/Hz
High harmonics: >= 15 dBc (second), > 20 dBc (third and higher)
Supply voltage: +5 V.DC
Operating current: 15 to 20 mA
Reference data (control voltage-output frequency, non-exact values)
1V: 536 MHz
2V: 602 MHz
4V: 730 MHz
*Control voltage should not be lower than 0.5V

Interface:
RF Out RF signal output ①：SMA-F
Vctrl control voltage input ②：SMA-F
+5V power supply terminal ③: 0.8mm feedthrough capacitor lead
