Copy| Product Name | 7/8/9/10/13 inch Carbon Fibre X-Frame 5mm/7mm Thickness Arm Quick Release Rack for RC FPV Racing Drone Quadcopter Spare Parts |
| Item NO. | F53224 F53225 F53226 F53227 F53228 |
| Weight | 0.29 kg = 0.6393 lb = 10.2294 oz |
| Category | DIY RC Drone Accessories > Frame |
| Creation Time | 2024-10-15 |
7/8/9/10/13 inch Carbon Fibre X-Frame 5mm/7mm Thickness Arm Quick Release Rack for RC FPV Racing Drone Quadcopter Spare Parts
7inch frame:
Frame parameters
Material: carbon fibre
Rack type:Quick release X-type
Wheelbase:295mm
Propeller:7040
Size: 7 inch frame
Weight:143g
Thickness of bottom/centre plate:3.5mm
Thickness of top plate:2.5
Arm Thickness:5mm
Camera mounting pitch:20mm
Mapping mounting hole spacing:25.5mm
Flight Control Mounting Pitch:30.5mm
Recommended Configuration:
Flight Control:F405
Motor:2807
ESC: 50A 4-in-1
8inch frame:
Frame parameters
Material: carbon fibre
Rack type:Quick release X-type
Wheelbase:330mm
Propeller:8040
Size:8 inch frame
Weight:177g
Thickness of bottom/centre plate:3.5mm
Thickness of top plate:2.5
Arm Thickness:5mm
Camera mounting pitch:20mm
Mapping mounting hole spacing:25.5mm
Flight Control Mounting Pitch:30.5mm
Recommended Configuration:
Flight Control:F405
Motor:2812
ESC: 50A 4-in-1

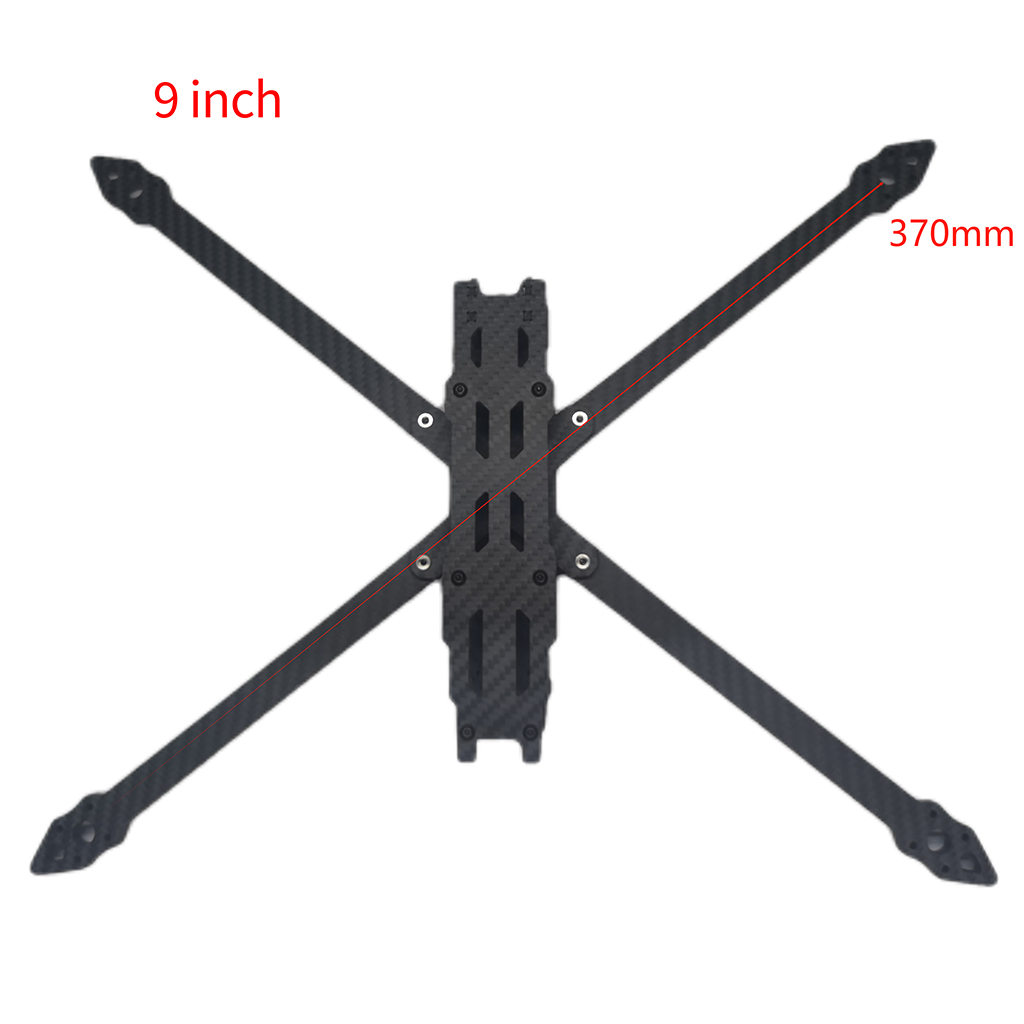

9inch frame:
Frame parameters
Material: carbon fibre
Rack type:Quick release X-type
Wheelbase:370mm
Propeller:9045
Size:9 inch Rack
Weight:217g
Thickness of bottom/centre plate:3.5mm
Thickness of top plate:2.5
Arm Thickness:7mm
Camera mounting pitch:20mm
Mapping mounting hole spacing:25.5mm
Flight Control Mounting Pitch:30.5mm
Recommended Configuration:
Flight Control:F405
Motor:3110
ESC: 50A 4-in-1
10inch frame:
Frame parameters
Material: carbon fibre
Rack Type:Quick Release
Wheelbase:410mm
Propeller:1050
Size:10 inch Rack
Weight:242g
Thickness of bottom/centre plate:3.5mm
Thickness of top plate:2.5
Arm Thickness:7mm
Camera mounting pitch:20mm
Mapping mounting hole spacing:25.5mm
Flight Control Mounting Pitch:30.5mm
Recommended Configuration:
Flight Control:F405
Motor:3115
ESC: 50A 4-in-1
13inch frame:
Frame parameters
Material: carbon fibre
Rack Type:Square Tube Quick Release
Wheelbase:530mm
Propeller: 1308
Size:13 inch Rack
Weight:726g
Thickness of bottom/centre plate:3.5mm
Thickness of top plate:3.0mm
Arm thickness:250*250 square tube
Camera mounting pitch:20mm
Mapping mounting hole spacing:25.5mm
Flight Control Mounting Pitch:30.5mm
Recommended Configuration:
Flight Control:F405
Motor:4220
ESC: 80A 4-in-1
