4pcs 20A 2~4S LiPo Speed Controller Brushless ESC for QAV 210 215 RC Drone Quadcopter Item NO.: F21266-4

Name: 4pcs 20A 2~4S LiPo Speed Controller Brushless ESC for QAV 210 215 RC Drone Quadcopter
Brand: XT-XINTE
SKU: F21266-4
Price: 19.55 USD
Availability: SoldOut
Rating: 5 (1 reviews)

5.0

(1)

Write a Review Sold (1)

US$ 19.55

US$ 23.00 Save US$ 3.45 (15% Off)

Sold Out

Product Name	4pcs 20A 2~4S LiPo Speed Controller Brushless ESC for QAV 210 215 RC Drone Quadcopter
Item NO.	F21266-4
Weight	0.06 kg = 0.1323 lb = 2.1164 oz
Category	DIY RC Drone Accessories > ESC
Brand	XT-XINTE
Creation Time	2017-07-25

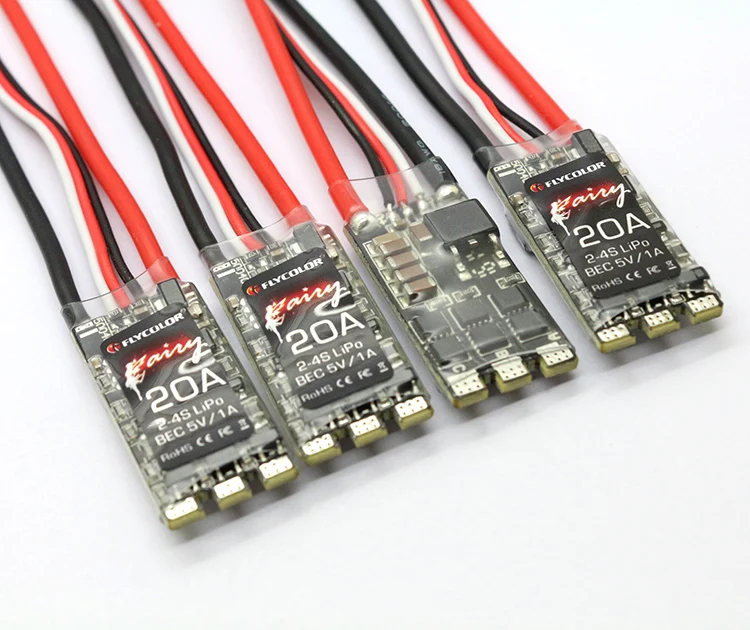

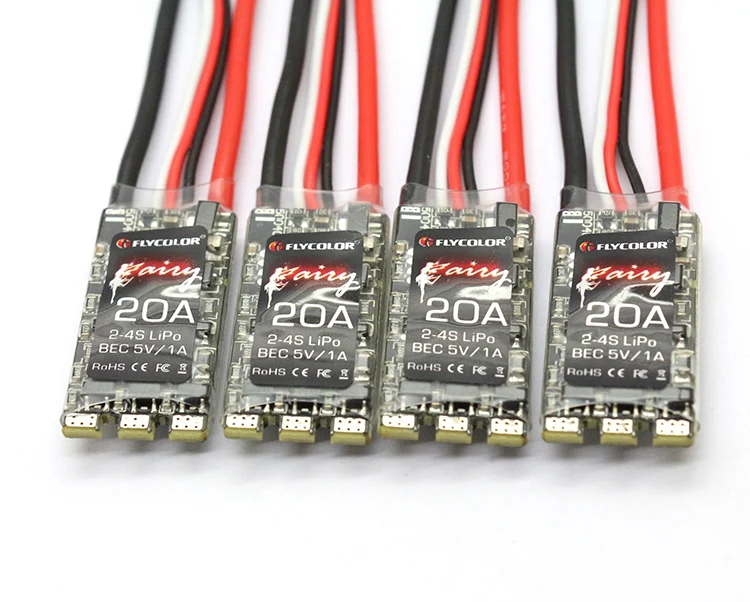

4pcs 20A 2~4S LiPo Speed Controller Brushless ESC for QAV 210 215 RC Drone Quadcopter

Product description:

1, Using powerful F850 MCU.

2, Chip capacitor takes replace the electrolytic capacitor, making the ESC smaller, lighter.

3, Employing the frequency conversion technology to drive MOSFET, higher performance,lighter.

4, First built-in BEC mini electric, comes with 5V / 1A BEC.

5, The electric power is automatically detected throttle signal, support ordinary throttle mode, 1-2ms pulse width input, support oneshot125 (125-250us).

6, Support Damped light mode, the mode, can significantly improve the corresponding speed of the throttle, throttle from large to small changes, the motor deceleration corresponding faster. Multi-rotor stability and continuity are significantly increased.

7, A variety of parameters can be set, the default settings can meet the needs of most models and scenes.

8, The use of BLHeli open source, you can easily adjust the parameters through the signal line and upgrade procedures.

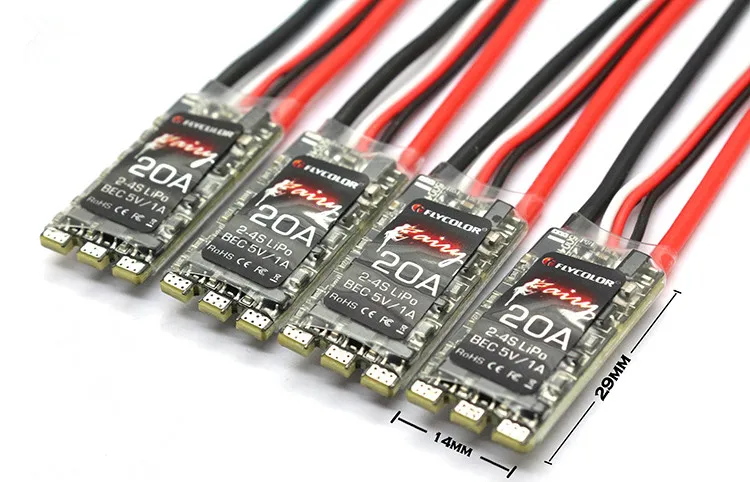

Size: 29mm × 14mm × 5mm

Weight: 6.8g

Constant current: 20A

Peak current: 30A

BEC: 5V / 1A

Typical applications: 170-330 multi-rotor FPV Racer

No comment

2019-05-02

Le****as

So far so good. have a flew flights on them and they seem to be working fine.
flight with them on 1806 2300kv motors on 4s

https://www.youtube.com/watch?v=VJUJEi5_bEs&t=88s
