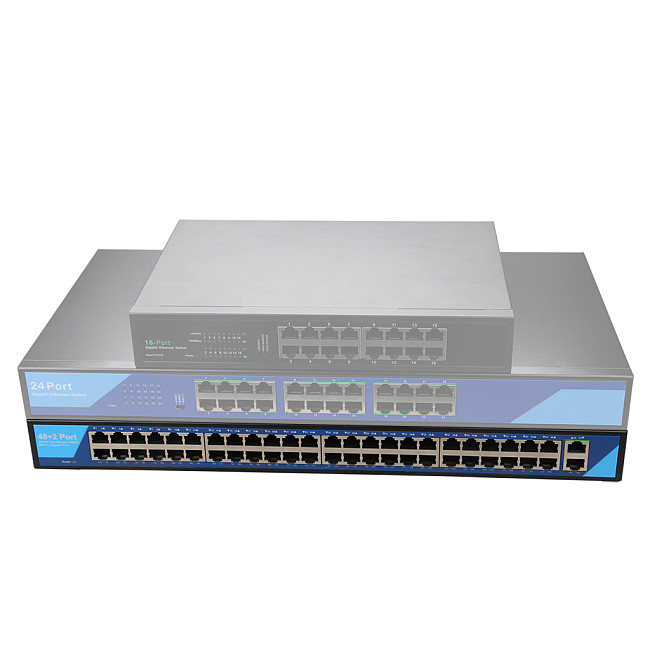

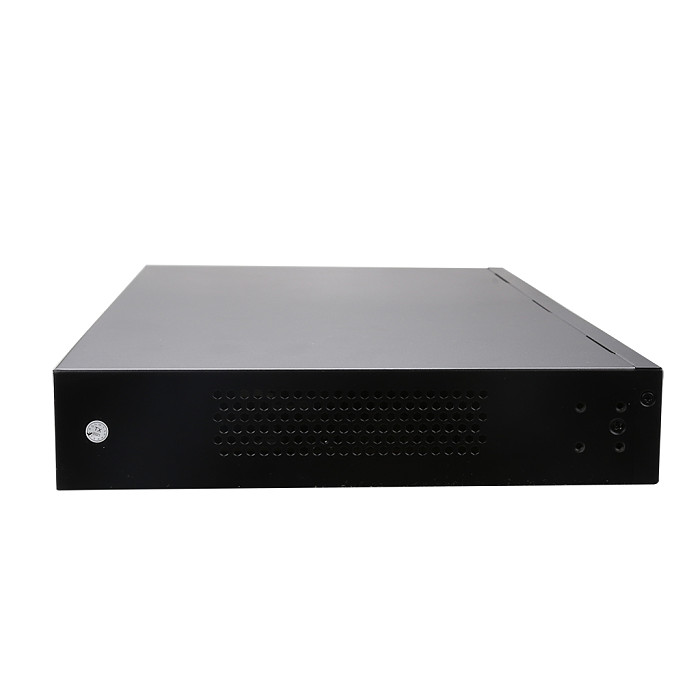

48-port 10/100Mbps+2-port Gigabit Unmanaged Switch RJ45 port Auto MDI/MDIX 10/100/1000Mbps Switch Support IEEE802.3x IEEE 802.3u
-
Detail
- Product Name: 48-port 10/100Mbps+2-port Gigabit Unmanaged Switch RJ45 port Auto MDI/MDIX 10/100/1000Mbps Switch Support IEEE802.3x IEEE 802.3u
- Item NO.: F51064
- Weight: 3.135 kg = 6.9115 lb = 110.5839 oz
- Volume: 1 CBM
- Category: Computer Accessories
- Creation Time: 2023-10-24
48-port 10/100Mbps+2-port Gigabit Unmanaged Switch RJ45 port Auto MDI/MDIX 10/100/1000Mbps Switch Support IEEE802.3x IEEE 802.3u
Product Overview.
This product is a 100Gbps unmanaged switch, providing 48x10/100MbpsRJ45 adaptive ports of two 1000Mbps ports,
supporting all ports line speed forwarding. It supports IEEE802.3x full-duplex flow control function and
half-duplex backpressure flow control function. Adopts store-and-forward mode with
powerful bandwidth processing capability and provides high-capacity cache to effectively
reduce data forwarding delay, improve forwarding efficiency and avoid data packet loss.
Supports MDI/MDIX port auto-flip, MAC address auto-learning and updating, full/half-duplex self-negotiation,
10/100M adaptive function.
Product Features.
complies with IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x Ethernet standards;
48 10/100Mbps adaptive RJ45 ports with auto-reversal support (Auto MDI/MDIX);
2 independent 1000Mbps ports, which ensures that the portscan easily cope with bursts of high traffic, guaranteeing unimpeded channel flow;
supports IEEE802.3x full-duplex flow control function and half-duplex backpressure flow control function;
16K auto-learning and auto-aging MAC addresses;
easy-to-understand LEDs indicate port link, data transmission
built-in power supply, compact iron shell structure design, suitable for desktop as well as cabinet installation use.
Hardware Specifications:
Product Name:TXE254
Chip:IP1829A*2+IP1001C*2
Supported Standards and Protocols IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x.
Interface :48 10/100Mbps adaptive RJ45 ports (Auto MDI/MDIX)
2 10/100/1000Mbps adaptive RJ45 ports (Auto MDI/MDIX)
Network Media.
10Base-T: Category 3 or higher UTP
100Base-TX: Category 5 UTP and above
1000Base-T: Category 5 or above UTP
1000Base-X
Transmission method: store-and-forward
MAC address capacity :16K
Switching Capacity: 10.4Gbps
Packet Forwarding Rate :6.54Mpps
Indicator Lights
Power per unit
Link/Act (green) per port
Power supply :AC 100-240V/50-60Hz
Operating Environment:
Operating Temperature : 0ºC to 40ºC
Storage temperature: -40ºC to 70ºC
Operating humidity: 10% to 90% RH non-condensing
Storage humidity: 5% to 90% RH non-condensing
